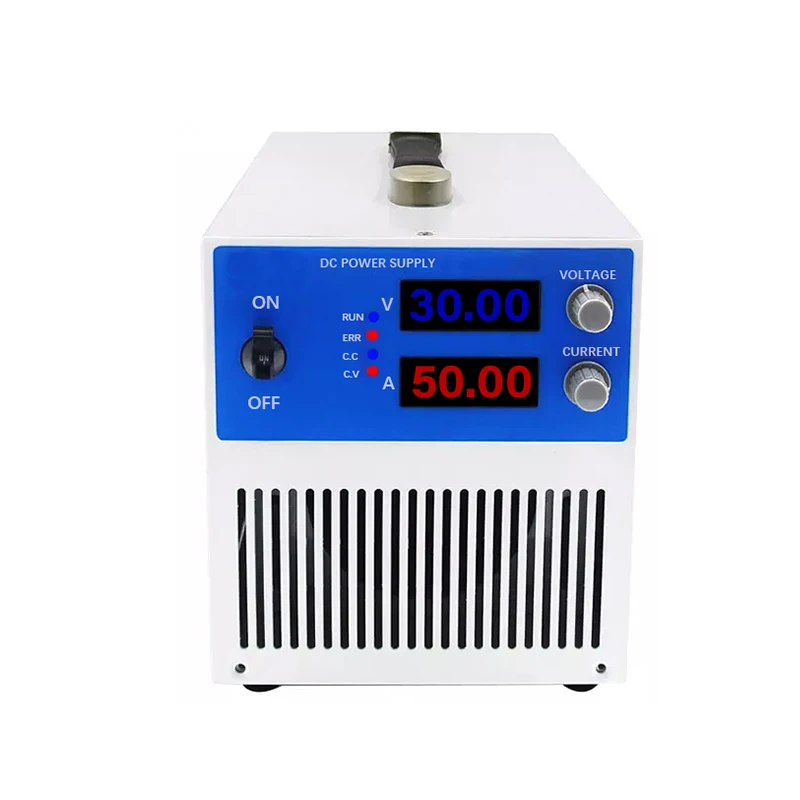

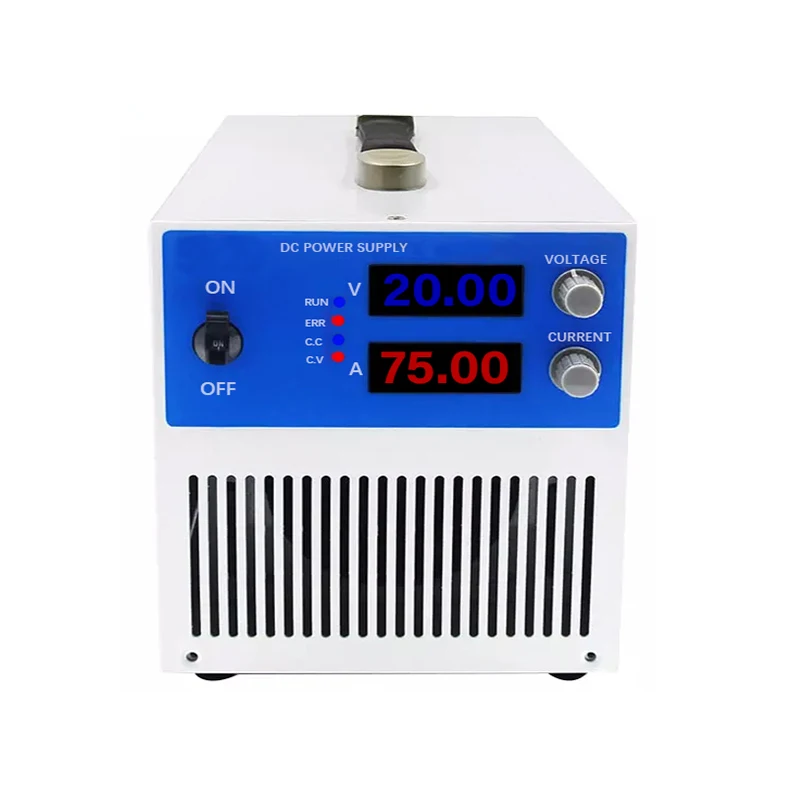

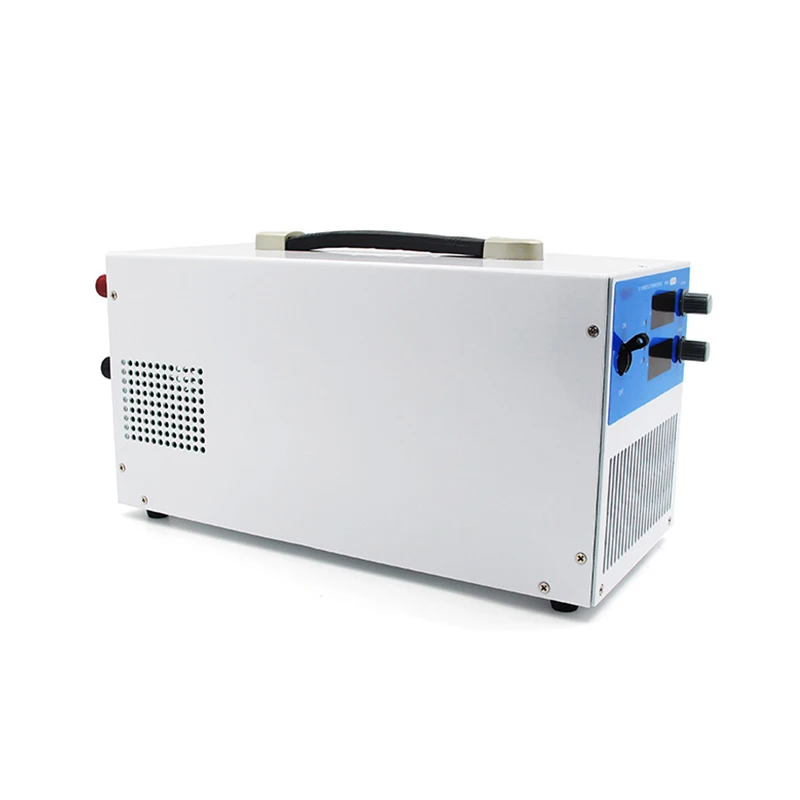

Переменная источник питания постоянного тока AC 220v 50/60HZ Регулируемый dc 150v 10a 1500W

1

Small size and light weight are suitable for work surface use and rack installation.

2

Using PWM modulation, the consumed power of the crystal module is low, has high efficiency, and has more power. Well-designed electronic technology circuit, forced air cooling, and heat treatment, with a very low-temperature coefficient.

3

Low noise and low ripple.

4

Using high gain amplifier circuit design, with good fast response characteristics.

5

Using a 4-bit high sampling rate, high-resolution voltage, and current digital display meter.

6

Built-in O.V.P. over-voltage protection circuit and O.T.P. over-temperature protection circuit, the protection function is perfect and reliable.

7

This dc power supply is designed with a load terminal voltage detection terminal, which has the function of accurately reading th voltage of the load terminal and performing precise control.

Brand

IDEALPLUSING

Model

IPS-ATD15010

AC Input

Single phases 220VAC

Input Voltage Range

220VAC±10%

Input frequency

50Hz/60Hz

Output voltage

0~150VDC

Output current

0~10A

Output Power

1500W

Voltage Stabilization

≤0.3%+10mV

Load Stabilization

≤0.5%+30mV

Ripples and Noises

≤0.5%+10mVrms

Voltage Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Display Format

0.000V-9.999V;  0.00V-99.99V;  0.0V-999.9V

Current Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Remote Adjustment

(Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC

Remote Display

(Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC

Output Over Voltage Protection

Built-in O.V.P. protection, protection limited value is rated +5%

Output Over Load Protection

Overload, current limit, constant current output

Over Temperature Protection

Built-in O.T.P. protection, Protection value 85℃±5%  heat sink temperature

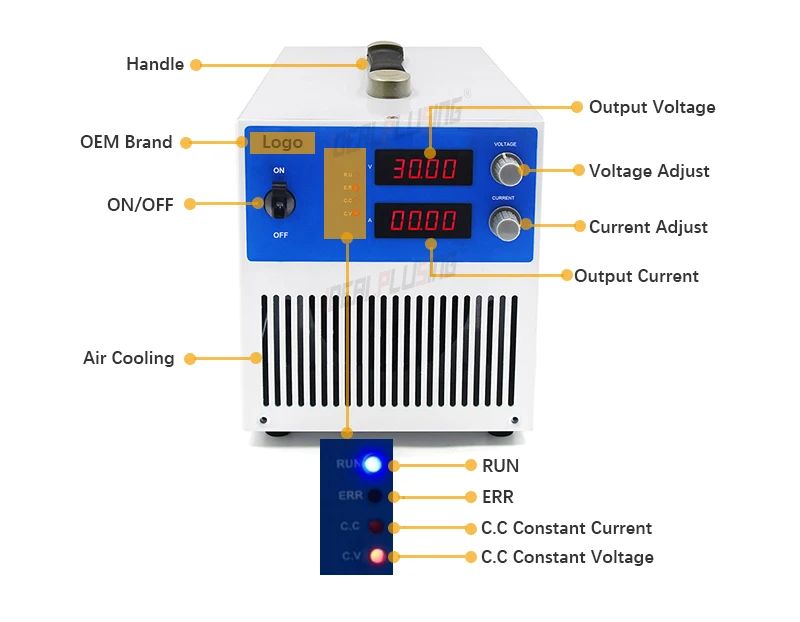

Voltage Setting

10-turn precision potentiometer

Current Setting

10-turn precision potentiometer

Output Polarity

Output Positive(+) negative(- ) Can be grounded at will

Heat Dissipation Way

Forced fan cooling

Work Conditions

Indoor use design,Temperature:0℃~40℃; Humidity: 10%~85%RH

Storage Conditions

Temperature:-20℃~70℃;Humidity: 10%~90%RH

Machine Dimension

L155*W380*H176(MM)

Net/Gross Weight

7.5KG/8KG
