ZX6350ZB Three Axis DRO Drilling Milling Machine

ZX6350ZB drilling and milling machine can realize functions of vertical and horizontal milling. This model is with X, Y two axis mechanical automatic feeding, Z axis motor lift. The vertical milling head can both swivel 45 degrees from left to right side.

Pamrameters
\t
Model  NO
\t
ZX6350ZB
\t
Spindle taper
\t
ISO40(V) ISO40(H)
\t
Max.drilling diameter
\t
50mm. 30mm
\t
Distance from spindle to table
\t
100-480mm
\t
Distance from horizontal spindle to table
\t
0-380mm
\t
Distance from spindle to column
\t
200-580mm
\t
Spindle speeds
\t
(8)90-2000r.p.m.(V) (12)40-1300r.p.m(H)
\t
Spindle travel
\t
120mm
\t
Feeding of quill
\t
(3steps)0.04 0.08 0.15
\t
Max drilling capacity of auto-feeding
\t
14mm
\t
Head movement(left/right)
\t
45 degrees
\t
Table size
\t
1370x320mm
\t
Table travel(horizontal/cross/vertical)
\t
800x320x380mm
\t
Feeding range of longitudinal cross travel
\t
(8)40-605mm/min
\t
X,Y-axis rapid feed speed
\t
870mm/min
\t
Z-axis rapid feed speed
\t
 (8) 20-280/480(max)
\t
Z-axis motor power
\t
750W
\t
T-slot number /width/distance
\t
3/14mm/70mm
\t
Horse power for main motor
\t
2.2KW/2.2KW
\t
X,Y axis driving motor
\t
750W
\t
Overall dimension
\t
1750x1650x2250mm
\t
N.W./G.W.
\t
1650/1780kg
Detailed Images

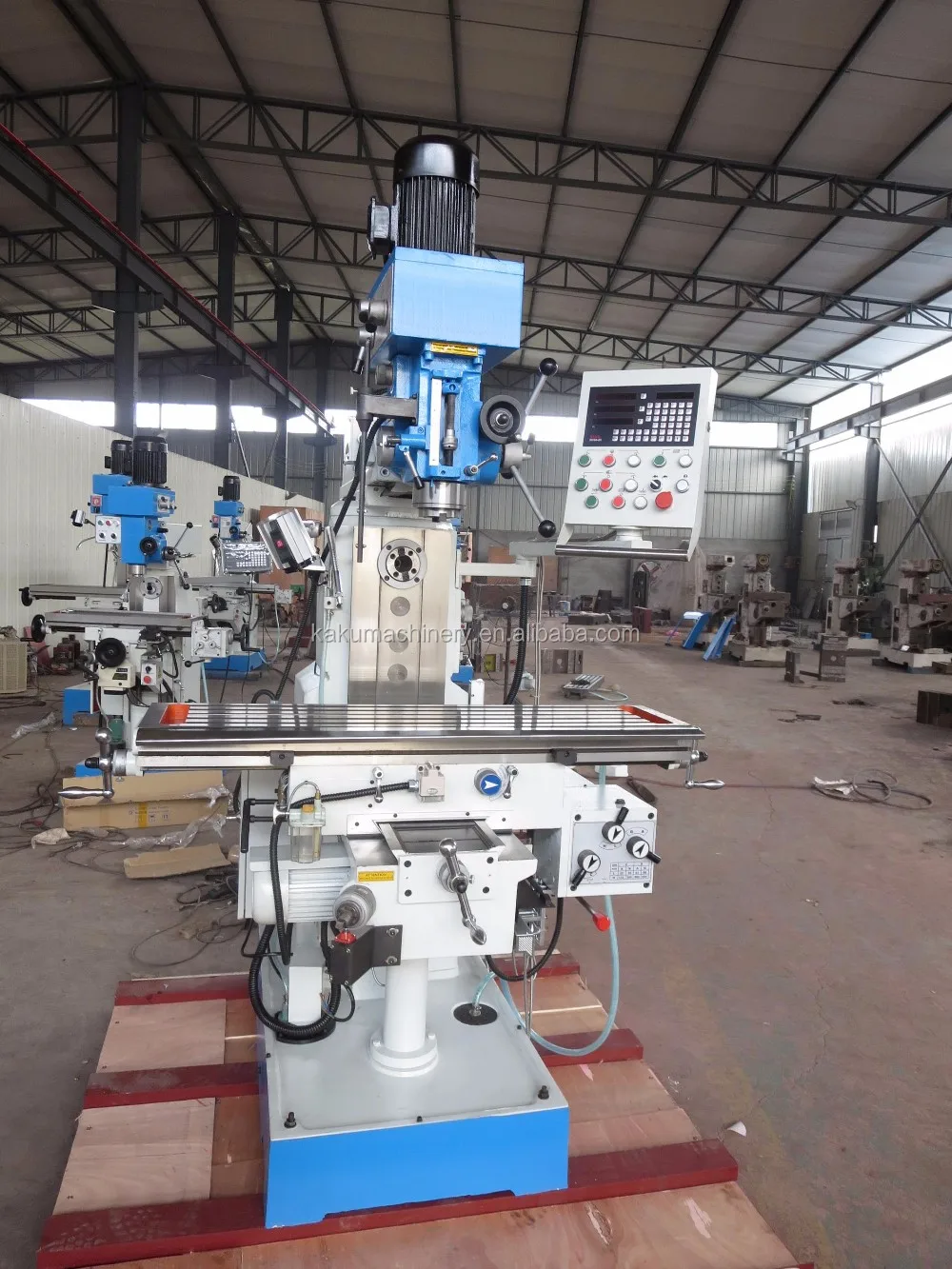

Whole machine ready for packaging.

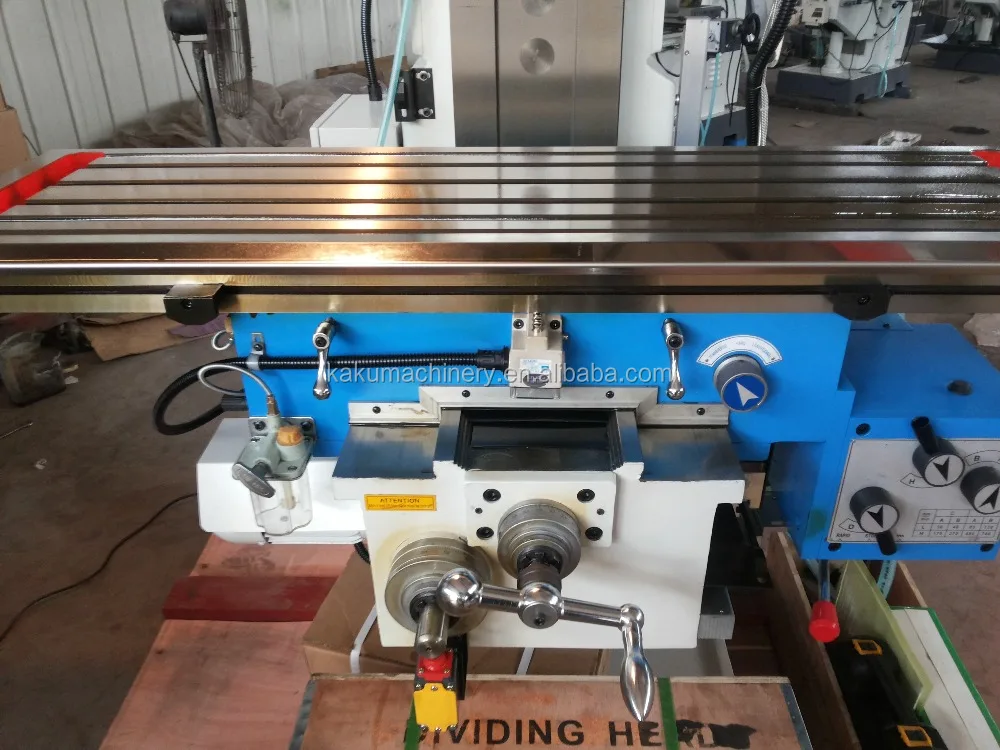

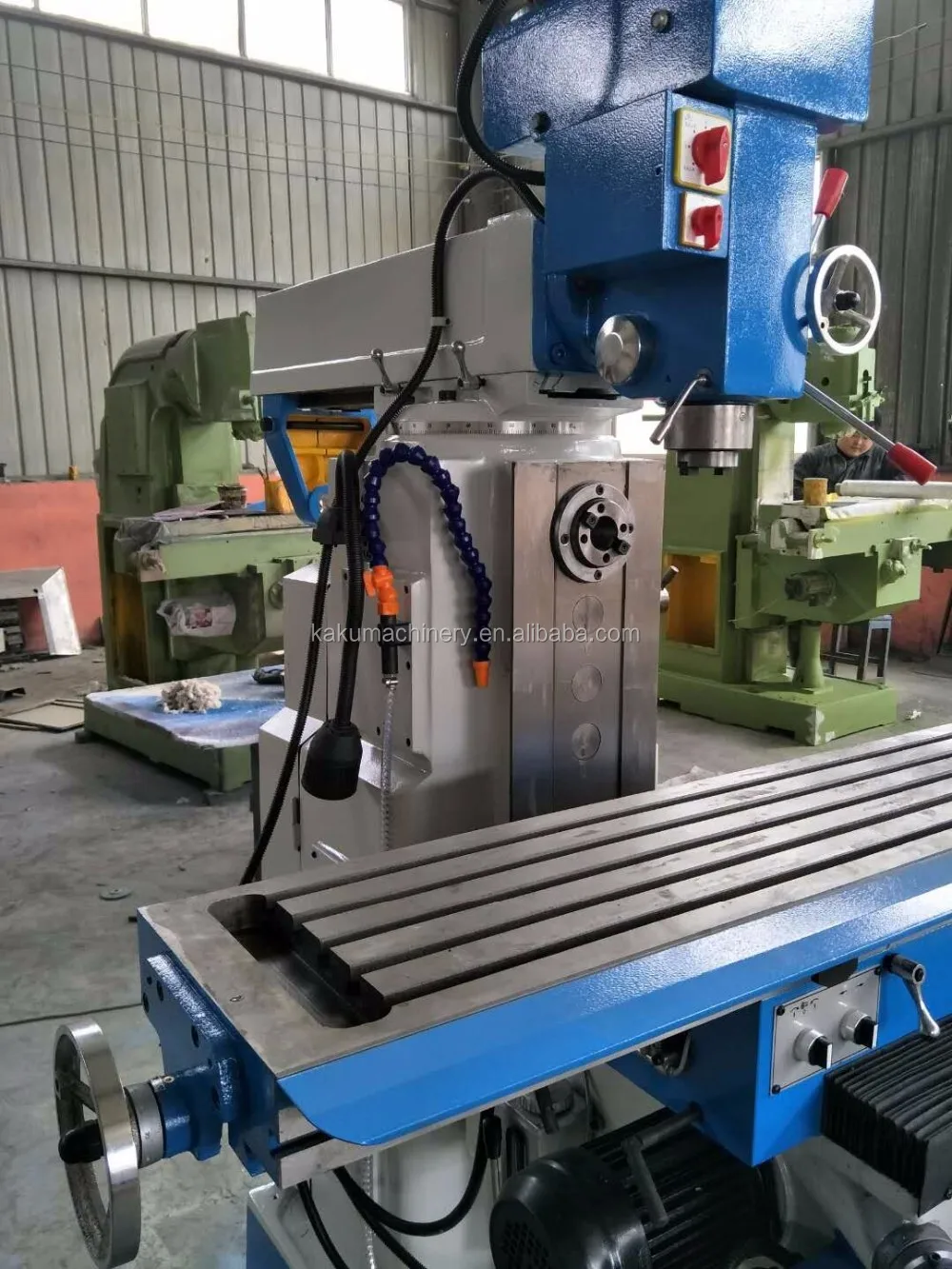

Working table of ZX6350ZB drilling milling machine.


Lift motor of ZX6350ZB drilling milling machine.

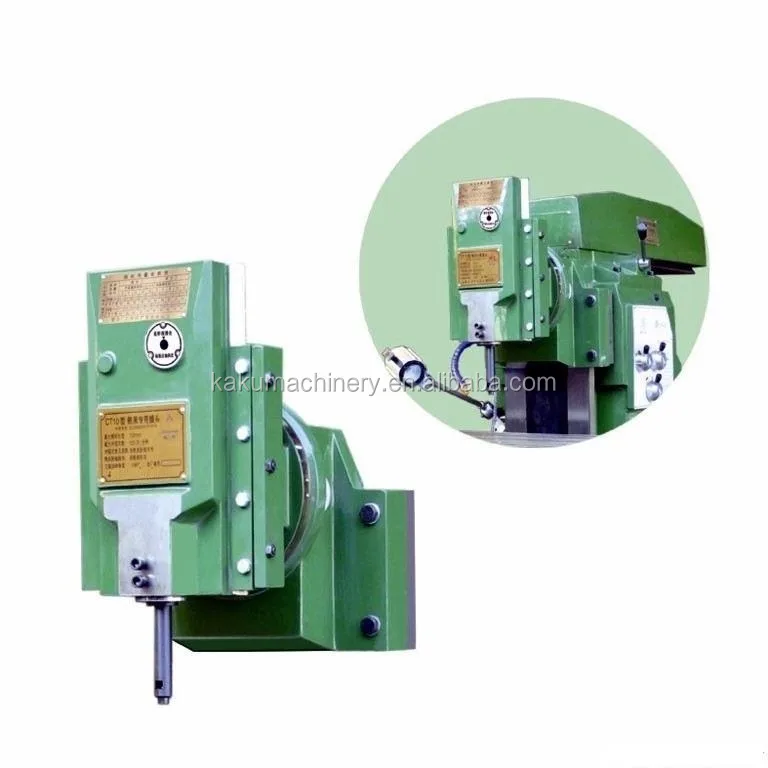

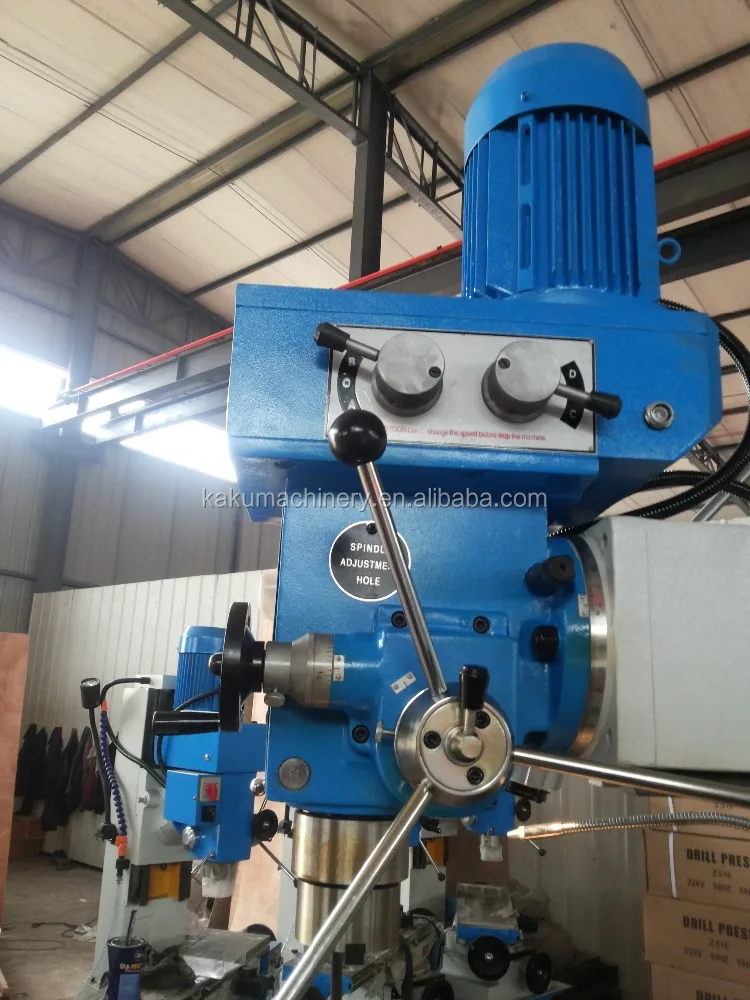

Milling head which can rotate 45 degrees from left side to rite side.

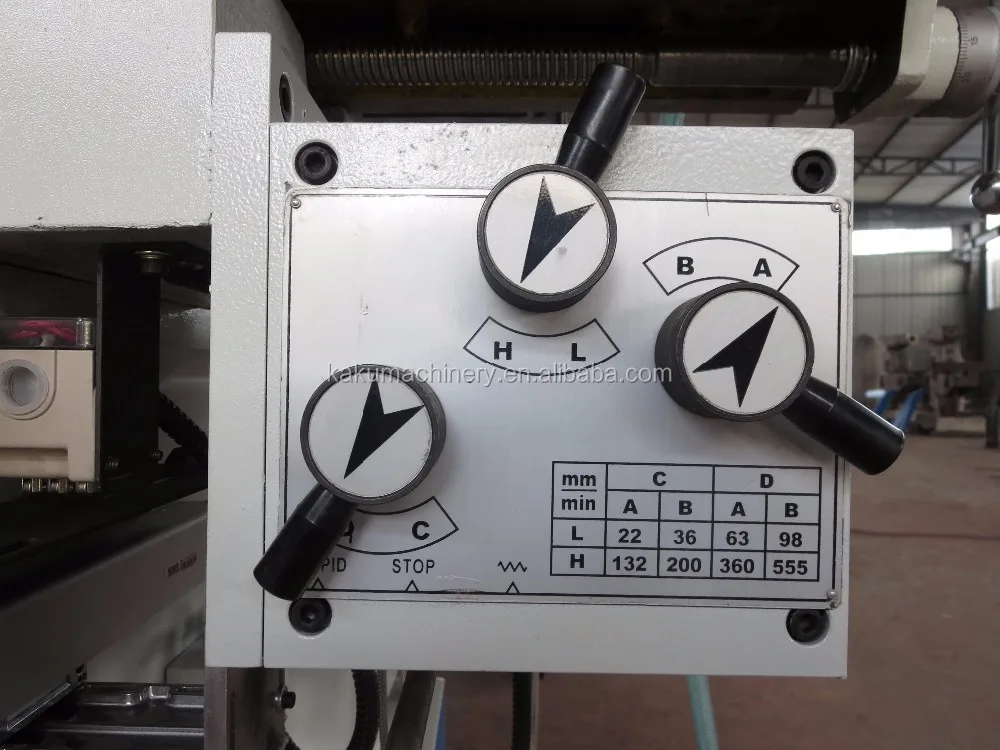

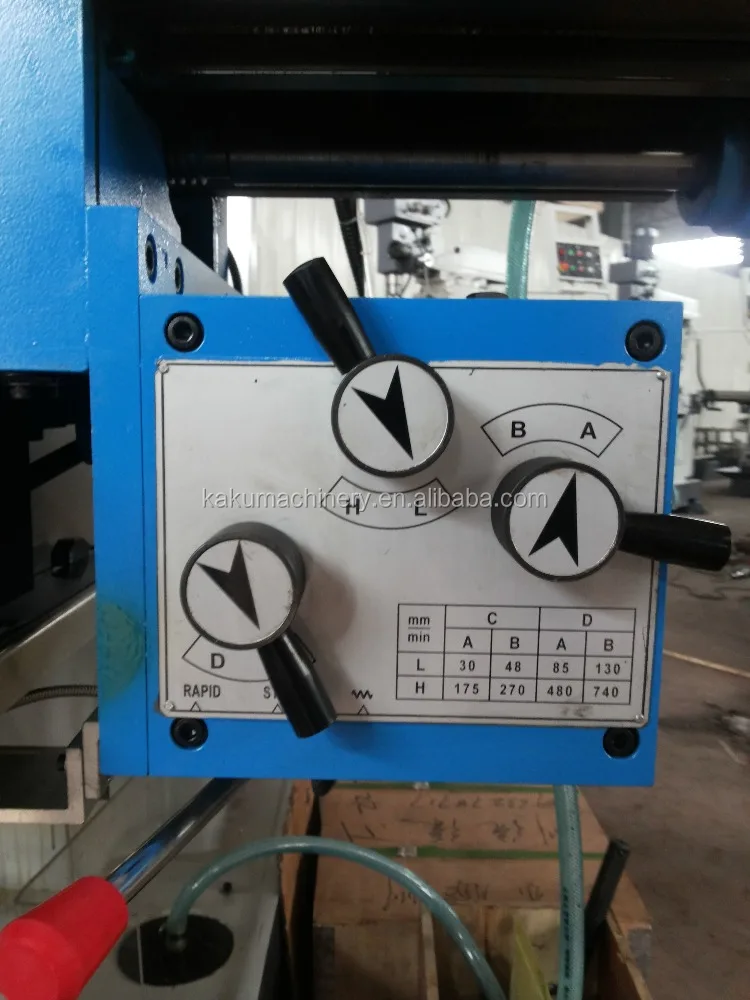

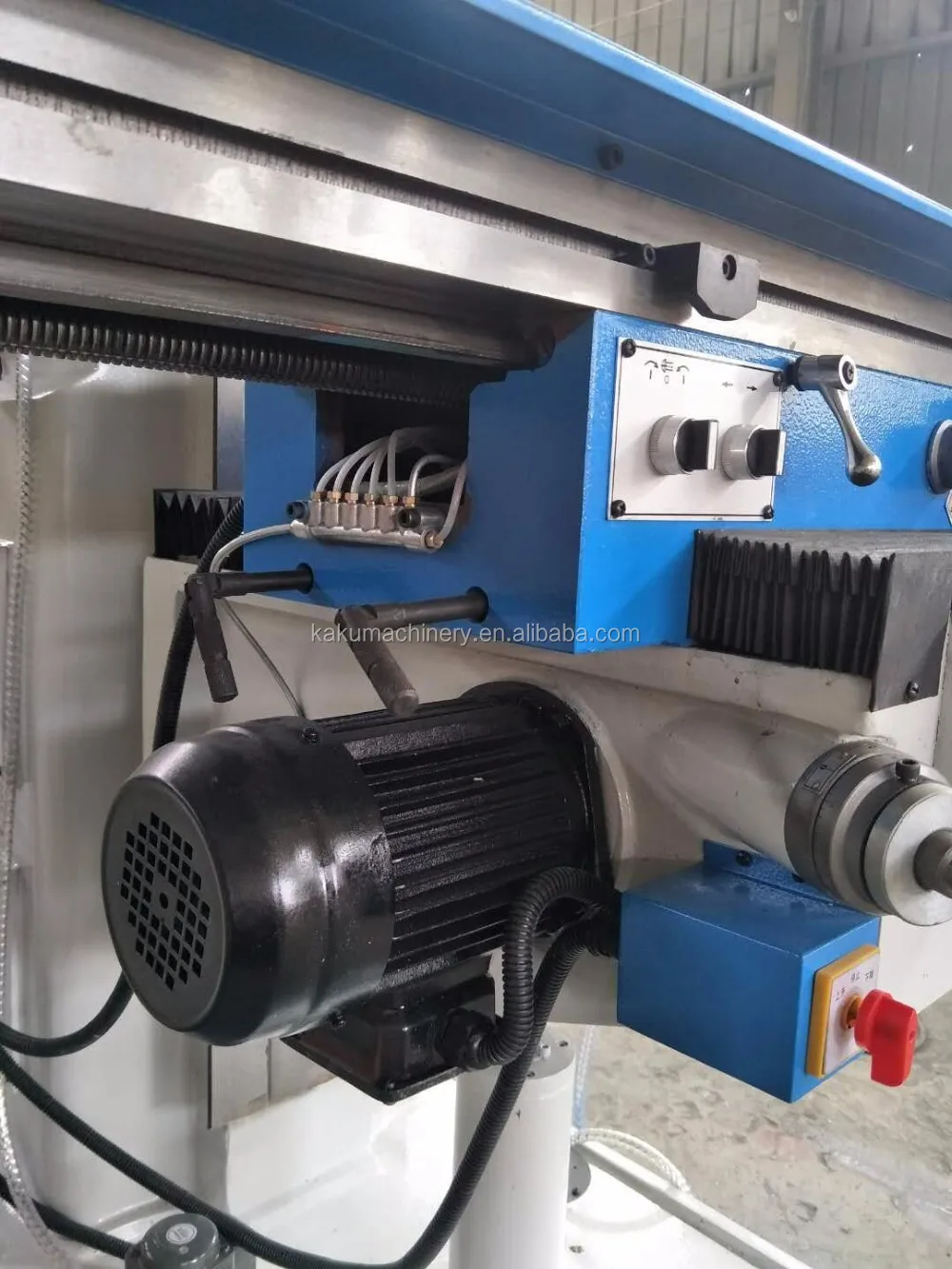

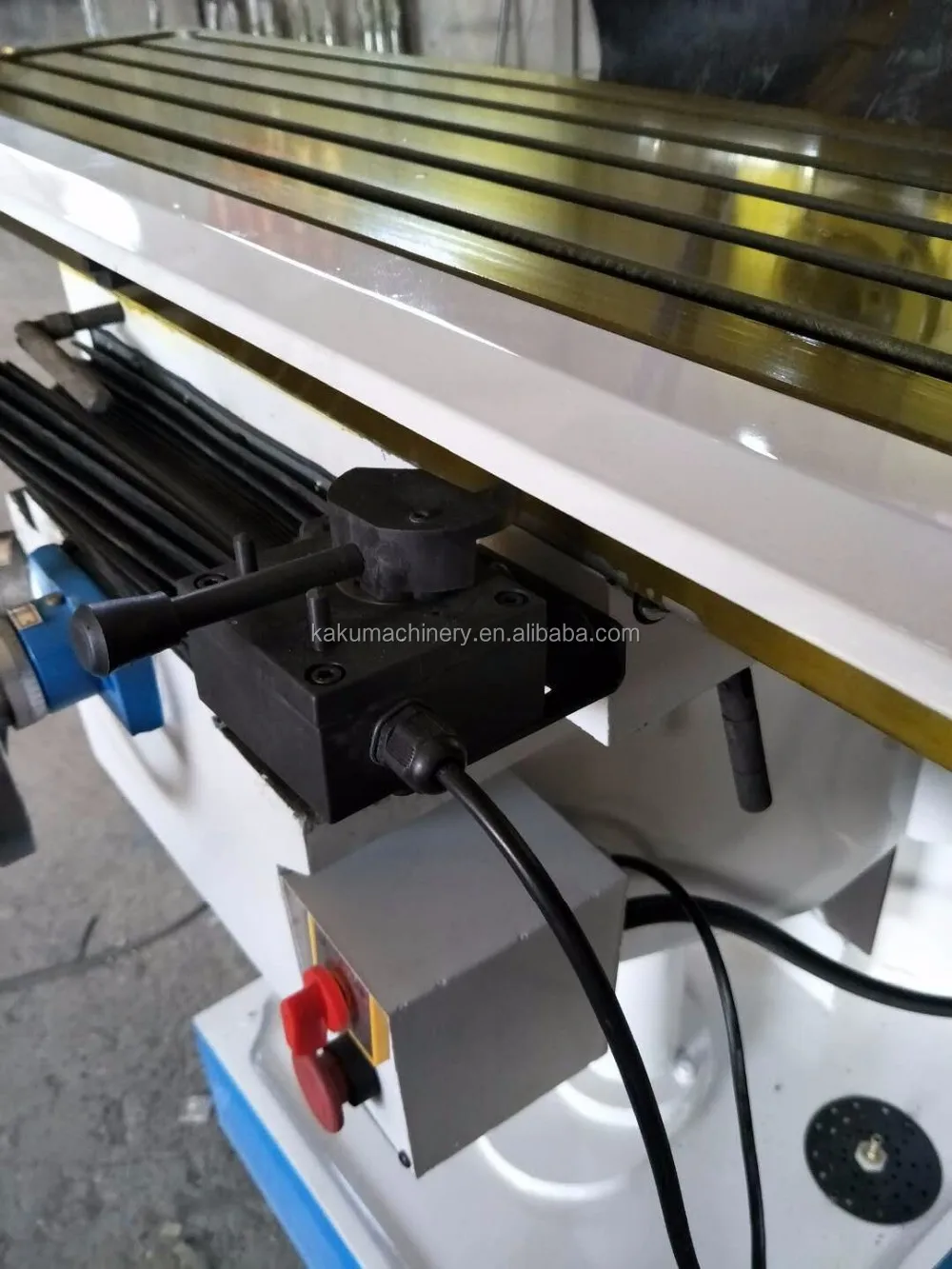

Feeding range of longitudinal cross travel.

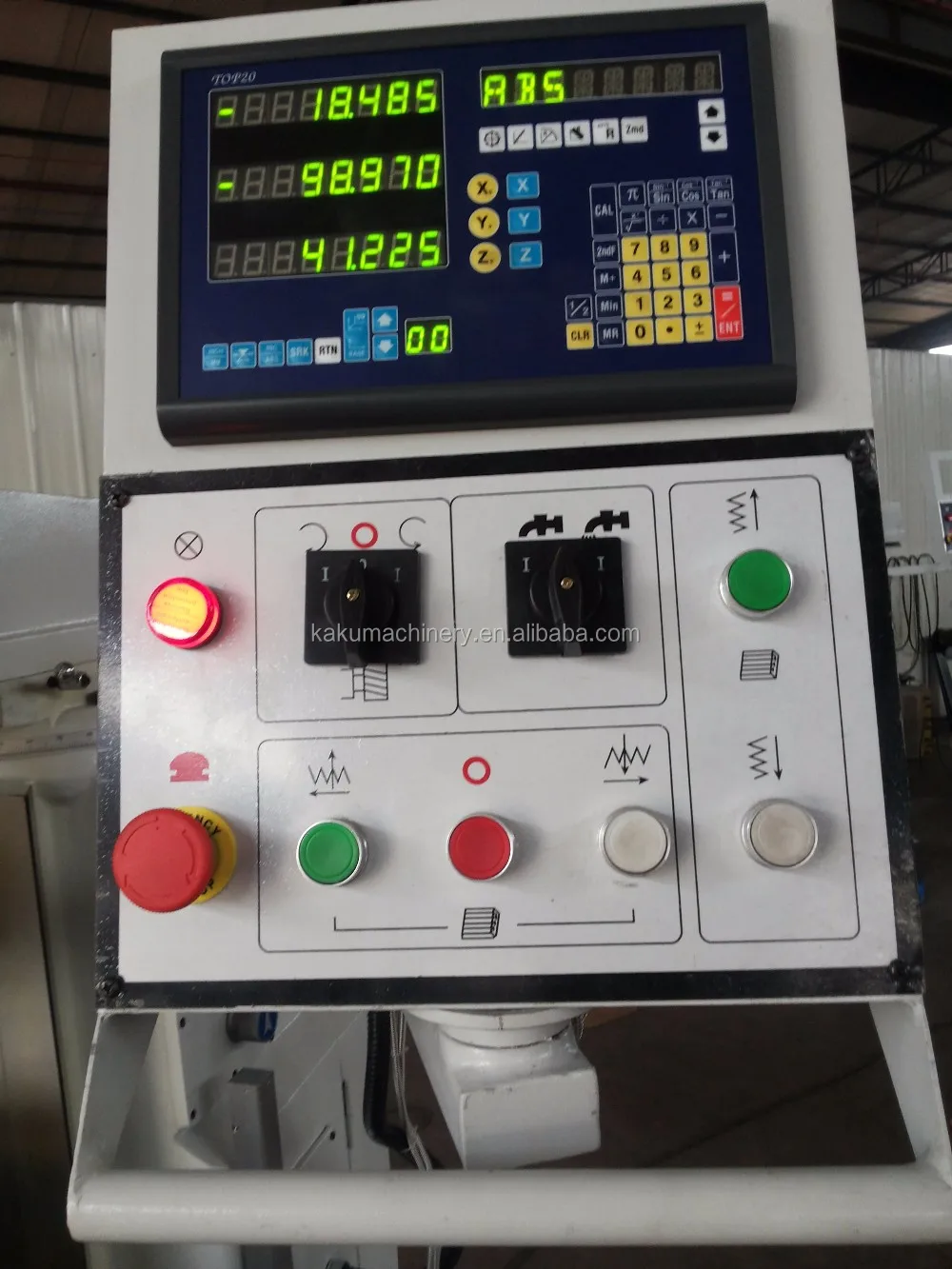

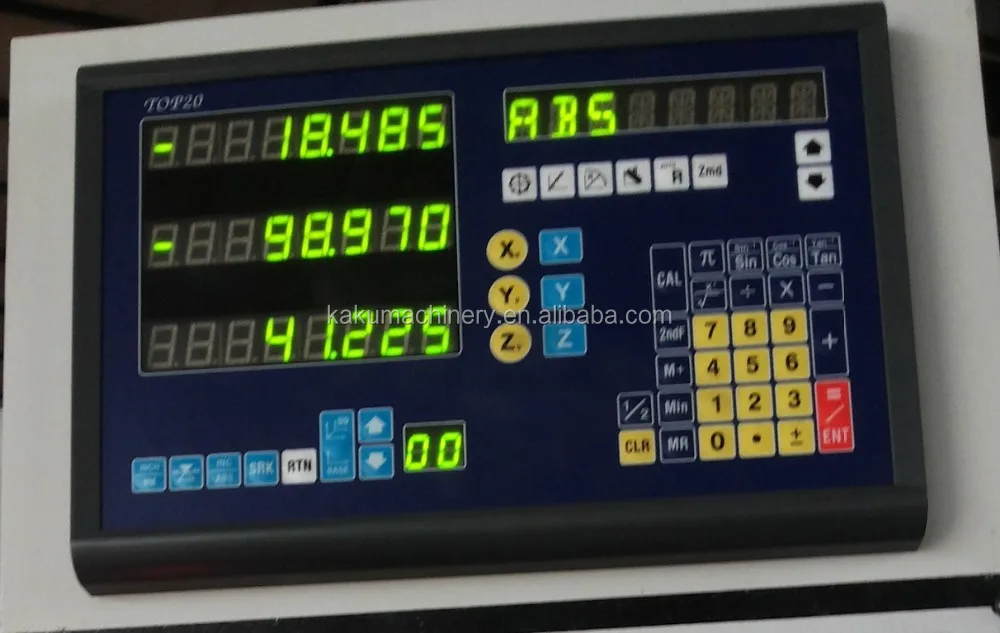

X, Y, Z three axis digital read out DRO. We use SINO or the same quality DRO.

Note: DRO is one of the optional accessories.

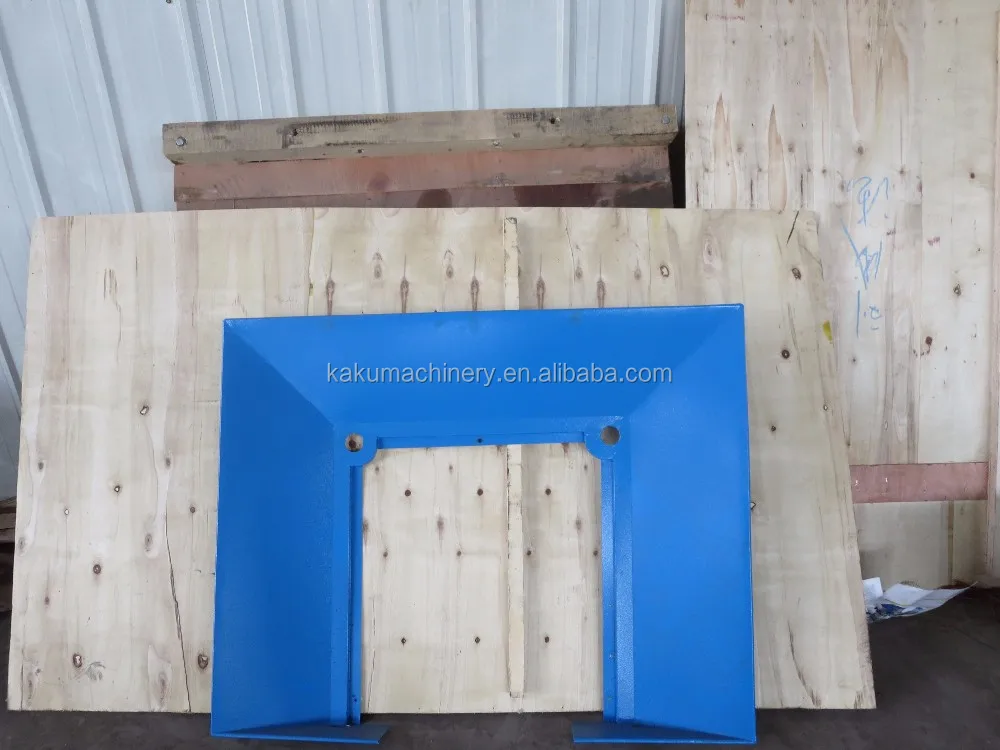

The Sheet metal for machine bottom guard.

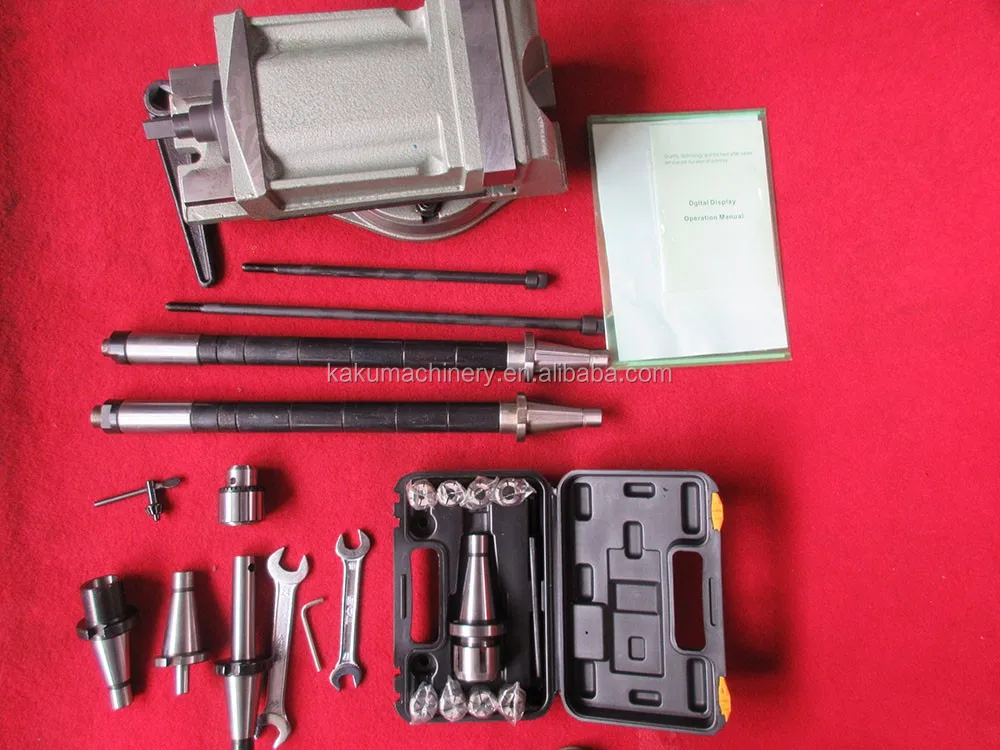

Other optional accessories of ZX6350ZB drilling milling machine.

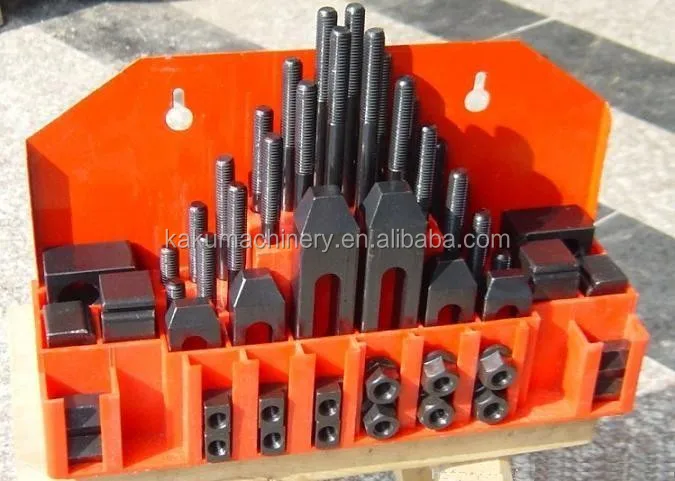

Tools:58 sets clamping kits.







                                          Digital read out DRO.

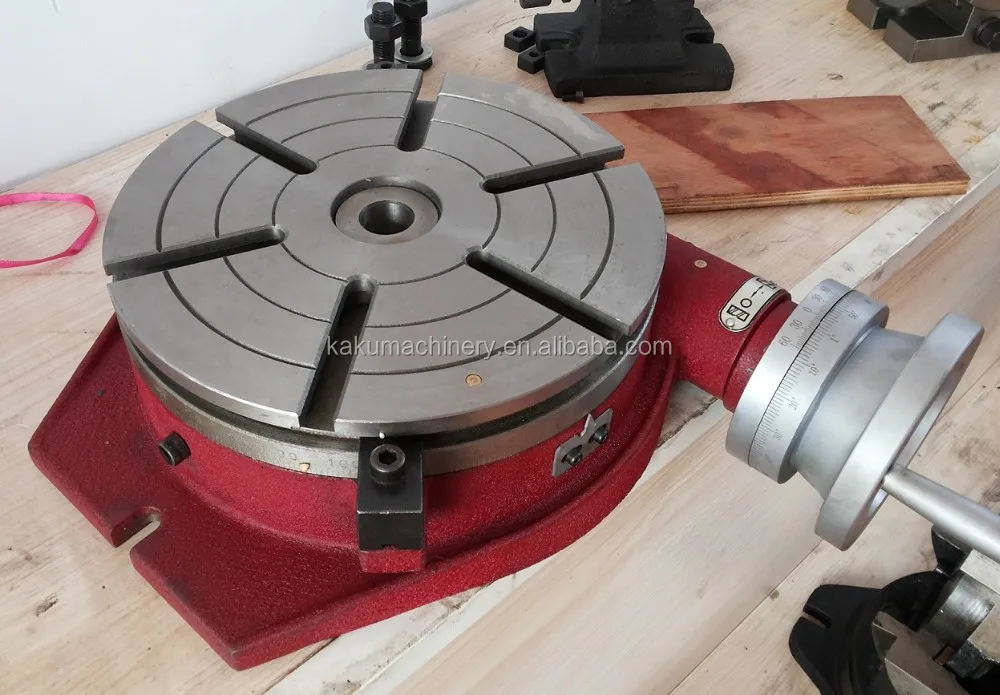

Rotary table of ZX6350ZB drilling milling machine.

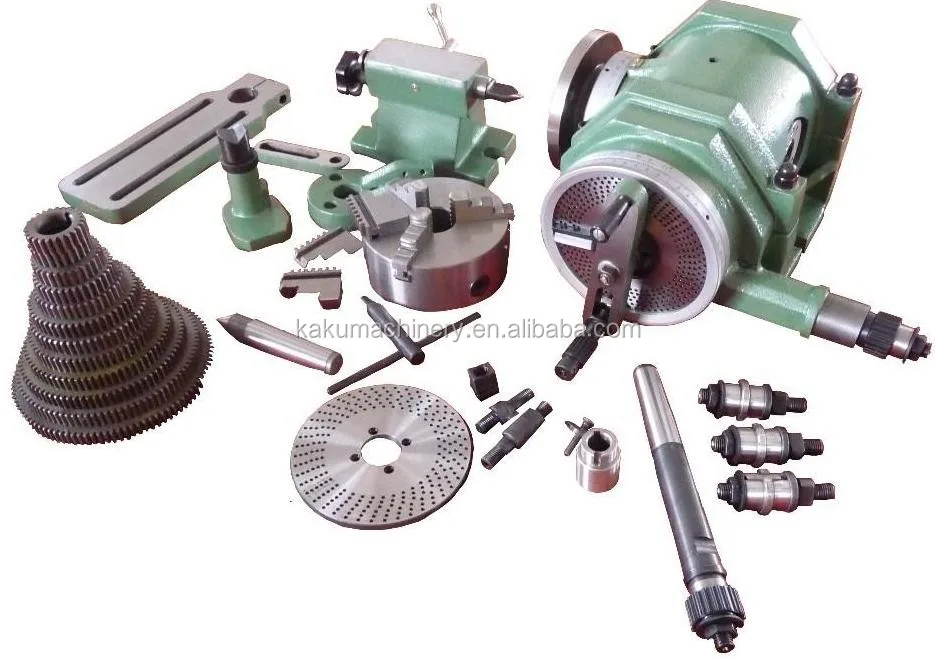

Universal dividing head of ZX6350ZB drilling milling machine.




The milling machine plug of ZX6350ZB drilling milling machine.

Packing List
\t
Item
\t
Name
\t
Model
\t
Quantity
\t
1
\t
Drilling and milling machine
\t

\t
ZX6350ZB
\t
2
\t
Drill chuck
\t
16
\t
1
\t
3
\t
Milling chuck
\t

\t
1
\t
4
\t
Reduction sleeve
\t

\t
2
\t
5
\t
Machine vice
\t
160
\t
1
\t
6
\t
Wrench
\t
S21-24
\t
1
\t
7
\t
Inner hexagonal spanner
\t
5
\t
1
\t
8
\t
Cam lock
\t
\t
2
\t
9
\t
Wedge shifter
\t
\t
1
\t
10
\t
Spindle arbor(only MT4)
\t
\t
1
\t
11
\t
Horizontal drilling bolt
\t
\t
2
\t
12
\t
Operation manual
\t
\t
1
\t
13
\t
Certificate of inspection
\t
\t
1
\t
14
\t
Packing list
\t
\t
1
After-sales Service

1. Technical support online service provided.

2. Technical files service provided.

3. Machine operation video provided.

4. On-site training service provided.

5.Spare parts replacement and repair service provided.

6. All of the questions will be replied within 8 hours.

7. If you need to develop products with your own specification, we can help you to work it out.

8. Always be honest, never lie to customer, and never declare anything we don't have.
