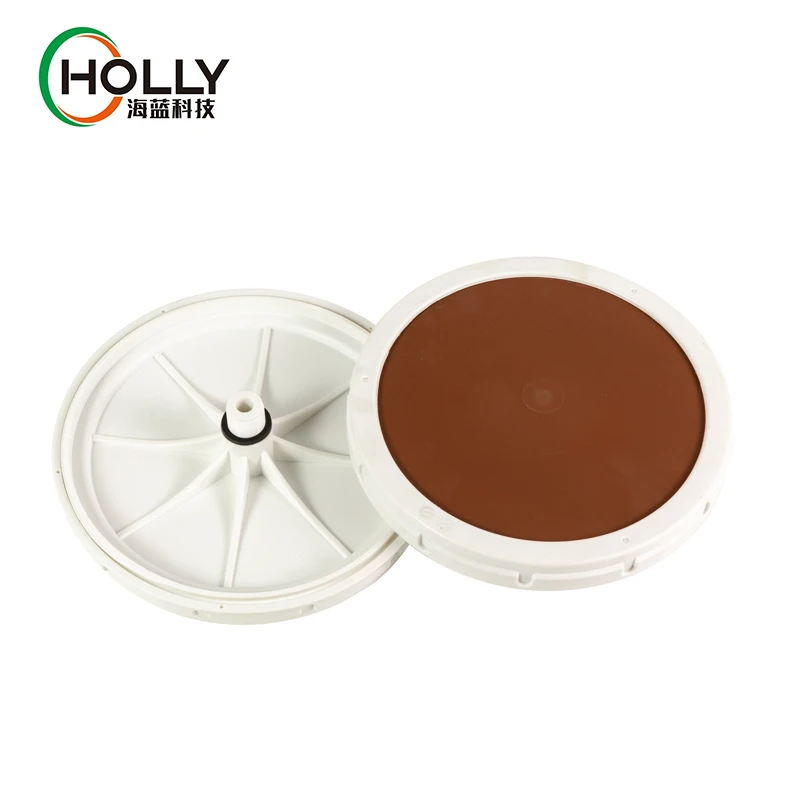

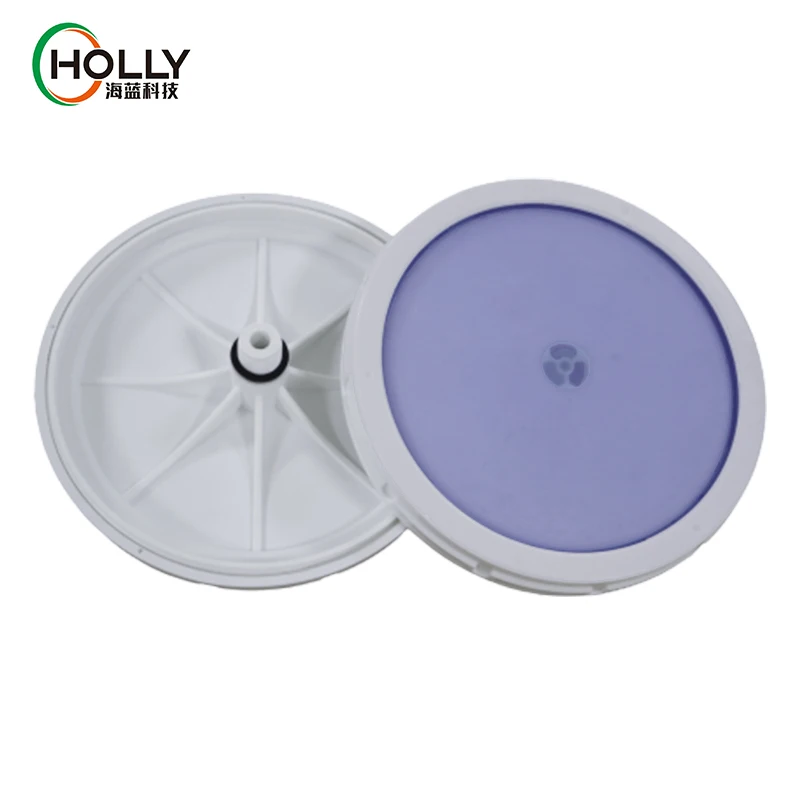

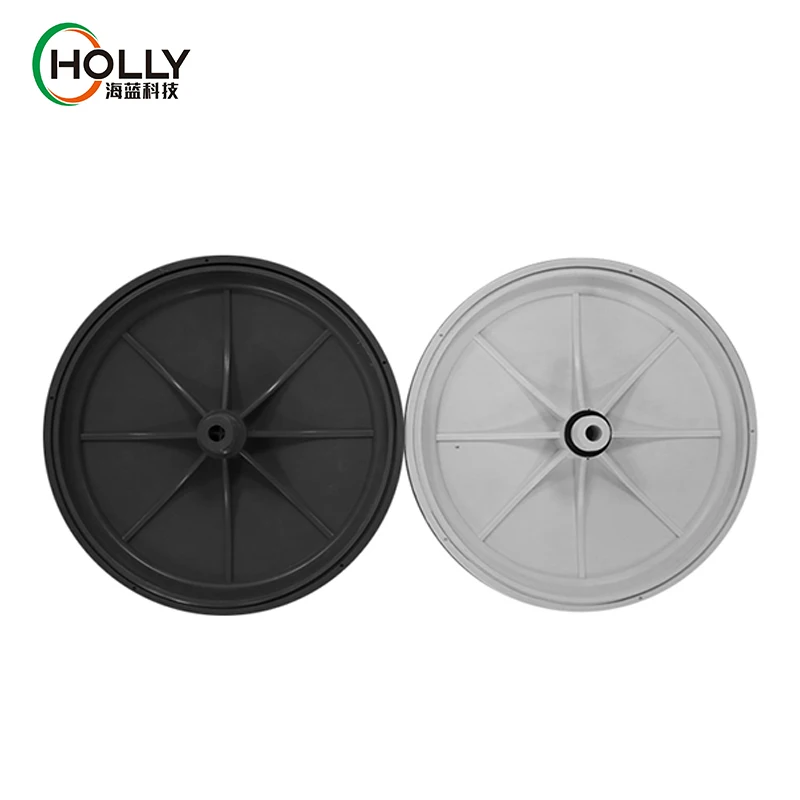

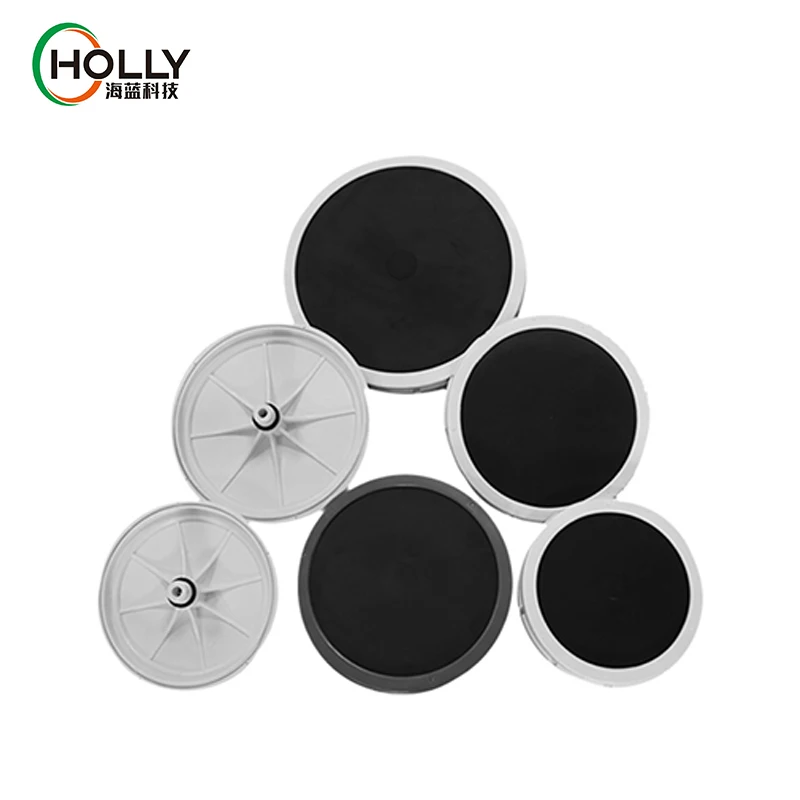

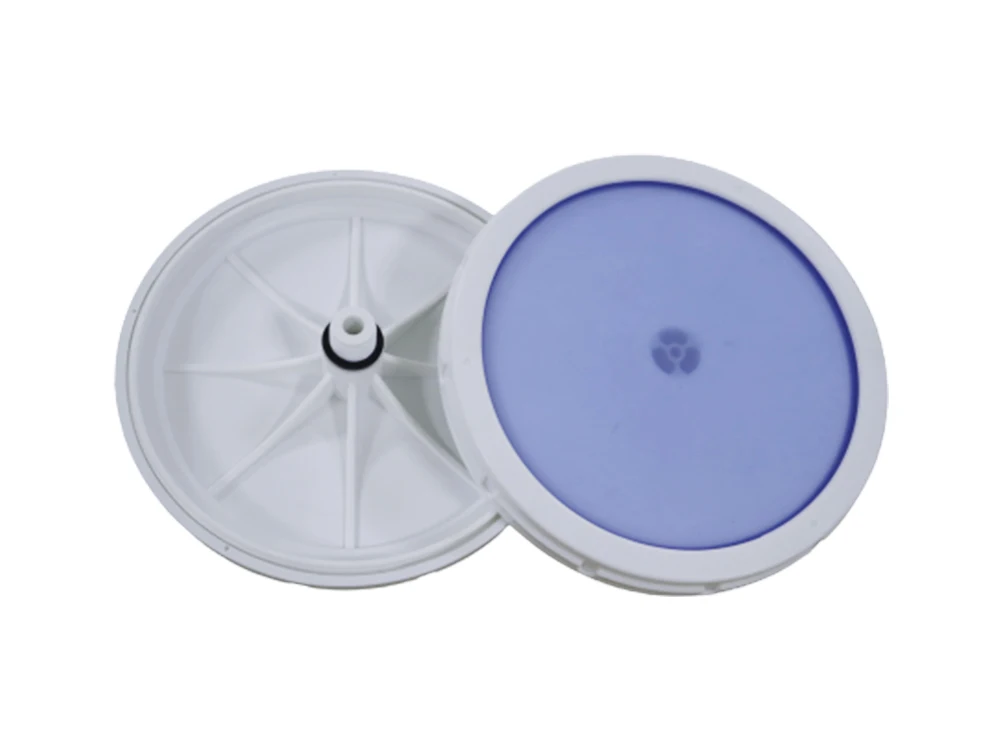

air diffuser for aquaculture system

air diffuser for aquaculture system features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications. It can be operated over a wide range of airflows with minimum maintenance for long term performance.



MOC:EPDM

Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm perforations.Compression molding with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high quality product.



MOC:Silicon

Silicon membranes offer high temperture resistance ,and chemical resistance that differs from other products .Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is designed to resist tearing and creep,while producing fine bubbles at a modest headloss.



MOC:PTFE

The PTFE surface layer protects the EPDM substrate from chemical attack,while at the same time significantly reducing surface fouling on the membrane.we except to learn that PTFE-coated EPDM membranes outlast standard EPDM,thereby reducing the life cycle costs even further .It is used by major cities worldwide due to the anticipated life cycle cost benefits and reduced maintenance.



Technical Parameters


Technical Parameters of air diffuser for aquaculture system




Model
HLBQ170
HLBQ-215
HLBQ-260
HLBQ-300
Service Area
0.5-0.8m²
0.2-0.64m²
0.25-1.0m²
0.4-1.5m²
Slit Quantity
/
5000
8900
11000
Type of Bubble
Coarse Bubble
Fine Bubble
Fine Bubble
Fine Bubble
Connector
3/4 'NPT thread
3/4 'NPT thread
3/4 'NPT thread
3/4 'NPT thread
MOC
EPDM/Silicon /PTFE membrane

ABS/PP carrier plate
EPDM/Silicon /PTFE membrane

ABS/PP carrier plate
EPDM/Silicon /PTFE membrane

ABS/PP carrier plate
EPDM/Silicon /PTFE membrane

ABS/PP carrier plate
Bubble Size
4-5mm
1-2mm
1-2mm
1-2mm
Flow Range
6-9m³/h
1-6m³/h
1-8m³/h
1-12m³/h
Service Life
>5 year
>5 year
>5 year
>5 year

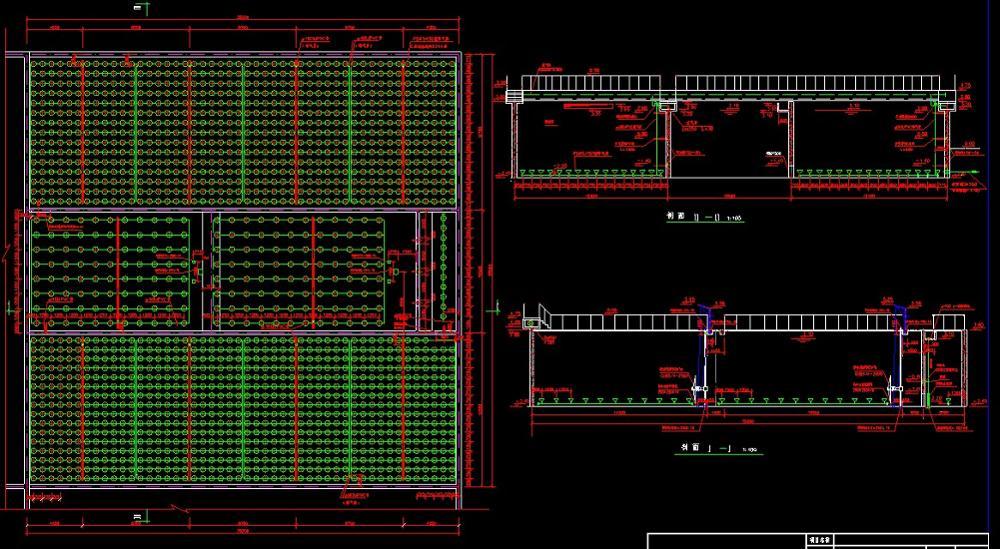

Shchematic diagram


Main Features of air diffuser for aquaculture system

♦ Low resistance loss
♦ Highly Tear Resistant
♦ Anti-clogging, anti-backflow
♦ Ageing-resistant, anti-corrosion
♦ High efficiency, energy-saving





Application


1.Aeration of fishpond and other applications
2.Aeration of deep aeration basin
3.Aeration for excreta and animal waste water treatment plant
4.Aeration for denitrification/dephosphorization aerobic processes
5.Aeration for high concentration waste water aeration basin,and aeration for regulating pond of waste water treatment plant
6.Aeration for SBR,MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant

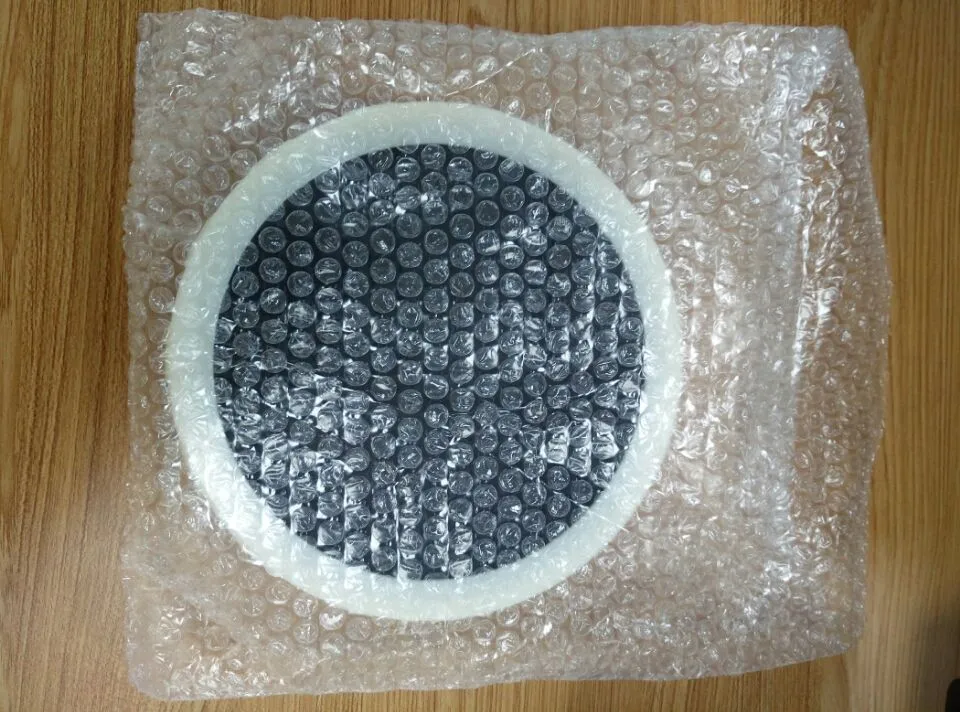

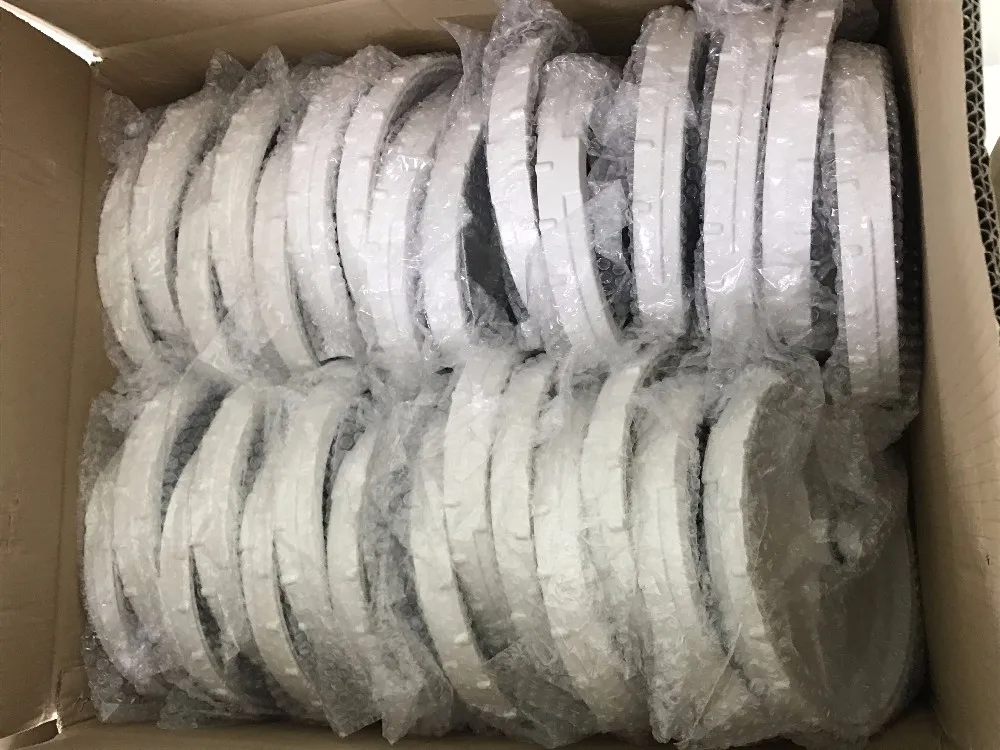

Packing
