2018 HUASHUN universal impeller dynamic balance machine service with high precision

Product Overview

Description

Production Description

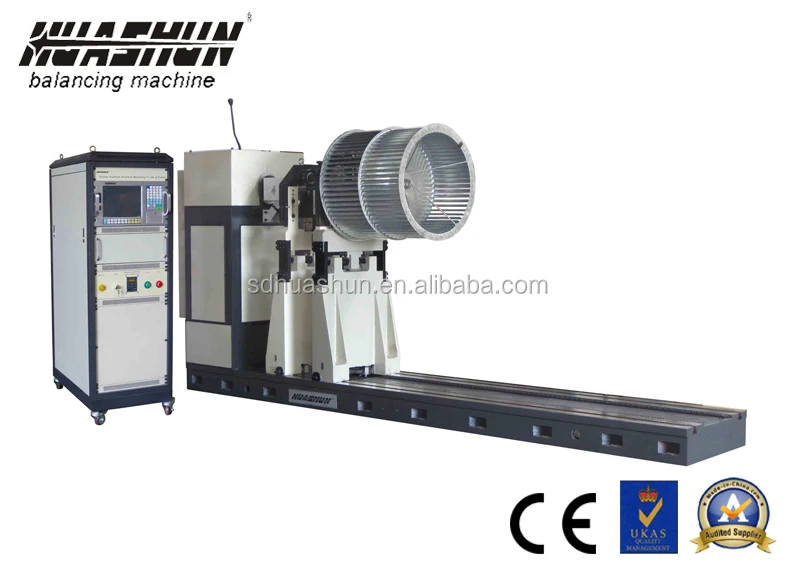

HG6000-PI Technical Parameters

Type of balancing machine	Universal hard bearing balancing machine
Type\\Specifications	HG6000-PI
Max. mass of workpiece	6000
Max. diameter of workpiece	2800
Journal dia.of supports	15-290
Distance between supports	200
Balancing speed (frequency conversion and adjustable speed)	250-1450 r/min
Motor power	22
Min. achievable residual unbalance amount	emar≤1g.mm/kg
Unbalance reduction ratio	≥85%







Advantages

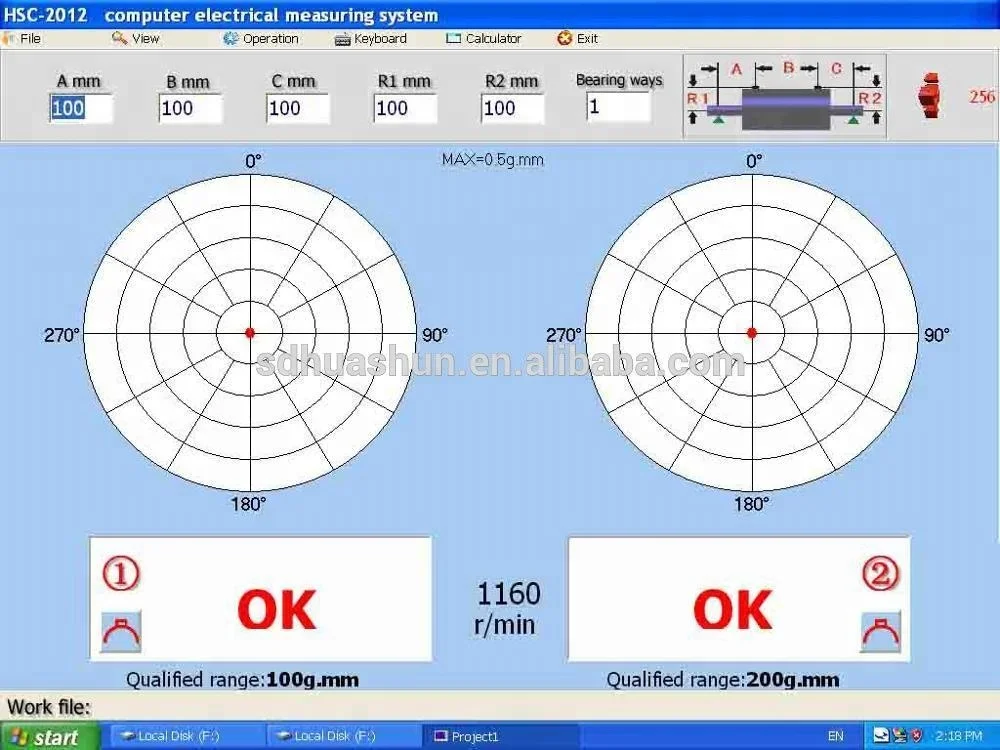

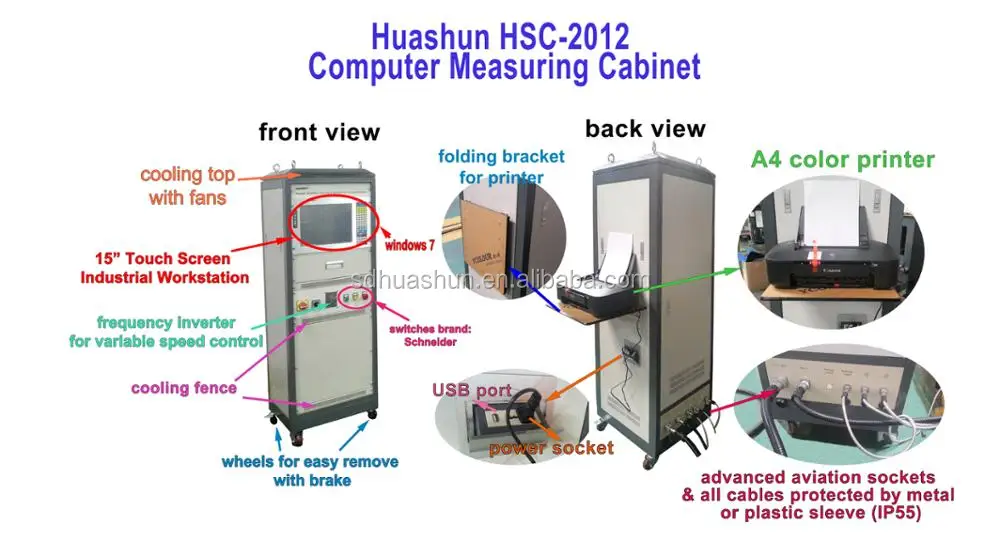

1. advanced touch screen, simple operation

2. industrial PC, mega data storage

3. instant balancing report output





Structure:

1. Mechanical 5-speed gear box

2. Unversal coupling drive, the distance between supports can be enlarged to 3.7m / 5.7m

3. With piezoelectric sensors of good stability

4. Magnitude, rotating speed, phase are all shown in figures





Application Areas

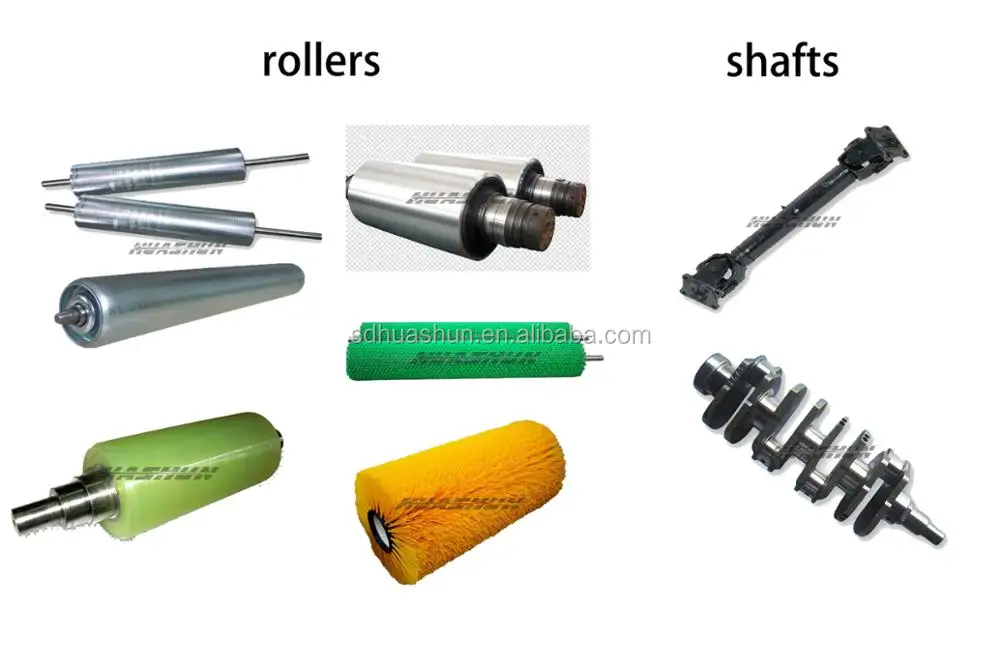

For general or particular heavey bodies like generators, rollers,shafts, etc.
