High class China low price where to buy fabric geotextile for Construction site silt fences or geotube
- Category: Geotextiles >>>
- Supplier: Shanghai Yingfan Engineering Material Co. Ltd.
Share on (60716162540):
Product Overview
Description
Product -Geotextile
Customized all size of Geosynthetics
Welcome to YINGFAN
Professional Geosynthetics manufacture
Product Description
1 A new construction material
2 Raw Material of Polypropylene (PP) fiber / Polyester(PET) fiber / Acrylics / Nylon / other high polymer
3 Environment friendly without chemical additives and heat treatment.
4 Fabricated by needle punched processing way
High class China low price where to buy fabric geotextile for Construction site silt fences or geotube
Features of Geotextile
1 Superior water permeability
2 Filtrability
3 Deformation adaptive faculty
4 Resistant to corrosion
5 Anti-aging
- Geotextile has high water diversion property, it can form drainage passageway, transpire the surplus liquid and gas
- High water permeability even under the pressure of soil and water
- Spread, transfer or decompose the concentrate stress effectively to avoid the soil be damaged by outside affection
- To prevent the freestone upper and lower level, soil and concrete mixed
- Polypropylene fiber or polyester fiber and other chemical fiber as raw material, acid-alkali-proof, corrosion resisting, non warm-eaten,antioxidant
- Light, convenient to use, easy construction, shorten working-period, increase economic efficiency
- Make use of geotextile to strengthen the tensile strength and anti-deformation property of soil, increase the stability of building structure, and also improve the soil quality
Technical specification for Short filament geotextile GB/T17638-1998
| No | Specifications | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Notes |
| Item | |||||||||||||
| 1 | Unit area weight deviation % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| 2 | Thickness mm ≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
| 3 | Width deviation % | -0.5 | |||||||||||
| 4 | Break strength kN/m ≥ | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | MD-CD |
| 5 | Elongation at break % | 25~100 | |||||||||||
| 6 | CBR bursting strength kN ≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | |
| 7 | Equivalent opening sizeO90(O95) mm | 0.07~0.2 | |||||||||||
| 8 | Vertical seepage coefficient cm/s | K×(10-1-10-3) | K=1.0~9.9 | ||||||||||
| 9 | Tear Strength kN ≥ | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | MD-CD |
Unit Weight of Geotextile
100g/m2, 150g/m2, 200g/m2, 250g/m2, 300g/m2, 350g/m2, 400g/m2, 450g/m2, 500g/m2, 600g/m2, 800g/m2 or customerized
Geotextile Applications in Civil Engineering
Support many civil engineering applications including:
--Roads
--Airfields
--Railroads
--Embankments
--Retaining structures
--Reservoirs
--Canals
--Dams
--Bank protection
--Coastal engineering
--Construction site silt fences or geotube

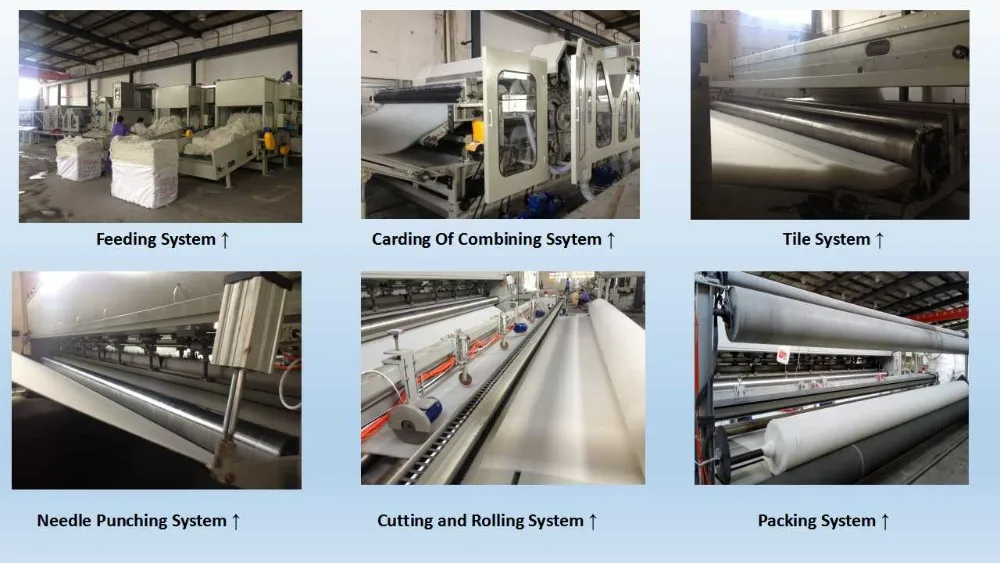

Manufacture Workshop
Main products
Company introduction
Exhibition
