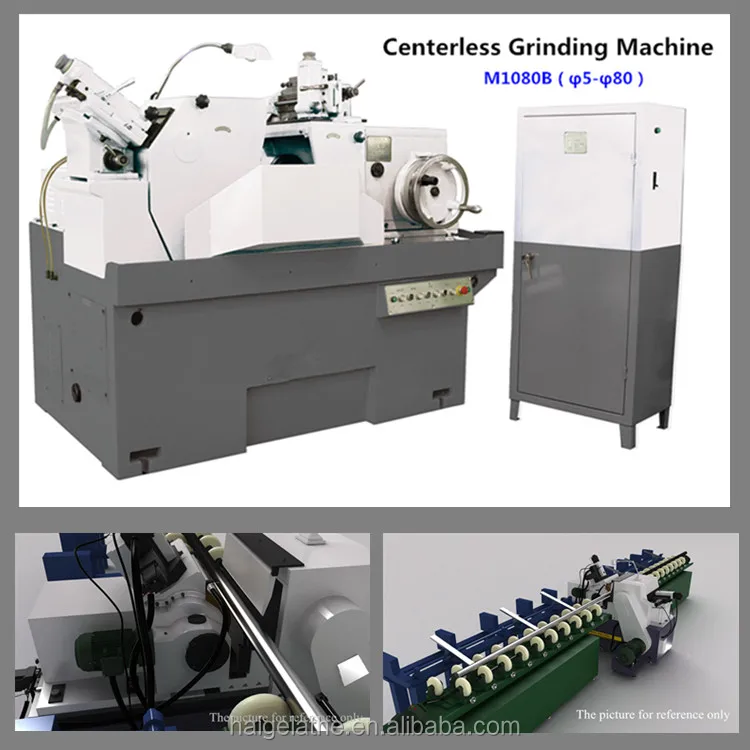

HAIGE Centerless Grinding Machine M400(CNC)

Product Overview

Description

 Centerless Grinding Machine -M400

1.  Main Machine Salient features

1. Salient features:
1.1.Grinding wheel and Regulating wheel

1.1.1The diameter of grinding wheel is 600mm, with strong grinding force.

1.1.2.The wide grinding wheel can increase the grinding allowance in a single pass, and decrease repeating, to raise efficiency.

1.1.3.The grinder designed for fixed grinding wheel and movable regulating wheel.

1.1.4.The spindles of grinding wheel adopted double support & muti-plate ball support dynamic oil film bearing.

1.1.5.The spindles of regulating wheel adopted double row cylindrical roller bearing, with double supported wheel.

1.1.6.The regulating wheel feed slide is equipped high rigidity linear guideway and servomotor that drives ball screws.

1.2.Lubrication

1.2.1.Lubrication of grinding wheel spindle with thermostat.

1.3.Electric

1.3.1.AC frequency converter is used for regulating wheel stepless speed control, as well as reverse towing prevent function.

1.4. Dressing

1.4.1. Servo motor drives the ball screw & double “V” roller guideway are adopted on grinding wheel dresser, steps adjustable.

1.4.2. Gear motor driven the ball screw & double “V” roller guideway are adopted on regulating wheel, step-less speed.

1.5. Cooling system

1.5.1.The coolant system is equipped with magnetic coolant separator.

1.6.Control system

1.6.1.10.4” touch panel, automatic plunge-cut grinding, the load, speed, time and step level adjustable

1.6.2.PLC or CNC system optional, three axes.

1.7. Machine body and design

1.7.1. The modularization design has good looking. Its configuration can be selected as client needs.

1.7.2. Iron casting with high rigidity, natural aging.





2. Feeding and Blanking devices



Whole process : Feeding racks → roller driving device → centerless grinder

 → blanking roller  → receiving racks





The automatic bar feeding and receiving machine for centerless grinder is made up of two parts: auto-feeding system and auto-receiving system. With the application of this machine, manpower and working intensity can be reduced and the bumping damage resulting from the grinding process can be avoided. So it improves production efficiency, lowers the production cost effectively, decreases the quantity of workers and realizes one worker multiple machine. It substantially cut the production cost of the products.



3. Technical Details ( FOR REFERENCE ONLY)



Thru-feed1)Grinding diameter	10-200mm
2)Grinding length	300mm
Plunge feed1)Grinding diameter	10-200mm
2)Grinding length	390mm
Grinding wheel specifications	P600*400*305mm
Regulating wheel specifications	P350*400*203mm
Grinding wheel speed	1100r/min
Regulating wheel speed(stepless)	10-300r/min
Speed Rate (m/min)	2.5-4.5
Swiveling angle of regulating wheel
1)In vertical plane	-2°~ 5°
2)In horizontal plane	-1°~ 3°
Regulating wheel min. feed amount	0.001mm
Grinding wheel dresser min. feed amount	0.001mm
Height from centerline of gri.wheel & reg.wheel to workrest	200mm
Cooling Water	200L/min
Total power of machine
1)Grinding wheel motor	30kw
2)Regulating wheel motor	3kw
3) Pump Motor	0.45kw
4)Lubricant Pump Motor	0.09kw
5) Hydraulic Pump Motor	0.75kw
6)Magnetic coolant separator Motor	0.18kw
Overall dimensions	3300*1780*1900mm
Machine weight	about 9000kg
Machining accuracy
1)Roundness	0.001mm
2)Cylindricity	0.0018mm
3)Surface Roughness	Ra0.16um
