shaded pole motor

Product Overview

Description

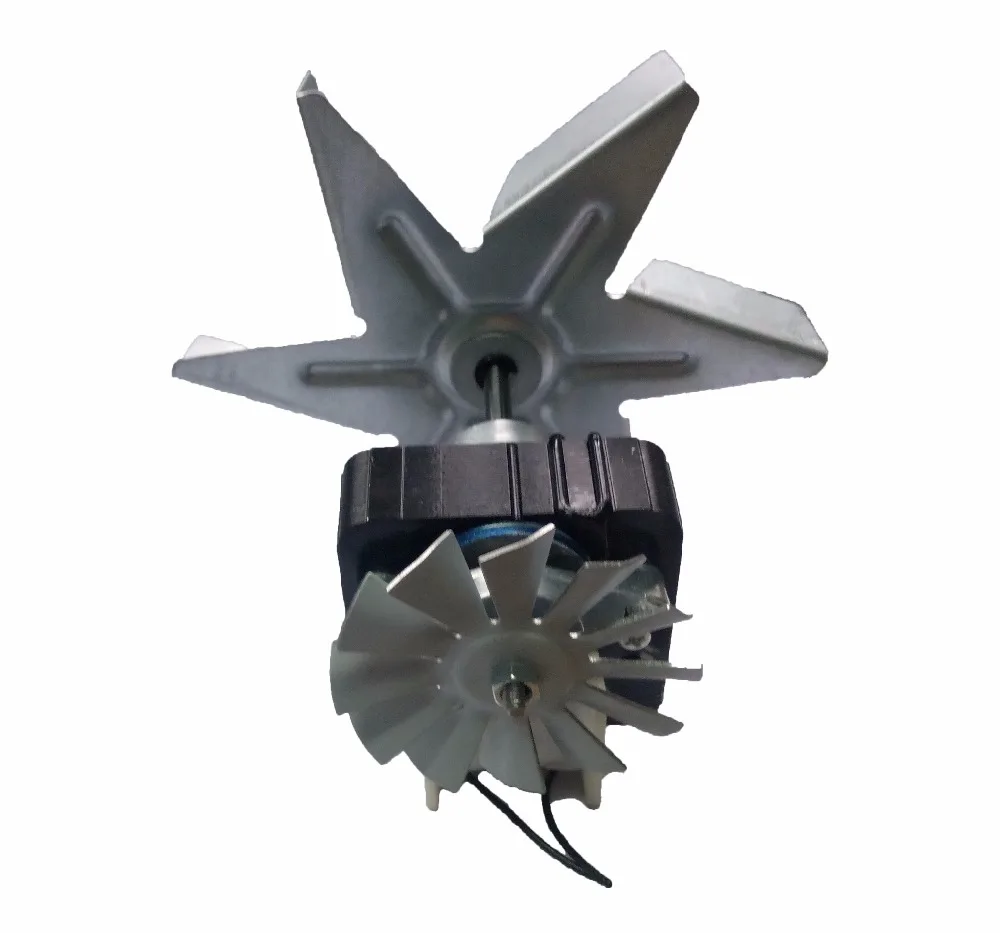

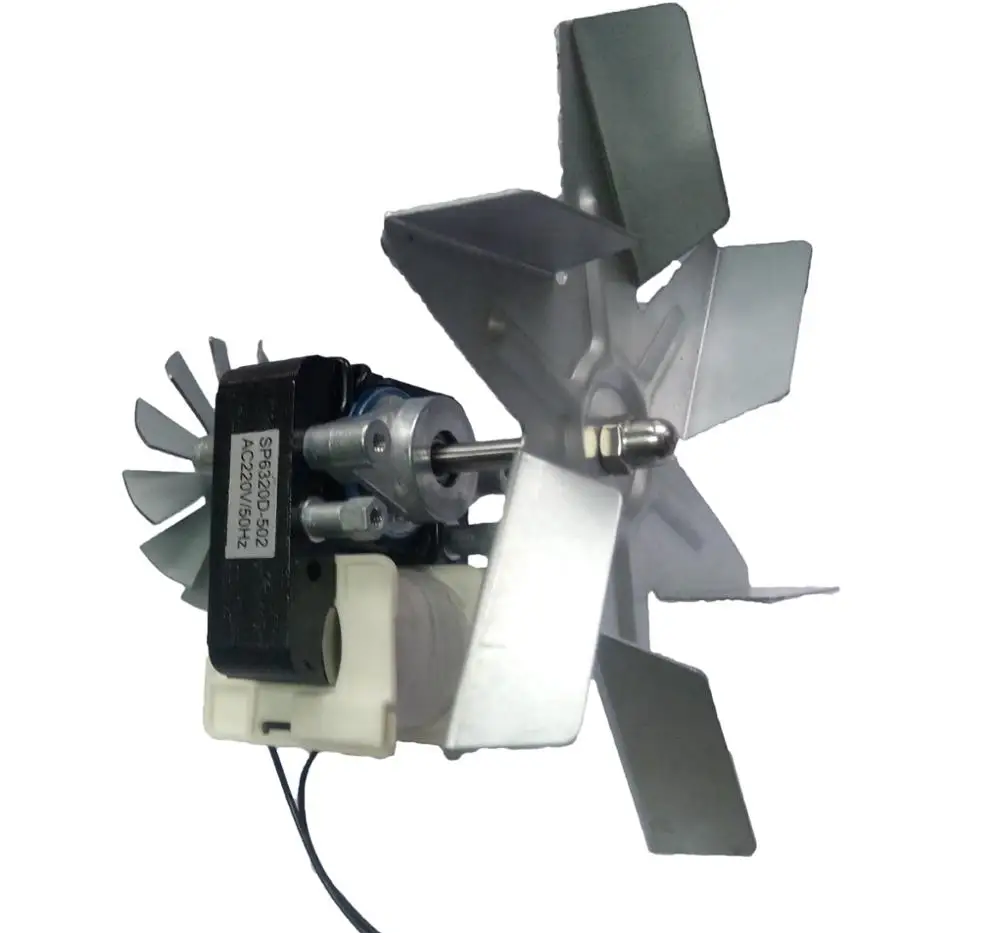

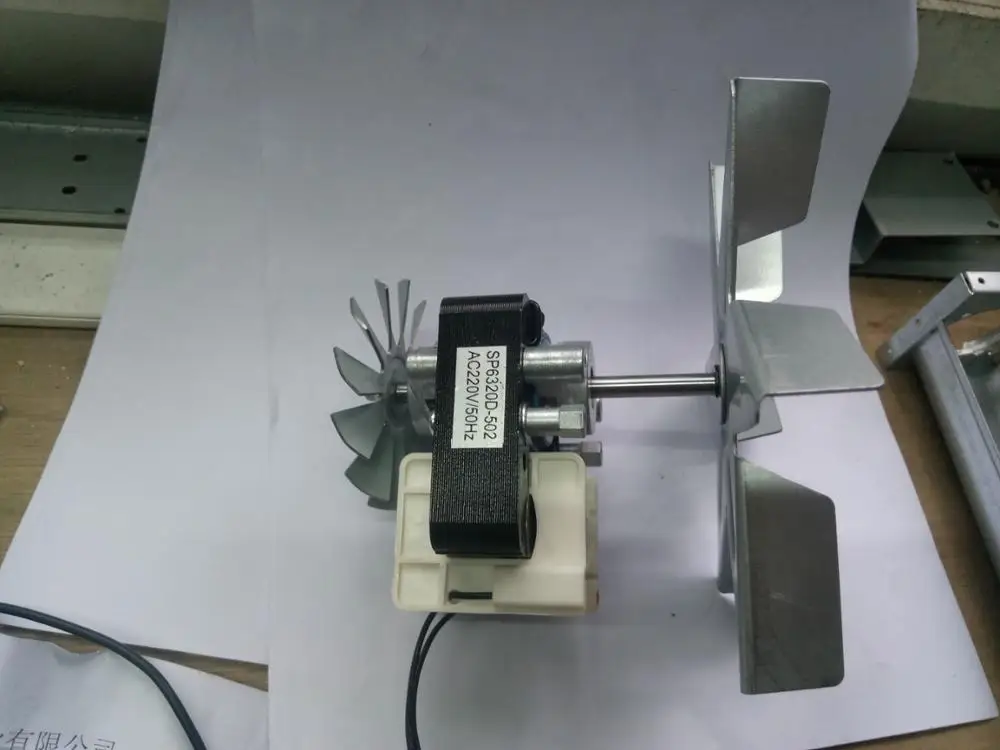

Shaded pole motor Oven fan

Motor NO.	YJ60-20
Motor type	AC shaded pole motor
Brand name	Fangzhan
Place of origin	Guangdong,China
Voltage	AC36V-240V
Frequency	50/60HZ
No load power	5W-50W
No load speed	1300-2900RPM
Stator thickness	7mm-50mm
shaft diameter	Ø3.17mm-6mm or under requested
Core dimension	48,57,58,60,61,63,84mm
Frame material	silicon electric sheet or cold plate
Bearing	sliding bearing or balll bearing
Bracket	zinc aluminum alloy or metal
Environment temperature	15℃-105℃
Insulation Class	A,E,B,F,H
Certification	CCC/CE/CUL/UL/ROHS
Rotating direction	CW or CCW
Noise	Max 38dB(A)
Working standard	continuous
Rustproof	Yes or no
Lead wire	up to request
Use	electrical oven ,microwave oven, lightwave oven,home appliance
Customization	voltage,frequency,power,speed,stator thickness,rotating direction,shaft length,shaft end,lead wire,insulation class
Minimum order quantity	500 set
Supply ability	500,000 sets per month
Price	FOB Shunde port USD3.2-4.5
Packaging detail	foam and carton
Delivery time	15 days after we receive your 30% deposit
Payment term	T/T or LC
