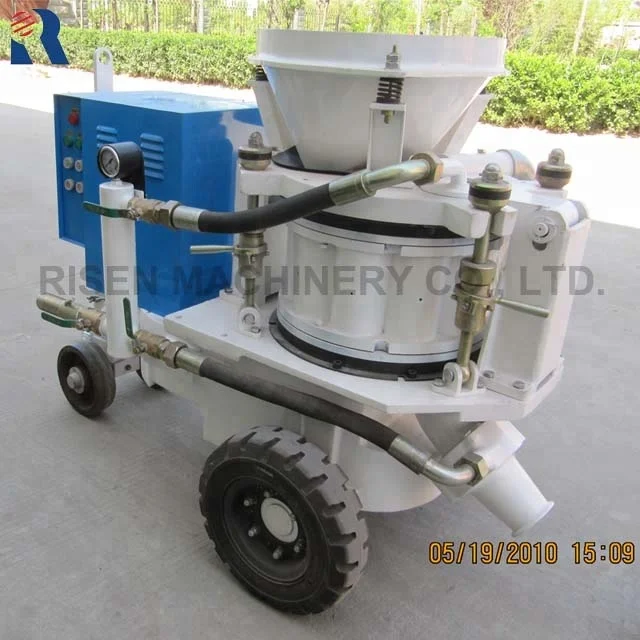

Excellent dry and damp mix mobile shotcrete machine shotcreting machine for slope engineering

Excellent dry and damp mix mobile shotcrete machine - shotcreting machine for slope engineering

Product instruction & Application

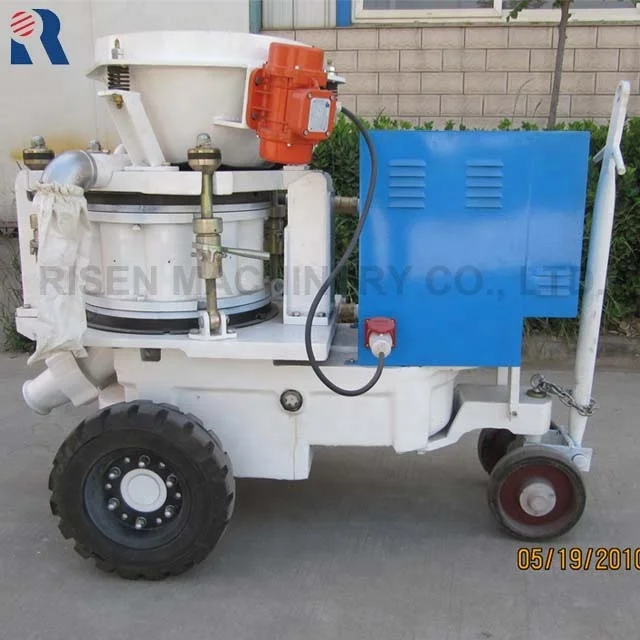

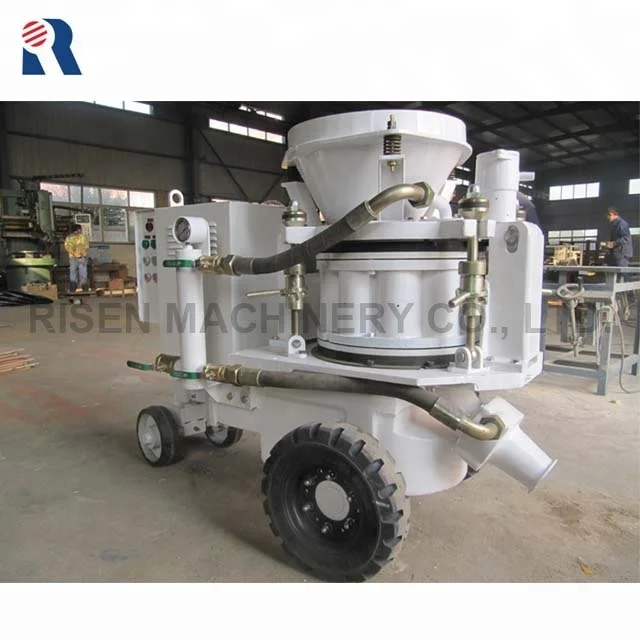

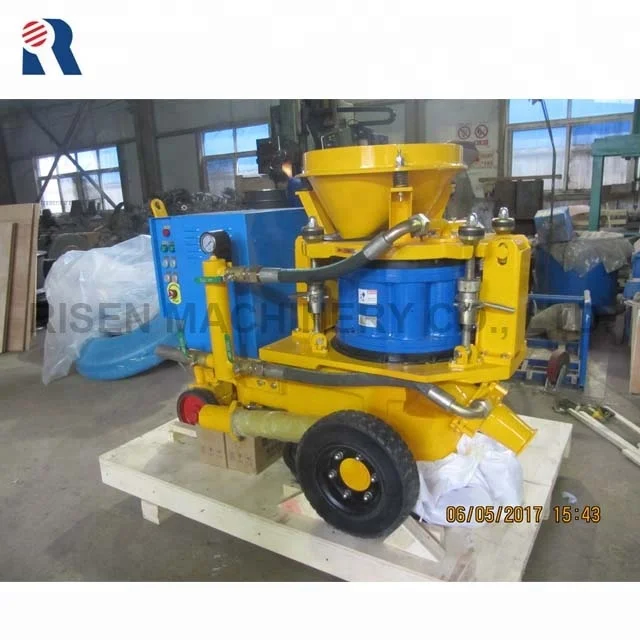

RISEN has engaged in the manufacturing and export of RISEN PZ-9 excellent dry and damp mix mobile shotcrete machine -shotcreting machine since 2004. Among RISEN PZ series, the PZ-9 is a large-size model with output 9m3/hour and is a very popular model, mainly applied for dry or damp mix shotcreting.

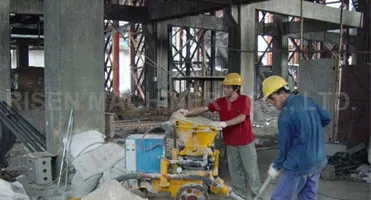

Based on the excellent quality, mature work principle and competitive price, RISEN PZ-9 has been exported to many countries, such as, Malaysia, Singpore, philppines, Sri Lanka, Lebanon, South Afrida, French, Oman, Australia, Peru, etc, widely applied in the slope engineering, railway and super highway engineering, underground engineering, tunneling, mining operations, hydropower project, etc.

Main Features

\tNon-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
\tThin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
\tFour-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
\tParticularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.

Advantages

\tHigh-accuracy Gearbox, high clean degree inside;
\tHigh wear resistance and longer use life consumable parts;
\tMilitary standard solid wheels for different construction site;

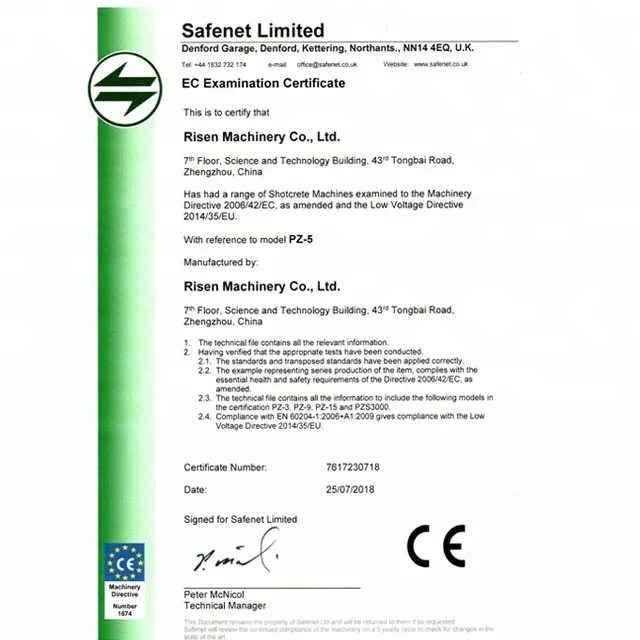

\tIP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;
\tNational standard bearing, valve and screw etc.;
\tAll the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not the casting;
\tThe sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper and electrical control box;
\tSerious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;
\tPainted after sandblasting for a pretty appearance;

Machine Parts

Name: Sealing Plate

Brand: RISEN

Original: CHINA

There are two plates (upper and lower) on the opposite sides of rotor. Both of the upper and lower plates are made of anti-abrasive special rubber and can handle concrete 200-300m3 during its working period.

Main Features

Name: Electrical elements
Brand: Schneider
Original: Schneider (CHINA) Co.

Machine Parts

Name: Rotor Disk
Brand: RISEN
Original: CHINA

Main Features

Name: Rubber Wheel

Brand: RISEN
Original: CHINA
