  • 380V/220V 3 Phase in single phase out ups 10KVA High Frequency Online UPS with 4 hours backup
380V/220V 3 Phase in single phase out ups 10KVA High Frequency Online UPS with 4 hours backup
380V/220V 3-Phase in single phase out ups 10KVA High Frequency Online UPS with 4 hours backup
380V/220V 3-Phase in single phase out ups 10KVA High Frequency Online UPS with 4 hours backup
380V/220V 3-Phase in single phase out ups 10KVA High Frequency Online UPS with 4 hours backup
380V/220V 3-Phase in single phase out ups 10KVA High Frequency Online UPS with 4 hours backup
380V/220V 3-Phase in single phase out ups 10KVA High Frequency Online UPS with 4 hours backup
380V/220V 3-Phase in single phase out ups 10KVA High Frequency Online UPS with 4 hours backup

380V/220V 3 Phase in single phase out ups 10KVA High Frequency Online UPS with 4 hours backup

Share on (60716323930):


Price:$485.00 - $540.00

Quantity:


Product Overview

Description





Product Description

Product Description



Machine Power Supply 220V 3-Phase High-Frequency Online UPS without Battery





HP31 Tower series  10KVA - 20KVA

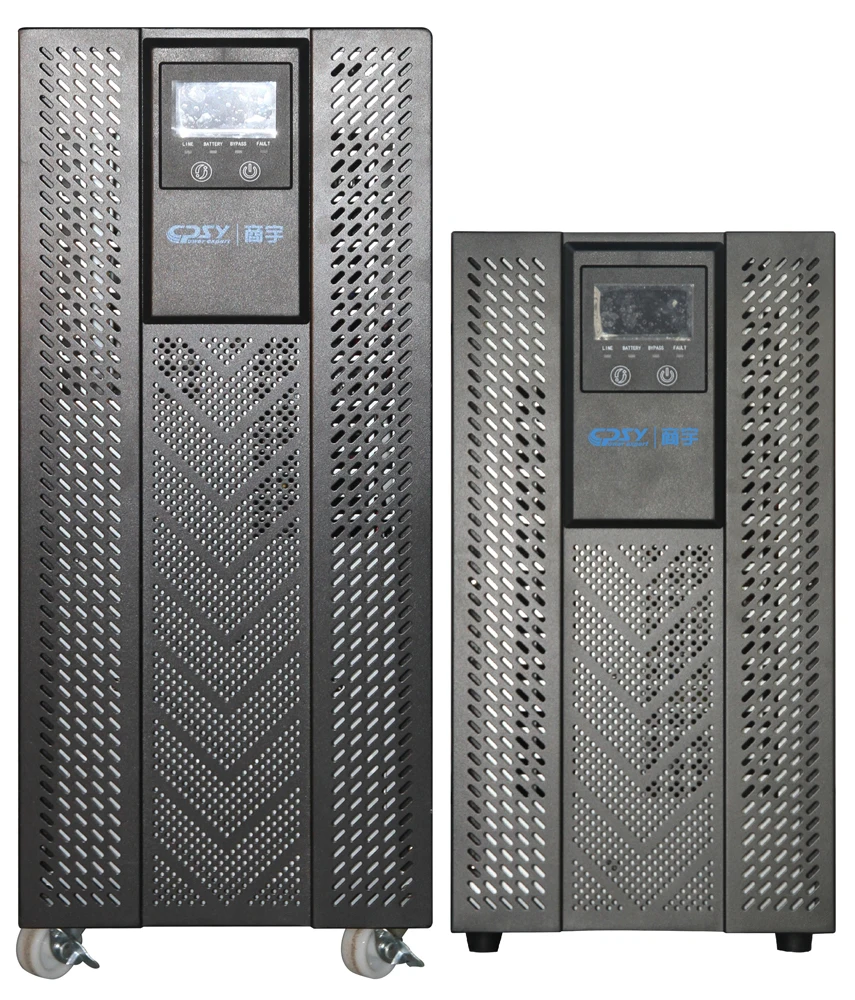

HP1106-10 -




Features




•True double-conversion
•DSP technology guarantees high performance
•Output power factor 0.8&
•Wide input voltage range (110-300 VAC)
•Built-in phase auto adapt function simplifies wire installation
•Eco mode operation for energy saving (ECO)&EPO
•Charger capacity expansion to 8A for long-run models
•SNMP+RS-232 multiple communications
•Adjustable battery numbers&Generator compatible
•N+X parallel redundancy&isolation transformer available








Technical Data

Technical Data















































































































































































































MODEL



HP3110H




HP3110H-ISO




HP3115H




HP3120H




HP3120H-ISO



PHASE



3-phase in / 1-phase out



CAPACITY



10000 VA/

8000 W




10000 VA/

8000 W




15000VA/

12000 W




20000VA/

16000 W




20000 VA/

16000 W



INPUT


Voltage Range


Low Line Transfer



176 VAC (phase voltage) ± 3%@ 100% load 110 VAC (phase voltage) ± 3% @ 50% load



Low Line Comeback



186 VAC (phase voltage) ± 3%@ 100% load 120 VAC (phase voltage) ± 3%@ 50% load



High Line Transfer



300 VAC (phase voltage) ± 3%



High Line Comeback



290VAC (phase voltage) ± 3%



Frequency Range



46~54Hz or 56~64Hz



Power Factor



>0.99 @ 100% load



OUTPUT


Output Voltage


208/220/230/240VAC


104/110/115/120VAC or208/220/230/240VAC



208/220/230/240VAC



104/110/115/120VAC or208/220/230/240VAC


AC Voltage Regulation (Batt. Mode)



± 1%



Frequency Range (Synchronized Range)



46~54Hz or 56~64Hz



Frequency Range (Batt. Mode)



50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz



Current Crest Ratio



3:1



Harmonic Distortion


<2%THD(LinearLoad)
<5%THD(Non-linear Load)



<2%THD(LinearLoad)
<6%THD(Non-linear load)




<2%THD(LinearLoad)< 5%THD(Non-linear Load)



<2%THD(LinearLoad)
<7%THD(Non-linear Load)



Transfer Time


AC Mode to Batt. Mode



Zero



Inverter to Bypass



Zero



Waveform (Batt. Mode)



Pure sine wave



EFFICIENCY


AC Mode



89%




85%




89%




89%




87%



Battery Mode



86%




83%




88%




87%




83%



BATTERY


Long-run Model


Battery Type



Depending on applications



Numbers


Charging Current (max.)



4A




4A




8A



Charging Voltage



219.2 VDC ± 1%



INDICATORS


LCD Display



UPS status, Load level, Battery level, and Fault conditions



ALARM


Battery Mode



Sounding every 4 seconds



Low Battery



Sounding every second



Overload



Sounding twice every second



Fault



Continuously sounding



PHYSICAL


Long-run Model


Dimension,D x W x H(mm)



515 x 250 x 608



815 x 250 x 826


Net Weight (kgs)



26




91




34




34




144



ENVIRONMENT


Humidity



0-95 % RH @ 0- 40°C (non-condensing)



Noise Level



Less than 58dB @ 1 Meter




Less than 60dB @ 1 Meter



MANAGEMENT


Smart RS-232 / USB



Supports Windows2 2000/2003/XP/Vista/2008, Windows2 7, Linux, Unix, and MAC



Optional SNMP



Power management from SNMP manager and web browser








Detailed Images

Detailed Images

















Backup Offline UPS S series  400VA - 2000VA




•400VA/500VA/600VA/650VA/800VA/1KVA/1.5KVA/2KVA
•Built-in super smart charger, shorten 50% of charging time
•Boost and buck AVR for voltage stabilization
•Modified sine wave&Auto restart while AC is recovering
•Off-mode charging&Cold start function


•USB/RS-232 communication port&RJ-11/RJ-45 protection


•Offering LED and LCD display for selections








Online UPS HP11Tower series  1KVA - 3KVA




•True double-conversion
•Dual-mains inputs for special power environment with High Voltage and Low Voltage
•Wide input voltage range (176-288VAC) at full load
•Selectable output voltage at 220VAC/230VAC/240VAC
•Input power factor correction 0.99
•Mini slot for USB/RS-232/AS400/SNMP communication














Online UPS HP11 Tower series 6KVA - 20KVA




•True double-conversion online UPS
•DSP technology guarantees high performance
•Output PF 0.8 & Active input PF correction 0.99
•Adjustable battery number from 16 pcs to 20 pcs
•Adjustable charging current via software (0.5A~6A)
•Wide input voltage range (110-300 VAC)
•Emergency power-off function (EPO)
•SNMP/USB/RS-232 communications








Online UPS HP31 Tower series  10KVA - 20KVA




•True double-conversion
•DSP technology guarantees high performance
•Output power factor 0.8
•Wide input voltage range (110-300 VAC)
•Eco mode operation for energy saving (ECO)
•Emergency power-off function (EPO)
•SNMP+RS-232 multiple communications
•Optional N+X parallel redundancy&Generator compatible

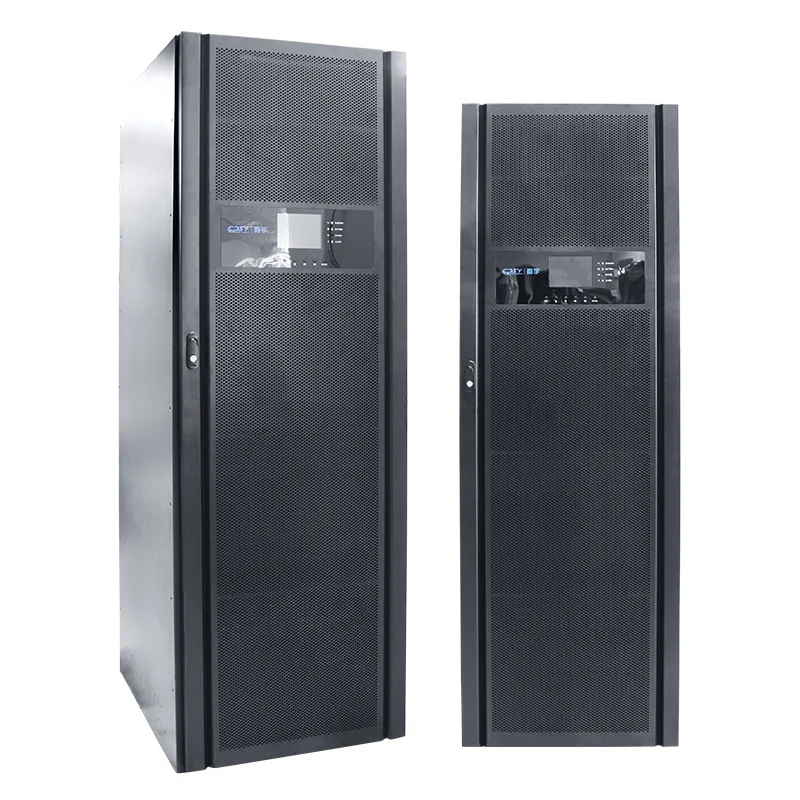

HP33-1




Online UPS HP33 Tower series  10KVA - 80KVA




•VFI "online double conversion"


•IT and networking environments
•Data centers
•wiring closets
•Enterprise server applications
•Industrial applications
•Medical industry


•Shopping centers








Online UPS GP11 Tower series  3KVA - 20KVA




•Galvanic isolation design to withstand all kinds of loads
•Fully coating PCBAs to withstand the harsh environment
•Unique ventilation design for effective heat dissipation
•Wide input voltage and frequency range
•High short-circuit and overload capabilities
•Build-in maintenance bypass switch
•Output power factor 0.8





















CPSY UPS Battery  7AH - 200AH






Rack Online UPS  1KVA-20KVA
