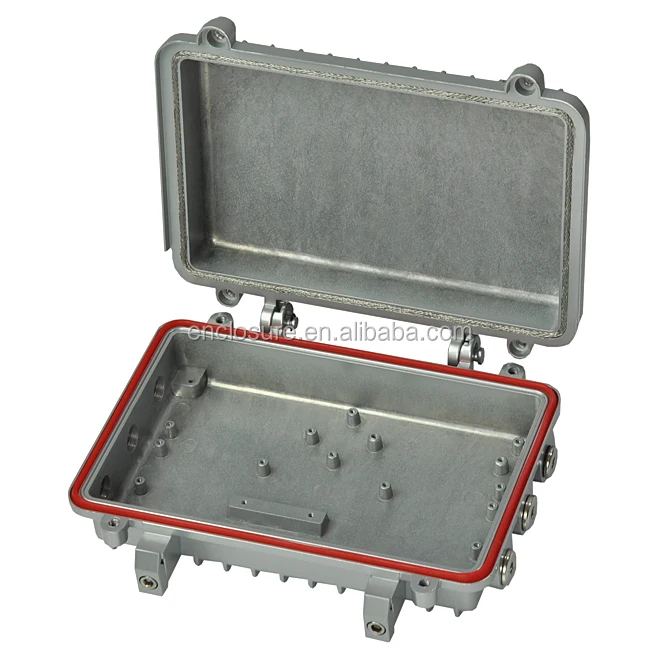

CHANGHE IP65 Aluminium Die Cast CATV Outdoor Amplifier Enclosure 210x130x58mm
- Category: >>>
- Supplier: Ningbo Dayang Enclosures Co. Ltd. [Zhejiang China]Ningbo
Share on (60716337305):
Product Overview
Description
Product Specs
Technical Features:
Product Dispaly
IP65 CATV Outdoor Amplifier Enclosure (11B-10)
The dimensions specified below are Length x Width x Height.
| Model No. | External Dimensions | Internal Dimensions | Mounting plate size |
| 11B-10 | 238 x154.5 x73mm | 210×130×58mm | 205×125mm |
Technical Features:
· Aluminium alloy die casting shaping
· RFI and EMI shielding
· IP 65 watertight and dust-proof (IEC60529 : 2001)
· High impact resistance (IK grade: IK08)
· High corrosive resistance
· Easy mounting
· 75Ωjoint
· Can be used at a wide range of operating temperatures:-40℃～120℃(IEC60068 : 1997)
· The interior contains mounting pillars to accommodate mounting plates, supporting rails or circuit boards.
Product components
| Parts name | No. | Materials |
| Lid | 1 | Die cast aluminium |
| Bottom | 1 | Die cast aluminium |
| Bolts | 6 | Stainless steel |
| Sealing ring | 1 | Silicone rubber |
| Metal shielding net | 1 |

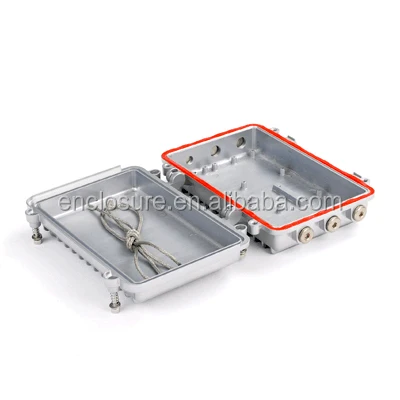

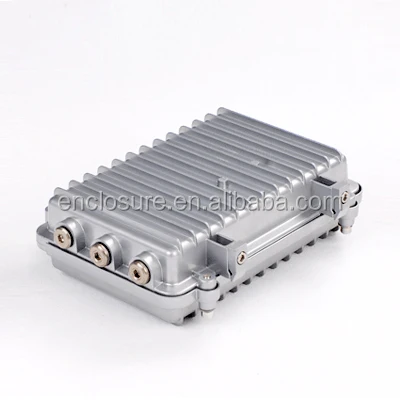

Product Dispaly
Dimension Chart

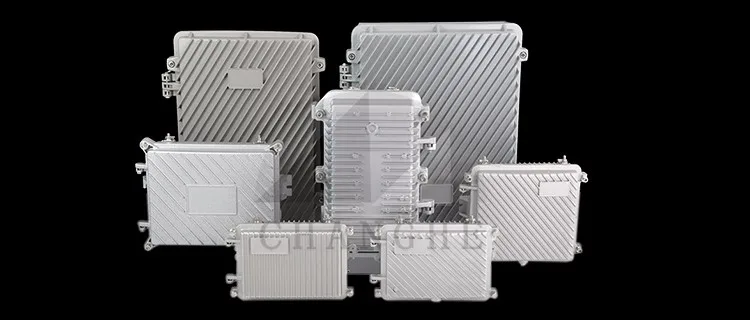

CHANGHE Outdoor CATV Amplifier Enclosures
Die-cast in aluminum alloy, CHANGHE amplifier enclosures offer high corrosive resistance and provide excellent RFI and EMI shielding. Internal dimensions range from 123x103x55 mm to 473x324x138 mm. For more detailed information, please click on the following model no.
| Model No. | Internal dimensions (mm) | Model No. | Internal dimensions (mm) |
| 130x90x75 | 183x140x50 | ||
| 168x87x72 | 420x335x126 | ||
| 210x130x58 | 410x280x112.5 | ||
| 211x132x87 | 184.5x127x63 | ||
| 255x146x81 | 184.5x127x63 | ||
| 316x165x130 | 200x185x75.5 | ||
| 473x324x138 | 246x196x187 | ||
| 300x180x98 | 123x103x55 | ||
| 258.5x213x100 | 143x123x60 | ||
| 209x129x90 | | |
CustomizationCustom & Modified Enclosures
Custom & Modified Enclosures
When a standard enclosure isn’t exactly what you need, CHANGHE can modify our designs for the ideal enclosure solution. Some common modifications we can do for you:
- Mold & Design
- Special Paint Colors
- Silk Screening
- Punched Holes
- Cutouts
- Mounting plate design
- Salt Mist Resistance
- Non-inflammable sealing ring
Company Profile
Why choose us?
Ningbo Dayang Co., Ltd (trademark: CHANGHE Enclosures) is a leading company in the enclosure industry. We have been developing and manufacturing enclosures and protective cases for more than 20 years. With over twenty years experience, a dedicated design team and most up-to-date production machinery, we process the products in accordance with our customers’ requirements. We aspire to be the most valued supplier of enclosures for any branch of business,on the domestic and foreign markets.
Specialist Divisions:
Besides waterproof enclosures, CHANGHE Enclosures also includes the following specialist divisions:
