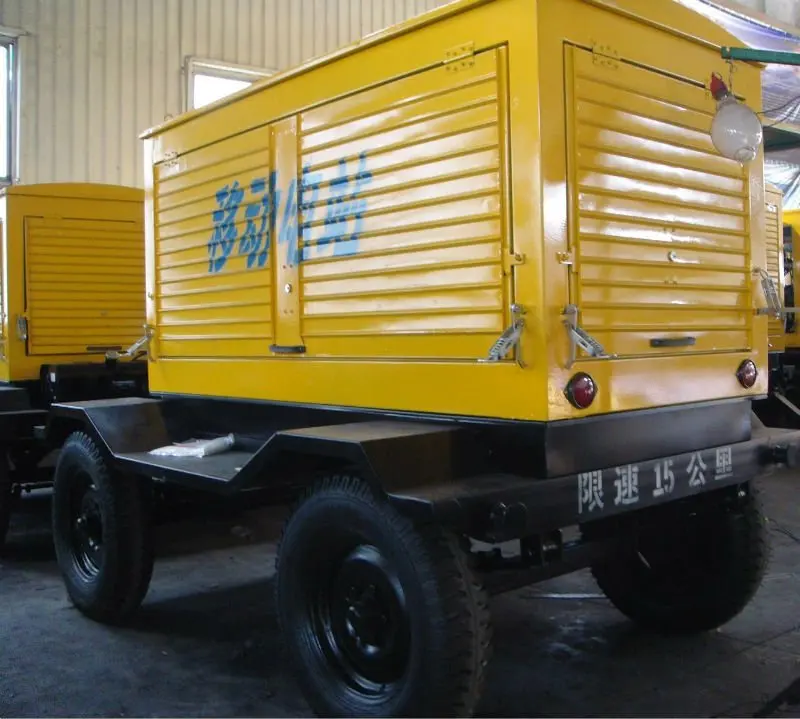

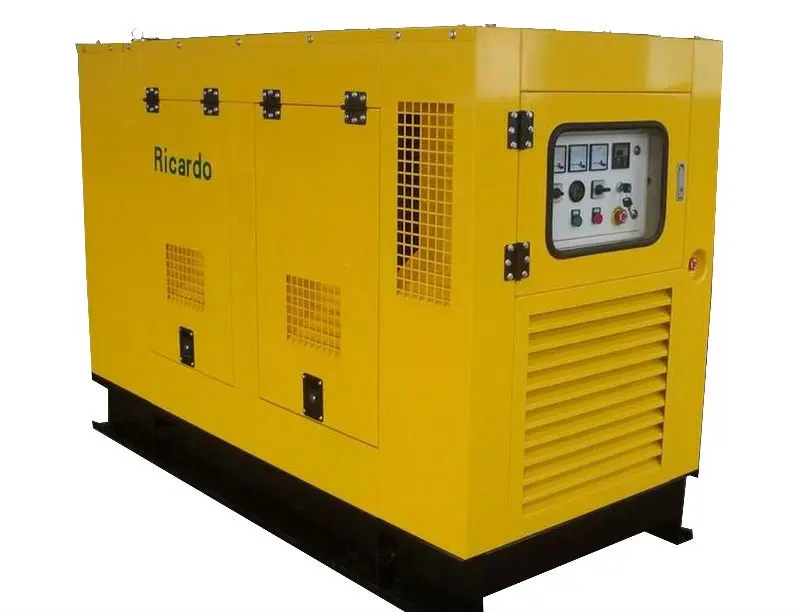

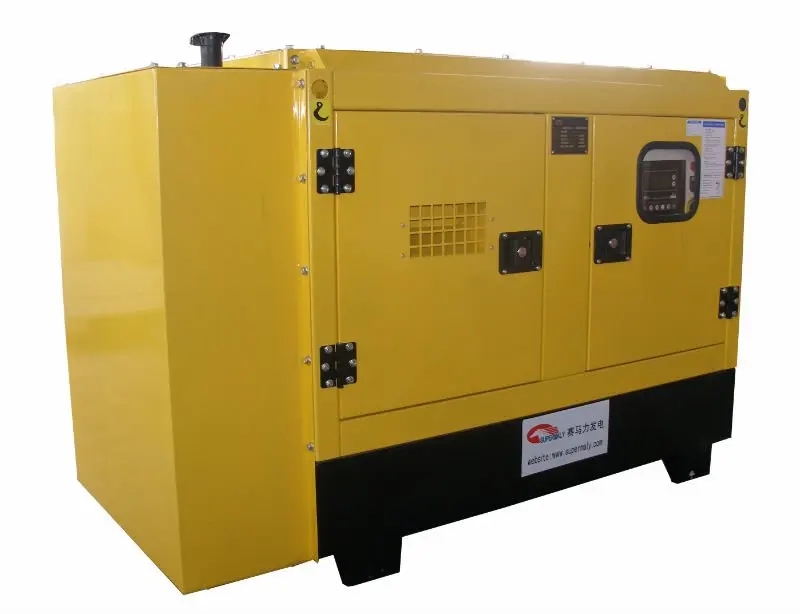

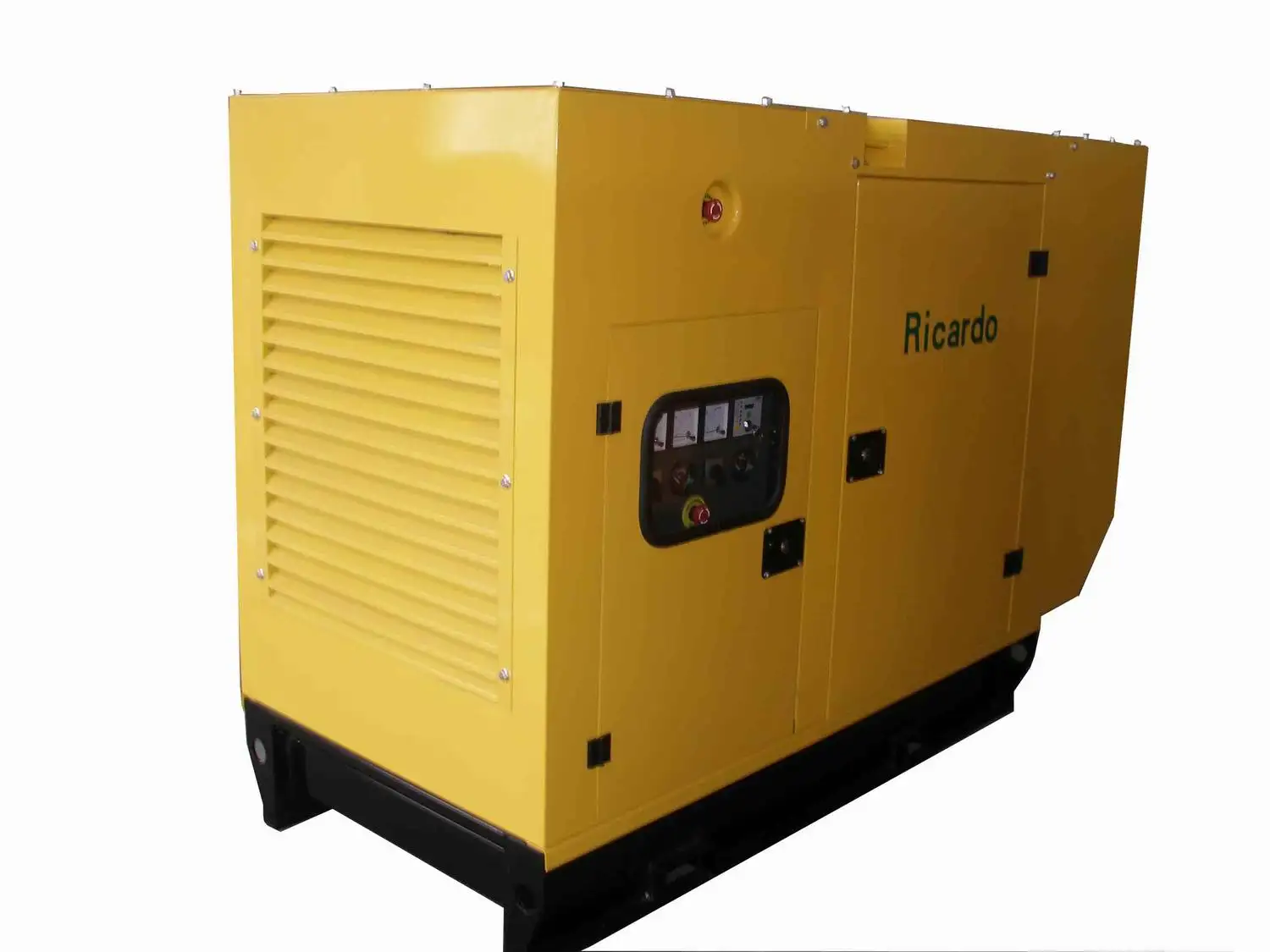

100KW/125KVA CE approved Diesel Generator Set with famous engine and alternator
- Category: >>>
- Supplier: Shandong Supermaly Generating Equipment Co. Ltd.
Share on (60716341201):
Product Overview
Description
100KW/125KVA Diesel Generator Set with Cummins engine manufactured by Supermaly, China
1. General specification of Cummins engine--Open type:
| The model of the unit: | SC100GF |
| Power: | 100KW/125KVA |
| Rated voltage: | 230V/400V(adjustable) |
| Rated current: | 180A |
| Rated frequency: | 50Hz/60Hz |
| The factor of rated power | COS=0.8(lag) |
| The regulating rate of steady voltage: | ≤±0.5% |
| The regulating rate of instantaneous voltage: | ≤-10%/ +15% |
| The time of steady voltage: | ≤1.5sec |
| The waving rate of voltage: | ≤0.5% |
| The regulating rate of steady frequency: | ≤3% |
| The regulating rate of instantaneous frequency: | ≤±5% |
| The time of steady frequency: | 3sec |
| The waving rate of frequency: | ≤0.25% |
| The waste of fuel with full load: | 210g/kw/h |
| size(mm): | 2300*800*1300mm |
| weight: | 1300KGS |
| The main parameters of the engine for 100kw diesel generator | |
| Brand: | Cummins |
| Model: | 6BTA5.9-G2 |
| Type: | four strokes, waste gas turbine boost,direct spurting type |
| Cooling way: | water cooling |
| With Type: | L type |
| Bore *Trip : | 102mm*120mm |
| Displacement | 5.9L |
| Lubricating oil capacity: | 16L |
| Cylinder: | 6cylinders |
| Rotating speed: | 1500r/min or 1800r/min |
| The regulation of rotating speed: | Electronic speed |
| Starting way: | DC24V starting with electricity |
2. General Supply scope:
A. Diesel Generator set include:
Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
B. Accessories Include:
Industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch
with cables
C. Documents include:
Manual, product qualified card
3.Our service:
A. Warranty Policy:
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of diesel engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets
B. OEM Service:
We can provide professional OEM Service for customers.
a. Unique design and manufacture of generator according to customers requirement.
b. Customer logo printing or painting on the genset.
c. Installation and Operation manual neutral or headings can be design according to customer requirement.
d. Full warranty cover to support customers.
4. Company profile:
Shandong Supermaly Generating Equipment Co., Ltd. is located in Weifang city, known as "Power City of China", Shandong Province,China.Specialized in Land&Marine using diesel generating set and gas generating set from 8KW to 2200KW from 2007. Which gen set has been exported to over 60 countries and regions in Europe, Africa, Latin America, Southeast Asia, West Asia etc.
Our gen set is coupled by world famous brand engines such as PERKINS, CUMMINS, DEUTZ, STEYR and RICARDO etc., with world famous brand alternators such as STAMFORD, MARATHON and LEROY SOMER, etc. We also can supply most generating sets coupled by Chinese brand engine and alternator. Besides, we are an OEM factory of Perkins engines and Stamford alternator.
Our marine diesel generators were certified by China Classification Society (CSS), and Chinese fishing boats Inspection Agency (ZY reduction). Land using generators have certification of CE and ISO9001:2008, and other international authoritative institutions and the quality system certification.
5. FAQ(Frequently Asked Question):
a. What is your warranty period?
Our payment terms is 1 year or 1500 running hours whichever comes first. But based on some special project, we can extended our warranty period.
b. Does your generator have global warranty?
Yes, most of our products like Cummins, Perkins, Doosan, Yuchai, Deutz, Volvo power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
c. Can you accept OEM?
Yes, we can accept OEM.
d. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
e. What is your delivery time?
Our normal delivery time is 15-20 days. But if your order is some special engine and alternator, then the delivery time is longer.
6. Pictures for reference:

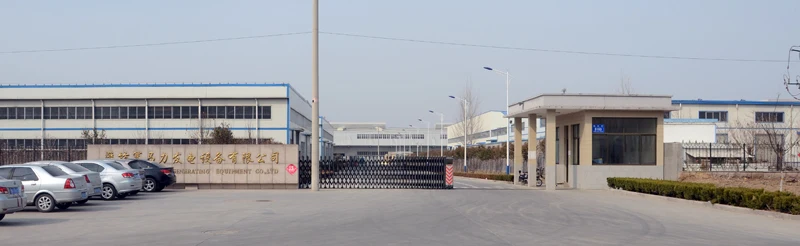

A. Company:

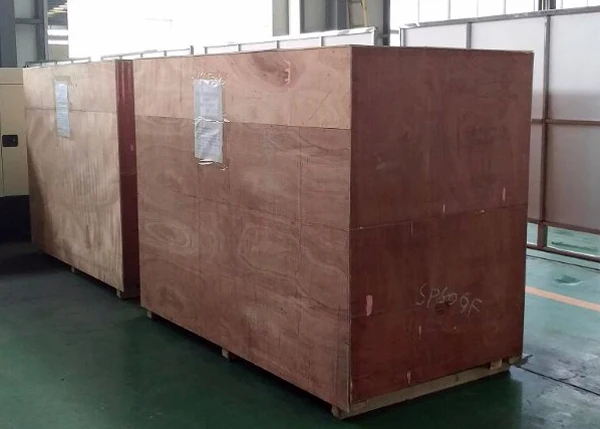

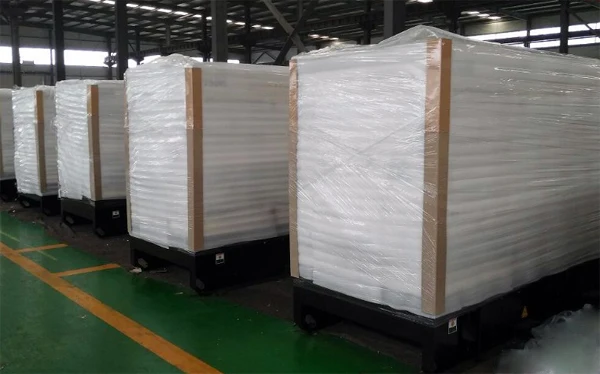

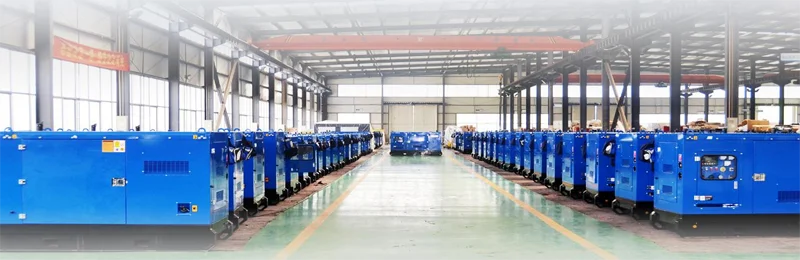

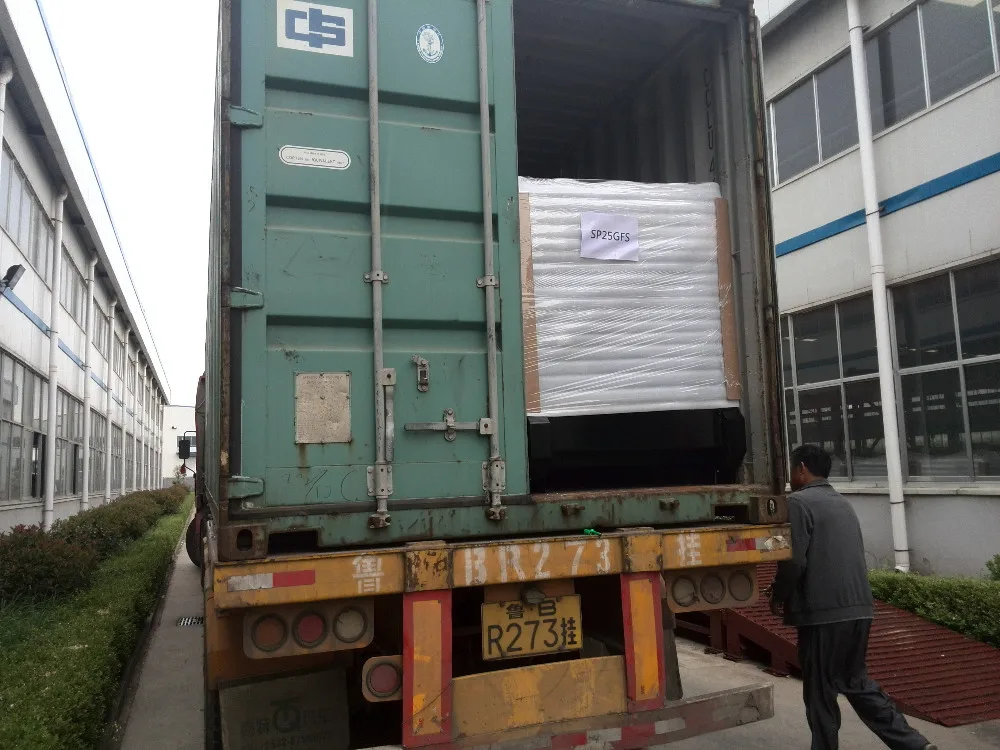

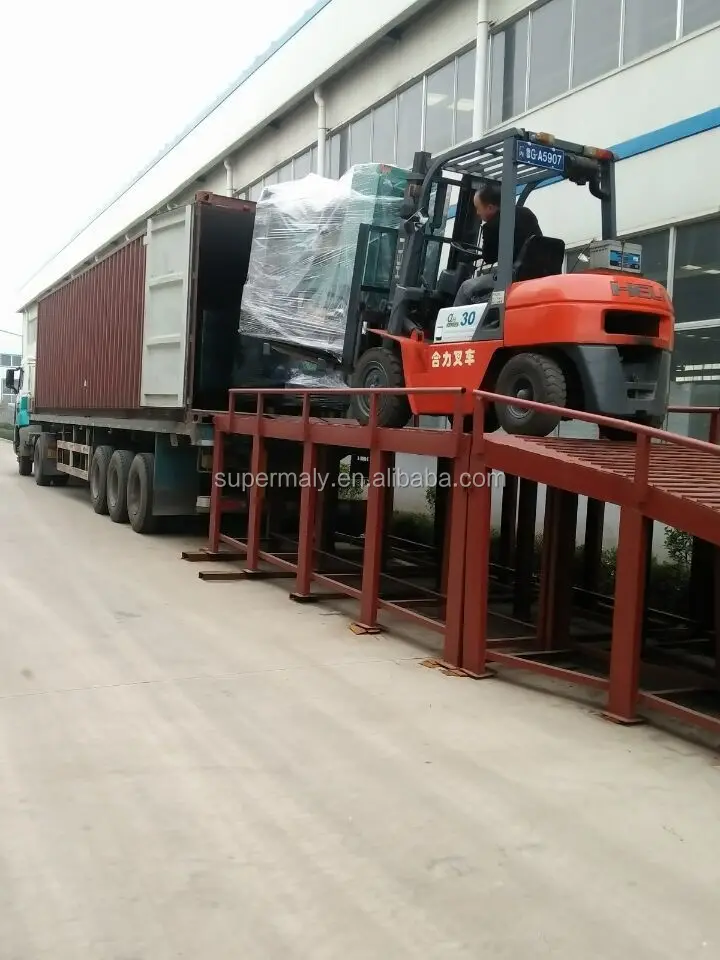

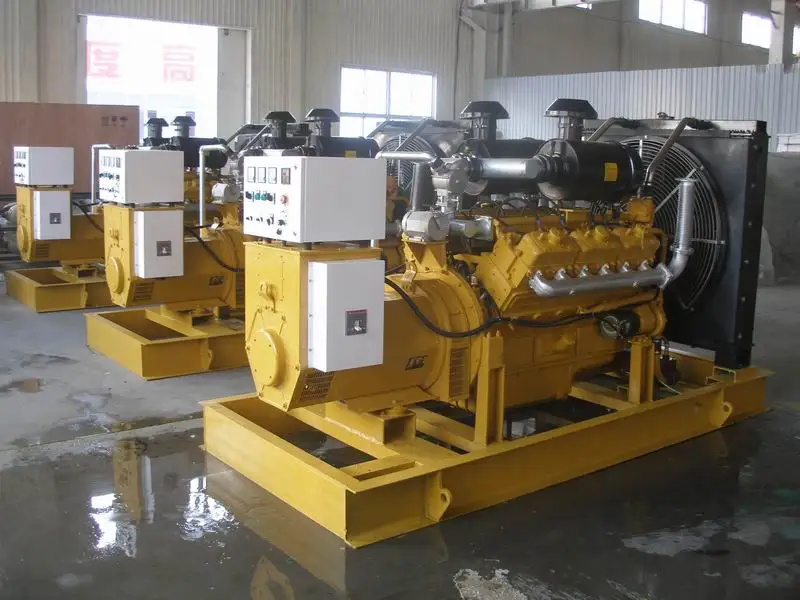

B. Workshop&Package&Delivery:

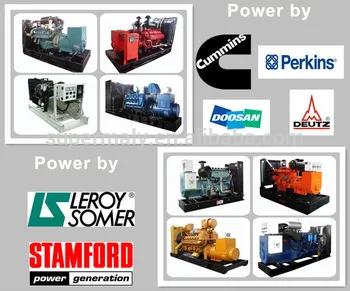

C. Partener:
D. Exhibition( Canton, Philippines, Russia, Uzbekistan, Brazil, Kazakhstan, Dubai, etc.):

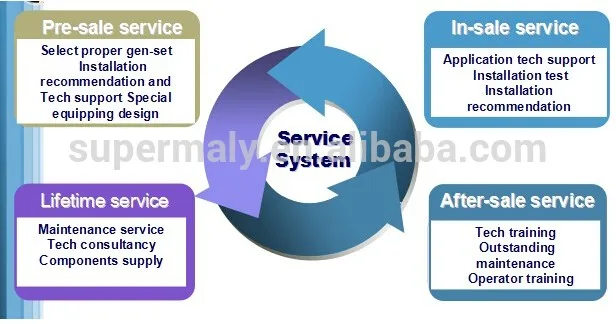

E. Service system:
F. Contact information:
Any question , pls feel free to let me know.
Looking forwards to your response.
