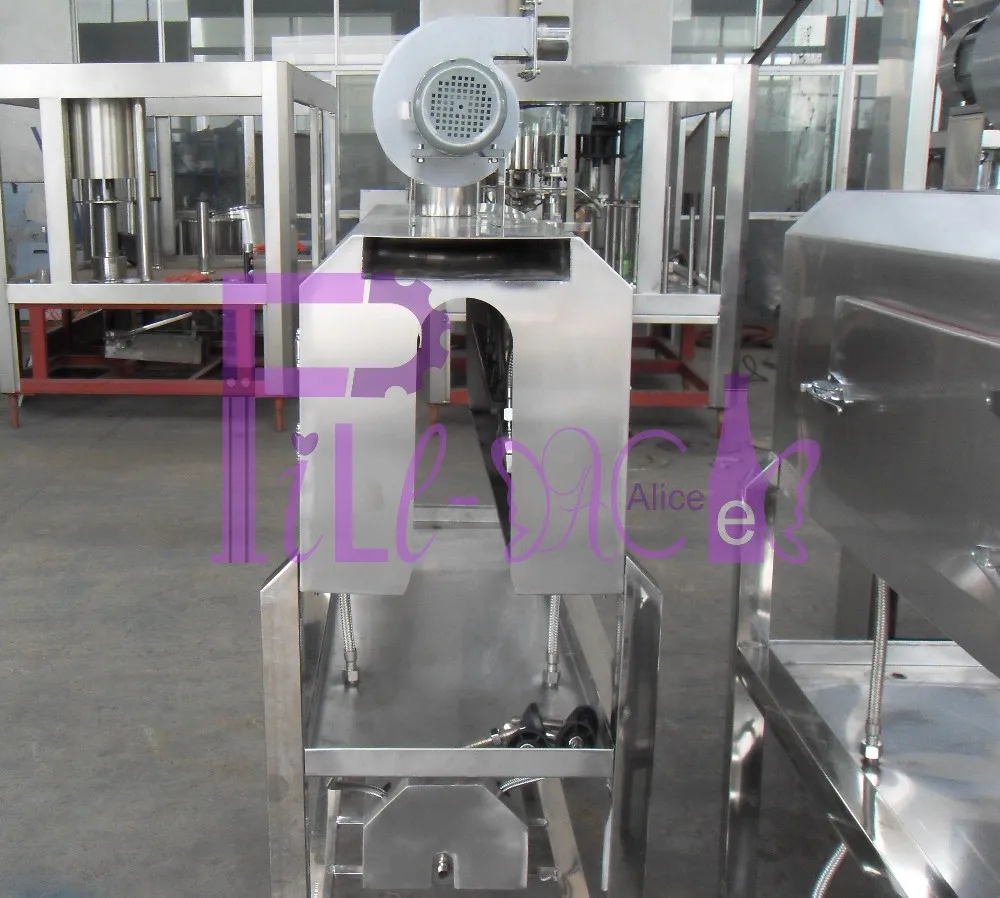

1.5m steam Sleeve Shrink Machine for PVC body label
Overview
The new style steam Sleeve Shrink Machine improve the efficiency highly. It maninly applies to different and unequal round bottle, flat bottle, square bottle etc. The adjustment and maintain is convenient, the shrink is in order. The spout of steam uses the separation style which makes the tunnel smooth. The spout mouth is divided into four parts and the height ,place and quantity of steam of every part can be adjusted in order to make the shrink effect perfect .the low pressure steam bag use the seamless steel tube design and every connect tube use stainless steel soft tube ,so the disassembly and fixing is very convenient.
The SUS304 stainless steel is largely used in the whole machine, so it is heat preservation and save energy sources, besides ,it accord with the international safety standard. The stainless steel plane at the bottom can condensate water and drainage them. The redactor and transportation machine is made by international famous brand—Spirax Sarco which working environment cannot be influenced. the waterproof design makes the operation and maintain convenient.
1.5m steam Sleeve Shrink Machine for PVC body label

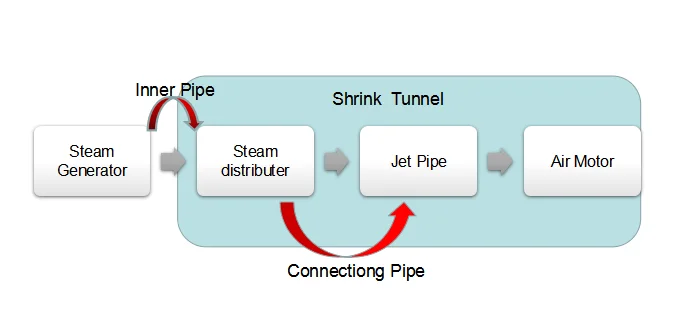

Working Process
1、 Steam Generator generates the steam, and distributing the steam to Steam distributer through the main inner Pipe
2、steam was distributerd to the Jet Pipe inside the Sleeve Shrink Machine through four connecting pipe
3、The Jet Pipe inside the tunnel shaked to distributing steam, the label was Shrinked.
4、After finishing the shrink, the sucker would sucking the steam wastage.
| \t | |||
| \t | \t | \t | |
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||

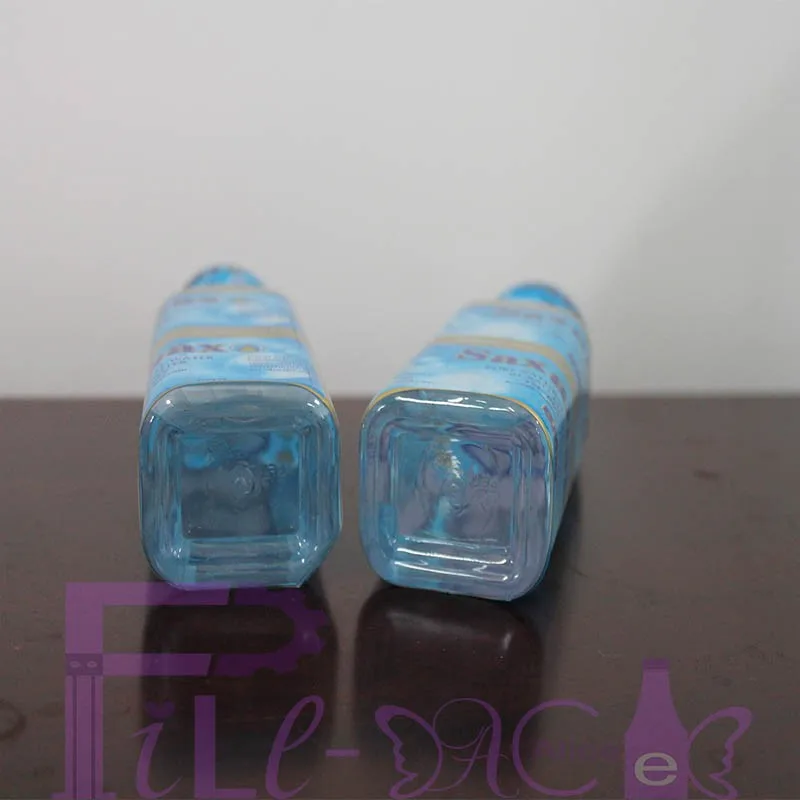

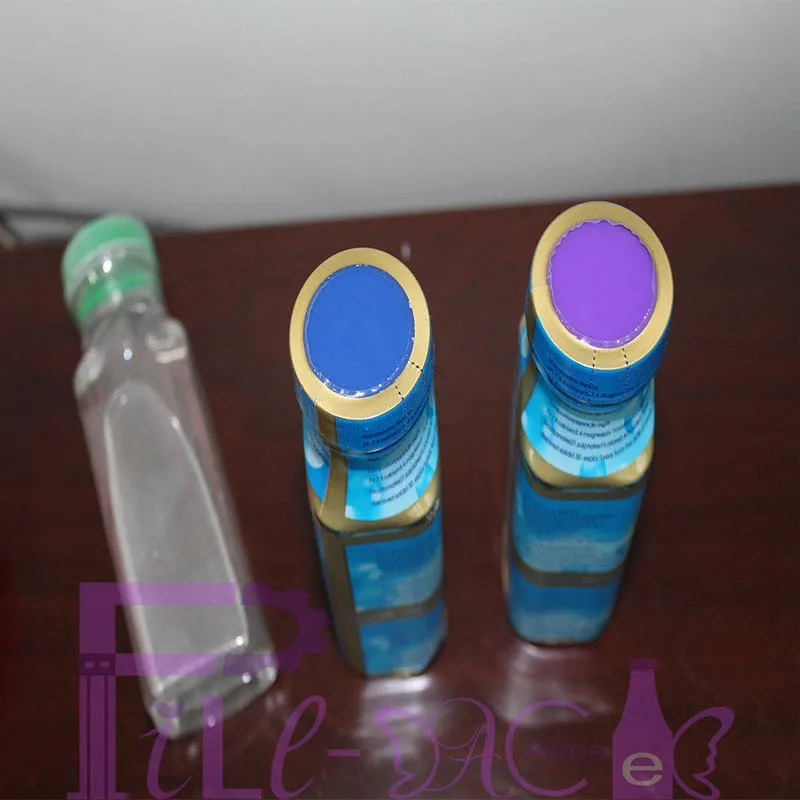

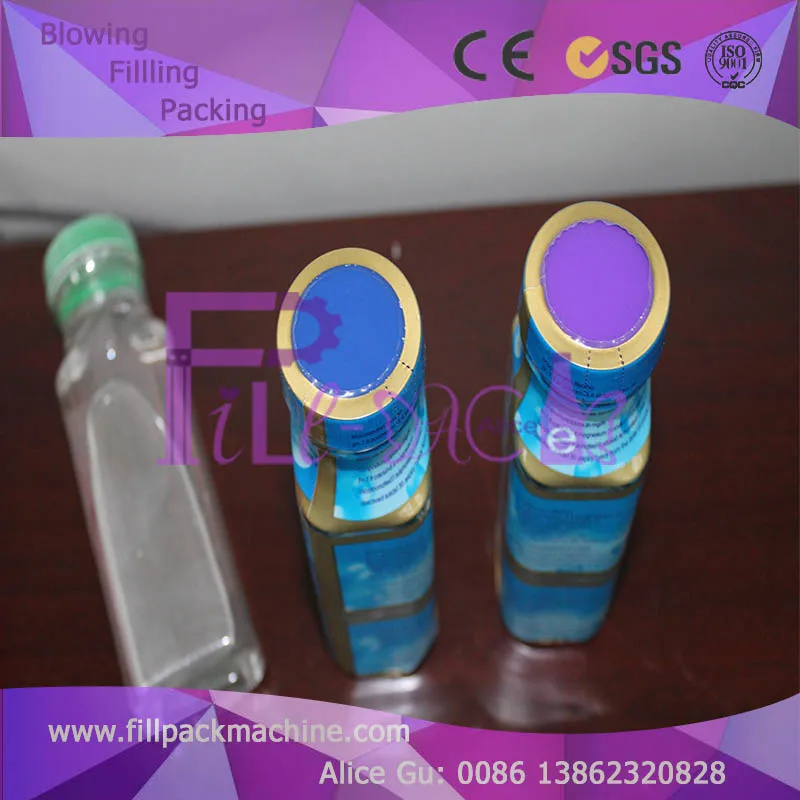

Shrink Effects
1.5m steam Sleeve Shrink Machine for PVC body label
Main Features
1)The whole machine uses stainless steel protection frame, firm and rustless.
2) Easy adjustment and maintenance with checking window
3) Evenly steam distributing with Steam distributer and jet pipe, make it smooth shrink
4) Each section, orientation and steam output are adjustable for best effect.
5) The machine has double heat preservation effect in strict accordance with international safety standards.

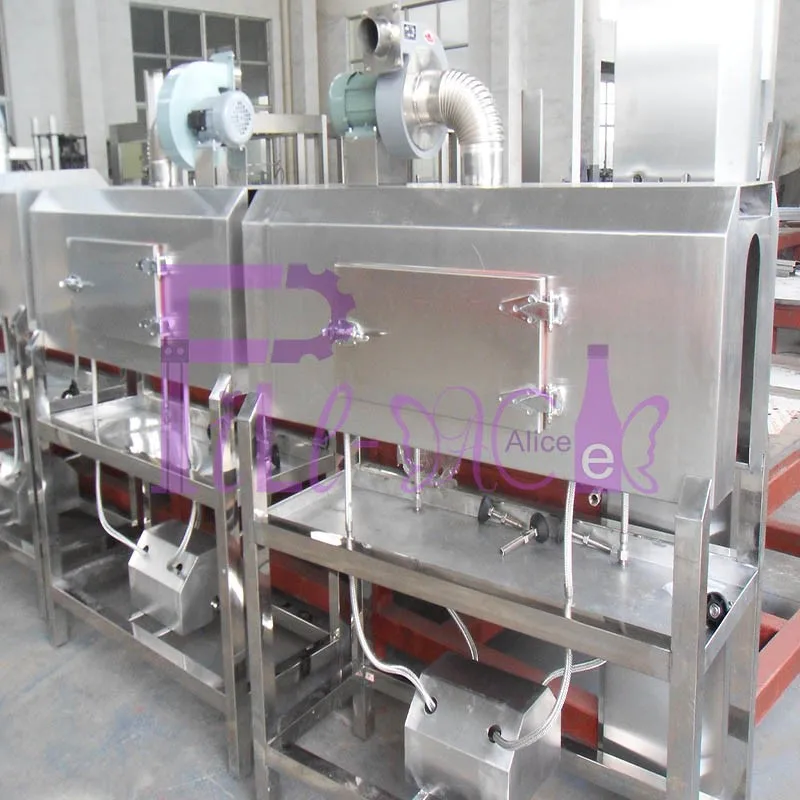

Detailed Images

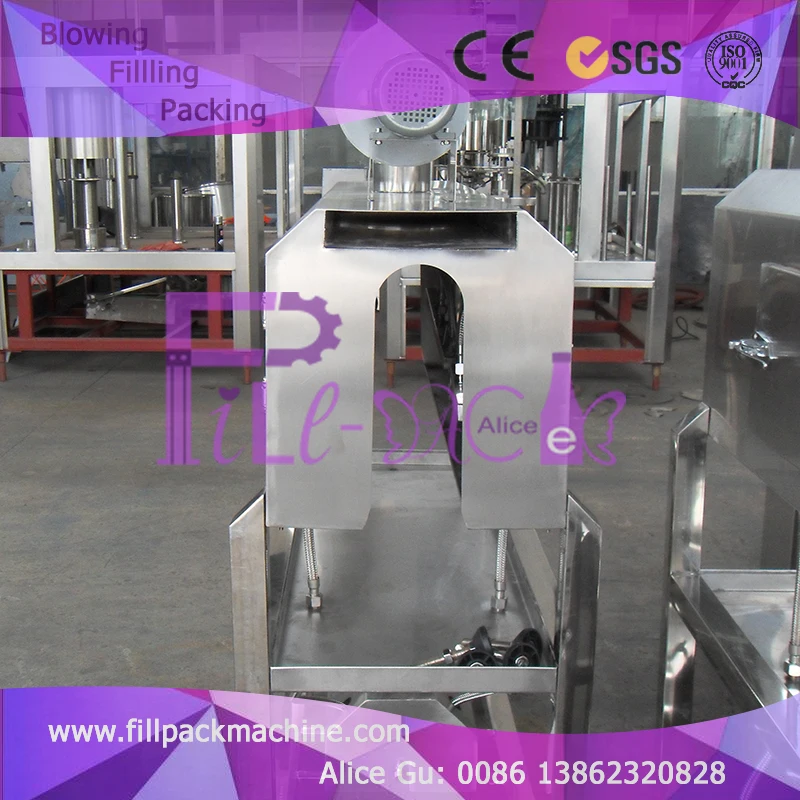

1.5m steam Sleeve Shrink Machine for PVC body label
1.5m steam Sleeve Shrink Machine for PVC body label
Machine Parts

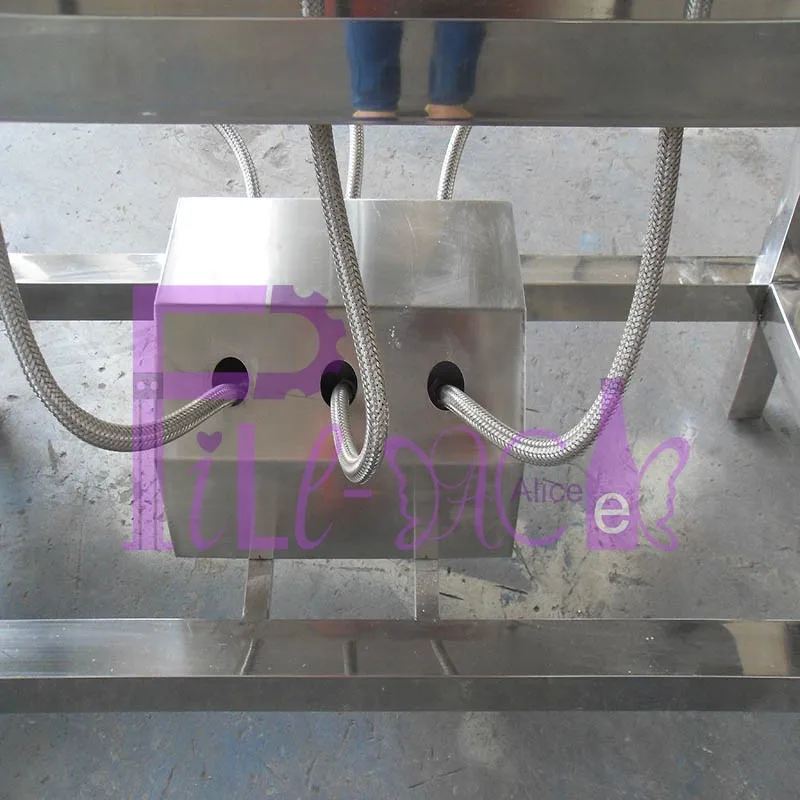

Steam Distributer
Function: Connected with the Steam Generator, and distributing the steam to the inside of the Label Shrink Machine through steam-distributing pipes.
Jet Pipes
Function: it's connected with the steam-distributing pipes, By automatic swing, the steam is evenly distributed inside the Label Shrink Machine.
Checking WIndows
Function: Check and adjust the position steam pipe and sihrinkage effect
Air Motor
Function : Blowing the steam wastage, driven by Motor.
Packing & Delivery
Packing Details: 1) The special packaging box is according to the immunity standard in China,it suits for
long-distance transport, damp proof, rustproof, land way and seaway.\t2) Transportation ways: Ocean transportation
Delivery Time: 3-7 working days after payment.
Certifications
Our Service
1. Installation & adjustment
After the equipment are arrived at the customer's site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians' guidance. Costs of the staff are decided at last.
2. Training
1). We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users'technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.
2). The buyer can send staff to our company for learning.
3. Quality assurance
1). We guarantee the goods offered are brand-new, not used, with latest design and suitable material made, and we guarantee the specification of the equipment is consonance with the contract.
2). We guarantee the line achieve product technical performance indicators within 5 days after feeding operation through the correct guidance of the installation and commissioning.
3). We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. that all belong to our responsibility.
4). The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.
4. Warranty
Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
Our Company
ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. is loacated in Zhangjiagang city which is famous for beverage machinery producer collection. Intergrated the industry advantange and its own development in R&D, production, sales, after sales service, FILL-PACK is ready to serve more and more customers with our full range products and satified service.
FILL-PACK product is very critical in the choice of raw materials and spare parts. Korea 304 \\ 316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 80-1200 barrels per hour and various water treatment plants; We provide separate machinery or turnkey project.
Our product pass quality inspection executed by Bureau of Quality and Technical Supervision every year. Our factory is in accordance with ISO9001: 2000 certification system standards and we gain CE certificate for exportation to Euro countries. Our machineries are sold to more than 30 cities in China and over cross to American, Spanish, Hungary, middle east and African countries.
We help to set up your factory as our own home with our pure heart, we do to service, we learn to support!
FAQ
Q1: How to get your suitable machine or production line?
A1: Find our products through Zhangjiagang City FILLPACK machine Co., Ltd. in Google, Bing, Yahoo, Alibaba.com etc
Inquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, MSN, Skype, WhatsApp) and let us know your inquiry.
Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage packing machine and water treatment equipment over 15years.We just not only sell machines, we sell our brand and service. After-sales service, 10 professional sale person with 10 after sale specialist.
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If I buy your machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
