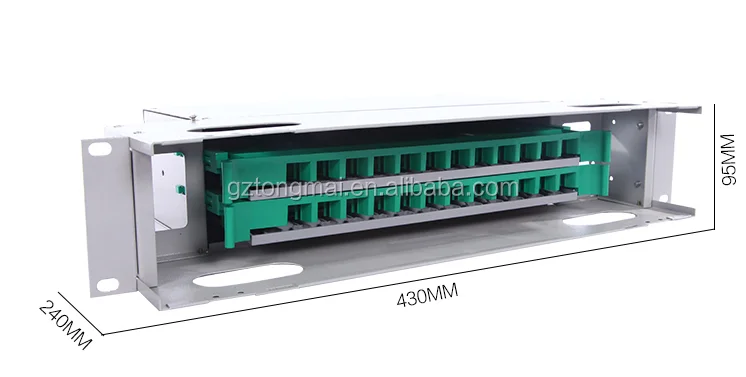

Fiber Optic Patch Panel 24 port Rack Mount 19 inch Fiber Optic ODF

Fiber Optic Patch Panel 24 port Rack Mount 19 inch Fiber Optic ODF

Optic fiber patch panel provides branch connection for fiber termination. Fiber optic Patch Panel is an integrated unit for fiber management, and can be used as distribution box. It divides into fix type and sliding-out type. This equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection.

Fiber Optic Patch Panel 24 port Rack Mount 19 inch Fiber Optic ODF

1.Thickness of Patch panel: 1.0-1.5mm steel

2.Ball bearing slid rails with positive stop

3.Sliding design is easy to work for patching the connectors

4.Hinged front panel is easy to be turned over & be fixed by snap-in locker

5.Front-mounted cable saddles for jumper management

6.Fiber Optic patch panel can manage both splices and terminations

7.Preassembled shelves in multiple configurations

8.Can includes adapter panels for up to 96LC, 48SC,48ST or 48FC terminations

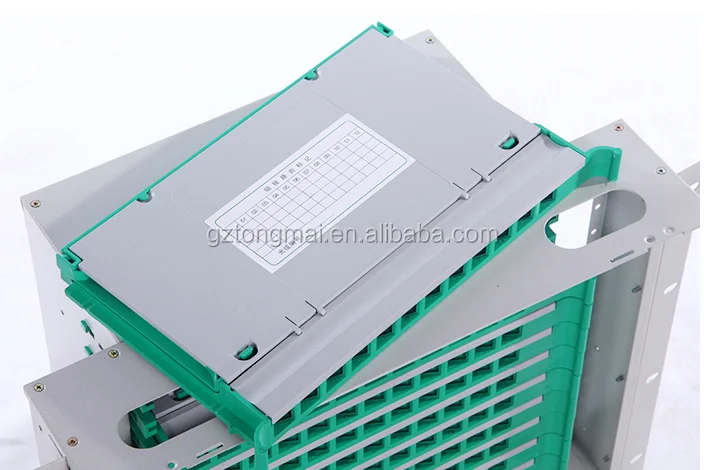

9.High density splice tray contains 24 fiber maximum in one tray

10.fiber saddles built-in for 900um tight buffered fiber winding storing

11.Snap-in locker design, easy to change adapter panels for various connector patching

12.Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up

13.Accessory kit of fiber optic patch panel consists of cable ties, mounting ear screws, and spiral wrap tube

Fiber Optic Patch Panel 24 port Rack Mount 19 inch Fiber Optic ODF

Packing:Stronger carton
