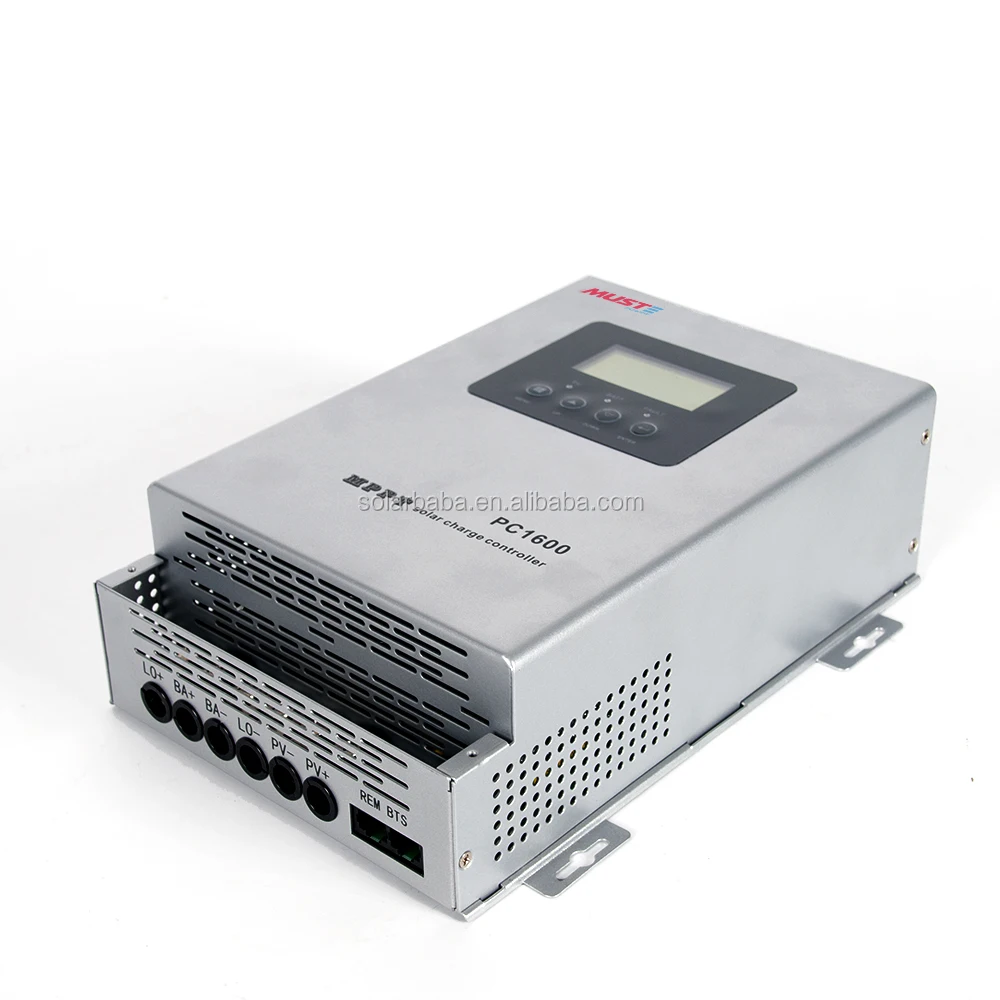

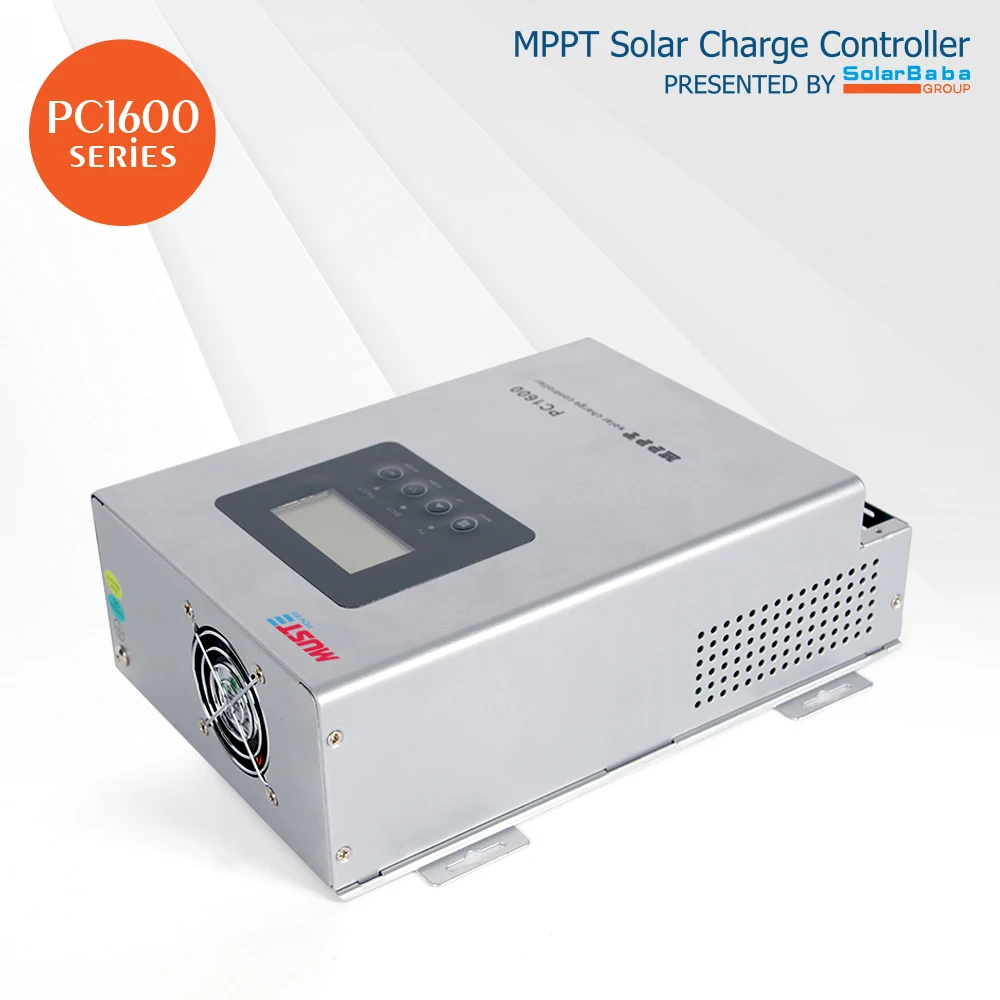

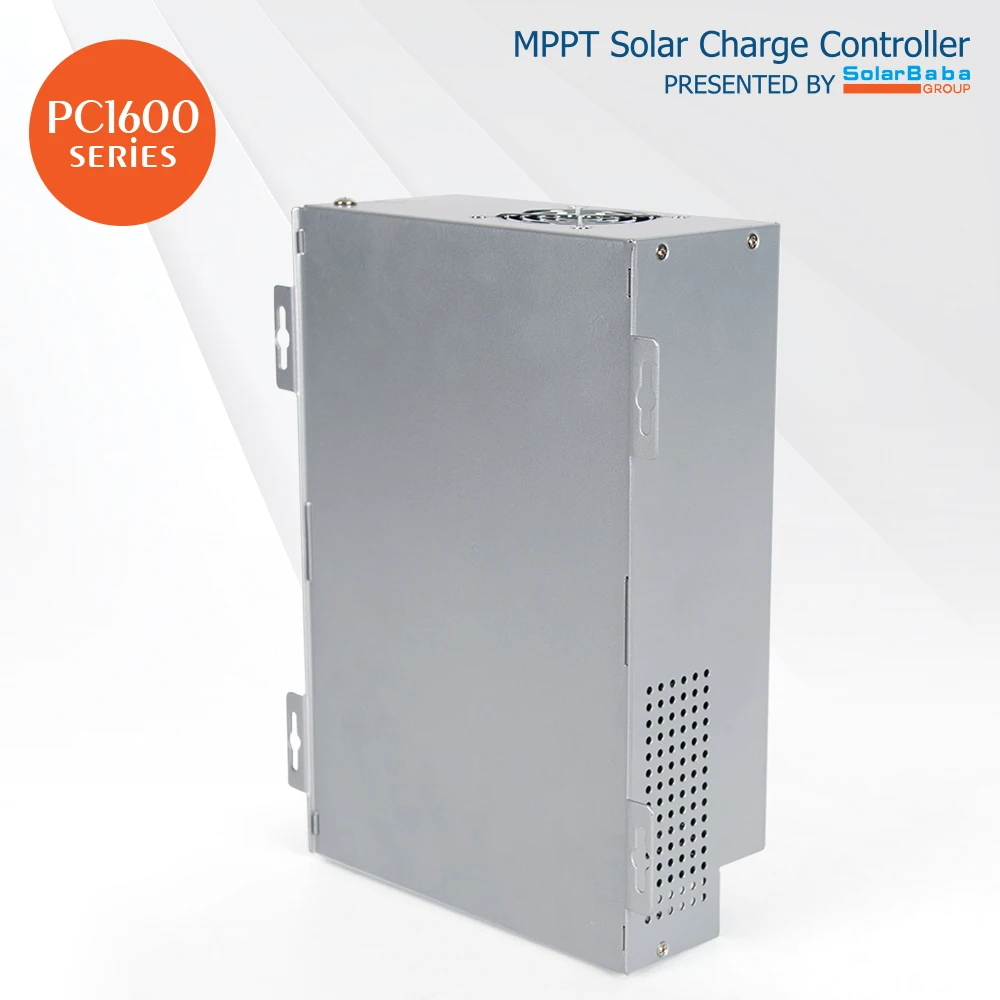

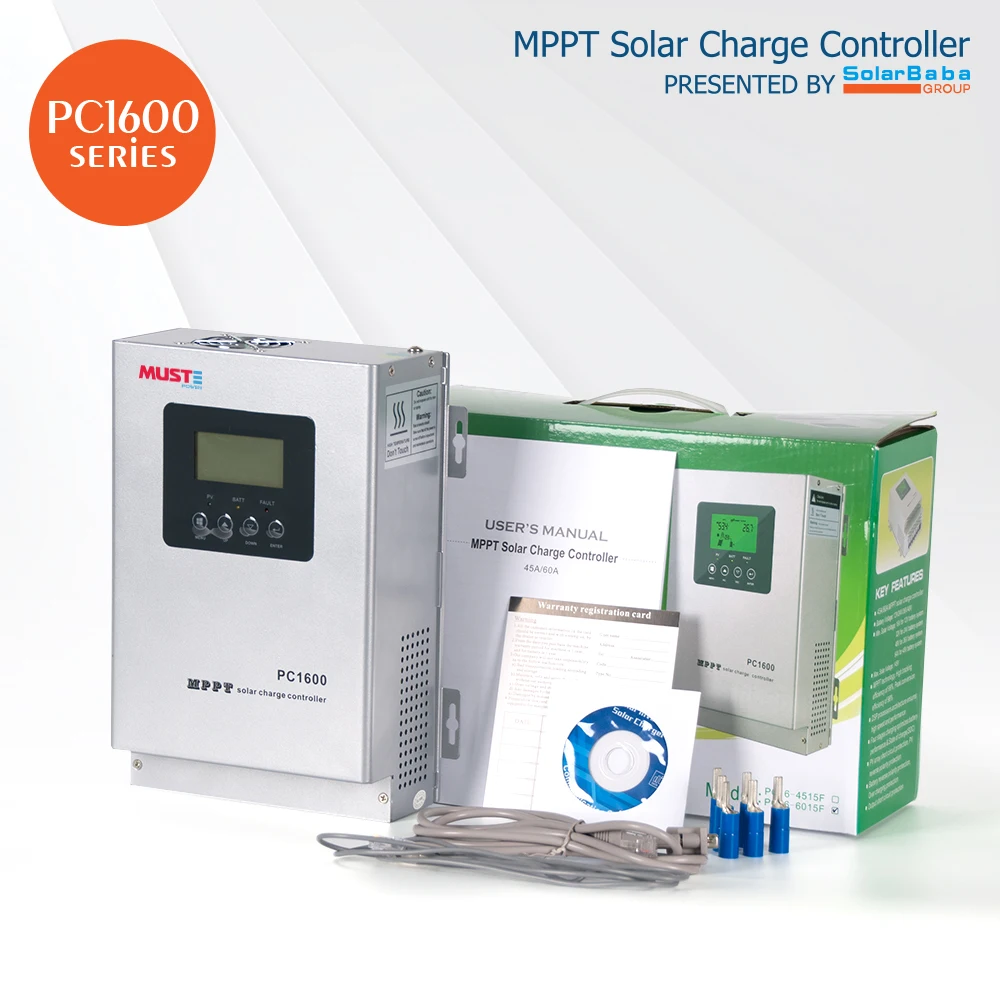

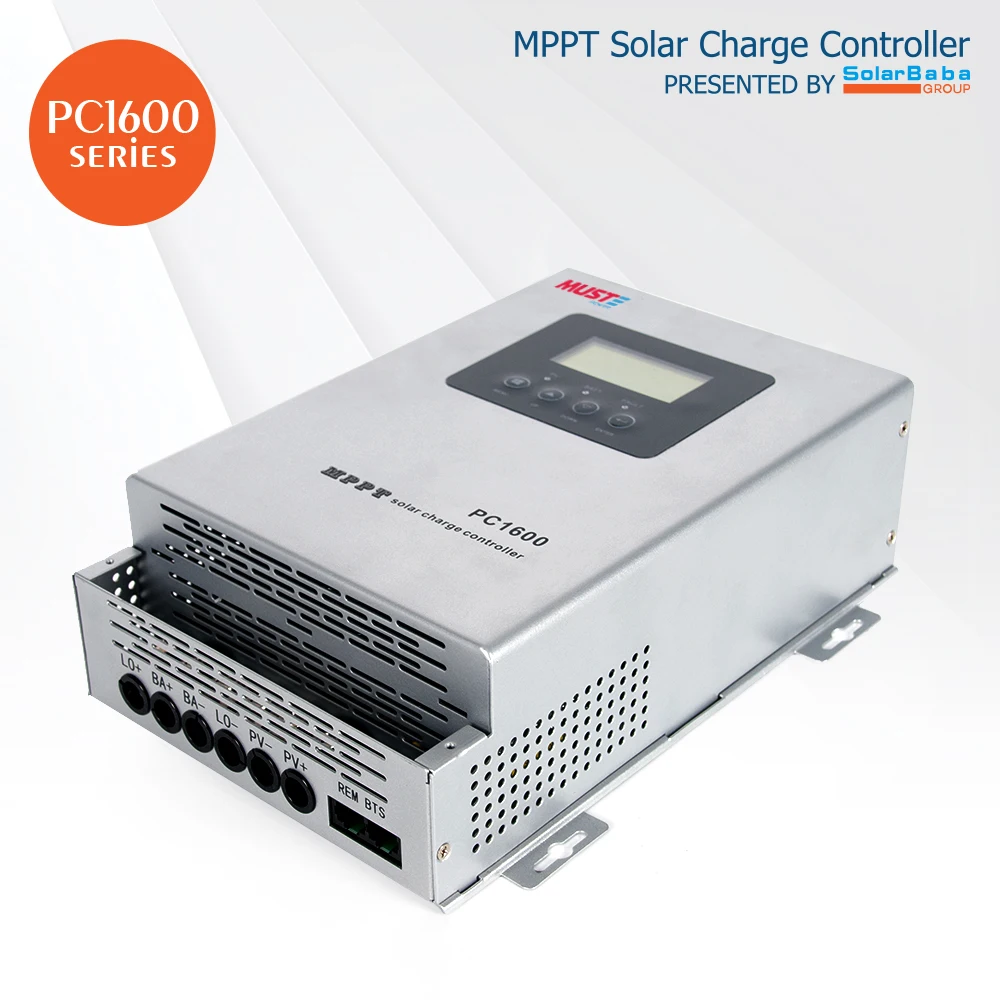

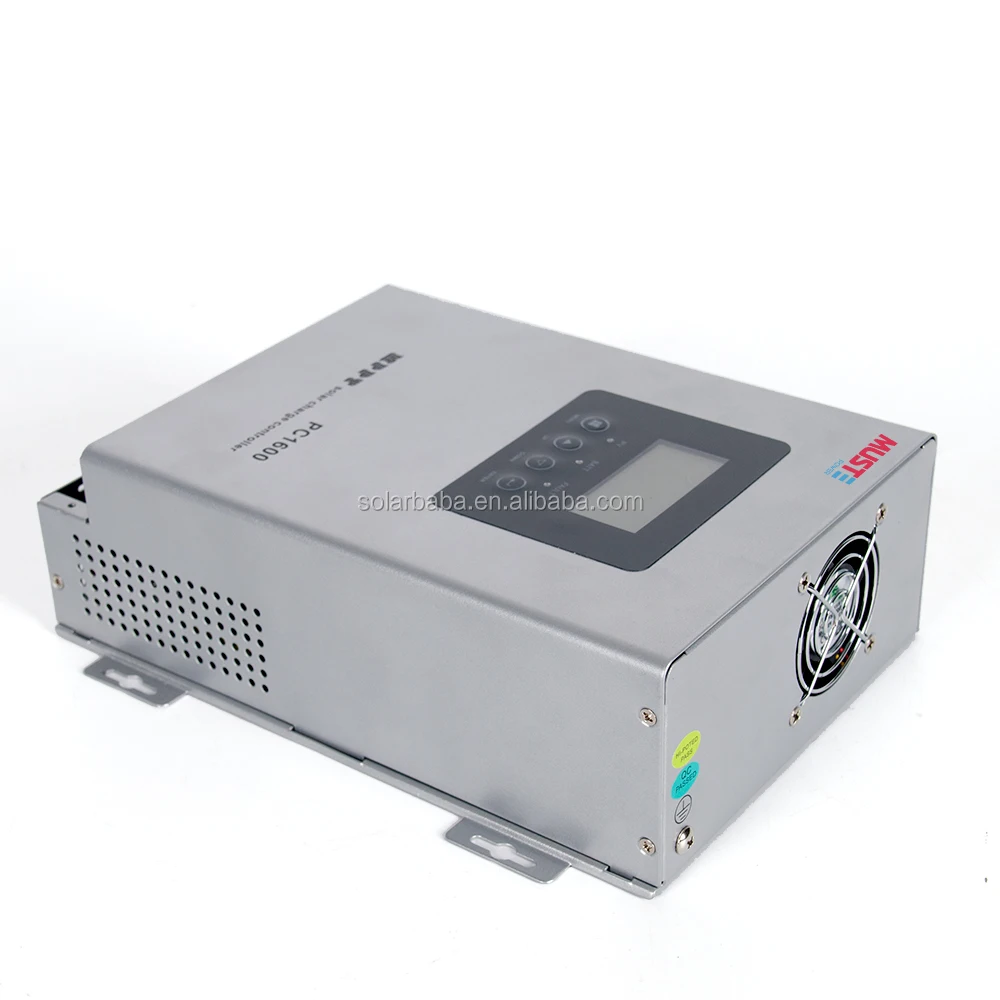

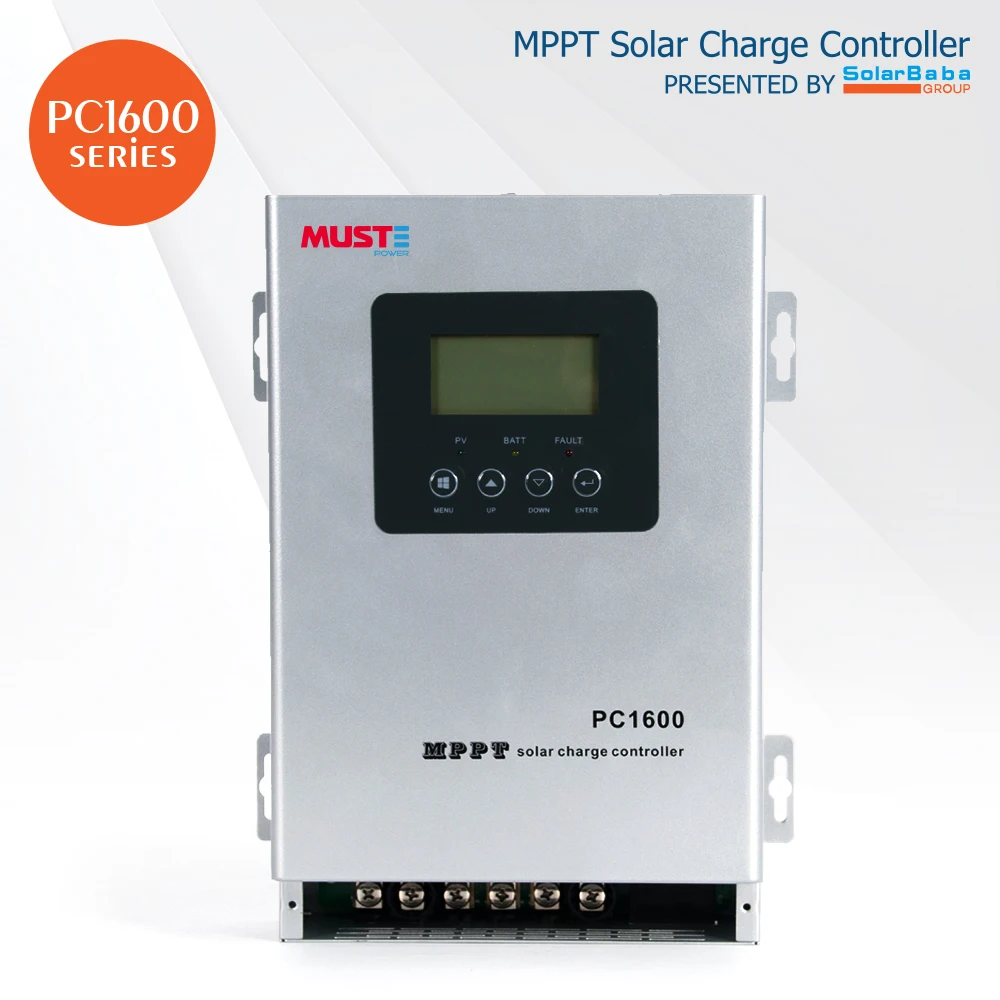

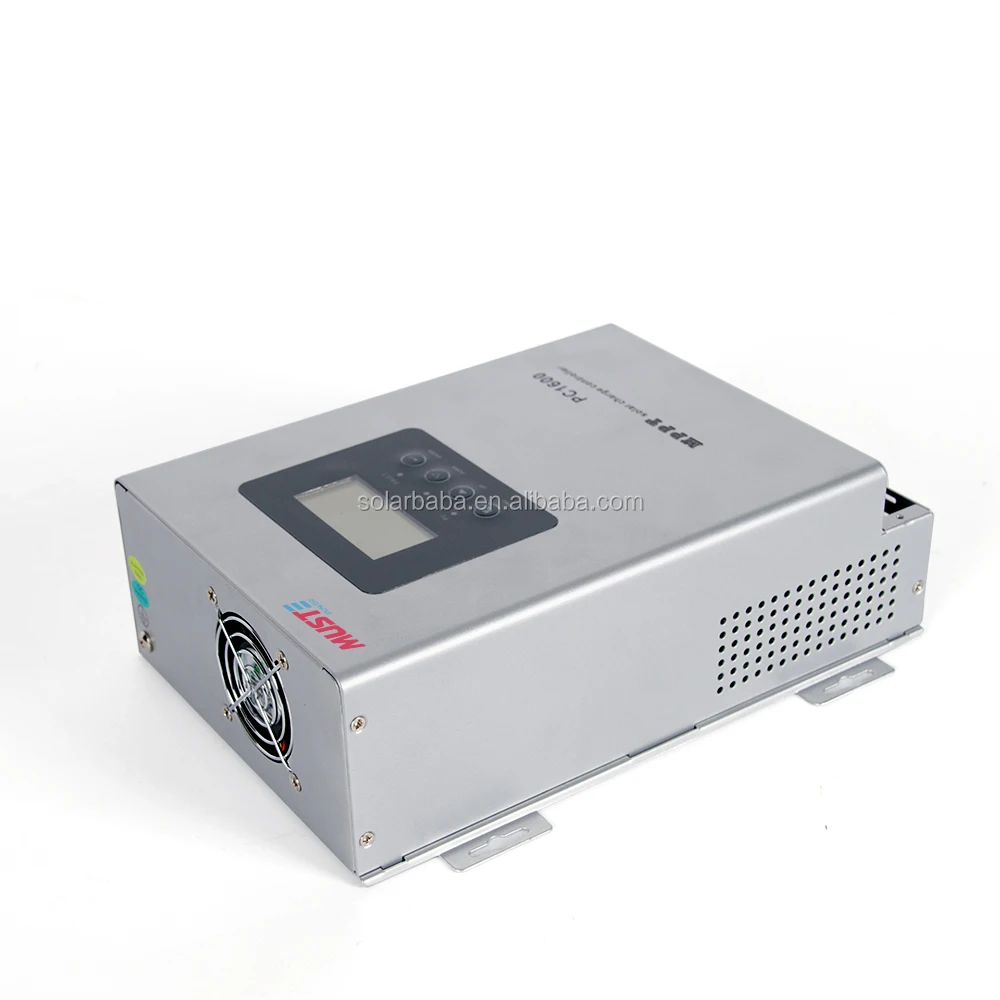

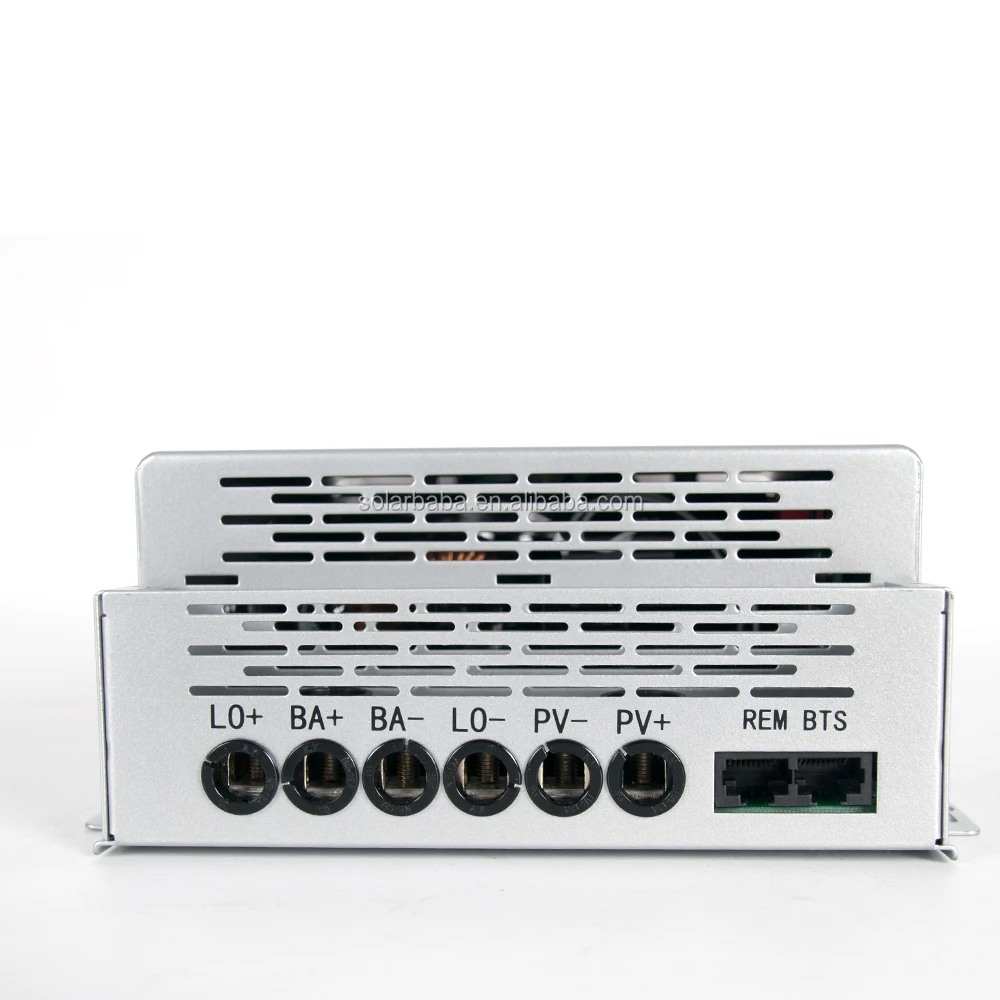

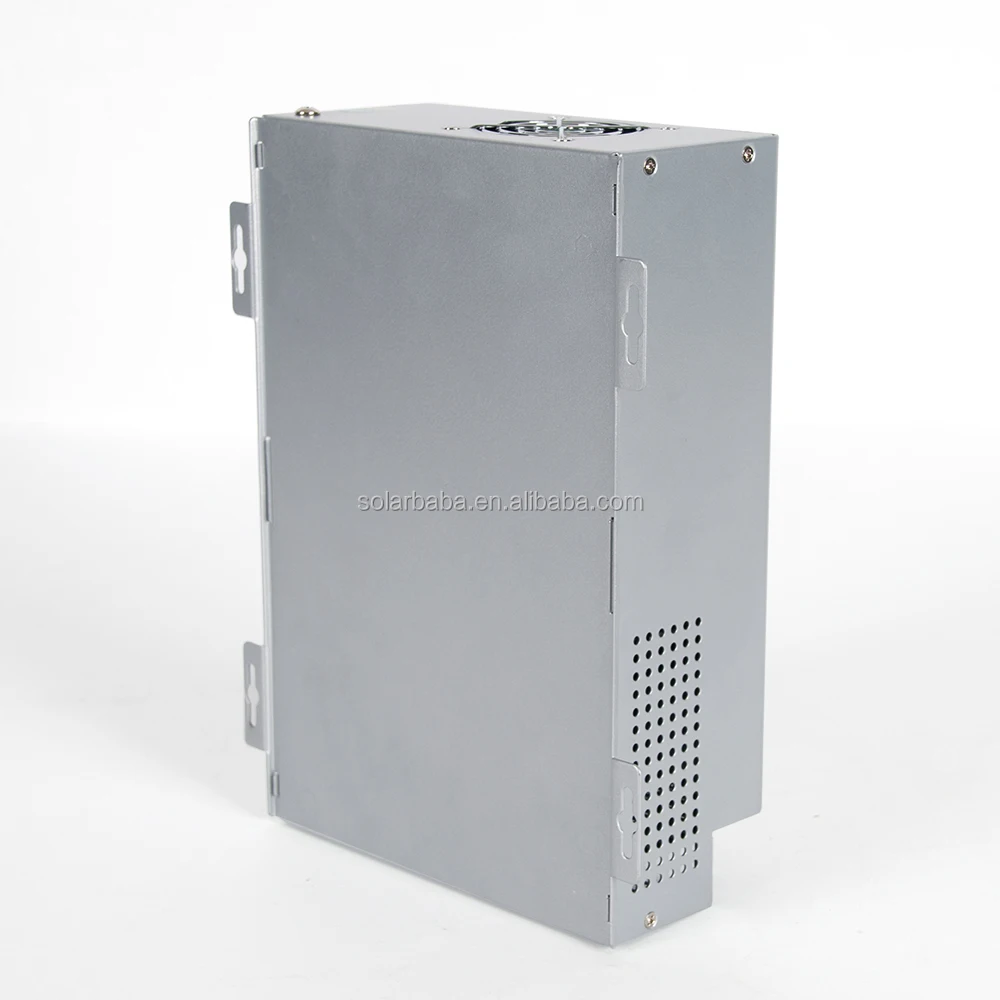

45a 60a mppt solar charge controller 12v 24v 48v MPPT Solar Controller MPPT
- Category: >>>
- Supplier: Shenzhen Solarbaba Tech Limited
Share on (60716429402):
Product Overview
Description
45a 60a mppt solar charge controller 12v 24v 48v MPPT Solar Controller MPPT
Mppt Solar Charge Controller
48v Mppt Solar Charge Controller
12v 24v 48v Mppt Solar Charge Controller
company infomation
1. Factory advantage
Our battery factory established in Shenzhen city with 27,000 m2 in 1999, registered capital of 500 million RMB.
2. Focus on R & D
A. Have been cooperating with the famous institutes and universities in China to research and develop new solar charge controller.
B. More than US$1,000,000 are invested every year in R&D.
C. We have more than 50 experienced R&D stuff, most of them have more than 10 years experience in solar system industry.
3. Never stop pursuiting high quality
Our advanced equipment,quality raw material, precise process management methods and professional technical team generate our high quality products.
Product Overviews
Length(mm) 551±1 Width(mm) 110±1 Height(mm) 288±1 Total Heigth(mm) 288±1
Weight(kg) 44±3%
Controller data
| Model | PC16-4515F | PC16-6015F | PC16-8015F | |
| Default Battery System Voltage | 12V/24V/36V/48VDC (Auto detection) | |||
| CONTROLLER INPUT | ||||
| PV Open Circuit Voltage | 100VDC@12V/ 145VDC @24V/ 145VDC @36V/ 145VDC @48V | |||
| PV Array MPPT Voltage Range | 16VDC~100VDC / 32VDC~130VDC / 48VDC~130VDC / 64VDC~130VDC | |||
| Max PV Input Power(12V) | 600W | 800W | 1050W | |
| Max PV Input Power(24V) | 1200W | 1600W | 2100W | |
| Max PV Input Power(36V) | 1800W | 2400W | 3150W | |
| Max PV Input Power(48V) | 2400W | 3200W | 4200W | |
| BATTERY | ||||
| Absorption Voltage | 12.5VDC/25.0VDC/37.5VDC/50.0VDC | |||
| Refloat Voltage | 13.7VDC/27.4VDC/41.1VDC/54.8VDC | |||
| Float Voltage | 14.3VDC/28.6VDC/42.9VDC/57.2VDC | |||
| Low Voltage Protection Point | 10VDC/20VDC/30VDC/40VDC | |||
| Temperature Compensation coefficient | -3mv/°C /cell (25°C vef) | |||
| PATTERY | ||||
| Peak Conversion efficiency | 98% (MPPT Efficiency 99%) | |||
| Max Charging Current | 45 amps continuous @ 40°C ambient | 60 amps continuous @ 40°C ambient | 80 amps continuous @ 40°C ambient | |
| GENERAL SPECIFICATION | ||||
| Radiating mode | Fan cooling | |||
| DISPLAY & PROTECTION | ||||
| LED indication | Systematic operation, LV indication, LV protection, over charge protection, short circuit protection | |||
| LCD display | Charge voltage, charge current, voltage of storage battery, capacity of storage battery, output current | |||
| Alarm Protections | PV array short circuit, PV reverse polarity; Battery reverse polarity, Over charging protection; Output short circuit protection; Low voltage protection for storage battery. | |||
| MECHANICAL SPECIFICATIONS | ||||
| Mounting | Wall mount | |||
| W*H* D(mm)/Net Weight(kg) | 167.6*257.1*82.9mm/3kg | |||
| OTHER | ||||
| Environmental Rating | Indoor | |||
| Operation Temperature Range | -25~55°C | |||
| Ambient humidity | 0~90% relative humidity(non-condensing) | |||
| Altitude | ≤3000m | |||
| Loading(20GP/40GP/40HQ) | 3000pcs / 6000pcs / 7200pcs | |||
CERTIFICATS
packaging & shipping
1.independent package for each battery;
2.inner package with foam board to protect the battery from damaging;
3.outer carton box on the pallets with plastic wrap.
4.12-14 pallets per container of 20t;
