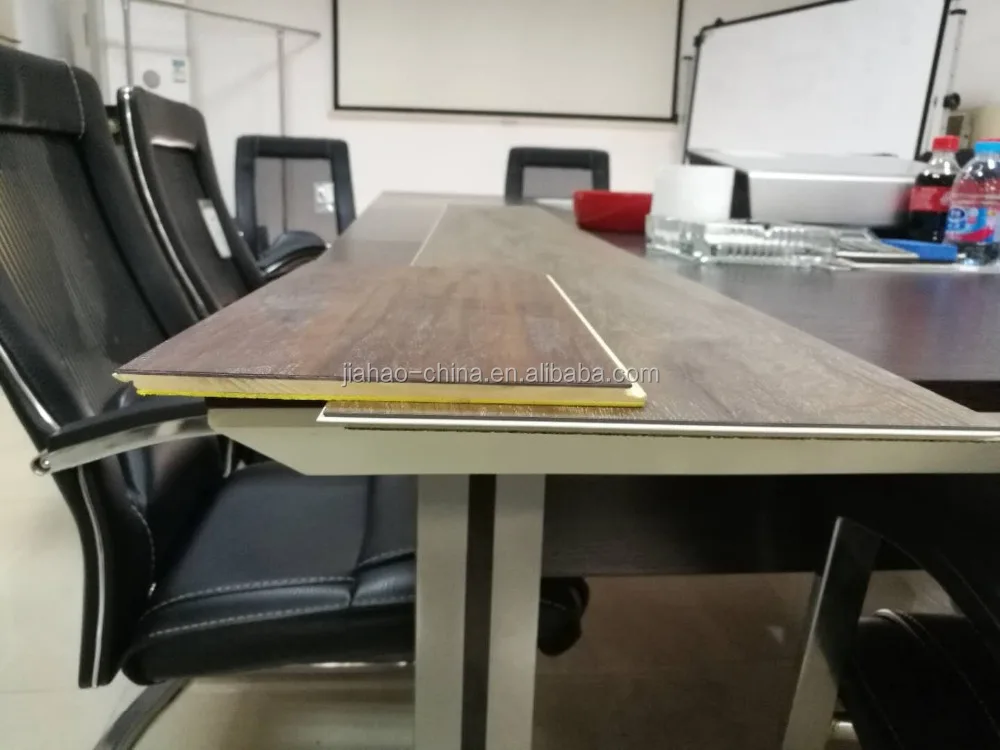

WPC indoor flooring interlock design wood grain floor machine/production line

Product Application

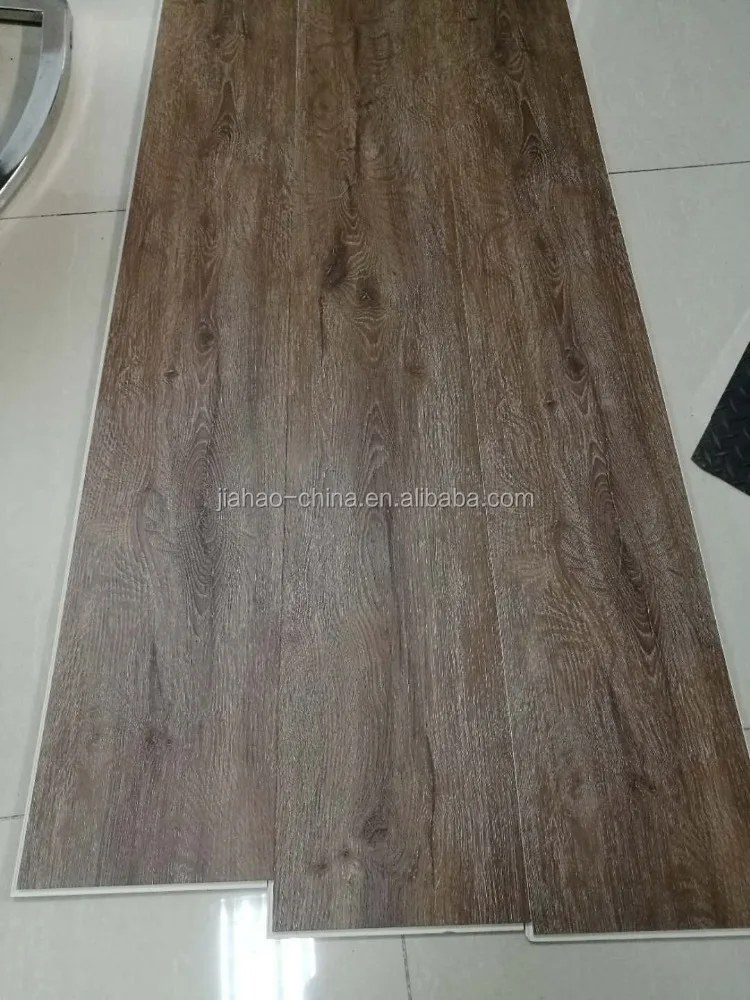

PVC floor has three kind, one is WPC flooring, second is SPC flooring, third is PVC LVT flooring, which WPC floor has the following advantages:
1. Elasticity: different from the stone, tiles and other hard materials, imitation stone and wooden surface floor gives a more comfortable experience. With LVT lamination on top, it has better NOISE REDUCTION and Walking Experience.
2. Taking into account the health and anti-skid, SPC floor has a unique anti-skid ability, while ensuring adequate resistance to dirt, easy to clean.
3. Anti-mildew insects: WPC floor, wear durable, good shrinkage stability; surface is pure PVC wear layer, high wear resistance. And wood flooring is easy to deformation, the risk of raw insects
4. Non-toxic: the latest environmentally friendly technology, low cost, high stability, zero formaldehyde.

Plastic Processed: WPC

Screw Design: Conical double screw
Model Number: SJSZ80/156   SJSZ92/188
Main Motor Power: 75kw   110KW
Dimension (L*W*H): 25m*3m*3m
Output of plastic plate: 400kg/h,600kg/h,800kg/h
Finished Product: PVC/WPC foam board
Specification of finished board: 1220*2440*(3-30) mm or 915*1830*(3-30)mm
Density of finished board: 0.37-0.85 adjustable

Main Features

1) Simple structure developed new type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Strong Production Technology support , turnkey project  available .

Machine Parts

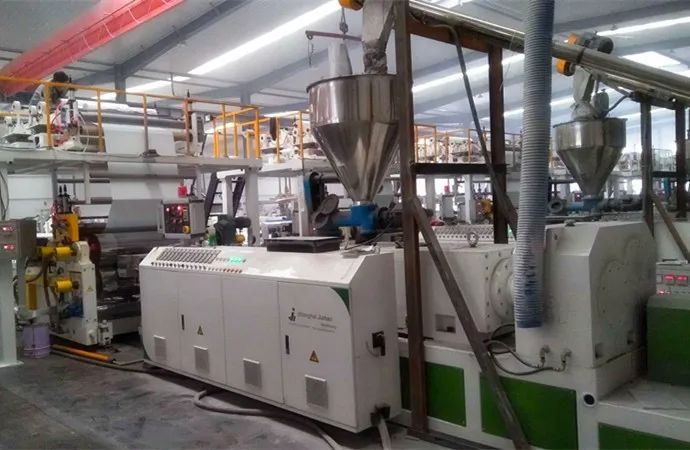

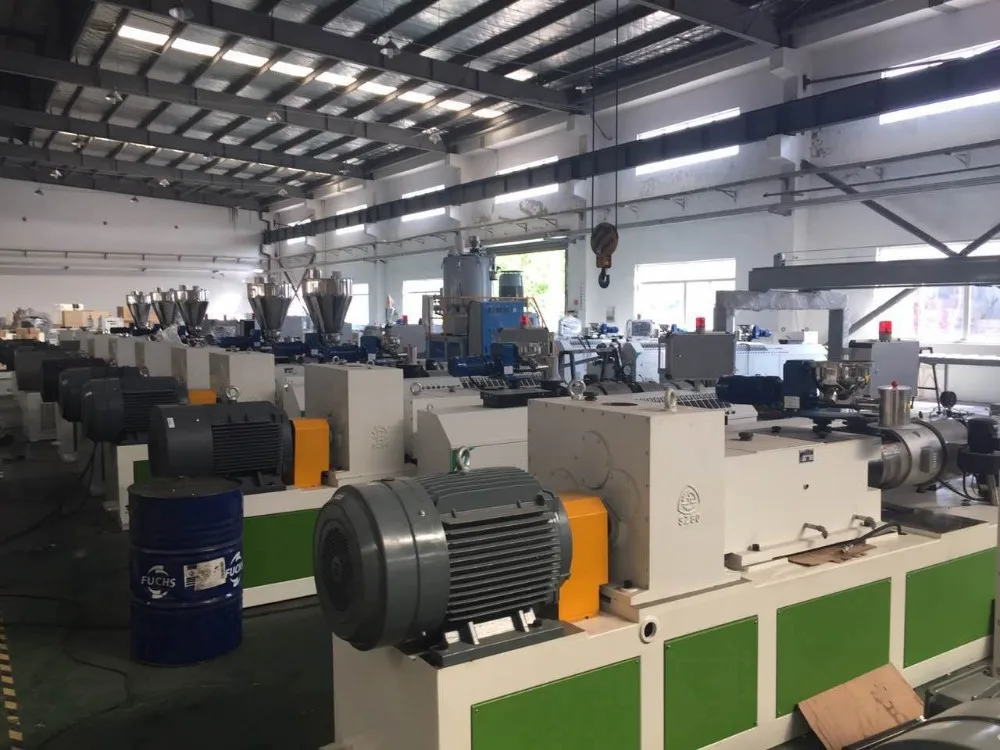

Name: Main Extruder

Brand: JIAHAO

Original: China

80/156 High Efficency PVC foam sheet extruder with Simens motors and ABB drive .

Main Parts

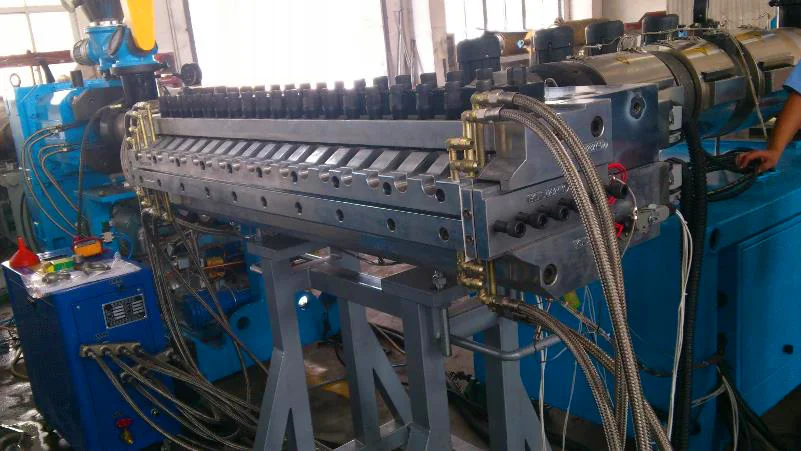

Name: T-DIE ( mould )
Brand: JIAHAO
Original: China
Die lip\tAdjustable
Material\t5CrNiMo
Flow channel treatment\tchromeplate
Bracket\tFor supporting

Machine Parts

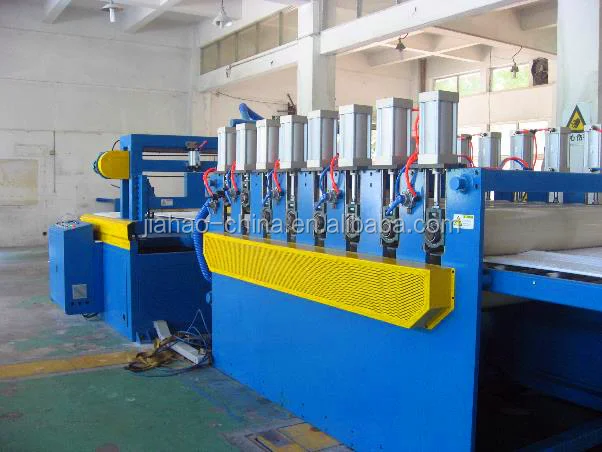

Name: Calibrating Table
Brand: JIAHAO
Original: China
For foam sheet fast cooling and give smooth surface and accurate thickness .

Main Parts

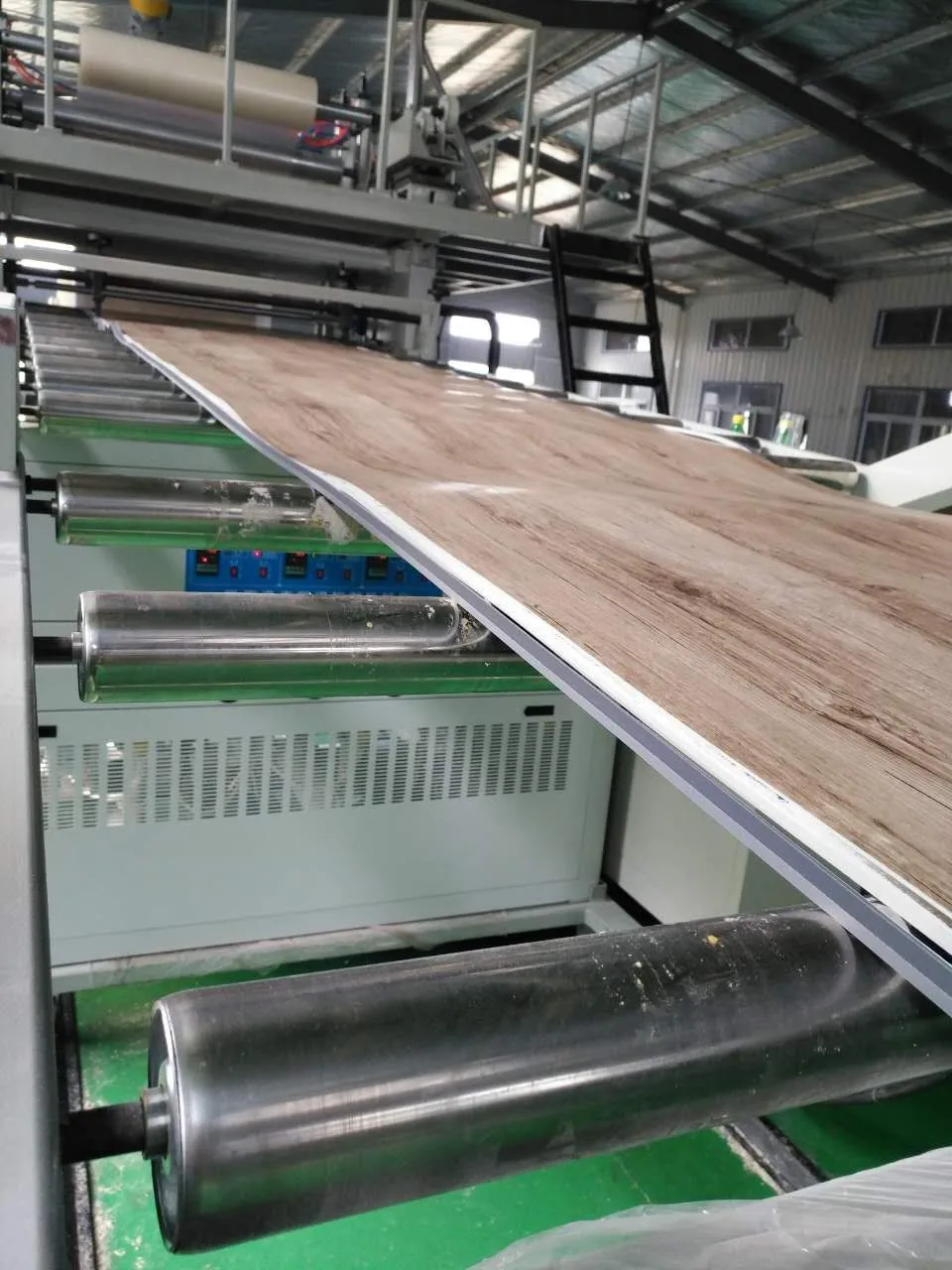

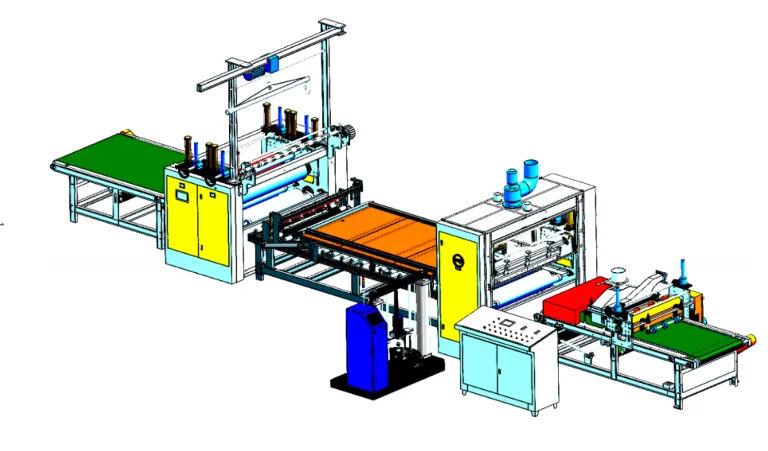

Name: WPC Flooring laminating line (pur glue)
Brand: JiAHAO
Original: China
Scientific design based on year face treatment experience and flooring industry reserach . Good function and solid laminating performence .
