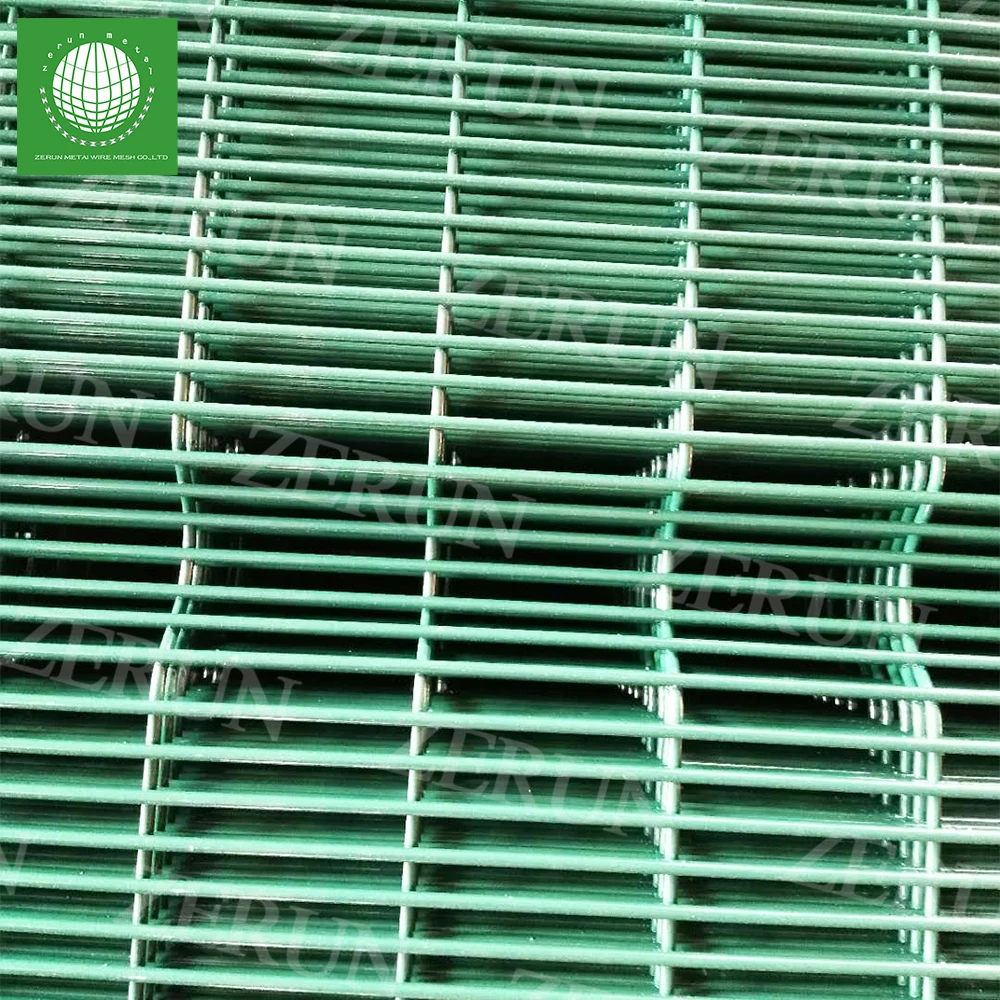

Anti Climb High Security Fence/ Prison 358 Fencing/ Electric Security Fence
- Category: >>>
- Supplier: Raoyang Zerun Metal Wire Mesh Co. Ltd.
Share on (60716518012):
Product Overview
Description
Anti Climb High Security Fence/ Prison 358 Fencing/ Electric Security Fence

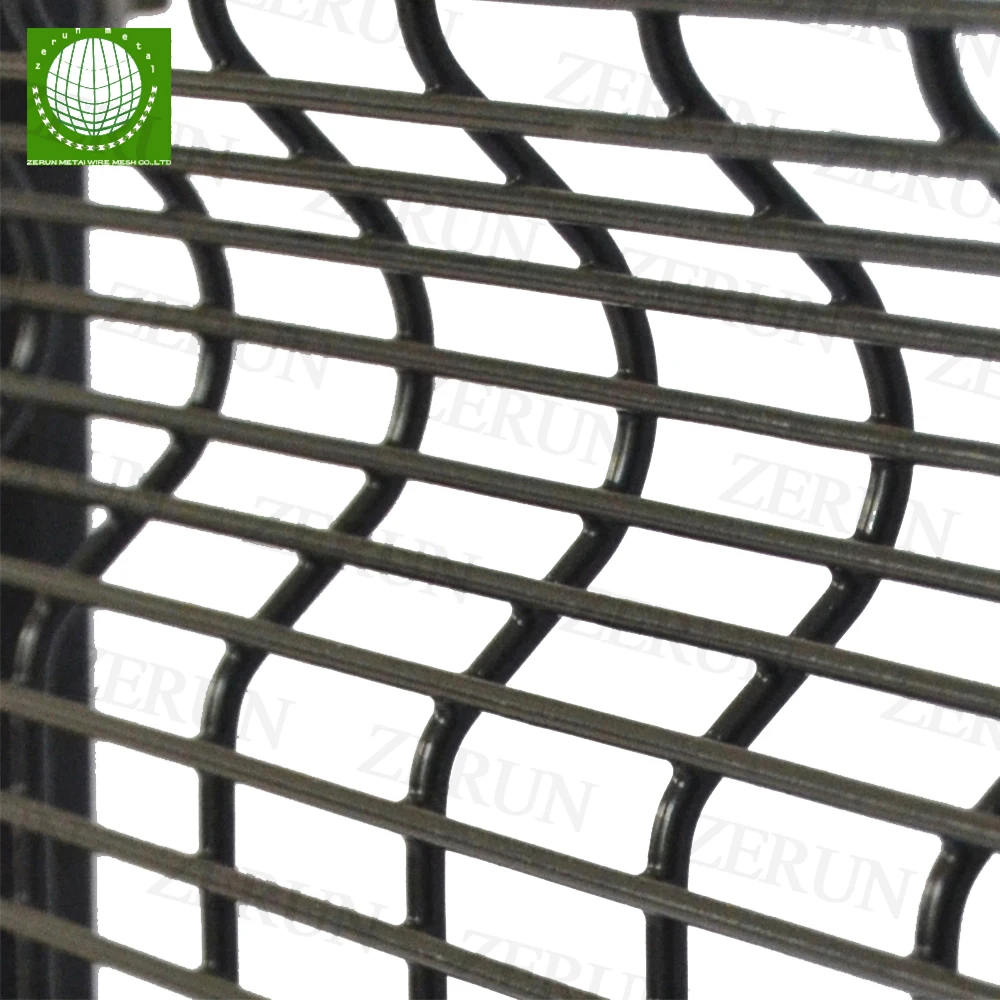

PRODUCT DETAILS
High security fence system is well known in the world as an anti-climb & anti-cut through barrier,while providing the lowest level high quality carbon steel wires.It is designed to give attractive,long lasting and secure perimeter protection for industrial and commercial properties,public utilities,and it is really suited for electronic alarm and detection systems-no blind spots for CCTV.It is also a good choice ,airports,secure units and prisons.
Material: low carbon steel wire
SURFACE TREATMENT
1. hot dipped galvanized wire + PVC coated
2. Electro galvanized wire + PVC coated
3. hot dipped galvanized after welding
4. Electro galvanized after welding
SPECIFICATIONS
Panel-Type A(2D view) | ||||
Mesh | Wire Thickness | Surface Treatment | Panel Width | Height |
76.2×12.7mm |
Horizontal wire:3,3.5,4mm Vertical wire: 4mm |
Galvanized and Electrostatic polyester powder coated or hot dipped galvanized
|
2.5m or 2.2m | 1800mm |
2000mm | ||||
2100mm | ||||
2200mm | ||||
2400mm | ||||
2500mm | ||||
3000mm | ||||
Weld strength:-75% of the minimum tensile strength of the wire;Tensile range 540-690 N/m² | ||||
Panel-Type B(3D View) | ||||||||||
Mesh | Wire Thickness | Surface Treatment | Folds Nos | Panel Width | Height | |||||
76.2×12.7mm |
Horizontal wire:3,3.5,4mm Vertical wire: 4mm |
Galvanized and Electrostatic polyester powder coated or hot dipped galvanized
| 3 |
2.5m or 2.2m | 1800mm | |||||
3 | 2000mm | |||||||||
4 | 2100mm | |||||||||
4 | 2200mm | |||||||||
4 | 2400mm | |||||||||
5 | 2500mm | |||||||||
6 | 3000mm | |||||||||
Weld strength:-75% of the minimum tensile strength of the wire;Tensile range 540-690 N/m² | ||||||||||
Panel-Type C(2D View,adding wire) | ||||||||||
Mesh | Wire Thickness | Surface Treatment | Panel Width | Height | ||||||
100×15mm |
Horizontal wire:3.5mm Vertical wire: 5.5mm |
Galvanized and Electrostatic polyester powder coated or hot dipped galvanized
|
2.5m or 2.2m | 1800mm | ||||||
2000mm | ||||||||||
2100mm | ||||||||||
2200mm | ||||||||||
2400mm | ||||||||||
2500mm | ||||||||||
3000mm | ||||||||||
With additional horizontal wire of 3.5mm at 18cm intervals | ||||||||||
Weld strength:-75% of the minimum tensile strength of the wire;Tensile range 540-690 N/m² | ||||||||||

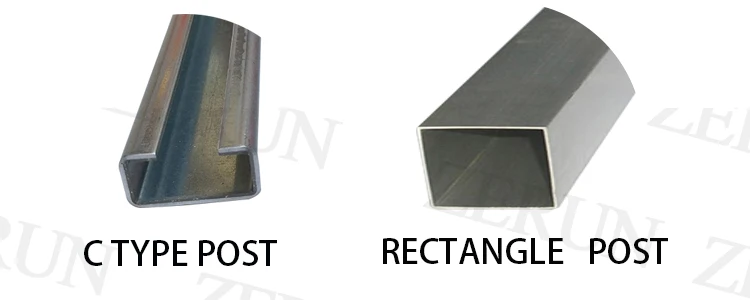

POST SPECIFICATIONS

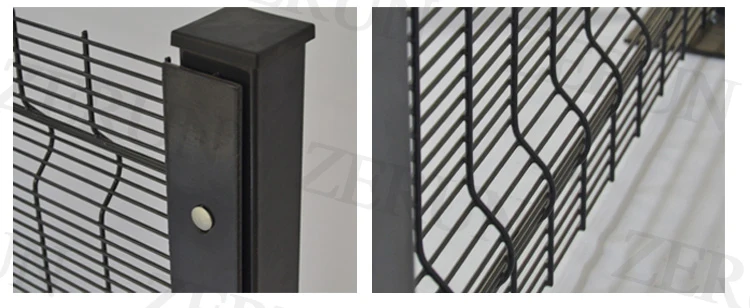

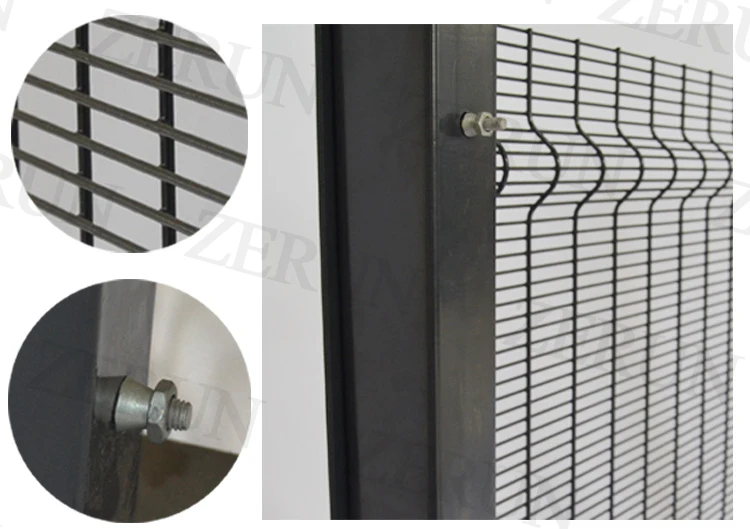

Fittings
Benefits
Anti-Climb
Protects against cut-through
Increased delay factor
Excellent visibility
Vandal resistant
Compliments CCTV
Versatile
Cost effective

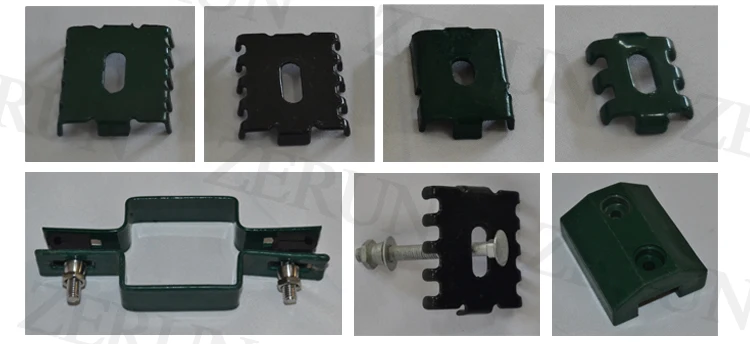

FITTINGS

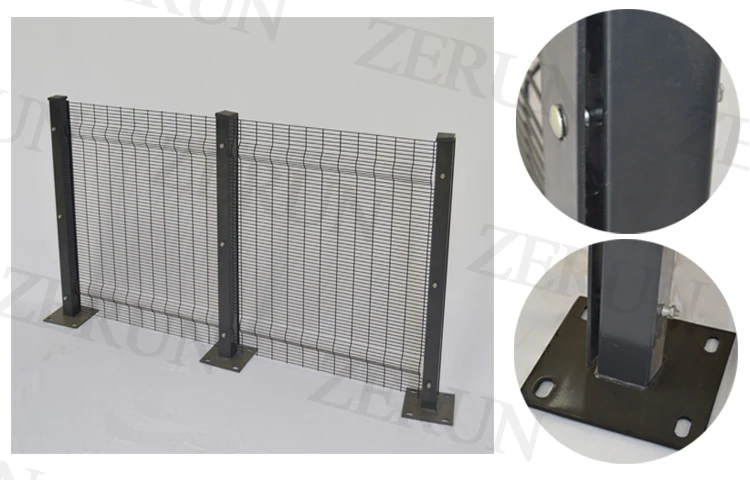

INSTALLATION INSTRUCTION

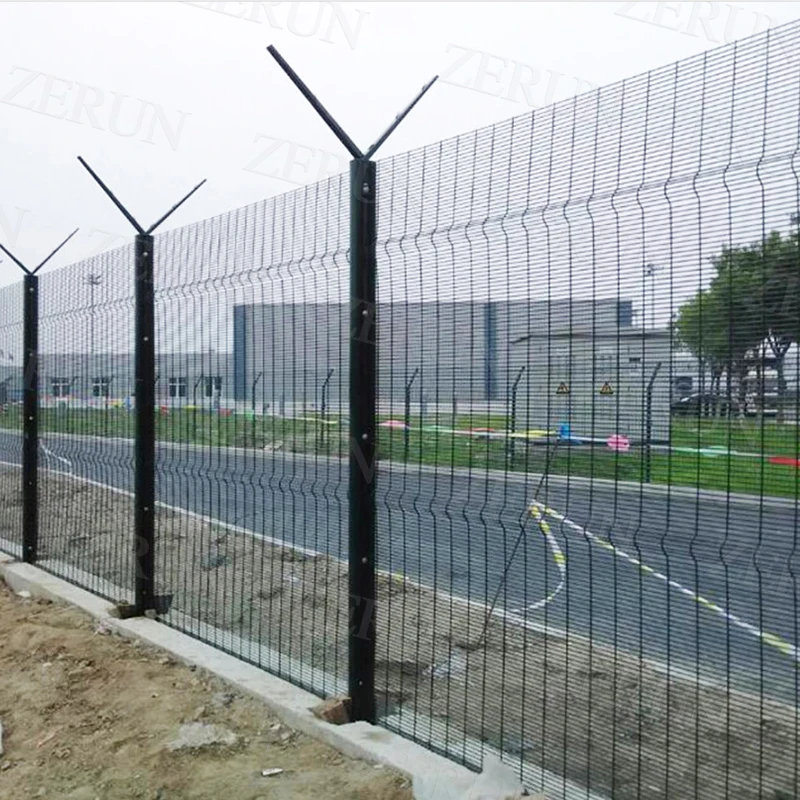

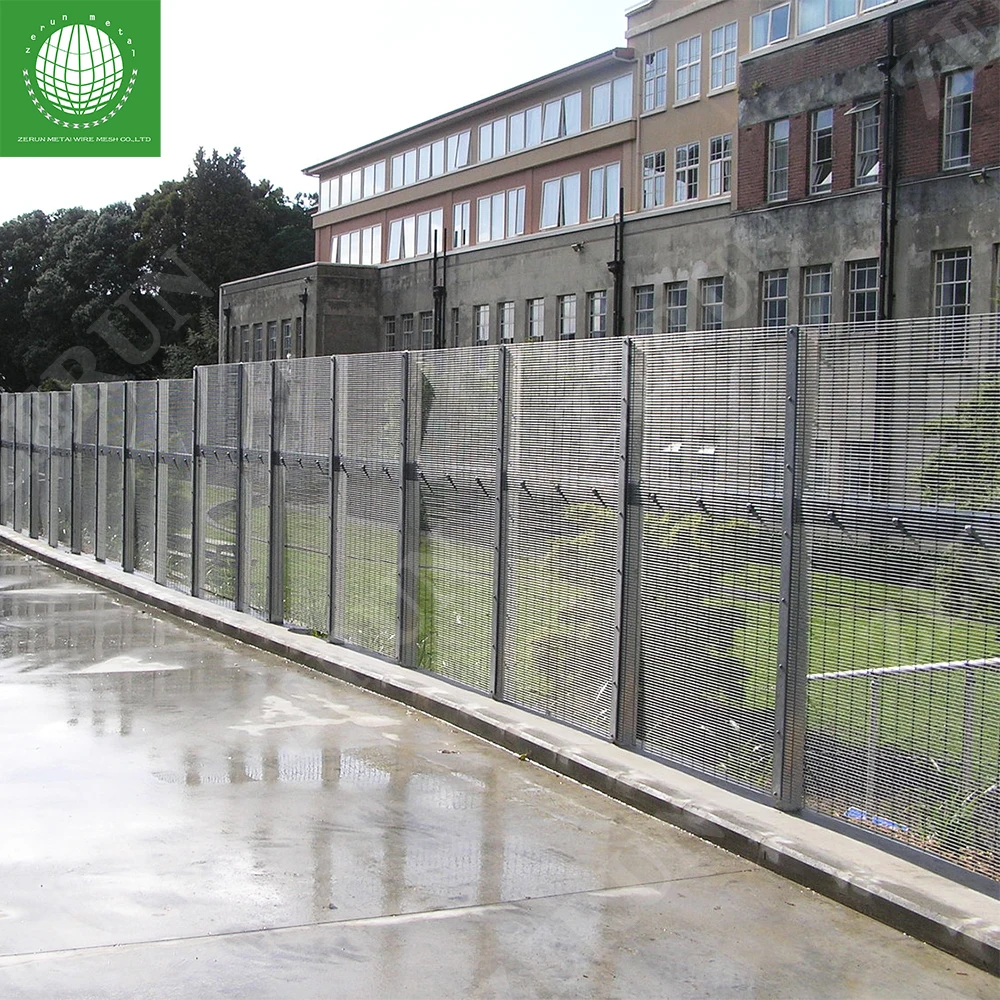

APPLICATION
Bridge anti-climb guarding&guard safety screening; Sub-station security fencing;
Psychiatric hospital security fencing;
Factory machine guards;
Walkway security fencing;
Airport security fencing;
358 wire mesh fence gates;
Shipping port security fencing;
Electrical sub-station fencing;
Water treatment works;
Gas security window grilles;
Balustrades security fence as well as some other commercial/industrial security fence
Company Information
Raoyang Zerun Metal Wire Mesh Co.,Ltd is located in Raoyang County, Hebei Province, China, which is the hometown of wire mesh. It found in2002, has two plants, covering 62000 square meters. It is a large scaled and modern production type enterprice engagedin research and development and producing and selling defensive barriers, gabion baskets, 3D fence, 358 high security fence,Chain link fence and temporary fence. 268 employees including 34 engineers guarantee good service, high quality, fine delivery time and best price all over the world.
Customer Photos
Customer Photos
The company's products cover 30 countries around the world. More than 75 companies worldwide have become our sales agents. Every year, more than 10 new companies around the world will become our partners.
CERTIFICATES
The company attaches great importance to the safety of protective nets. In addition to applying for ISO9000 certification of professional precision machinery, the company has also applied for CNAS, ILAC and other international certifications, so that the company's products will not be affected worldwide.
Our Advantages
All our sales personnel are not only familiar with the products, but also understand the basic knowledge of the safety protection of the infrastructure construction. With these skills, they can not only provide professional product introduction and use guidance before sales, but also provide various precise products for customers who buy our products in after-sales service.
Packaging & Loadin
Packaging & Loadin
Packing offered | 1.fence panel:plastic film + metal pallet 2.fence post:each post pack with a plastic bag + metal pallet or according to customer requirement. |
Price term and validity | EXW,FOB and CIF price validity for 7 days |
Payment Term | CIF term: T/T, 30% deposit, 70% balance payment against the copy of B/L. FOB term: T/T, 30% deposit, 70% balance payment before shipping. EXW term: 100% T/T, or 30% deposit, 70% payed before loading in container.
|
Production time | About 15-30 days (based on order) after receiving deposit |
Shipment term | By Sea. Special situation is negotiated |
Nearest Port
| Xingang ,Tianjin port |
Samples | Samples are available but you need pay for the sample price and freight fee. |
Logistics&Payment
Logistics&Payment
FAQ
Q:Are you manufacturer?
A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide service.
