Customized Home Automation Solution Universal Use Smart Home Automation System Software Development
- Category: Computer & Information Technology Services >>>
- Supplier: Shenzhen Instantware Information Technology Co. Ltd.
Share on (60716708590):
Product Overview
Description
Customized Home Automation Solution Universal Use Smart Home Automation System Software Development
Start Cooperation
Contact: Abby
Cell (24hours English services ) : +86 15914081240
Introduction of our team
Our CTO had worked for software development and system analyst more than 8 years. So far, he has more than 20 years experience in information technology. We are pleasant if you could visit our company. We have a team more than 60 research staff in Shenzhen for Software and Hardware. We could support you well in your future development.
Our RTU series products can fit your needs. Please send your requirements list so that we can talk further.

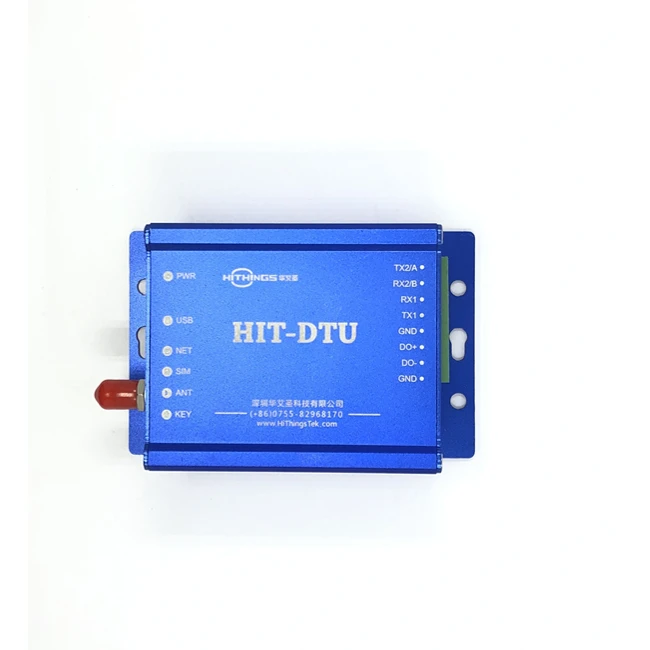

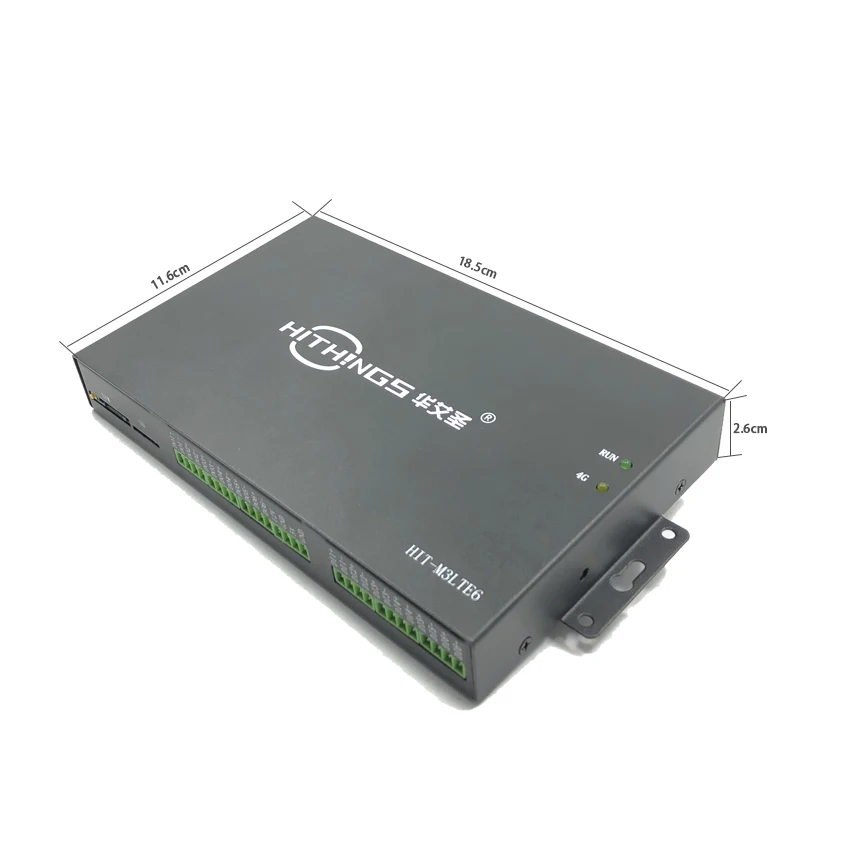

Remote terminal unit for software development
Functions
GSM/GPRS/CDMA communication function
Serial port communication function
Analog input acquisition function
Digital input acquisition function
Digital output functions
Data storage function
SD card access data function
Real-time clock function
Low power consumption function
GPS function (option: internal gps module)
Power management function
LCD display and touch input function(option:Serial port expansion peripheral)
WIFI function(option:Serial port expansion peripheral)
Lora communication function(option:Serial port expansion peripheral)
ZigBee communication function(option:Serial port expansion peripheral)
Performance Parameter
Item | Technical Parameters |
gps module | Industrial GPRS wireless module, frequency range850/900/1800/1900MHz |
GPS Module | Level accuracy:2.5m Space accuracy:0.1m/s Heading accuracy:0.5° Cold start time:≤30s Hot start time:≤1s serial port communication |
WIFI | WIFI function module, serial port communication |
Lora | Lora function module, serial port communication |
ZigBee | ZigBee function module, serial port communication |
Serial port | 2 RS-232,1 RS-4852,communication speed :1200bps~115200bps |
Power | input range 9-24V,power output including 12V/2.5A,4V/2.5A, 3.3V/2.5A |
Power voltage acquisition | Can collect the external supply voltage and the internal standby supply voltage. |
Analog input | 4 channels;External signal range:0~5V or 4~20mA;Acquisition accuracy12 bits (1mV or 5uA),the acquisition circuit can be configured as voltage mode or current mode via wire jumper or resistor |
Digital input | 4 channels, can be configured as active or passive input via resistor, adopting interrupt I/O port, can collect the level and pulse signal |
Digital output | 4 channels, can be configured as the relay output mode or transistor output mode via wire jumper, the max load are respectively (10A/250V AC) and (500mA/12V DC) |
Data storage | Can store historical data and real-time data,possess8MB serial FLASH, can be expanded to 16MB and 32MB,possess256KB serial FRAM |
Micro SD Card | Can external connect TF card, support FAT32 file system |
Real-time clock | Adopting high precision clock chip, the error does not exceed 5 seconds / year, ensuring 3 years operating under the case of power down for the back-up battery . |
Power dissipation | Data doesn't transmit state≤60mA Data transmitting state≤100mA |
| Working environment | Temperature:-40~85℃ Humidity:≤95%RH(40℃) |
