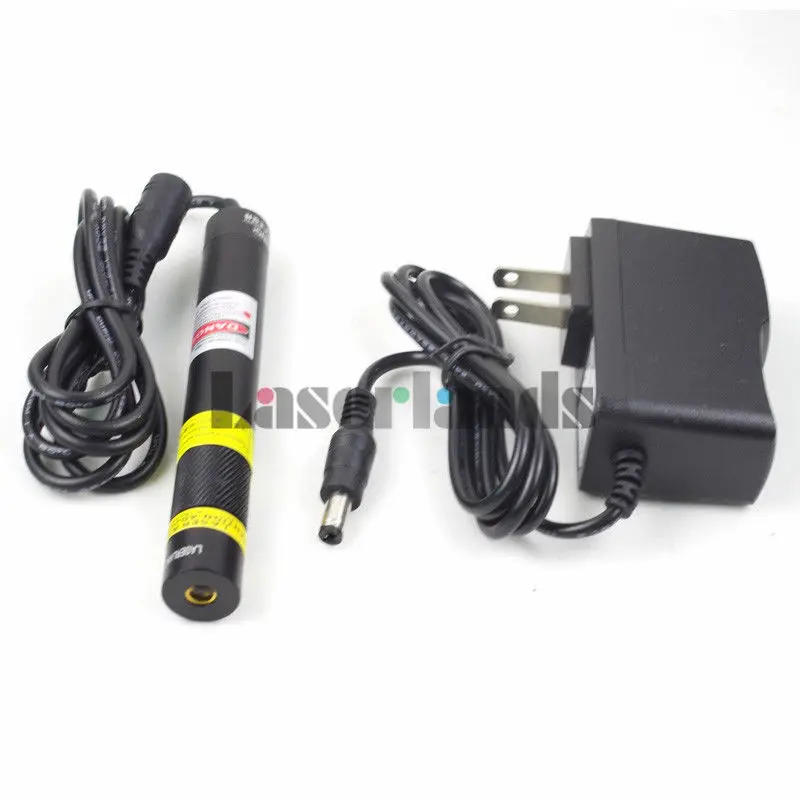

16*120mm 405nm 50mW Blue Violet Dot Line CROSS Laser Module Diode LD+ Adapter
Operating Voltage 3V~5V

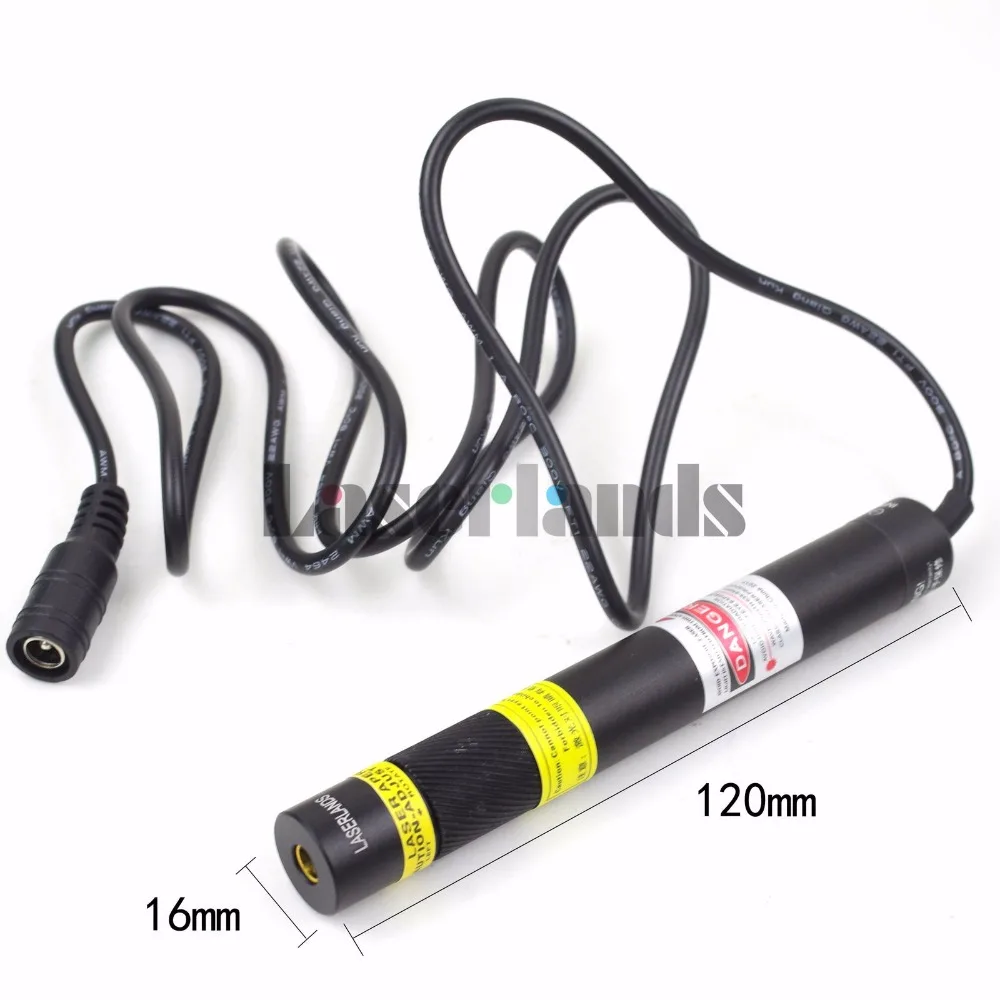

Size 16 x 120mm
Output Power 20mW 50 mW 100mW
Wavelength 405 nm (SONY LD in)
Radian Length 1~3m at 1m; Width <2mm at 1m
Working Temperature -15 ~+35 centigrade
Working Method
The best working method is 30 minuts conntinuously working and 5 minutes resting. Otherwise the laser may be burnt. Please read the using tips on the back of the warranty card. We will not take any responsibility for the incorrect use.
Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don't compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
405nm Violet Blue Laser is on the range of human eye sensibility, so that it will NOT as bright as green and red ones.
Please find out the spectrum and human eye sensibility as reference.
