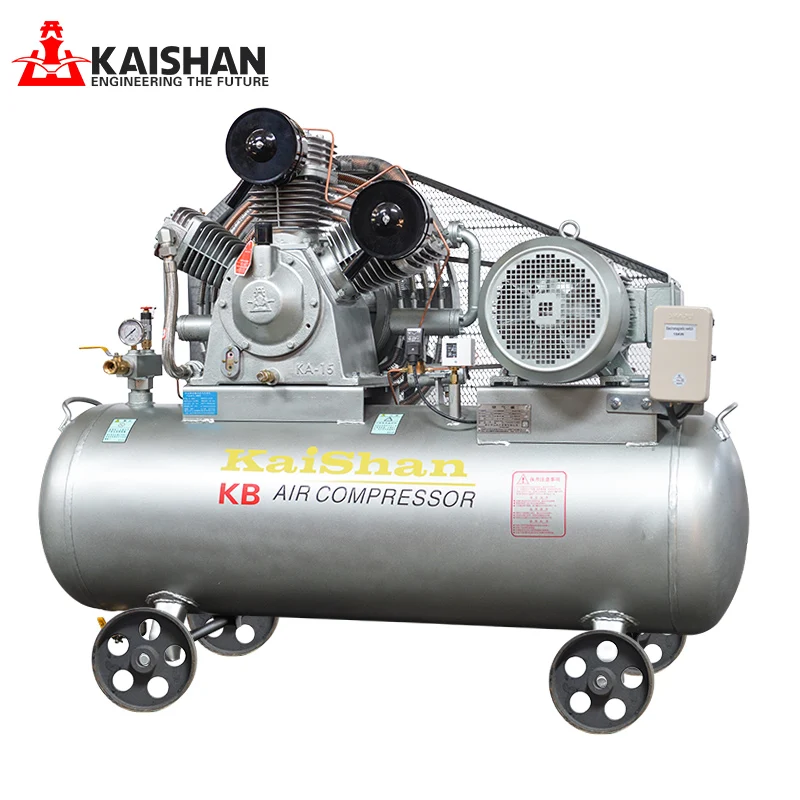

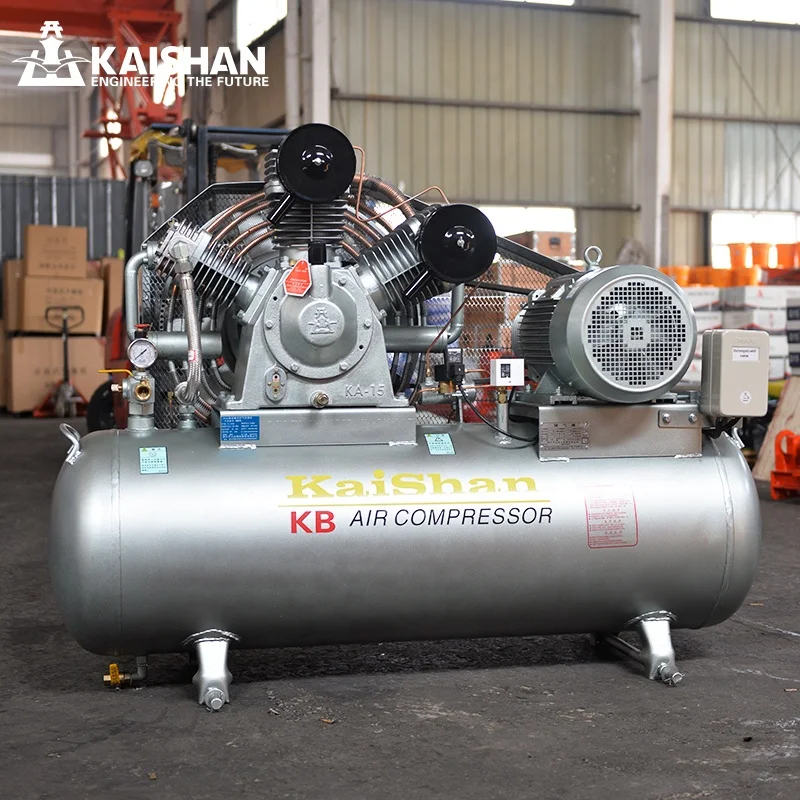

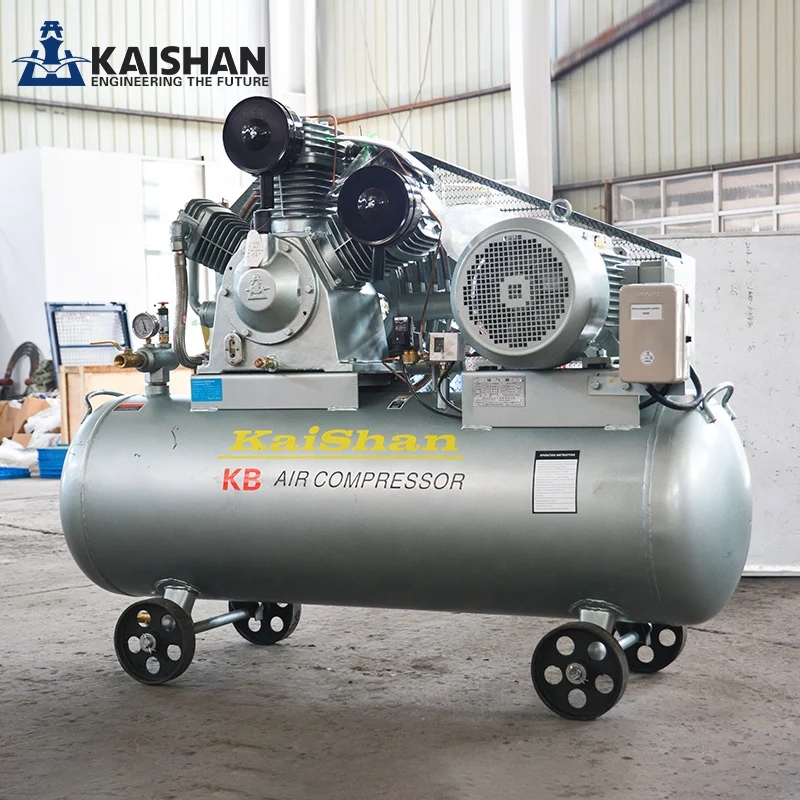

High efficiency 2*KBH15 15KW 2.4m3/min piston air compressor for general industry

Product Overview

Description

High efficiency 2*KBH15 15KW 2.4m3/min piston air compressor for general industry

KB series industrial high pressure air compressor is used in pneumatic lock, pneumatic tool , tire inflation , blowing process, spray paint, sand blasting and fluidic element.Powerful type big head design, use good, enough material. Strengthening design for the main components, dimension of the handpiece, weight all more than other factories, high safety, and low speed, particularly suitable for heavy duty,long time continuous operation, particularly high reliability and long service life. Especially air cooling design and air flow design, low exhaust temperature, not easy to carbon deposition and high efficiency.
What’s the secret of nice bottle?
FEATURES   Use of sealed safety valves ensures operational safety. Product available in 30 & 40 bar to suit both PET bottle blowing of different wall thickness. Consistent flow ensures sustained productivity of PET bottles. Product best suited for use in manually operated PET bottling machines.
What’s the good air compressor composed of? ASME coded relief valve for interstage and tank pressure All components completely pre-piped, pre-wired and operationally tested Magnetic starter ensures smoothstart and stop of the motor NEMA Premium efficiency motoras a standard feature ASME coded air receiver tanks that are safe, reliable and maintenance friendly Totally enclosed belt guard confirming to OSHA Safety standards assures accident free operation Aerodynamically designed fan with large blades for higher air flow Oil sight glass as a standard that results in convenient top-up
What’s the good air compressor details

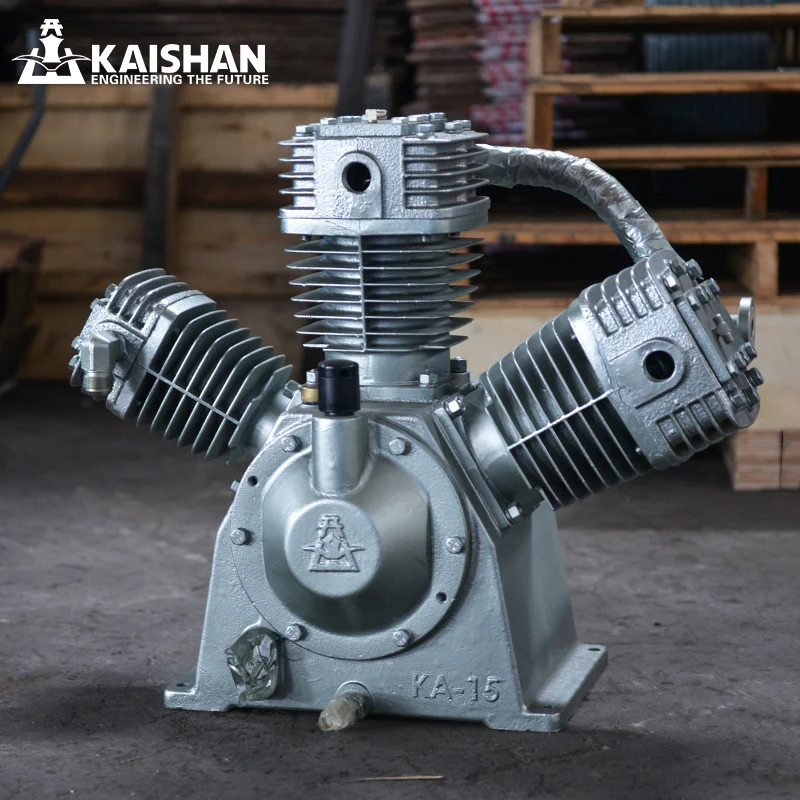

	1.Balanced counter weight for even distribution of the load. 2.Simple and effective splash lubrication system. 3.Forged crank shaft and connecting rod that are more rigid and designed for longer life. 4.Double supported industrial ball bearings to handle thrust loads and ensure longer life of the compressors.

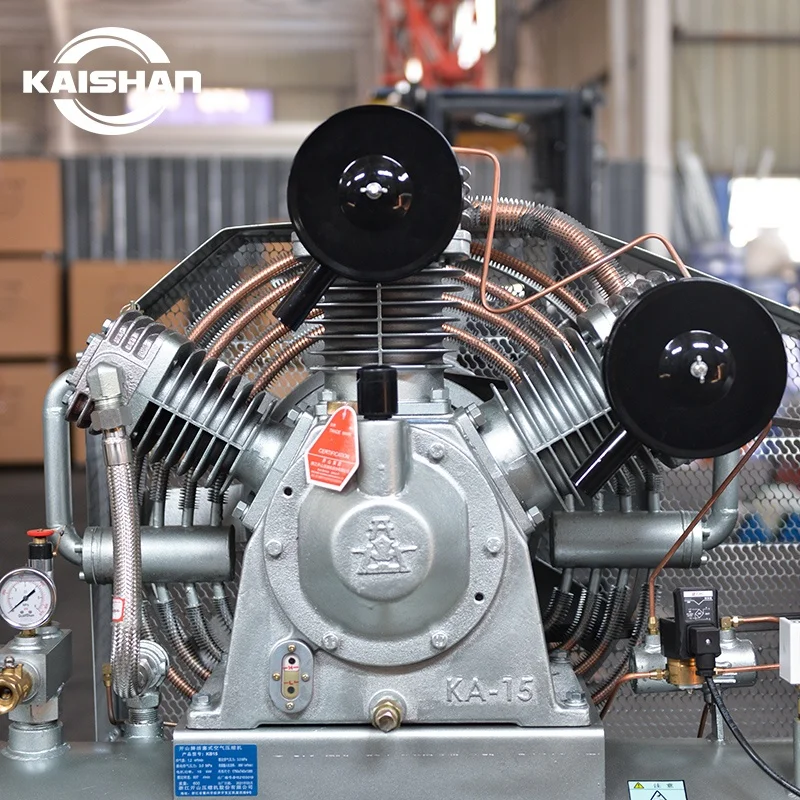

1.Robust and Complete cast iron construction that makes it rigid and less prone to vibration. 2.Deep fins which ensure 360° cooling for the cylinders.



Technical parameters of KB series air compressor

Model	Working pressure (bar)	Capacity (m³/min)	Motor power (kw)	Dimension (mm)			Weight (kg)
				l	w	h
KB-10	30	0.7	11	1690	690	1190	550
KBL-10	25	0.75	11	1690	690	1190	550
KBL-15	25	1.3	15	1800	730	1302	600
KB-15	30	1.2	15	1800	730	1301	605
KBH-15	40	1.2	15	1800	730	1300	680
KB-35	30	1.7	22	1650	1250	1150	800
KBH-35	40	1.6	22	1650	1250	1150	800
KB-45	30	2.2	30	1650	1250	1150	860
KBH-45	40	2	30	1650	1250	1150	860
2*KB-15	30	2.4	15	1616	1030	1452	1000
4*KB-15	30	4.8	15	1870	1770	1487	2100
2*KBH15	40	2.4	15	1620	1100	1452	1200
4*KBH15	40	4.8	15	1890	1840	1487	2400

FAQ

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
