FL 450 automatic L type sealing machine
- Category: >>>
- Supplier: Wenzhou Forlong Machinery Co. Ltd.
Share on (60716791980):
Product Overview
Description
Model | FL-450A | FL-550A | FL-750A | ||
Power | 1.5kw | 2.2kw | 3.5kw | ||
Voltage | AC 220V 1/3PH 50/60Hz | ||||
Max. Packing Size L×W×H | L550×W450mm | L650XW550mm | L850XW750mm | ||
Max. Sealing Size | <500mm | <600mm | <800mm | ||
Packing Speed | 15-30bags/min | ||||
External Air Source | 6-8kg/cm2 | ||||
Shrink Film | POF/PE | ||||
Machine Size L×W×H | 1650×880×1450mm | 1750x900 x1450 | 1950X1200X1550 | ||
Weight | 280kg | 350kg | 550kg | ||

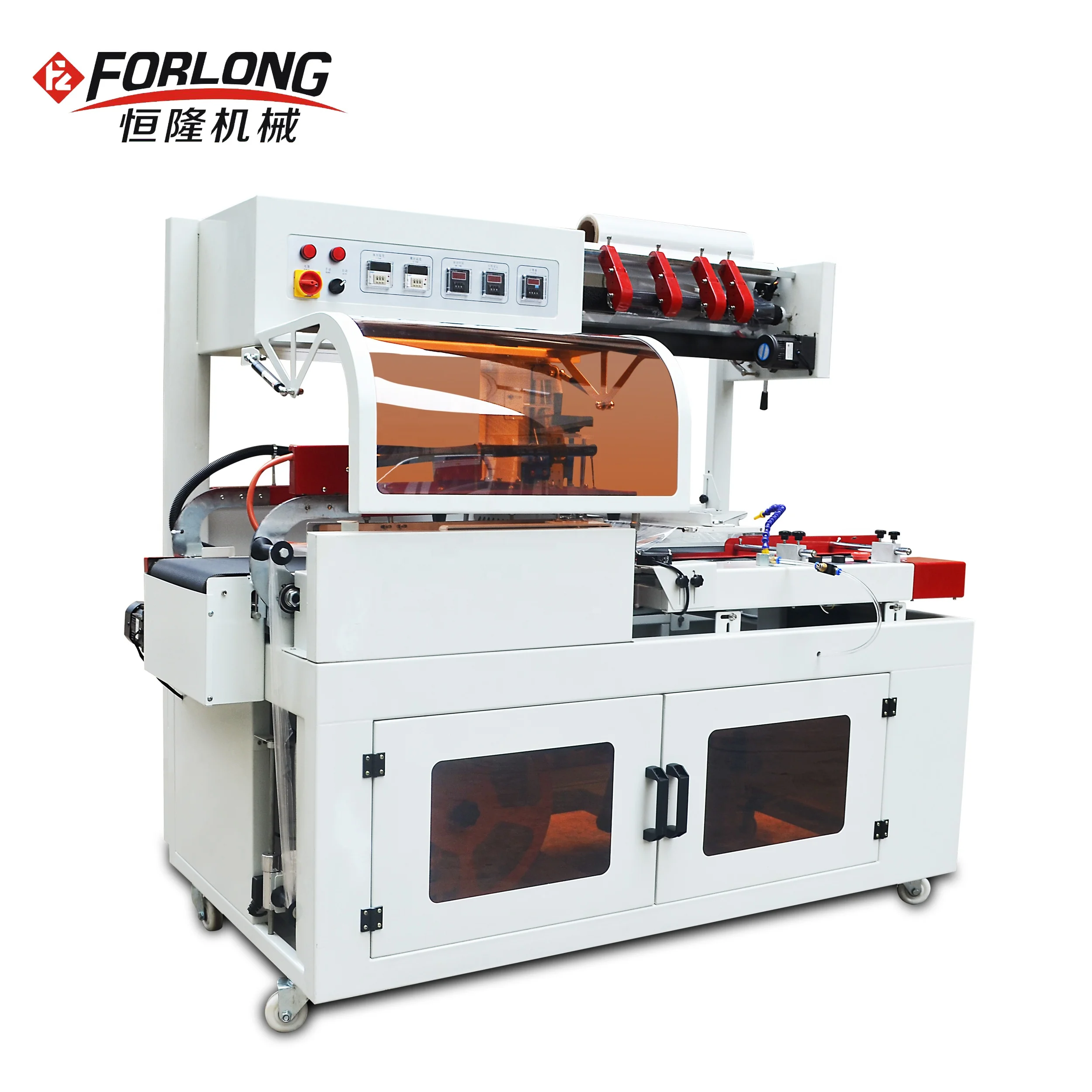

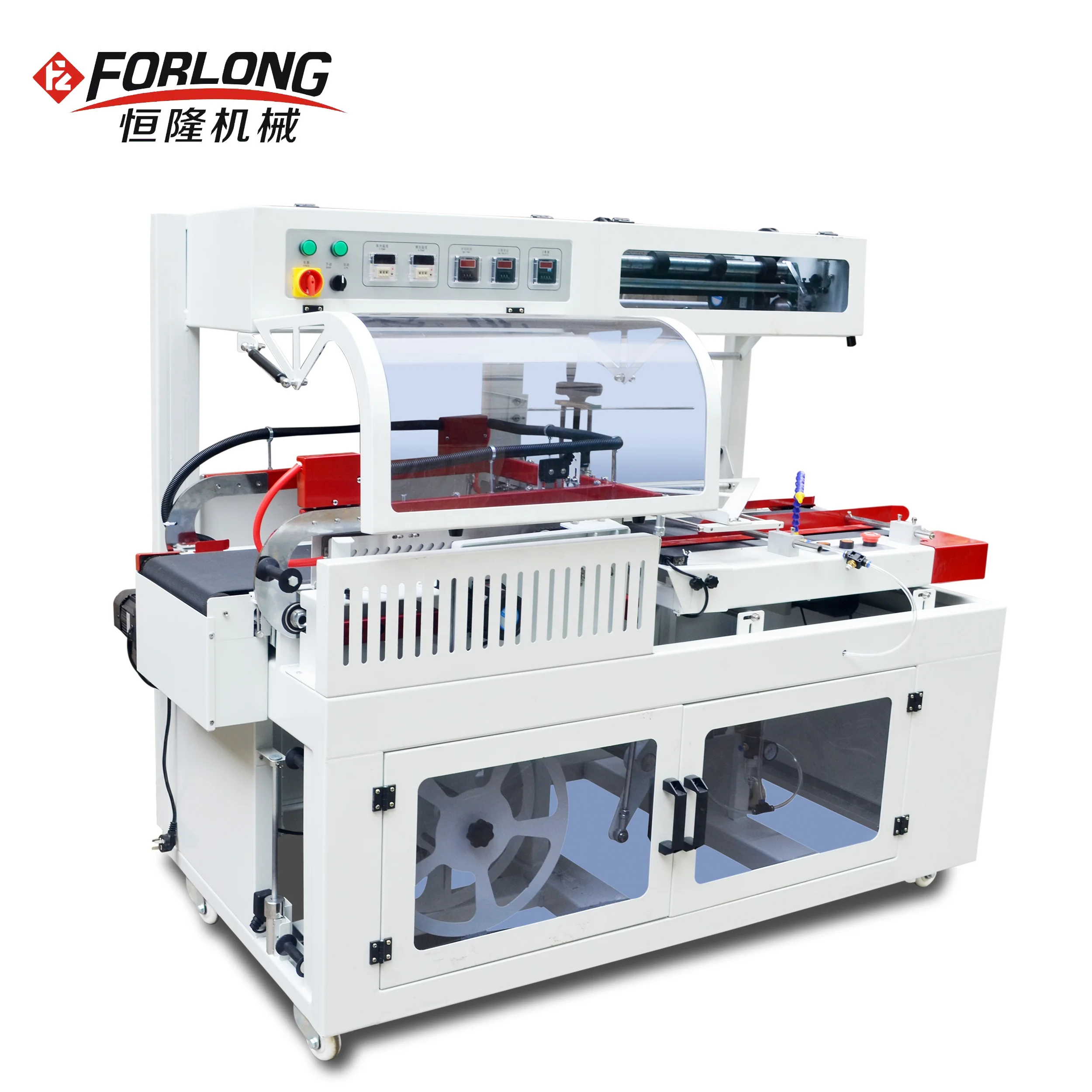

FL-450 is a fully automatic unmanned operation "L" type sealing machine which is widely used in mass production packaging line
with high efficiency. Automatic film feeding punching device, manually adjustable film-guide system and feeding conveyor platform
make the machine suitable for different width and height items. SF-400LAC has closely connecting function which specially designed
for small items;
Sealing knife uses the aluminum knife with DuPont Teflon which is anti-stick coating & anti-high temperature. So the sealing will
not have cracking, coking and smoking with zero pollution;
1. Equipped with imported photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and
small items;
Automatically-feeding: the length can be auto adjusted by the sensor and time relay. Matched the reduction motor makes the
waste film automatically rolling;
When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag
makers;
2. Different size products can also be packaged combinations to achieve the promotional effect;
3. Using original Autonics digital temperature controller which built-in PID function. Sealing blade temperature is extremely
sensitive and accurate and we can be arbitrarily set. Do not worry about hurting the product for imprecise temperature. The
sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting;
4. The machine is equipped with organic glass shield with automatic alarm function which greatly improves safety;
5. The entire machine realizes unmanned operation with the production line connecting;
6. Film up-down synchronization mechanism specially designed to correct the deviation film;
7. I can be added easily tear functions according to customer requirements;
8. Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardware and other industries’
large quantities of shrink wrap.
with high efficiency. Automatic film feeding punching device, manually adjustable film-guide system and feeding conveyor platform
make the machine suitable for different width and height items. SF-400LAC has closely connecting function which specially designed
for small items;
Sealing knife uses the aluminum knife with DuPont Teflon which is anti-stick coating & anti-high temperature. So the sealing will
not have cracking, coking and smoking with zero pollution;
1. Equipped with imported photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and
small items;
Automatically-feeding: the length can be auto adjusted by the sensor and time relay. Matched the reduction motor makes the
waste film automatically rolling;
When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag
makers;
2. Different size products can also be packaged combinations to achieve the promotional effect;
3. Using original Autonics digital temperature controller which built-in PID function. Sealing blade temperature is extremely
sensitive and accurate and we can be arbitrarily set. Do not worry about hurting the product for imprecise temperature. The
sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting;
4. The machine is equipped with organic glass shield with automatic alarm function which greatly improves safety;
5. The entire machine realizes unmanned operation with the production line connecting;
6. Film up-down synchronization mechanism specially designed to correct the deviation film;
7. I can be added easily tear functions according to customer requirements;
8. Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardware and other industries’
large quantities of shrink wrap.
