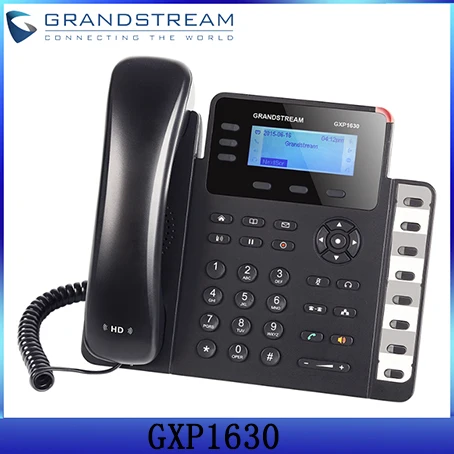

Low Price Grandstream GXP1630 for Home/Office SIP IP Door Phone Systems
A Small Business Gigabit IP Phone

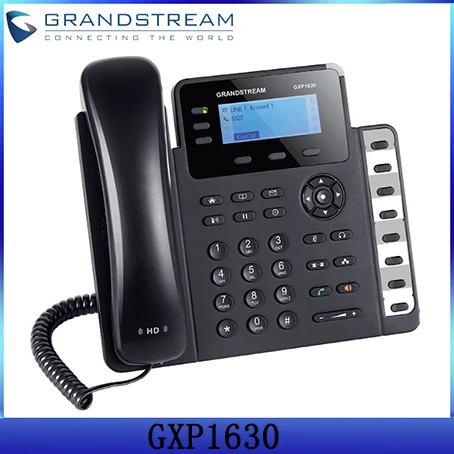

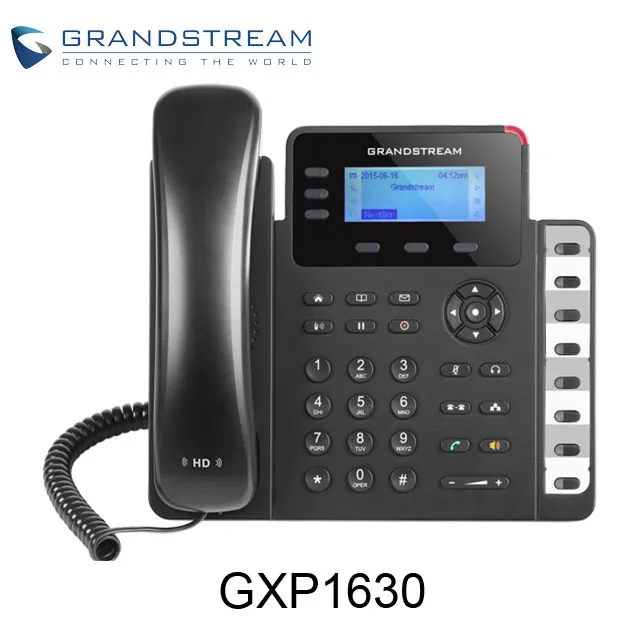

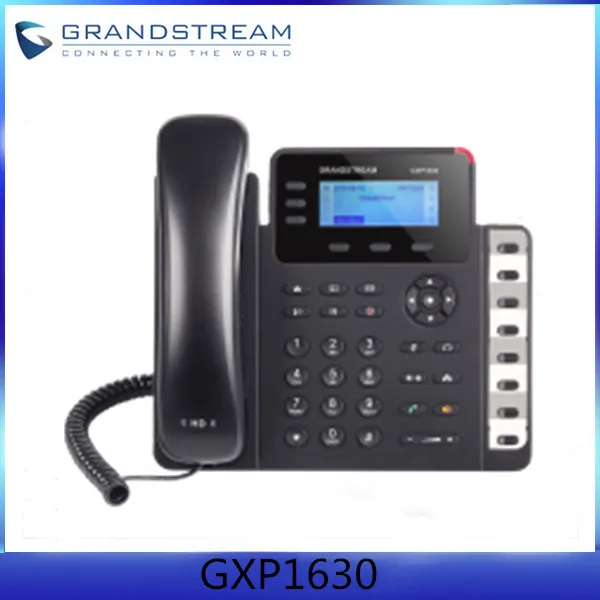

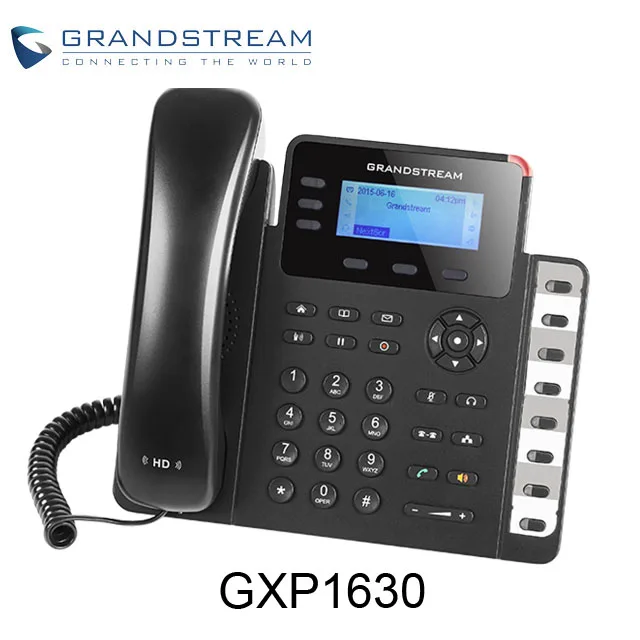

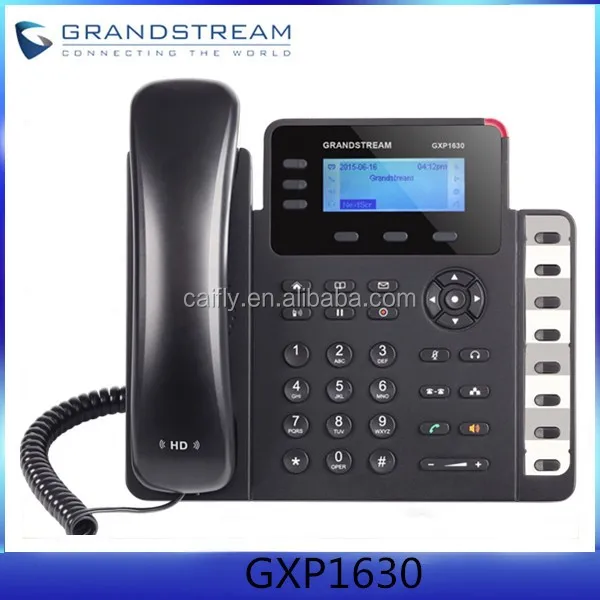

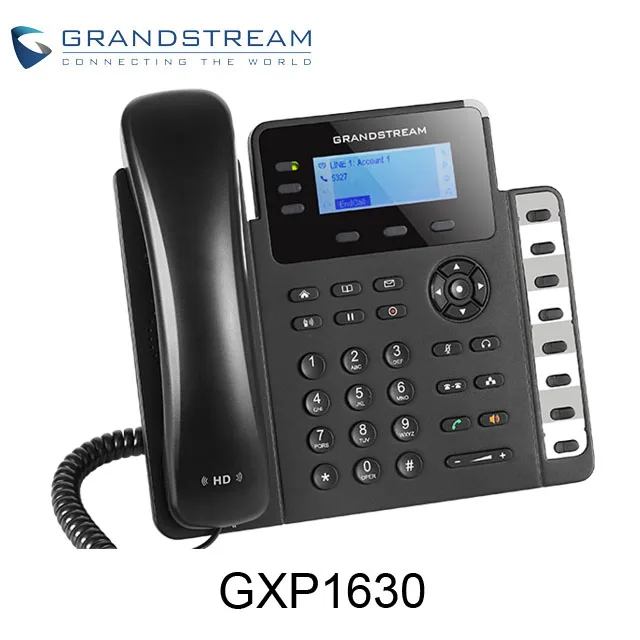

The GXP1630 is a powerful IP phone for small-to-medium businesses (SMBs). This Linux-based model includes 3 lines, 3 XML programmable soft keys, 8 BLF keys and 4-way conferencing. A 132x64 (2.98’’) backlit LCD screen creates a clear display for easy viewing. Additional features such as dual switched gigabit network ports, HD audio, multi-language support, integrated PoE and call-waiting allow the GXP1630 to be a high quality, versatile and dependable office phone.
Our most powerful entry-level Basic IP phone, the GXP1630 delivers an effective communications platform for access to quick call control. Delivering a vibrant and clear user-interface, this device is a perfect solution for those who handle low to medium call volume and require access to key call efficiency functionalities.
The GXP1630 comes equipped with a suite of VoIP features that are deployed in a clear and easy-to-use fashion. Focused primarily for low to medium call volumes and efficient call handling, its 3 line/SIP account design and 8 dual-colored BLF/speed dial keys gives this versatility. The GXP1630 also supports the best possible connection speeds and call quality with its dual Gigabit ports and HD audio on both speakerphone and handset. With other features such as its integrated PoE, 3 XML programmable soft keys and 4-way conferencing support, the GXP1630 is a high-quality and versatile Basic IP phone.
As all Grandstream IP phones do, the GXP1630 features state-of-the-art security encryption technology (SRTP and TLS). The GXP1630 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.





Protocols/ Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, |
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, | |
| TR-069, 802.1x, TLS, SRTP | |
| Network Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE |
| Graphic Display | 132 x 64 backlit graphical LCD display |
| Feature Keys | 3 line keys with dual-color LED and 3 SIP accounts, 3 XML programmable context |
sensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated function | |
keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, | |
| VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, | |
| HOME | |
| Voice Codecs | Support for G.711/a, G.722 (wide-band), G.723 (pending), G.726-32, G.729 A/B, |
| iLBC (pending), Opus (pending), in-band and out-of-band DTMF (In audio, RFC2833, | |
| SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC | |
Telephony Features | Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 4-way |
conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), downloadable | |
| phone book (XML, LDAP, up to 500 items), call waiting, call history (up to | |
200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot | |
| desking, personalized music ringtones, server redundancy & fail-over | |
| Headset Jack | RJ9 headset jack (allowing EHS with Plantronics headsets) |
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio |
| Base Stand | Yes, 2 angled positions available, wall mountable |
| Headset Jack | Yes |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS) |
| Security | User and administrator level access control, MD5 and MD5-sess based authentication, |
| 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media | |
| access control | |
| Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified |
| and traditional Chinese, Korean, Japanese and more | |
Upgrade/ Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES |
| encrypted XML configuration file | |
Power and Green Energy | Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA PoE: |
| Efficiency | IEEE802.3 af Class 2, 3.84W-6.49W |
| Physical | Dimension: 222.5mm (L) x 208.5mm (W) x 76.2mm (H) (with handset) Unit weight: |
| 0.8kg; Package weight: 1.2kg | |
Temperature and Humidity | Operation: 0
C to 40C, Storage: -10C to 60C , |
| Humidity: 10% to 90% Non-condensing | |
| Package Content | GXP1630 phone, handset with cord, base stand, universal power supply, network |
| cable, Quick Installation Guide, brochure, GPL License | |
| Compliance | FCC: Part 15 (CFR 47) Class B CE : EN55022 Class B, EN55024 Class B; EN61000-3-2, |
EN61000-3-3, EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; | |
| AS/NZS 60950.1 |
1.Trade terms: FOB,CIF,CFR,etc
2.Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
3.Payment Terms: T/T in advance
4.MOQ: 1 pcs
5.FOB Price:US $1 - 1,000 / Piece
6.Port: Shanghai
7.Lead time: Within 5 working days after receipt payment.
8.Shipment: Express, Air, Sea
9.Supply capability: 200 Piece/Pieces per Week
10.Sample availability: Yes( not free)
11.Package information: carton package with Huawei original package
