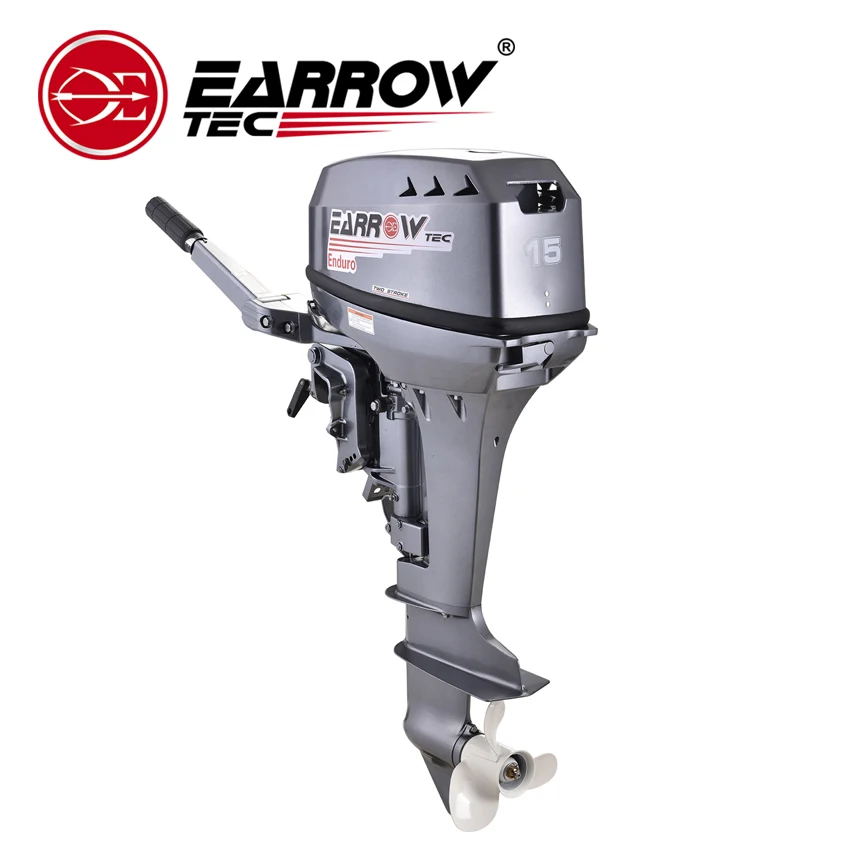

Earrow outboard 5hp 15hp 25 30hp Enduro outboard motor

Product Overview

Description



Product: Japanese outboard

2-stroke, 15hp



Specification

Outboard Motor Model	E15DMHL
Net Weight	S:38Kg ; L:40kg
Full Throttle Operating Range	4500-5500 r/m
Maximum Output	11kw/15hp
Idling Speed	1050±50r/m
Type	Two Stroke
Displacement	246.0cc
Bore*Stroke	56*50mm
Ignition System	CDI
Spark Plug	BR8HS-10
Spark Plug Gap	0.9-1.0mm
Control System	Tiller Handle
Starting System	Manual
Starting Carburation System	Choke Valve
Gear Position	Forward-Neutral-Reverse
Gear Ratio	2.08 (27:13)
Trim and Tilt System	Manual Tilt
Recommended Fuel	Unleaded Gasoline
Gear Oil	0.250L
Fuel Tank Capacity	24L

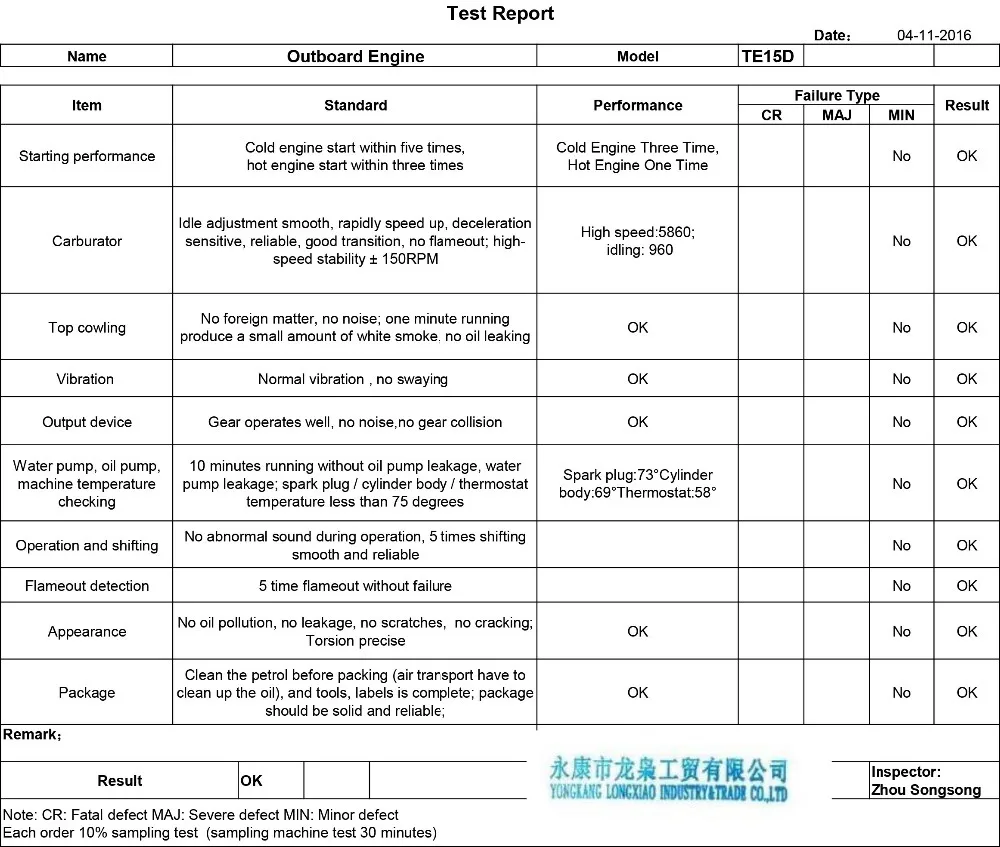

Test Report



1,Most die casting parts and plastic parts are made by our own factory, assure the quality control

2,Special surface pretreatment production line, passivated surface made the parts & engine more durable, anti corrosion;



3,Our main engineers used to work in previous BRP Chinese subsidiary plant, we learn from BRP technology, our outboards are more quiet;



4, Color of top cover are one-step moulding technology instead of painting, more flexible and more corrosion resisting;

 EARROW service government rescue team~



OEM service

1% free spare parts (meet the MOQ 10pcs)

Warranty: 1 year for commercial use and 1 year for pleasure use.



Standard export package, white PP foam plus carton box;







Details

1.     production time: 20 workdays after payment and receive 30% deposit

2.     CE standard, FOB Ningbo

3.     MOQ: 1 unit for sample

4.     Delivery time: sample 2-3 days, volume order 20 days





We are Chinese professional outboard motor manufacturer. All our outboards are CE approval and our factory is ISO9001 qualified.SGS approval;



Philosophy

Quality First, User-oriented Management, Dedication to customer services



R & D Team

All of our key engineers came from the previous BRP outboard factory of China DG, with more than 20 years' experience.
