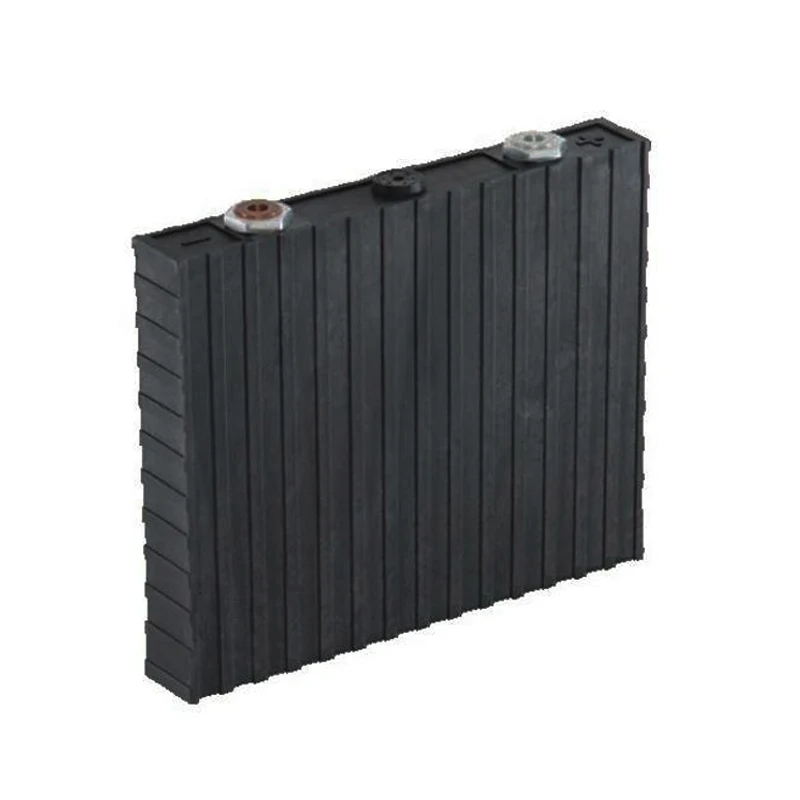

LFP Li Ion 3.2V 40Ah 60Ah 100Ah 200Ah LiFePO4 Prismatic Cell 3C Discharge Rate For 12V 48V 72V 96V EV Solar Storage Battery
- Category: >>>
- Supplier: Shenzhen Herculesi Technology Co. Ltd
Share on (60716835913):
Product Overview
Description

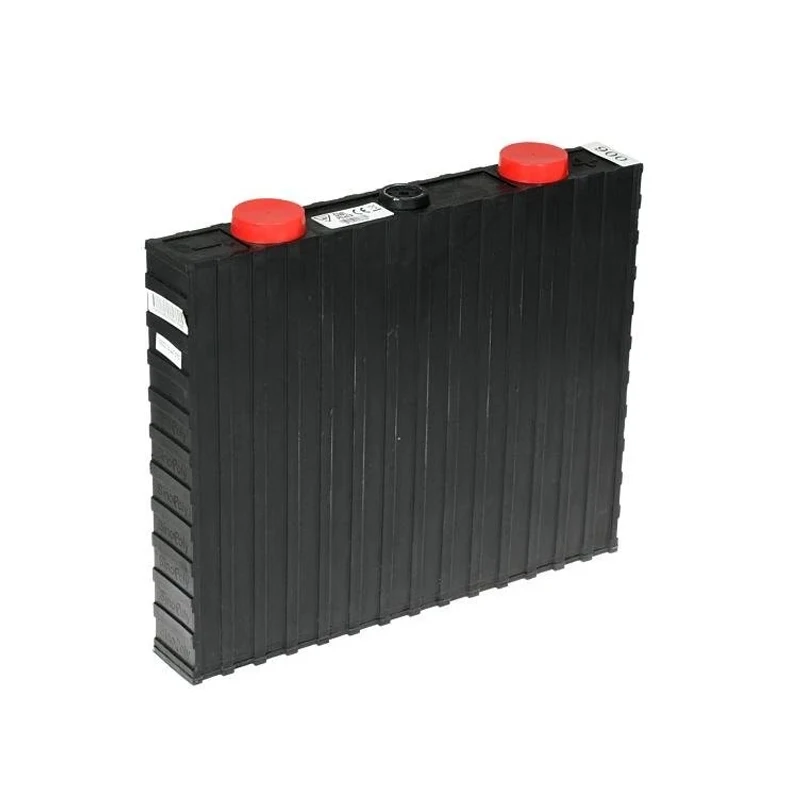

High power LiFePO4 (LFP) Battery produced for energy storage system, electric vehicles and other high power applications, with capacity of 100Ah Sinopoly Battery Cell.
Nominal Capacity: 100AH
Nominal Voltage: 3.2V
Max Continues Discharge Current: 3C (300A)
Standard Charge Current: 33A
Max Charge Current: 1C (100A)
Weight: 3.15+/-0.1 kg
Dimension: 221*142*61 (+/-1) mm
High power LiFePO4 (Lithium Iron Phosphate) Battery produced for energy storage system, electric vehicles and other high power applications, with capacity of 40Ah, 60Ah, 100Ah, 200Ah, 300Ah, 400Ah.
Nominal voltage of the cell is 3.2V and the operational voltage is 2.8 - 3.65V
The maximum charging voltage for initial charge is 3.7V
Recommended subsequent charging is to 3.65V
The minimum voltage is 2.65V
Maximum discharge current is 3C continously
Operating temperature -20°C up to 55°C (discharging)
The maximum charging voltage for initial charge is 3.7V
Recommended subsequent charging is to 3.65V
The minimum voltage is 2.65V
Maximum discharge current is 3C continously
Operating temperature -20°C up to 55°C (discharging)

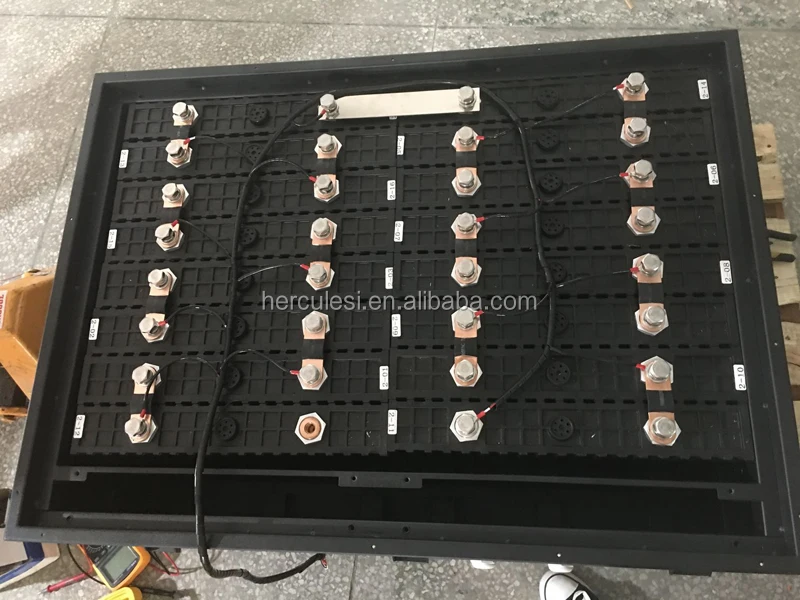

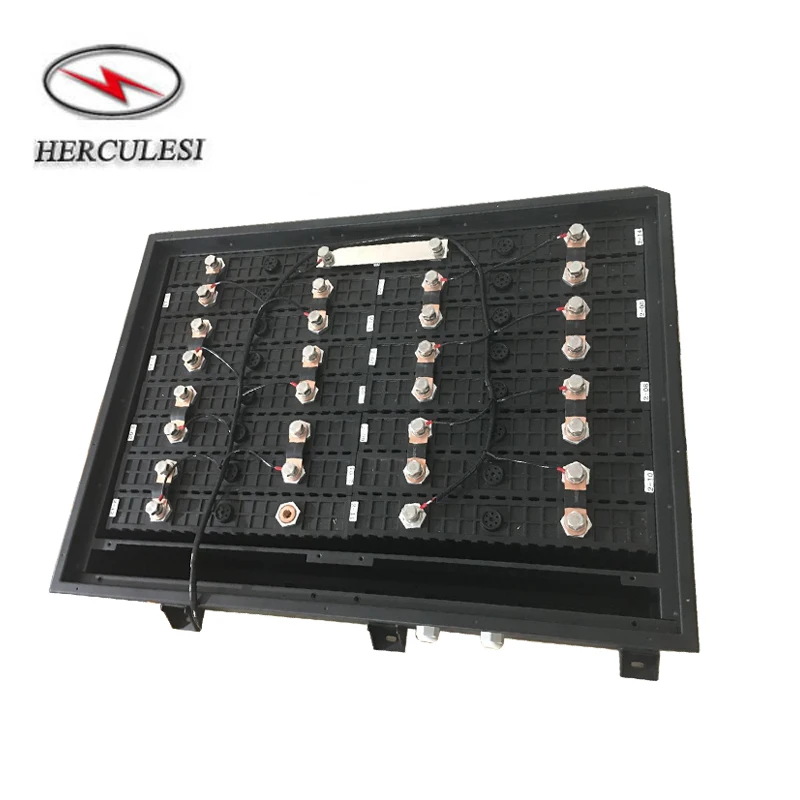

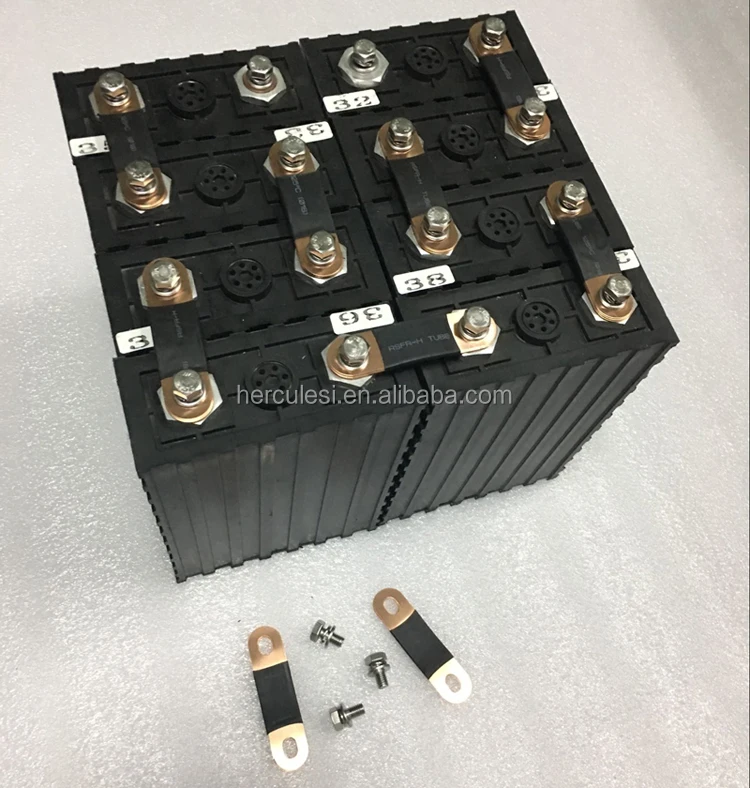

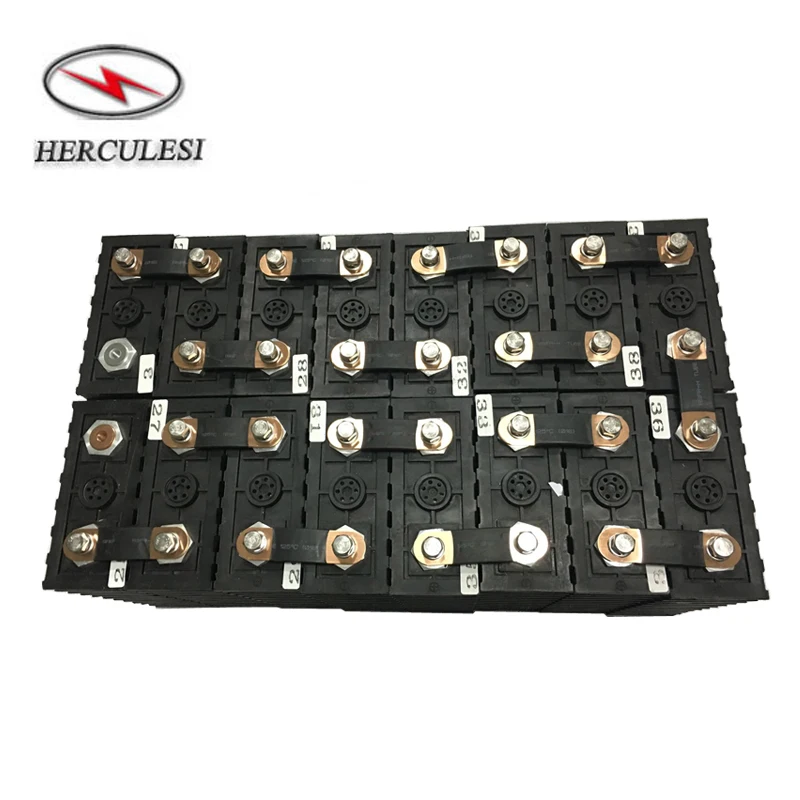

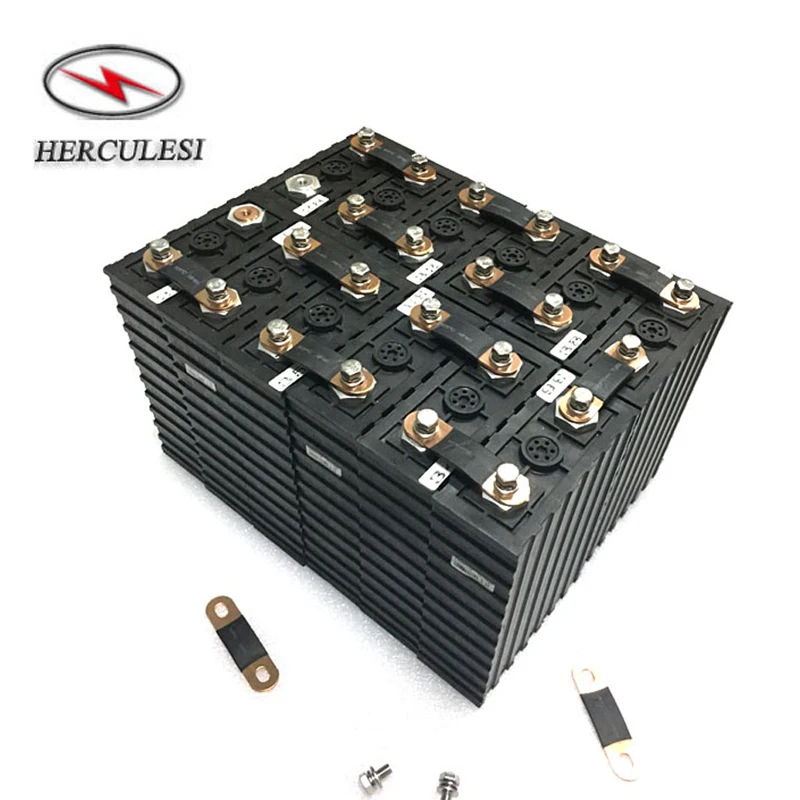

We also can offer a full power solution of LiFePO4 battery pack + BMS
Our range covers from 12V – 24V – 48V – 72V – 80V – 96V – 144V – 300V
With a capacity of 40Ah – 60Ah – 100Ah – 200Ah – 300Ah – 400Ah – 600Ah – 800Ah – 1000Ah
The batteries are supplied with a LiFePO4 charger & advanced BMS (Battery Management System) that with function of
- Over-charge & discharge protection,
- Temperature control function,
- Short circuit protection,
- Balance the cells and ensures long cell life,
- LED power level display,
- RS485 / CANBUS
Nominal Capacity | Nominal Voltage | Dimension (H*W*T) | Weight | Max Continuous Discharge Current |
100Ah | 3.2V | 221*142*61 (+/-1) mm | 3.15+/-0.1kg | 3C (300A) |
200Ah | 3.2V | 280*180*69 (+/-1) mm | 5.8+/-0.2kg | 3C (600A) |
300Ah | 3.2V | 308*360*53 (+/-1) mm | 9.5+/-0.3kg | 1C (300A) |
400Ah | 3.2V | 285*450*71 (+/-1) mm | 14.3+/-0.3kg | 1C (400A) |
Cycle Life: > 2000 times @ 80% DOD, retention capacity ≥ 80% | ||||

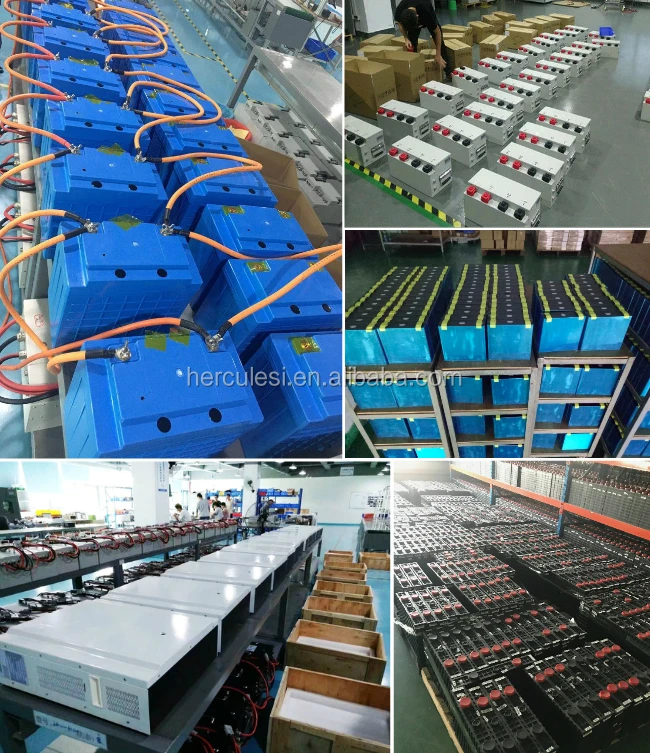

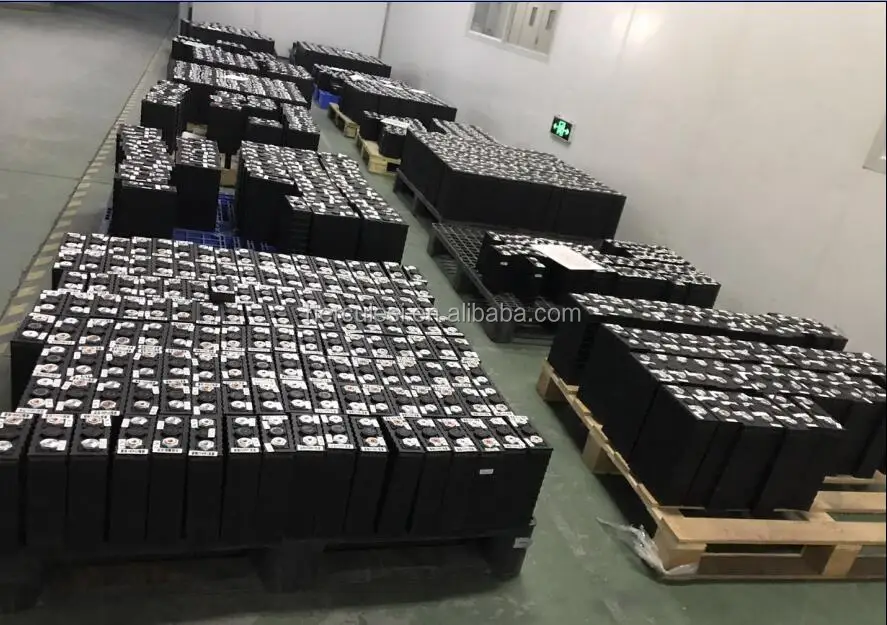

There thousands of Sinopoly LiFePO4 Battery cells in stock in Shenzhen warehouse.
Lithium battery is Dangerous Good for shipment by Sea and by Air and they should be shipped under regulation of UN3480-IA and class9 DGR hazard.
All Sinopoly Battery are packaged by DG plywood case and we provide UN38.3 test report and MSDS.
All Sinopoly Battery are packaged by DG plywood case and we provide UN38.3 test report and MSDS.
We provide high quality battery to clients all over the world and help cleints deliver battery from China to them by sea and by air at reasonable price. Also we provide necessary technical solution and warranty to you!
