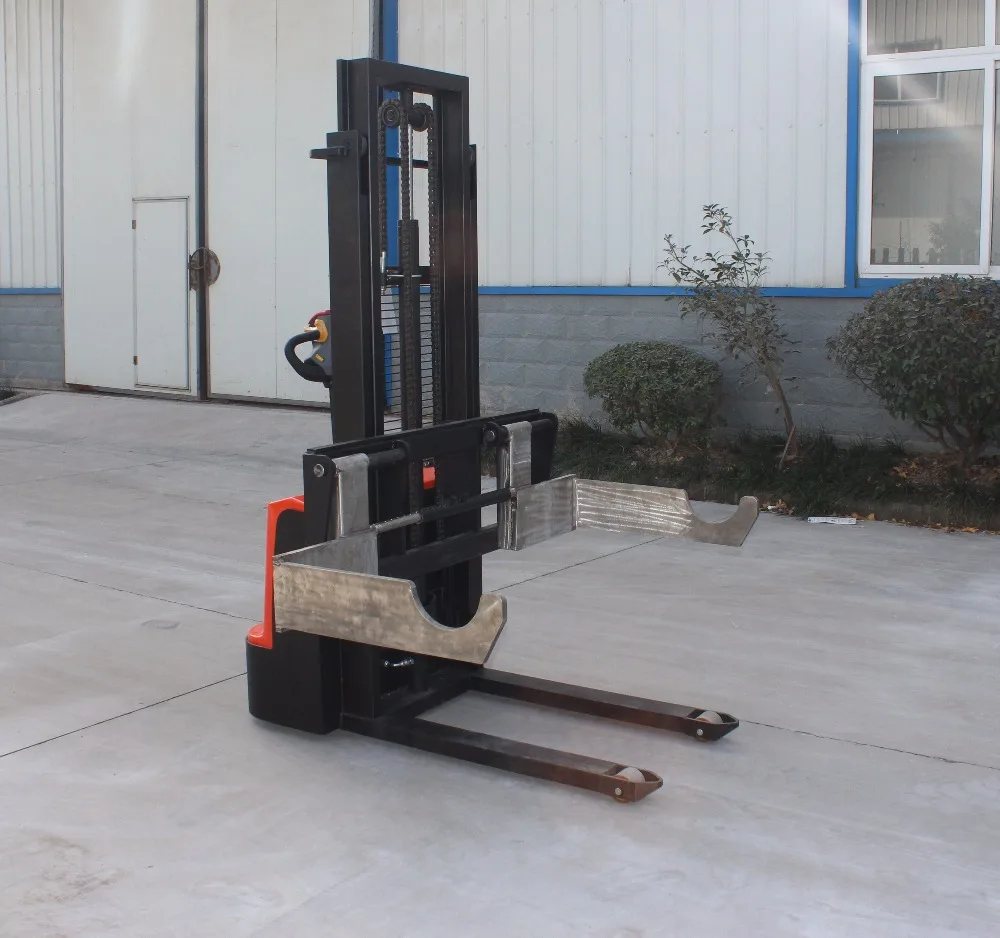

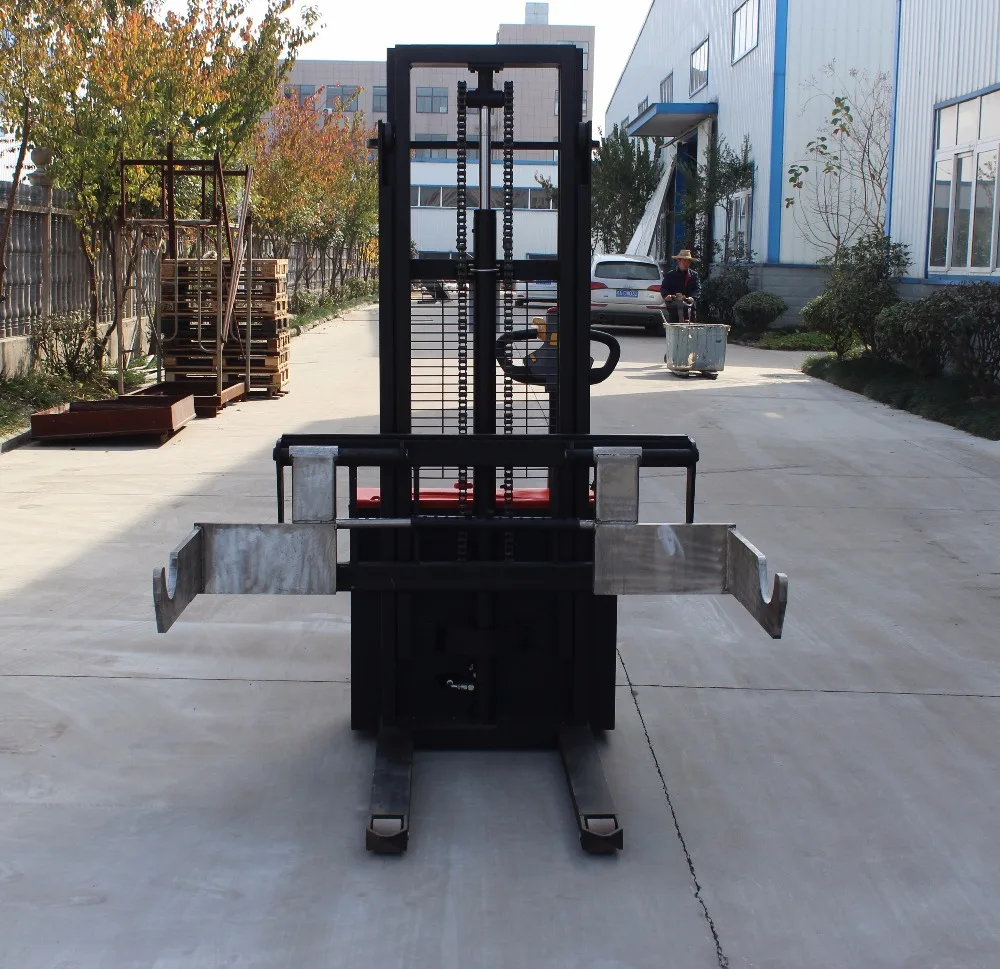

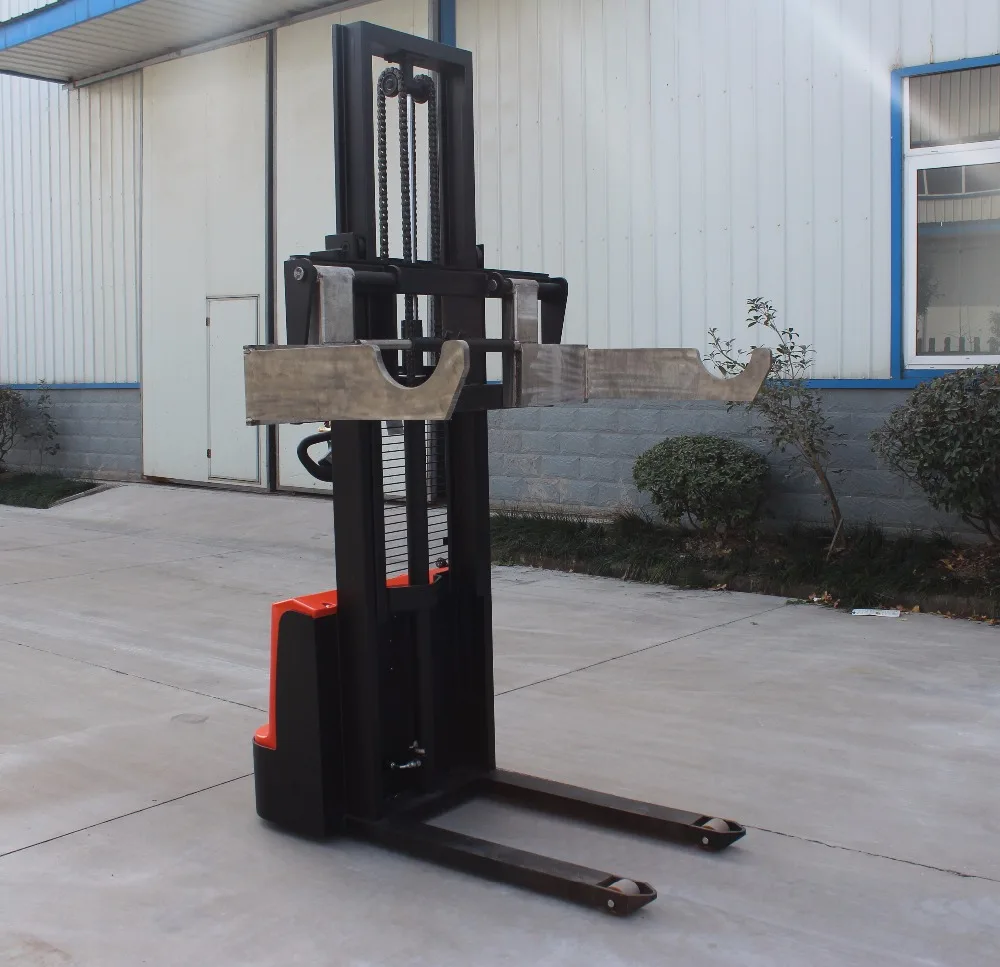

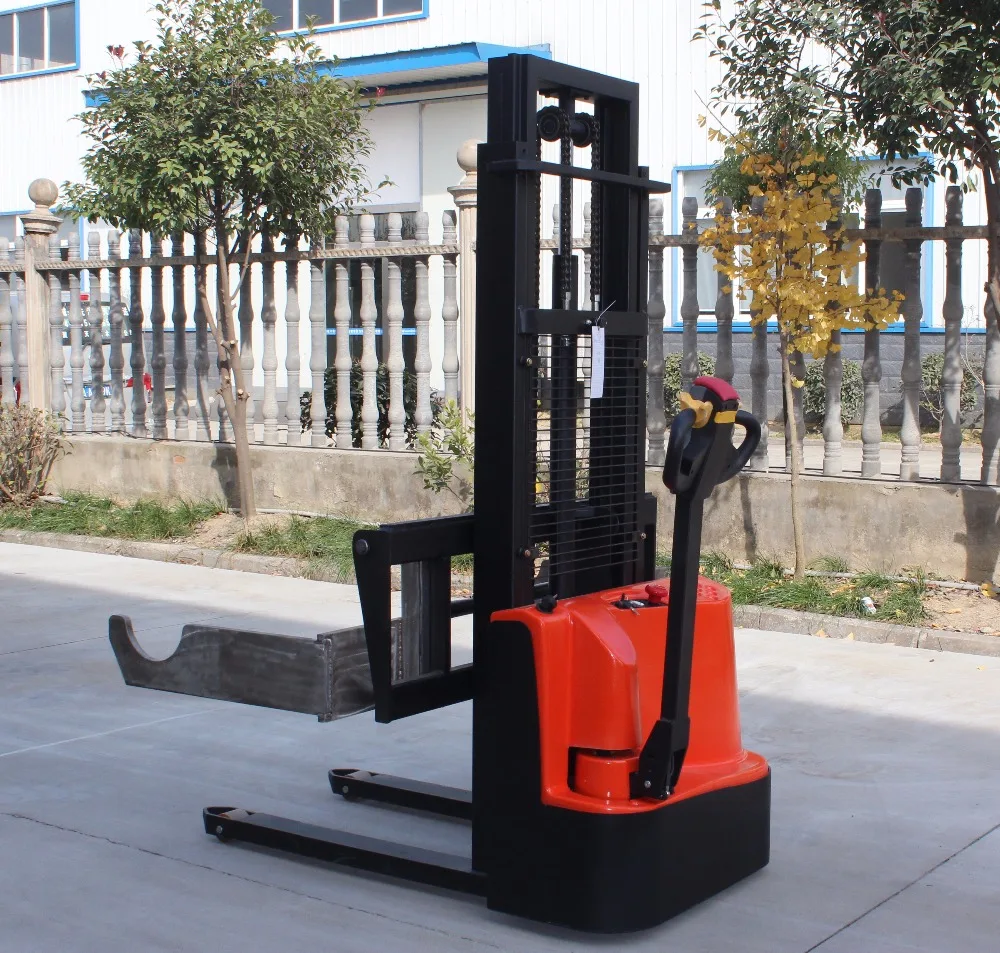

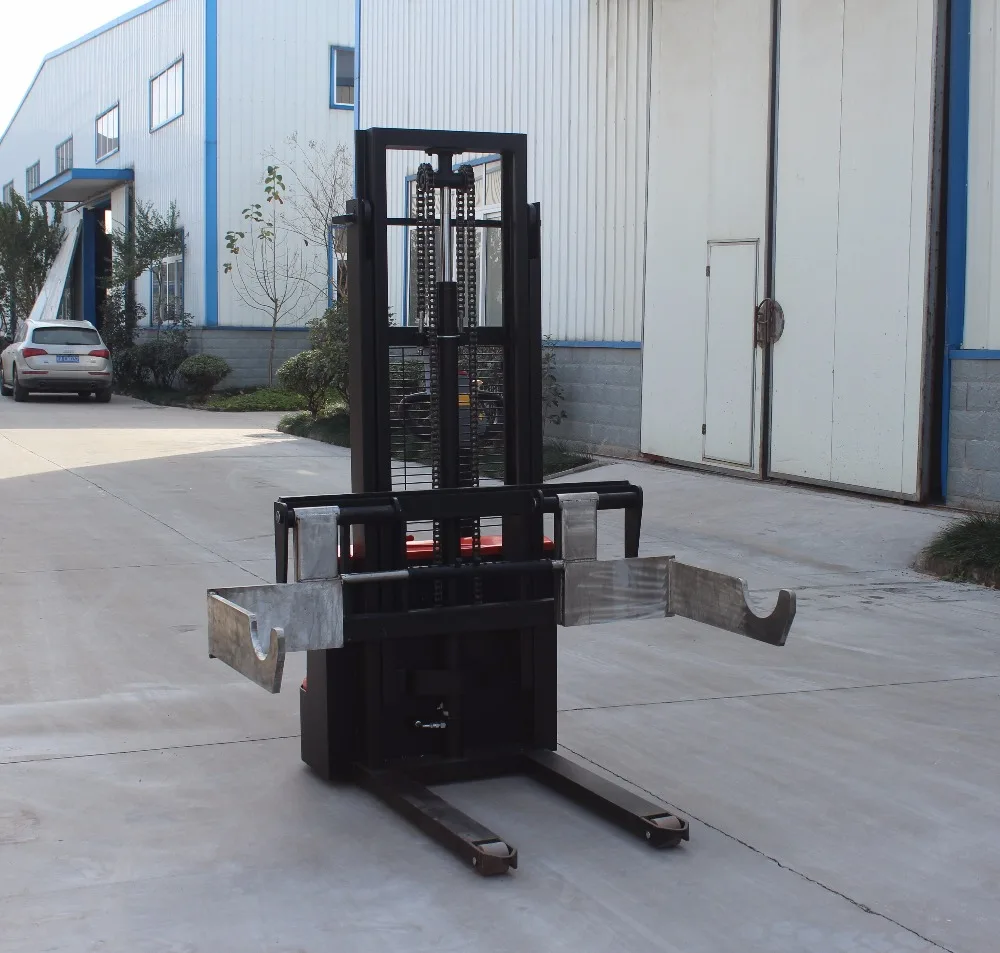

1.0/1.5 tons fully electric stacker pedestrian for paper lifter/paper stacker with DC motor CE certified
Features:
Compact body is perfect for narrow aisle and work-site;
Build-in high efficiency battery are free maintenance;
Build-in charger
Side-motor design provide wide-view and assure the safety of operator;
Comfortable operation with ergonomic handle;
Imported curtis controller ensure its quick reaction and reliable performance.
More customized electric stackers made according to individual needs:
Specification Sheet:
side lift truck|side lift|truck side lift|side lift truck|side lift|truck side lift
Name
Walkie Full Electric Stacker(24V)
Model No.
Unit
CDD10-25
CDD10-30
CDD15-16
CDD15-25
Load Capacity
Kg
1000
1000
1500
1500
Max lifting height
H(mm)
2500
3000
1600
2500
Load center
C(mm)
500
500
500
500
Wheel Type
Pu solid tire
Fork size
mm
1150X160
1150X160
Fork outer distance
mm
680
680
680
680
Overall length
L(mm)
1785
1785
1785
1785
Overall width
S(mm)
800
800
800
800
Height--Mast Lowered
H1(mm)
1825
2075
2075
1825
Maximum height when fork is lifting
H2(mm)
3033
3533
2075
3033
Min. Fork height
h1(mm)
85
85
85
85
Turning radius
W(mm)
1380
1380
1380
1380
The front wheels to the fork end distance
(mm)
430
430
430
430
Min. stacking aisle 1000*1000 pallet
mm
2155
2155
2155
2155
Max. Walking Speed
Km/h
3.5/4
3.5/4
3.5/4
3.5/4
Grade ability
%
3/6
3/6
3/6
3/6
Total Weight
Kg
546
566
596
666
Driving wheel
mm
Ø210*70
Front wheel
mm
Ø80*70
Balance wheel
mm
Ø125*50
Battery capacity
V/Ah
2*12/80
Driving motor
Kw
0.75
Lifting motor
Kw
2.2
Walking Adjustable Type
Holzer type accelerator
Packaging & Shipping
Packaging Details: With nude package or wooden box ( Optional ) for 1 ton 1.6 M side lift truck
Delivery Detail: Shipped in 25 days after payment
Our Services
More Products maybe you interested, please contact us
How to contact us? please visit //www.eforkchina.com
Send your Inquiry Details in the Below, Click "Send" Now!
our whatsapp is +86-18326192573
After-sale Service
All the product of EFORK supplied with one year or 1000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and consult our customer service executive.
Company Information
Anhui Yufeng Equipment Co.,Ltd. is a ISO9001:2008 enterprises which has been specialized in manufacturing&exporting electric warehouse equipment in Hefei,China.We offer a wide range of battery powered handling/lifting trucks,such as electric 3 wheel forklift,VNA 3 way electric stacker,VNA 4 directions reach truck,electric pallet truck,electric stacker,laser navigation AGV forklift,electric reach truck,electric man-up order picker and electric tow tractor,and so on.
We're a dedicated reputable company carrying our theme''Innovation,integration and enviroment friendly'',and we strive to privide only the best to our customers.Please allow us to support your handling/moving/lifting needs and you're welcome to visite our show room to view the products in details.
Certification:
FAQ
1.What's the Certificate do you have?
EFORK workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. (Include some forklift parts) Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
EFORK will try its best to meet all kinds of clients' special requirements. And our advantage is to made non-standard forklift. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 1000 working hours whichever occurs first. Details to see the EFORK warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 15 days to 90 days.
7. How can you ensure the quality of the products ?
Don’t worry,we joined the trade assurance. If the products have quality problem when you received the goods, Alibaba can return you full payments.
