1.This hot filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing ,filling and capping ,
2.it is equipped with perfect temperature control system , reverse -flow system ,automatic cleaning system and control program ,
3.each machine element that contacts with the liquid is made of hight quality stainless steel and good grade rubber .
Advantages
1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way 2)Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter 3) Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss. 4) Screw capper adopts French advanced technology which cans screw cap promptly when clamping bottle. 5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on.
Detailed Images

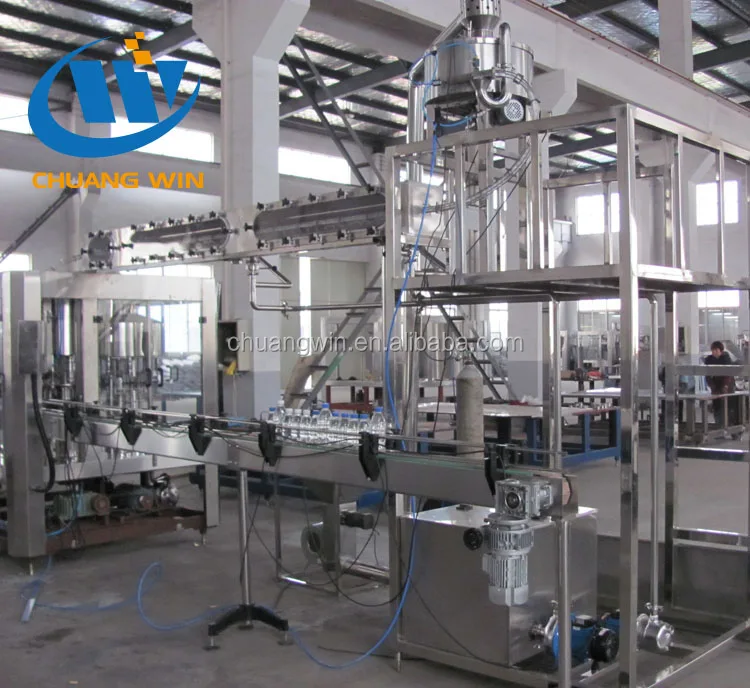

Images of water filling machine

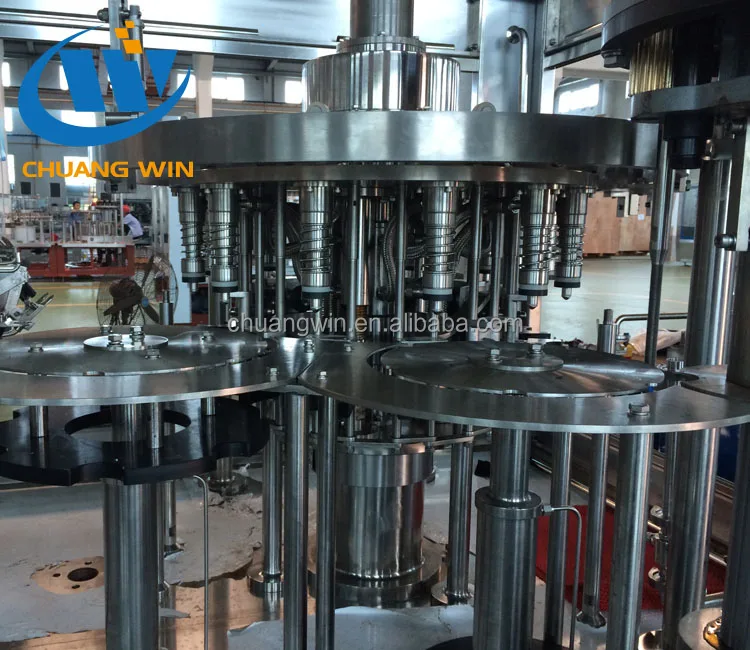

The filling machine combines washing,filling,capping into one working table.The production rate of this machine could reach to 24000 bottles per hour.

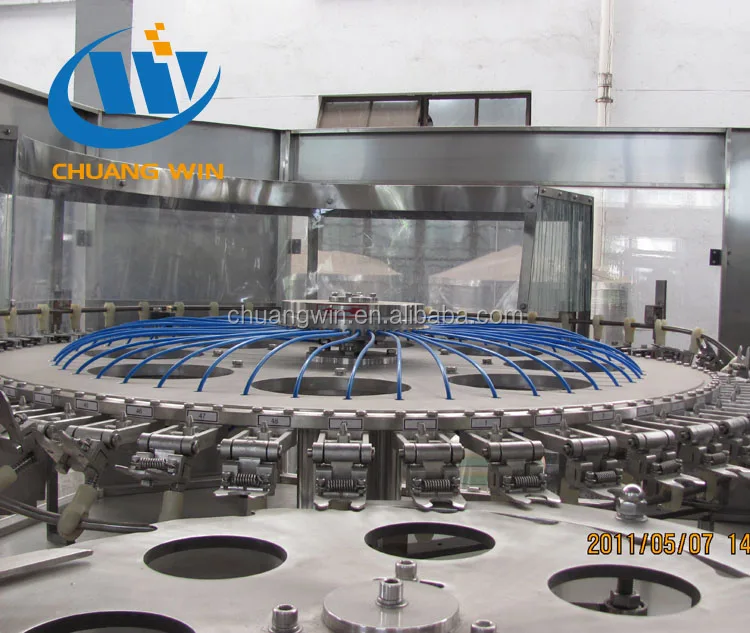

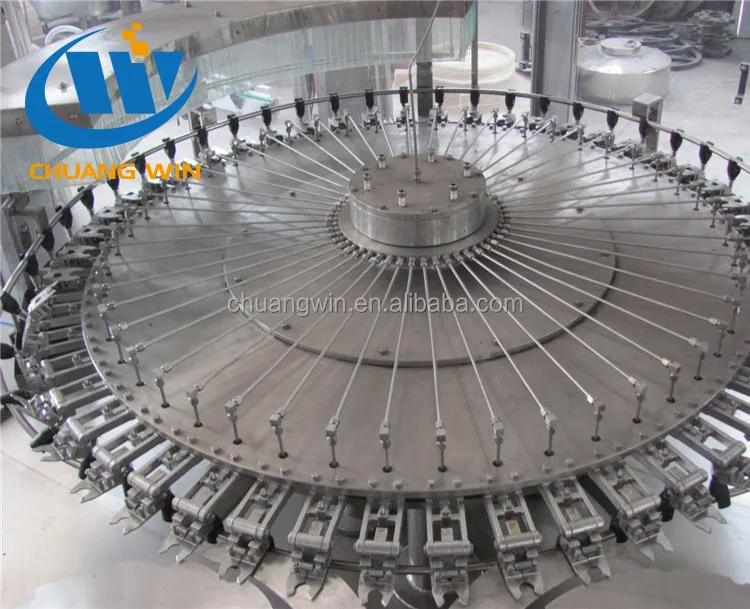

Washing heads.
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing <3> 304/316 stainless steel washing pump

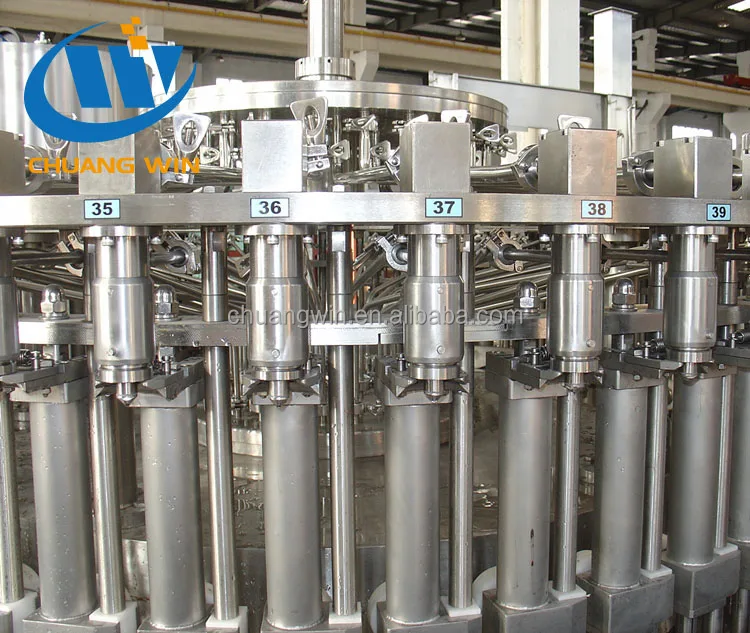

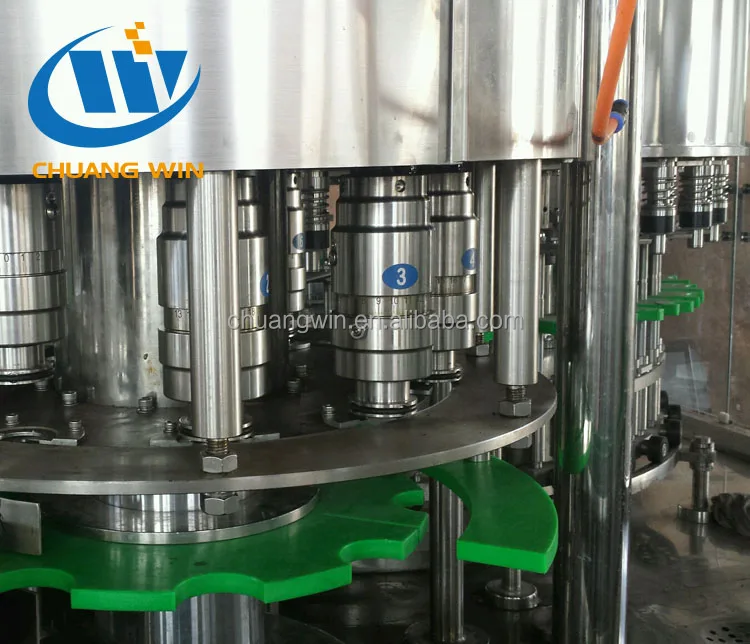

Filling heads.
<1> 304/316 Stainless steel high precision filling nozzle <2> Filling volume adjustable in fine rank, same liquid level after filling <3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean <4> 304/316 stainless steel filling pump

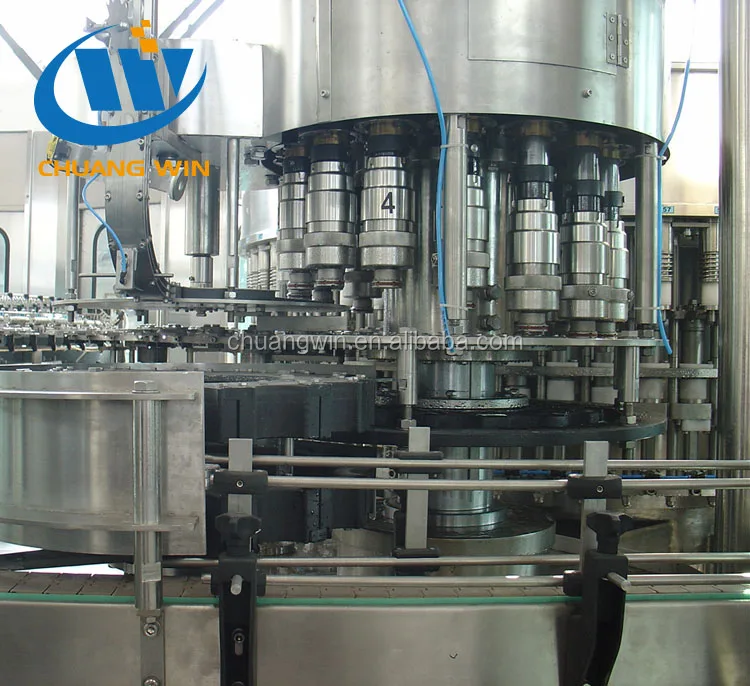

Capping heads.
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping <2> All 304/316 stainless steel construction <3> No bottle no capping <4> Automatic stop when lack of bottle

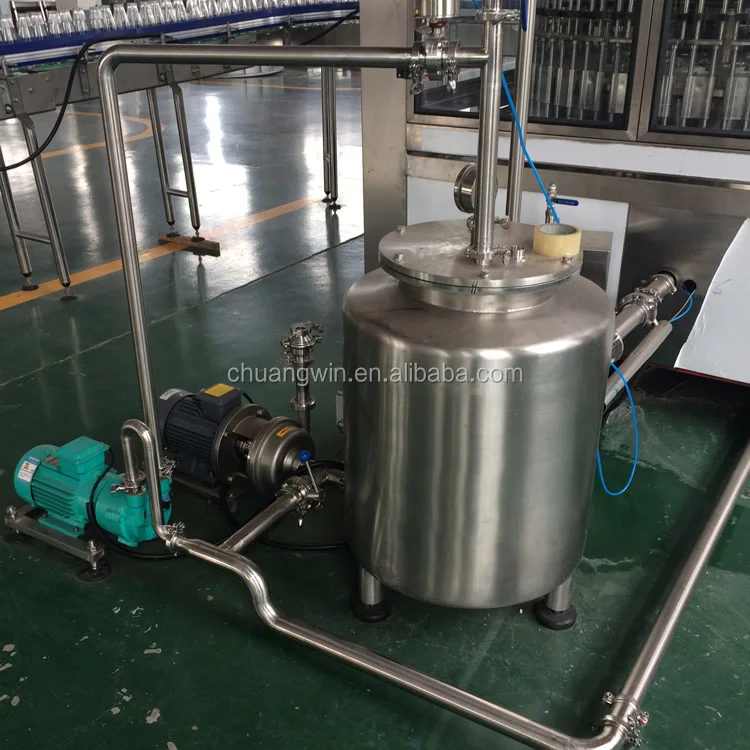

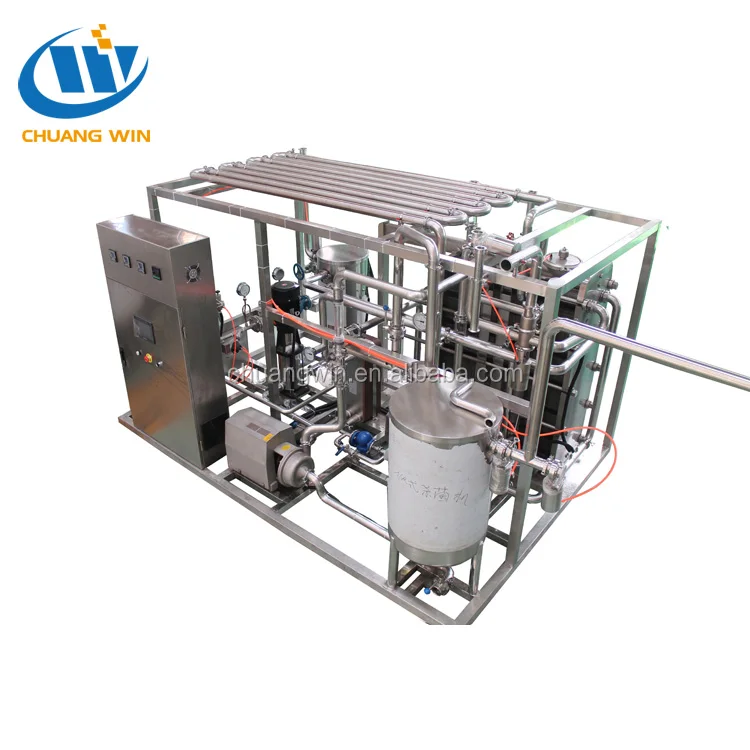

Pre-process system.
1 High-shear emulsifying tank + Plate heat exchanger 2 Mixing tank 3 UHT sterilizer + homogenizer machine + Buffer tank 4 Hot water system + Hot water tank 5 CIP cleaning system

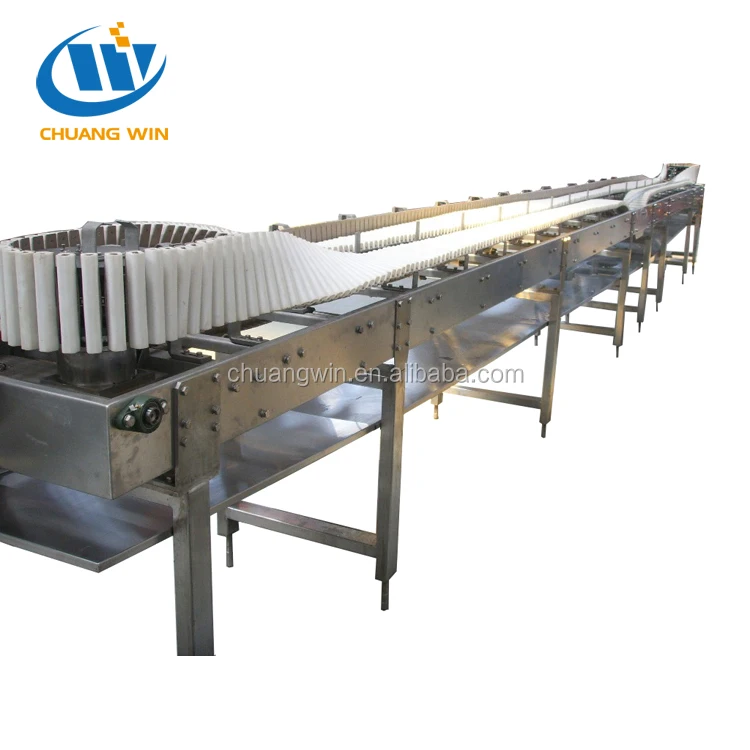

Bottle Inverter Chain.
1/Use juice own high temperature to kill the bacterial inside cap. 2/Use juice own high temperature to improve sealing of bottle to extend warranty time. 3/Use SUS 304/316 stainless steel chain and high polymer material conveyor to keep high quality and increase service life.

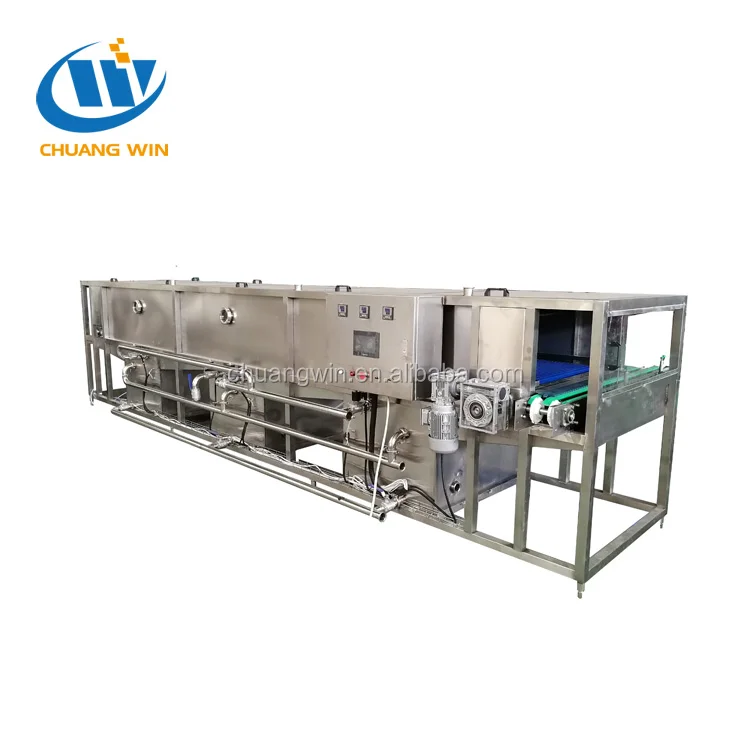

Shower Cooling Machine.
1/Mainly for cooling and sterilization 2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation 3/Nozzles are manufactured using U.S. technology and spray water evenly 4/Conveyor belt adopts Rexnor technology, flat surface with small wear 5/Smooth and reliable operation with low energy consumption
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.
Whether you choose shrink-printed film, nested packs or wraparound cartons, Machine packers gently feed bottles to ensure durable and cost-effective packs.
Company Information
Packaging & Shipping
Our Services
1.Find our products through websit .
2.One year warranty for the whole system.
3.Free equipment installation and debugging.
4.After one Year,we can help you to maintain the machine and the accessories are provided olny one the cost price.
5.Every 3 years,we can help to overhaul the machine freely(Labor).
6.We can provide internship servise and help you train the operator and mechanic.
7.Free production technology and process configuration.
8.We can help you to design the production line,workshop and provide turn-key project.
