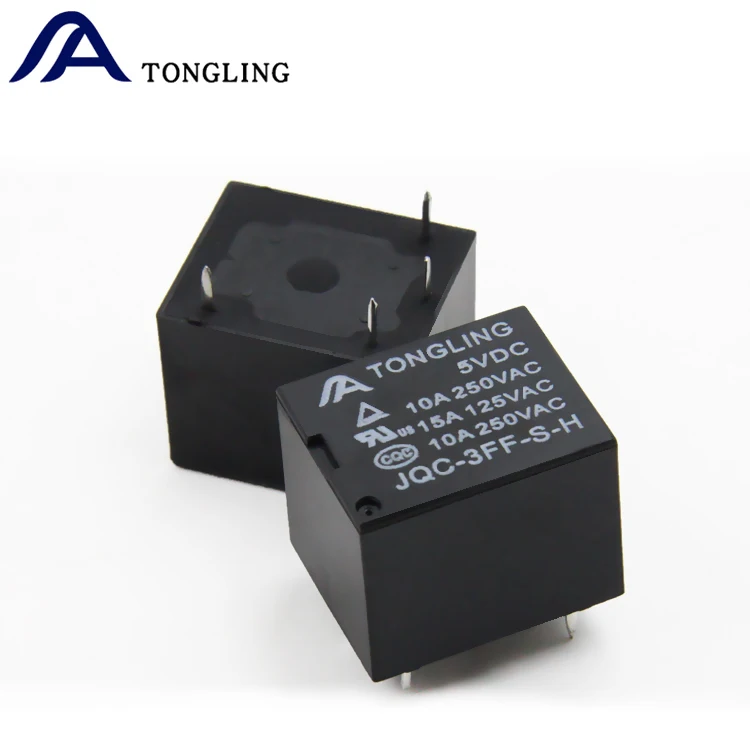

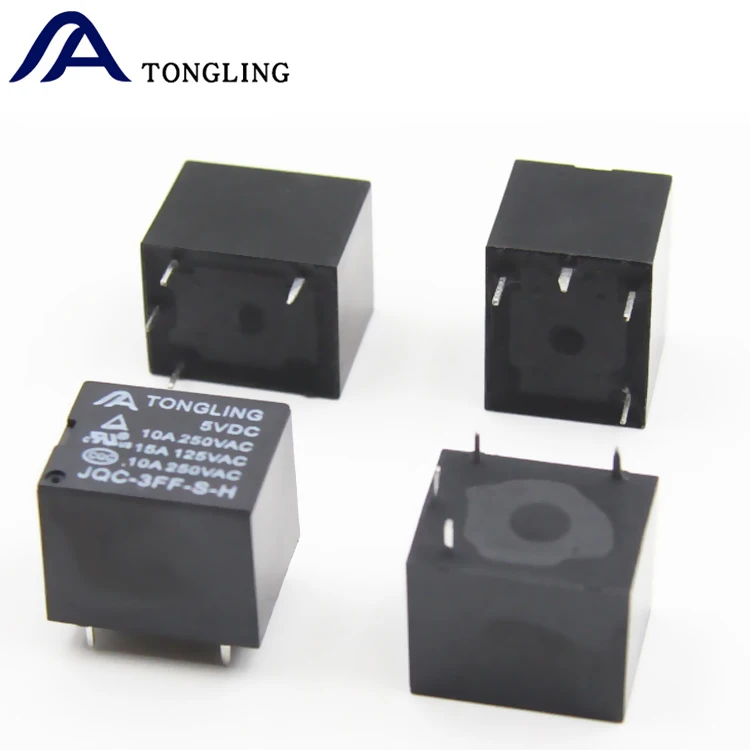

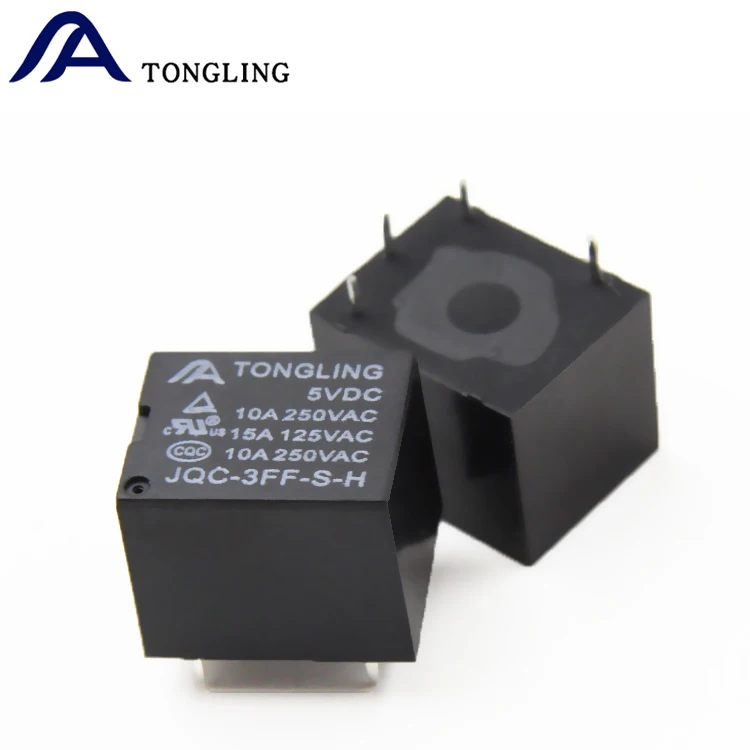

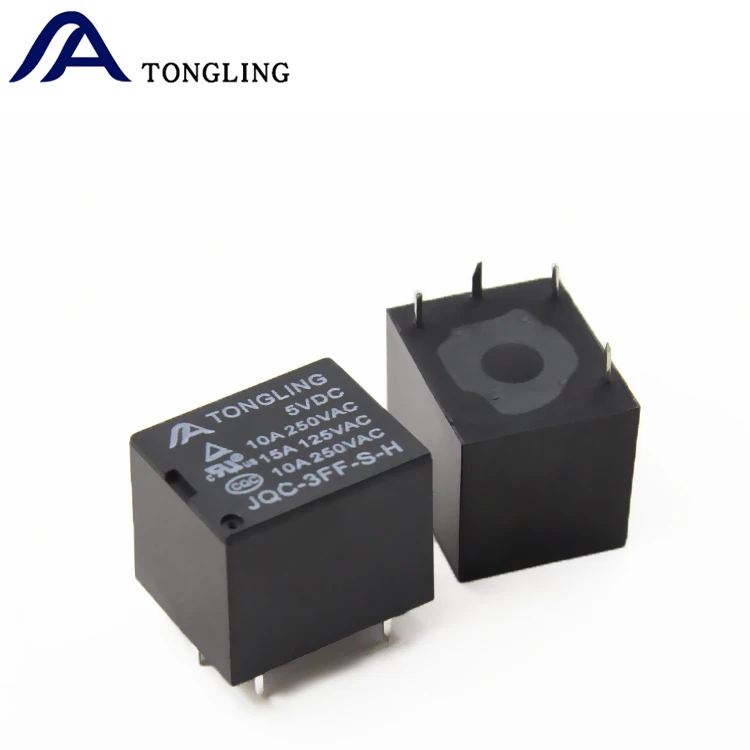

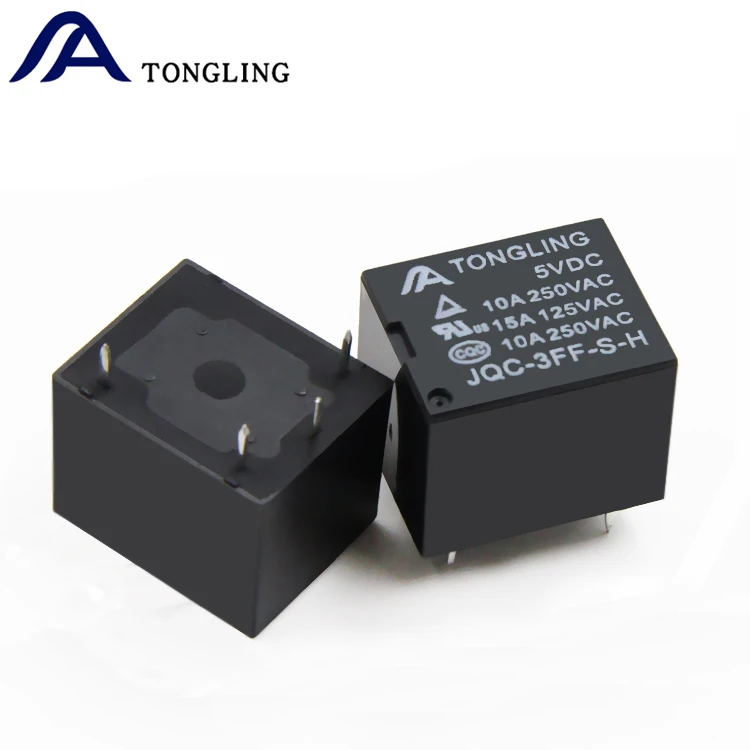

T73 JQC 3FF S H 5V 4 Pins 10A Form A PCB Relay

Nominal Voltage(VDC)

3

5

6

9

12

18

24

48

0.36W

Coil Resistance (Ω±10%)

25

69

100

225

400

900

1600

6400

Rated Current(mA)

120

71.4

60

40

30

20

15

7.5

Max Operate Voltage (VDC)

2.25

3.75

4.5

6.75

9

13.5

18

36

Min Release Voltage(VDC)

0.15

0.25

0.3

0.45

0.6

0.9

1.2

2.4

Max ApplicableVoltage

Contact Form

1H/1Z

Contact Material

Silver Alloy

Load

Resistive load(COSΦ=1)

Contact  Ratings

1H:10A 250VAC

15A 125VAC

Minimum load

100mA 5VDC

Max Switching Voltage

250VAC/30VDC

Max Switching Current

15A

Max Switching Power

2770VA/240W

Contact Resistance

100mΩMax

at 6VDC 1A

Life Expectancy

Electrical  : 100,000

Operations(at30Operations/minute)

Mechanical: 10,000,000 Operations(at300Operations/minute)

Insulation Resistance

100MΩMin at 500VDC

Dielectric Strength Between Open Contacts

750VAC(50/60Hz for one minute)

Between Contacts and coil

1500VAC(50/60Hz for one minute)

Operate Time

10ms

Release Time

5ms

Temperature Range

-40℃to+85℃

Shock Resistance

Operating Extremes: 10G

Damage Limits: 100G

Vibration Resistance

10-55Hz, 1.5mm

Max. switching frequency

Mechanical: 18,000 operations/hr

Electrical: 1,800 operations/hr

Humidity

40-85%

Weight

Approx 10g

Safety Standard

CE CQC UL TUV SGS
