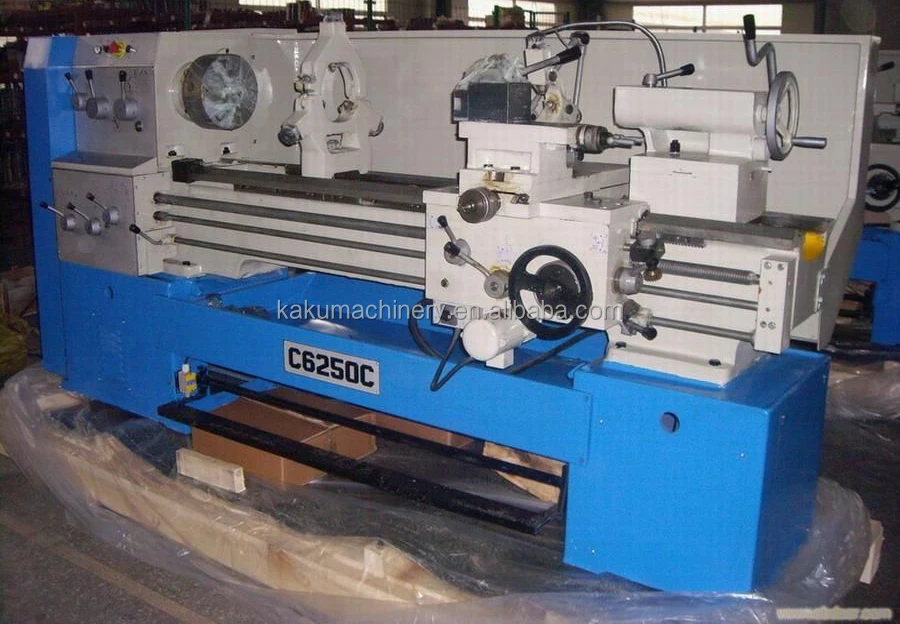

Gap Bed Lathe Cutting Tools C6250 Machines Making Machines Lathe

Share on (60716993916):


Price:

Quantity:


Product Overview

Description


Product Description

Feature:


1.Guideways ultrasonic frequency quenched to ensure a long service life

2.Guideways ground to ensure high accuracy

3.Spindle bore 52mm and the spindle nose conforms to ISO-C6

4. Gears in headstock precisely ground to reduce noise

5. Feeding box well sealed to eliminate leakage

6.Electric system is reliable and safe

7. Electromagnetic brake at users option

Parameters
\t
Item and Model
\t
Unit
\t
C6250
\t
Max.swing over bed
\t
mm
\t
5 0 0
\t
Max.swing over cross slide
\t
mm
\t
3 2 0
\t
Center distance
\t
mm
\t
750\\1000\\1500
\t
Bed width
\t
mm
\t
3 6 0
\t
Spindle hole
\t
mm
\t
5 2
\t
Spindle nose
\t
\t
C 6
\t
Spindle taper
\t
\t
M T 6
\t
Spindle speeds
\t
steps
\t
28--1800rpm ( 12 )
\t
Metric threads range(Number)
\t
kinds
\t
0.5--14mm ( 21 )
\t
Inch threads range(Kinds)
\t
kinds
\t
72--2.5\\inch ( 30 )
\t
Moudle threads range(Kinds)
\t
kinds
\t
0.25--7mπ ( 17 )
\t
Diametral threads range(Kinds)
\t
kinds
\t
144--5D.P ( 30 )
\t
Cross slide travel
\t
mm
\t
3 2 0
\t
Compound rest travel
\t
mm
\t
1 5 0
\t
Cross-section size of toolshank
\t
mm
\t
2 2*2 0
\t
Taper of tailstock sleeve
\t
\t
M T 5
\t
Dia.of tailstock sleeve
\t
mm
\t
6 5
\t
Travel of tailstock sleeve
\t
mm
\t
1 6 0
\t
Main motor power
\t
kw
\t
5.5
\t
Dimension
\t
mm
\t
2100*1020*1300mm
\t
\t
mm
\t
2350*1020*1300mm
\t
\t
mm
\t
2850*1020*1300mm

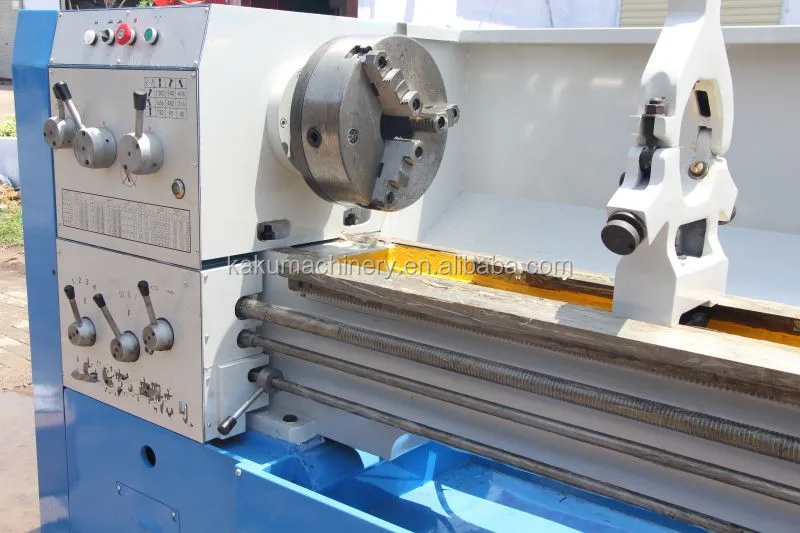

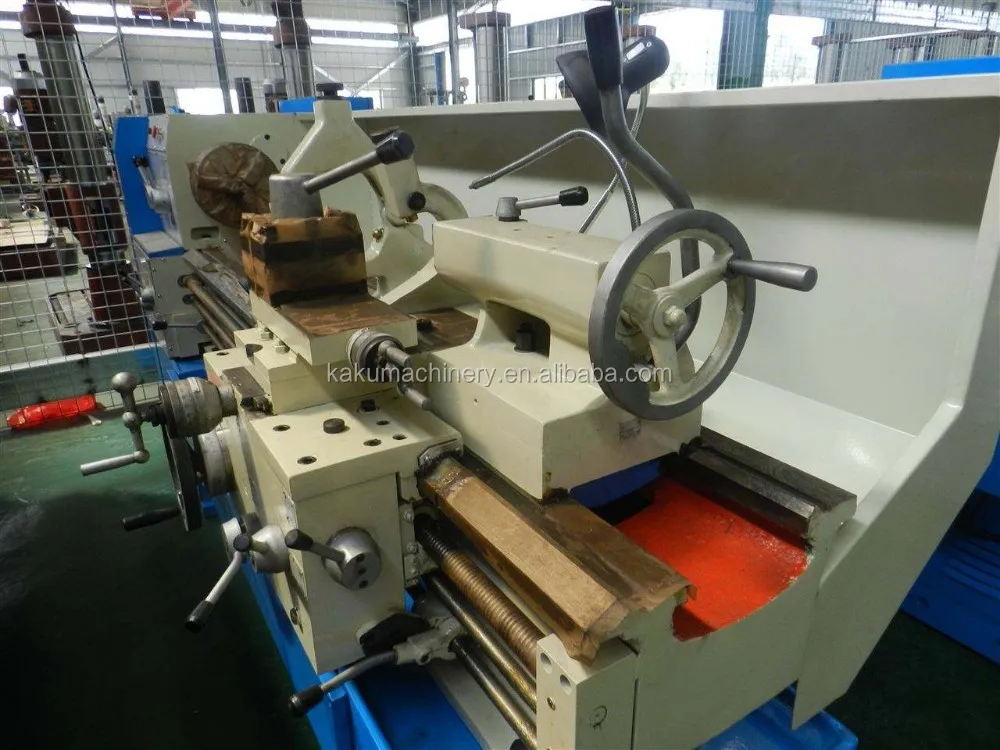

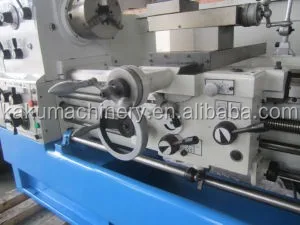

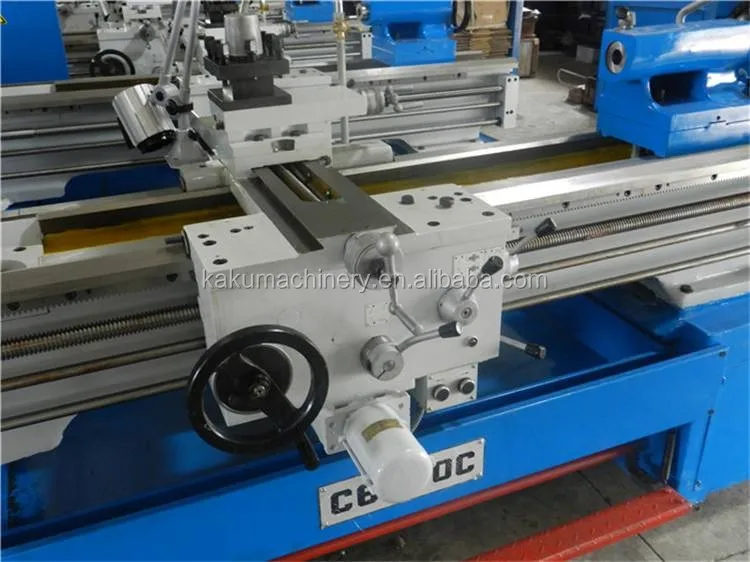

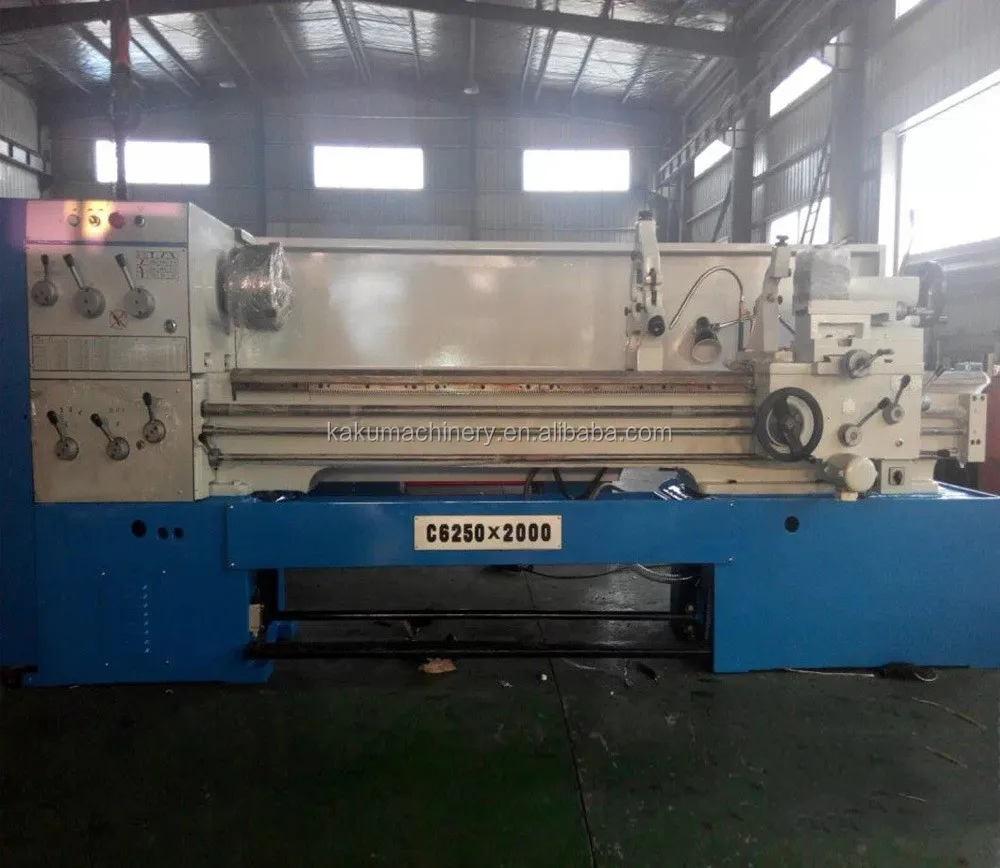

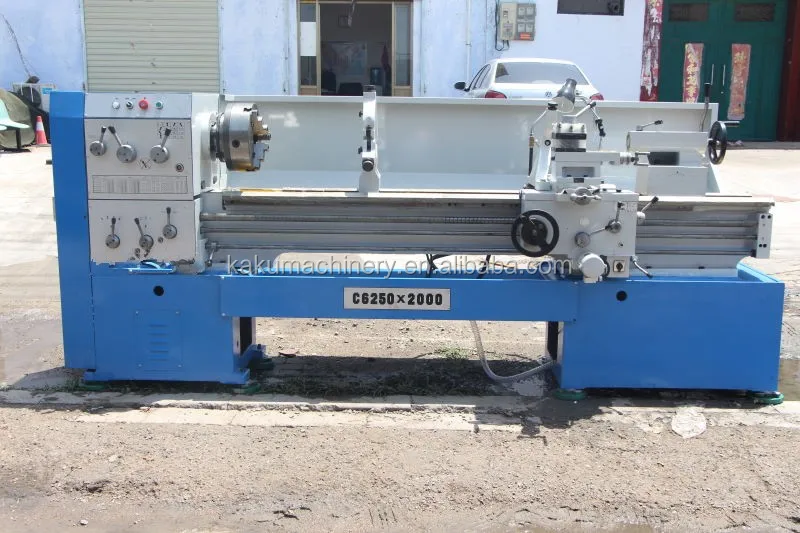

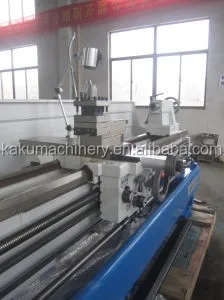

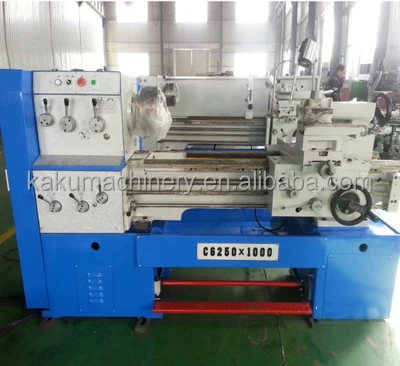

Detailed Images

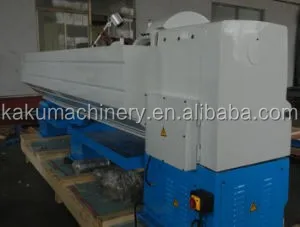

Packing & Delivery

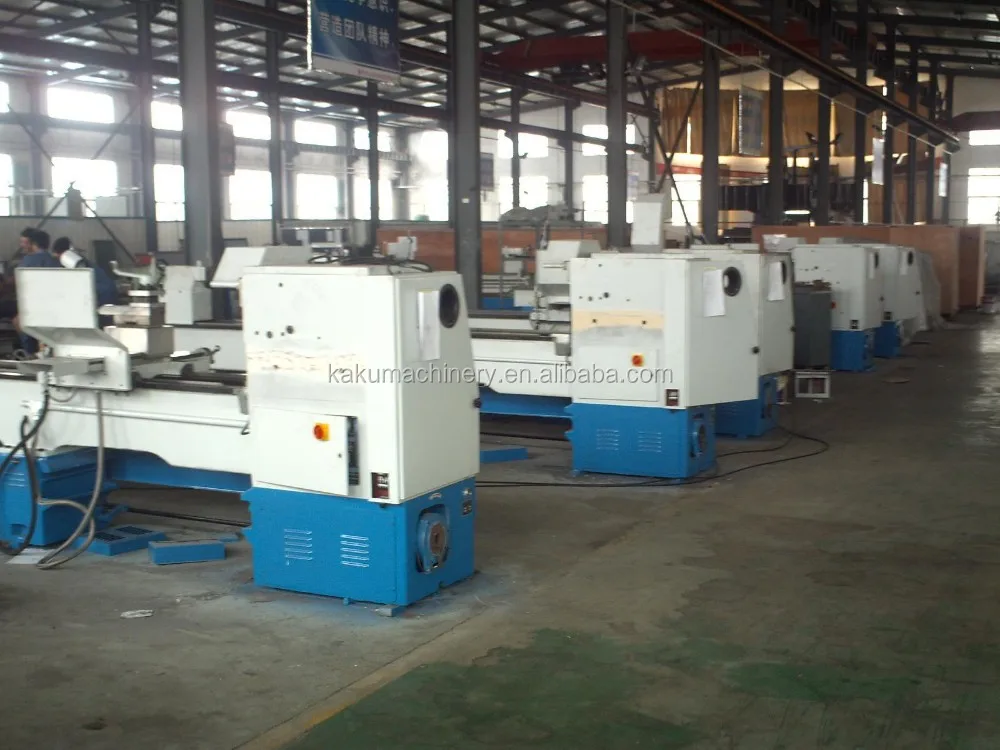

Our Company

Our company is located in the largest industrial city – Chongqing, China.

We provide decent machine tools from China to all over the world. Our main products as bench lathes, CNC lathes, milling machines, drilling & milling machines, drilling machines, grinders, band saws with a various of specifications, secure and reliable quality and convenient and efficient services.

We have our own shareholding factories, also co-operated with other factories with high quality products. We have a professional international sales team to do the export business in the Global.

Our company has 48 experienced technicians of lathes export team. High quality and high cost-effective has been our company's reputation. The company has advanced testing equipment and strict product

Our Service

1. We will add all item picture in the PI for avoiding any mistake of your order.

2. We will update every step for you once we start your order,

3. We will booking the vessel for you when it is going to be finished.

4. We will inform you that detail ship date once we get the information.

5. We will update the vessel information(ETA&ETD) for you.




If you are interested in our company's product, welcome to contact us and place an order. Thank you!
