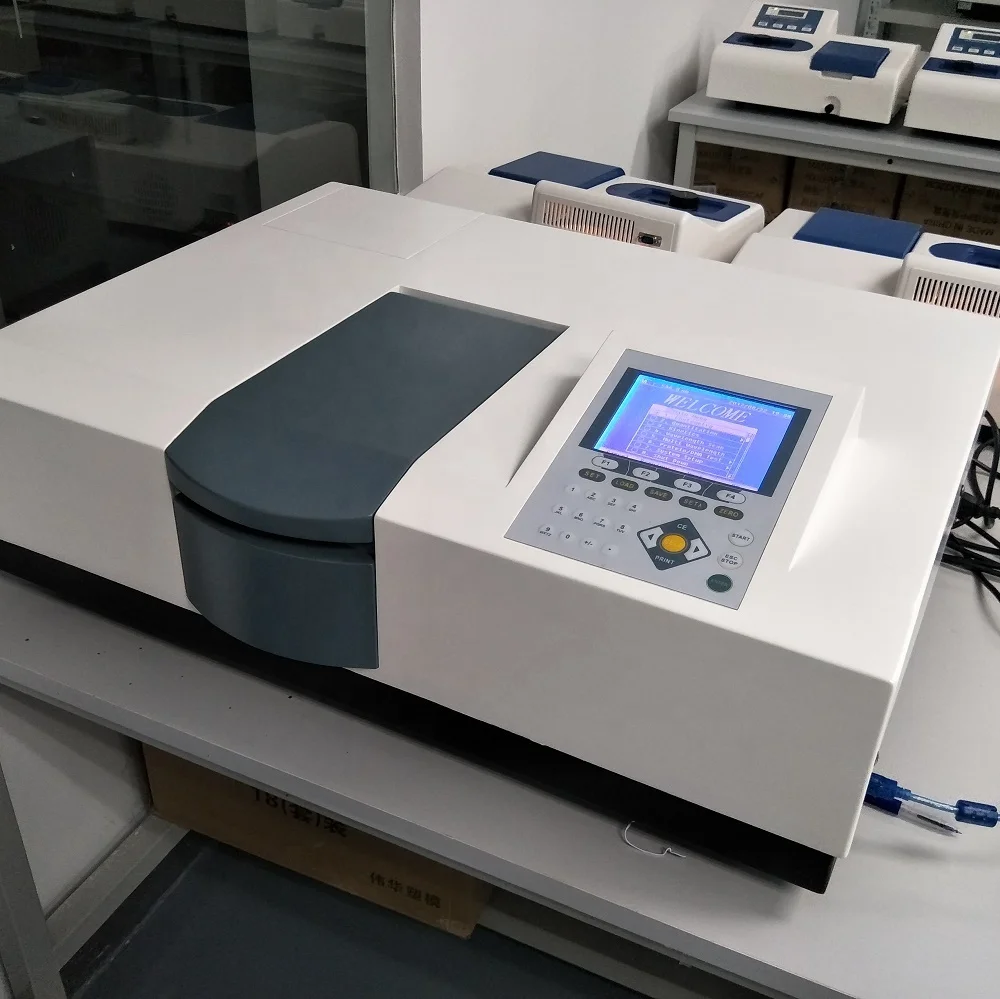

High Resolution Spectrophotometer UV1901S
High Resolution Spectrophotometer UV1901S
High Resolution Spectrophotometer UV1901S

High Resolution Spectrophotometer UV1901S

Share on (60717025876):


Price:

Quantity:


Product Overview

Description



Product Description




Details Images


Features:
1. Large 320*240 dots highlighted LCD.
2. Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA\\Protein test, multi-wavelength test, etc
3. The real double beam metering system, with advanced circuit measurement and control system, make the instrument with high reliability and low noise.
4. The USB port can be used for data transfer and storage.
5. Socket type deuterium and tungsten lamp can make lamps switching without optics debugging and easy to be replaced.
6. Large sample chamber can accommodate 5-100mm cuvettes of all kinds..
7. Extensive accessories are optional, such as auto 8-cell holder, film holder, tube rack, peltier/sipper system, 21 CFR compliant software, etc.


Specification


Model
UV1900
UV1901
UV1901S
Optical System
Double Beam, Grating 1200 lines/mm
Single Beam, Grating 1200 lines/mm
Wavelength Range
190-1100 nm
190-1100 nm
Spectral Bandwidth
2 nm
1 nm
0.5/1/2/4/5 nm
Wavelength Accuracy
±0.1nm@656.1nm, ±0.3nm@all


Wavelength Repeatability
0.1nm


Photometric Accuracy
±0.3%T(0~100%T)


Photometric Repeatability
0.1%T(0~100%T)


Photometric Range
0-200%T, -0.3~3A, 0-9999C
0-200%T, -0.3~3A, 0-9999C
Stray light
0.05%T@220nm,360nm


Stability
±0.0003A/h @500 nm


Baseline Flatness
±0.0002A
±0.001A
Noise
0.0005A@500nm
Work Mode
T, A, C, E


Scanning Speed
Hi, Med, Low (Max. 3000nm/min)
Wavelength Setting
Auto


Display
320*240 LCD


Light Source
Imported Deuterium &Tungsten lamp
Deuterium &Tungsten lamp

Detector
Imported Silicon Photodiode


Cuvette Holder
10mm single hole cell holder


Output
USB port&Parallel port(Printer)


Power
AC 220V/50Hz; AC 110V/60Hz


 Shipping Size
810*660*390mm

880*690*520mm
Gross Weight
27 kg

45 kg
Standard Accessaries
10mm glass cuvette x 4, 10mm quartz cuvette x 2, Power cord, User's Manual , PC software




Button Panel

10mm single hole cell holder

RS232,and your company name can be shown on the nameplate


User's Manual
PC Software is optional,If buy software,we can send computer wire.
10mm glass cuvette x 4, 10mm quartz cuvette x 2 (UV)
Thermal Printer is optional


Product packaging






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




Certifications


CE
CE
ISO9001


Company Profile




Shanghai Yoke Instrument Co.,Ltd.
Yoke Instrument was founded in 2007, we are a specialized manufacturer of laboratory analytical instruments based in Shanghai.

Main products: Spectrophotometer, GC. pH/Conductivity/DO Meter, lon Meter, Turbidity Meter, Colorimeter, COD, Moisture Analyzer, Balance and biological microscope, etc.

Using advanced production equipment from Japan, our products are manufactured to CE standards. And we inspect 100 percent of products before shipping. OEM/ODM orders are welcomed. and our senior R&D staff will meet your requests quickly, we are constantly striving to innovate- a thirst which has aided us in garnering nine patents in China

With reliable quality, favorable price and sincere service, Yoke has successfully established business cooperation with customers from more than 80 countries and have good reputation. We will further promote ourselves and enhance customer satisfaction to create a win-win situation between Yoke and customers.




Laboratory Room
Manufacturing Shop
Inspection Area


Exhibition
