High Grade No.45 Forged Steel Clip Lock Standing Seam Metal Roof Sheet Making Roll Forming Machine
Boltless Roof Machine
Technical Parameters
Size
8200*1400*1500mm
Weight
6500KGS
Voltage
380V/50HZ/3PH
Motor Power
5.5KW
Hydraulic Power
2.2KW
Forming Steps
16Steps
Working Speed
8-12m/min
Height of Roofing
40mm
Effective Width
729mm
Feeding Material Width
914mm
Thickness
0.3-0.6mm
Thickness for common use and test
0.4mm,0.5mm
Tolerance
±2mm

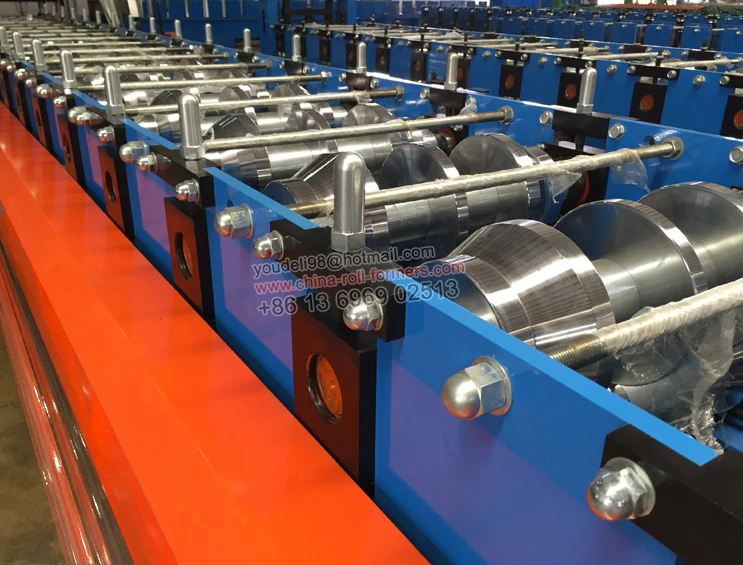

Roller material
High grade 45# forged steel, Plated hard chrome
on the surface of rollers, polished all the rollers;
Material of principal axis
High grade 45# forged steel
Main Accessories
No
Items
Quantity
Remarks
1
Manual/Hydraulic Uncoiler
1set
Up to customer
2
Main forming machine
Pre-cutting device
1set
Up to customer
Feeding device
1set
Hydraulic system
1set
Roll forming system
1set

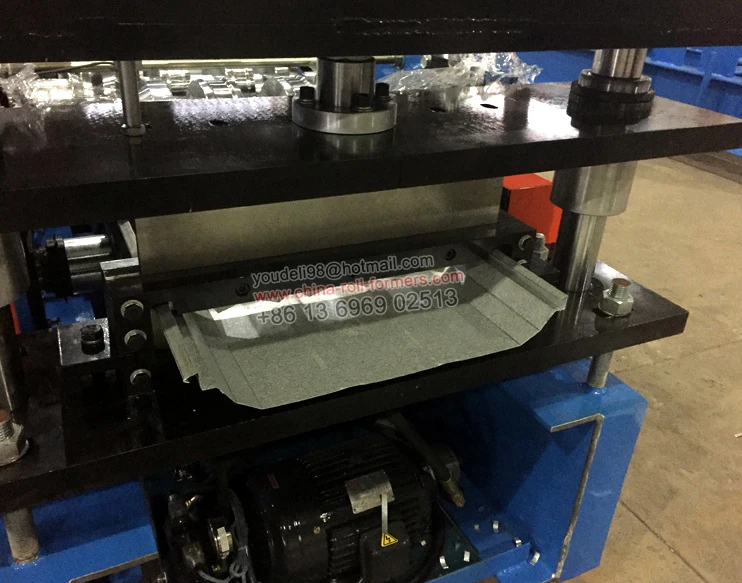

Post cutting device
1set
Protective cover
1set
Up to customer
3
PLC control system with touch screen
1set
4
Run out table
4pcs
Up to customer

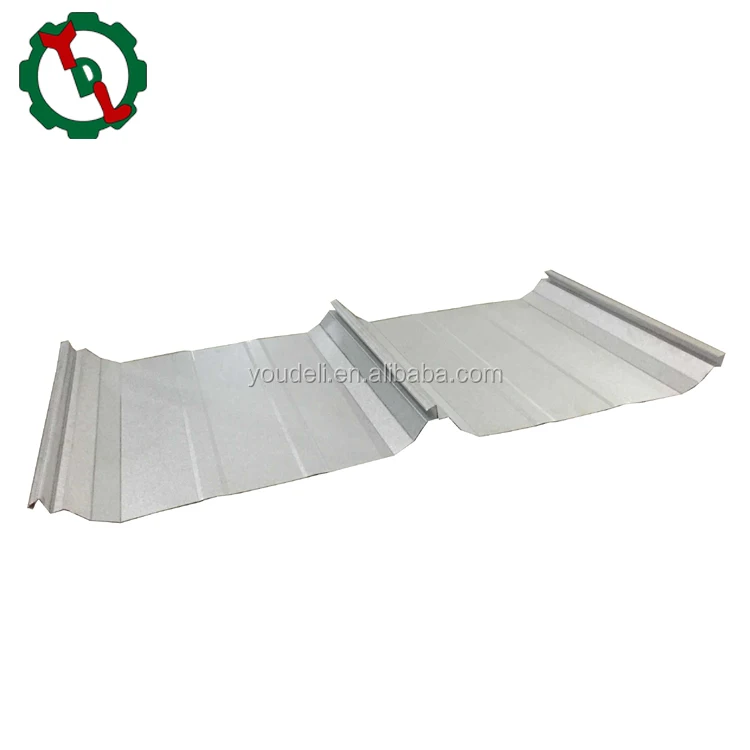

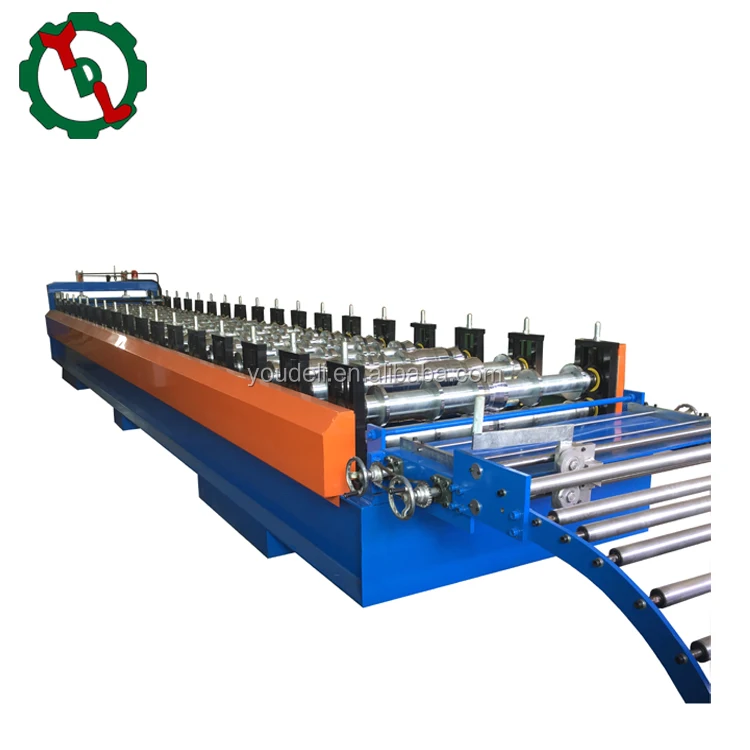

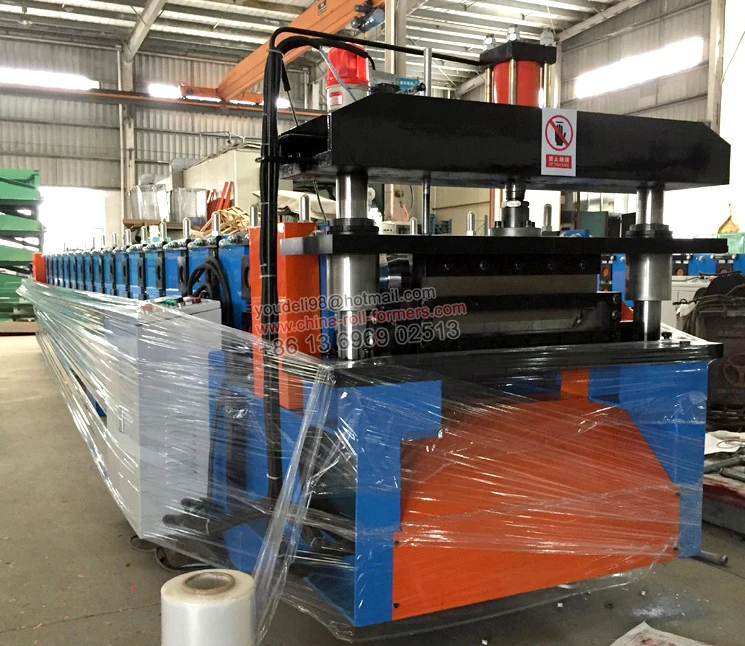

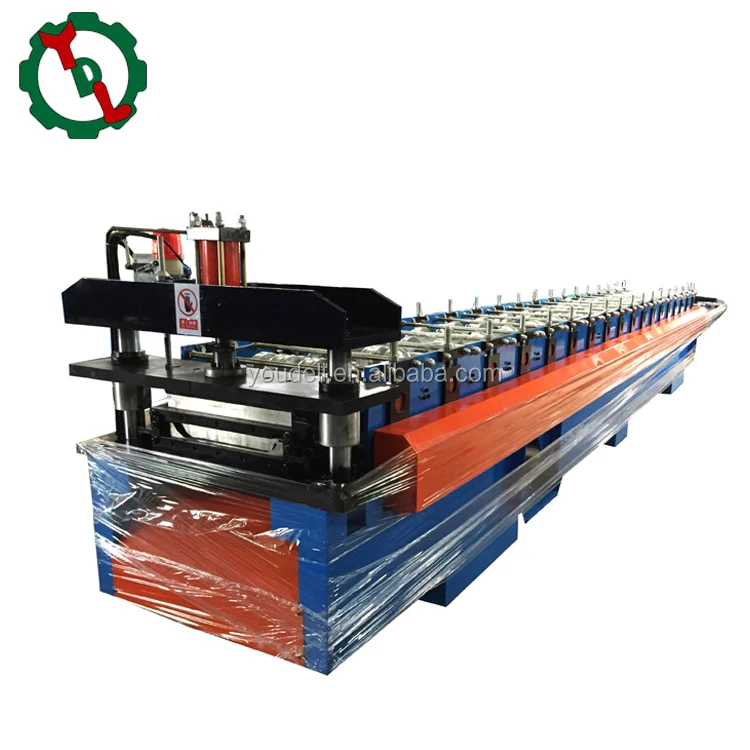

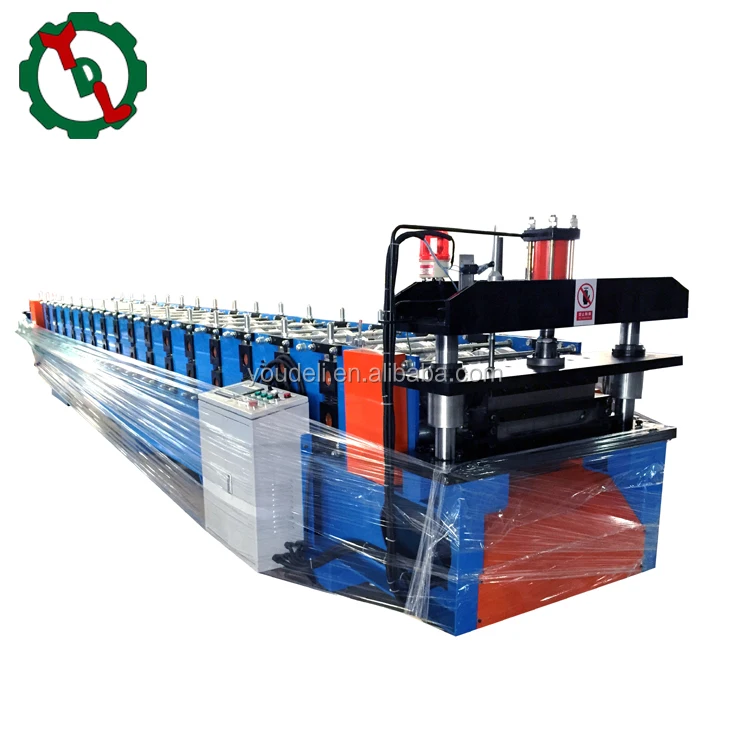

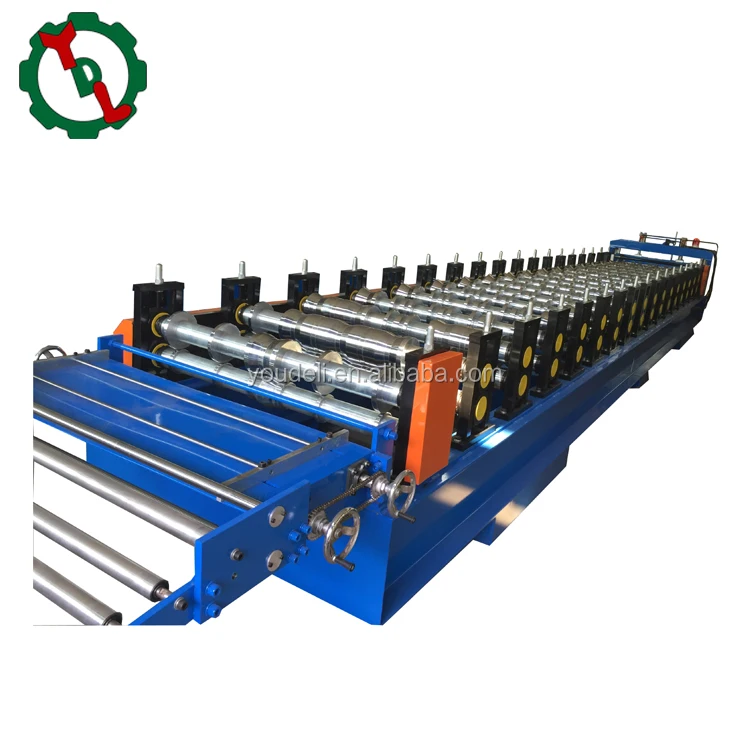

Product Show
FAQ
1. Are you the trade company or factory?
We are professional manufacturer for making cold metal roll forming machines.
2. How to visit your factory?
We can pick up you at the Xiamen International Airport or Xiamen North Railway Station
to our factory.
3. Do you provide customized machines?
Sure, we can design and make the machines as per your requests. We are the professional
designer and manufacturer for cold metal roll forming machines.
4. Does one machine can only produce one size?
Not exactly, it depends on the machine.
5. Is there quality control when manufacturing the machines?
Yes, we have responsible teams who will be in charge of the quality control from laying off the raw material, processing the machine frame, rollers, shafts and the other parts, making heat treatment the rollers and shafts, installing, adjusting, testing and packaging, etc.
6. Why your price is higher than others?
Because we insist on that every company must attach importance to the quality at first
place, we must confirm to do well every step of processing the machines, to get better quality for the machines, and supply good services for our customers.
7. What can you do if the machine broken?
The warranty period of our machines is one year.
If there are any problem with any parts within guarantee time, we will courier the new ones for replacing within one week. If after the warranty period, we can solve the problems by negotiation each other as per the actual situation of machines. Anyway we can promise to provide our technology supports for the whole life of our machines.
8. Do you have after technology support?
Yes, we are glad to give suggestions and also have skilled technicians available to service
machinery oversea if you needed.
9. Do you have oversea engineers?
Yes, we can supply not only good skilled technicians to oversea, and also provide
technology training.
10. Can you response for the transport of machines?
Yes, please check us your destination port or address, we have good services of
