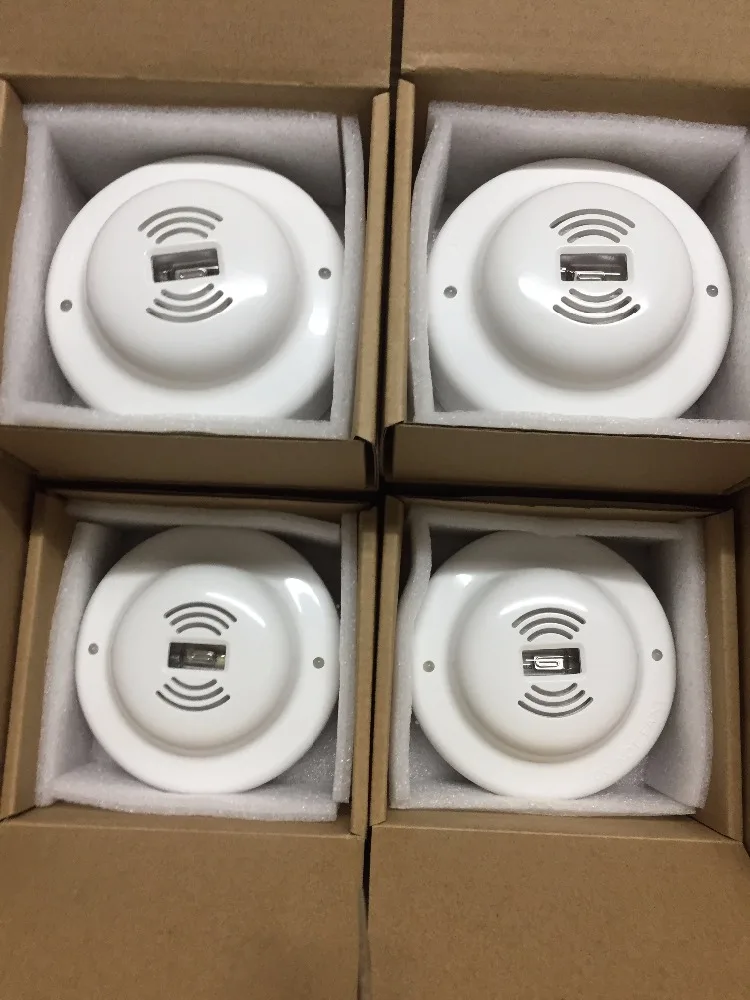

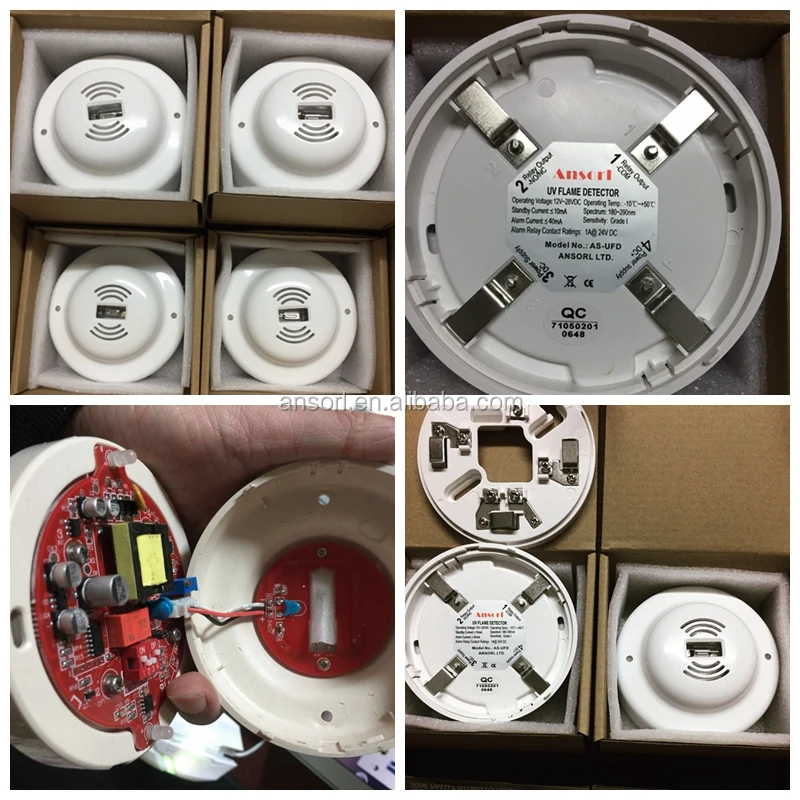

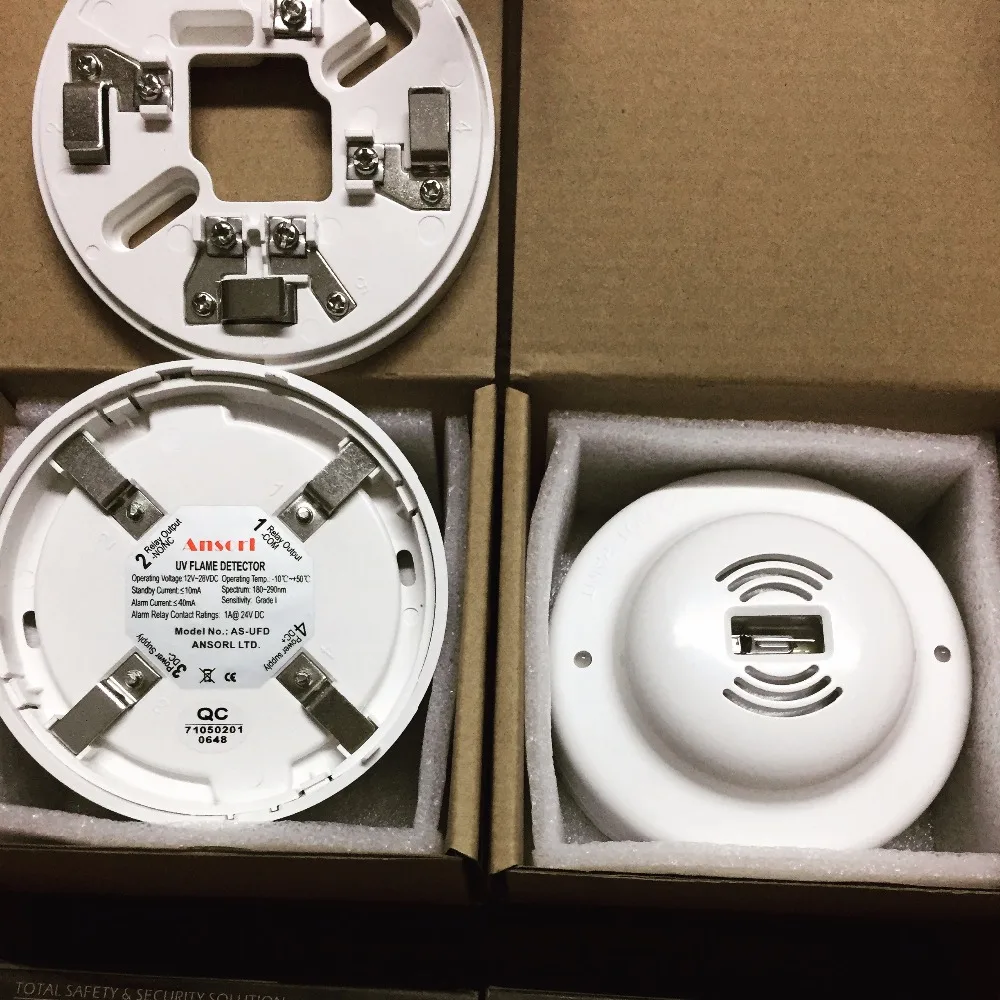

Wired UV IR Flame Detector For Fire Alarm System

          Wired  UV IR Flame Detector For Fire Alarm System

Product Introduce:

The device is an Ultraviolet-only flame detector designed to detect fires and provide alarm outputs directly from the detector while maintaining false alarm immunity. It detects in the ultraviolet (UV) spectral range for optimized speed of response.

It is fast and capable to detecting the ultraviolet (UV) rays emitted by a burning substance and is used in high hazard applications such as petrochemical plants, munitions factories and other areas where flammable or explosive liquids or solids are handled or stored.

The flame sensor adopts an ultraviolet photosensitive tube, with qualities of highly sensitive, reliable, dust-resistant, corrosion proof and moisture-resistant, therefore is not sensitive in sunlight, dust, oil, tolerance of fume, and humidity. Set in a standard calibration to detect a flames at a distance of 25 meters, which flame created by2Kgethanol in a Container of Base 33cmX33cm, Height5cm.

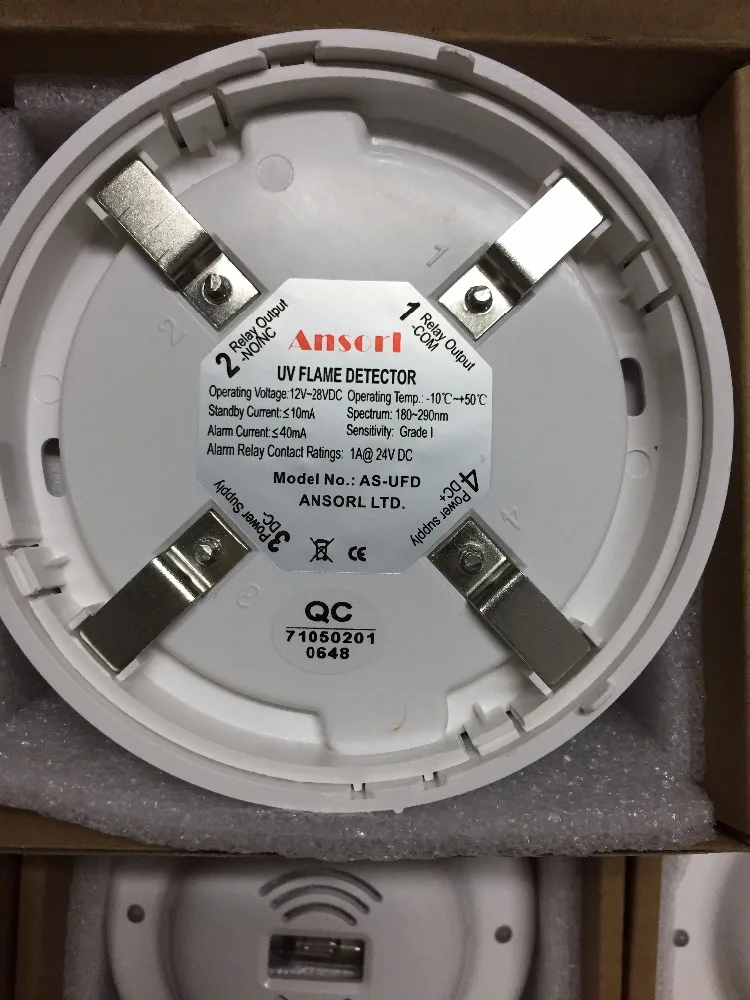

Product Features:

OperatingVoltageRange:12 to 30 VDC Volts
Standby Current:≤10 mA @ 24 VDC
Alarm Current:≤30 mA @ 24 VDC
Spectrum:180~290nm
Detection Angle:110 degree
Detection Sensitivity:Grade I, 25m@flame
Relay Contact Load:1A@DC24V
Normal Status:LED blinking in 5 seconds interval
Alarm Status:LED lit steady
OperatingHumidityRange:10% to 93% Relative Humidity, Non-condensing
OperatingTemperatureRange:-10°Cto50°C(14°Fto122°F)
Height:45 mm installed in Base
Diameter:103 mm
Weight:153g

1. The Professional OEM & ODM Service.

2. Prompt Response.
3. Support Factory Quality Inspection.
4. Standard Quality Control System.
5. Sample&Customized Order Can Be Supported.
6. Independant R&D dept, Designing Dept,to Service you.
7. Whole Set Of Technical And Solution Supports .
8. Manufacturer Is With Offer Better Price&Service.
9. Direct Control On Materials, Production Status, Quality Checking.
10. Reliable After-sales Service, With One Year Waranty.

ANSORL LTD is a building automatic control system and fire alarm system solution provider. Over the past years, We have always been dedicated to serving the diverse needs of our customers. Although we started out as a tiny engineering and manufacturing company in China and have grown into a global player in the international safety market, Ansorl continues to work hard to earn your trust and retain your confidence in our product line.

We focuse on providing advanced buidling automatic control system and fire alarm / fire fighting system. Ansorl works harder to tailor our solutions to meet your needs.

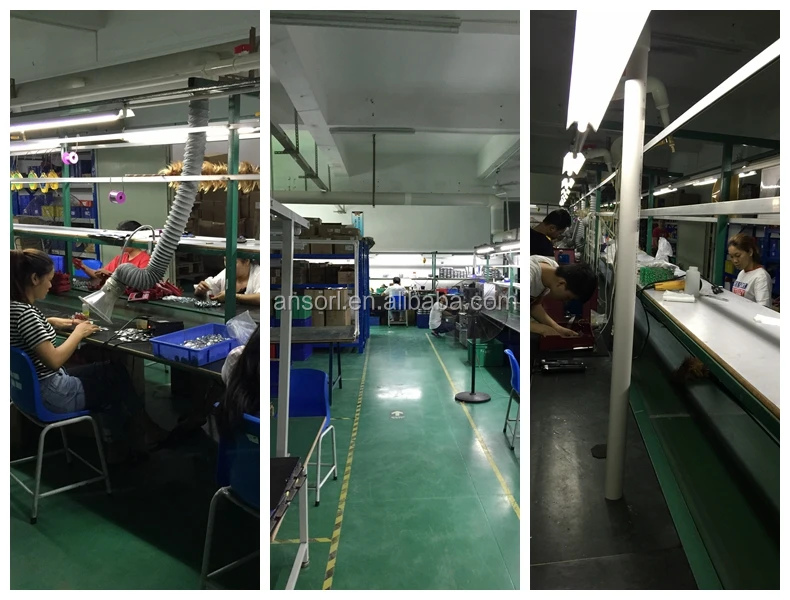

Ansorl is an ISO 9001:2000 certified manufacturer with number of testing facilities. We are also planning to expand our manufacturing and testing facilities in China to ensure that our products and manufacturing practices continue to meet the highest standards.

We invite you to get to know Ansorl better. Experience the best fire alam technology and solution. We are convinced that you will find Ansorl superior to any other detector company in China. You'll see it in our facilities, in our people, and in the products that Ansorl makes. It's our uncommon commitment to excellence and quality, and to the automation and productivity of our customers.
