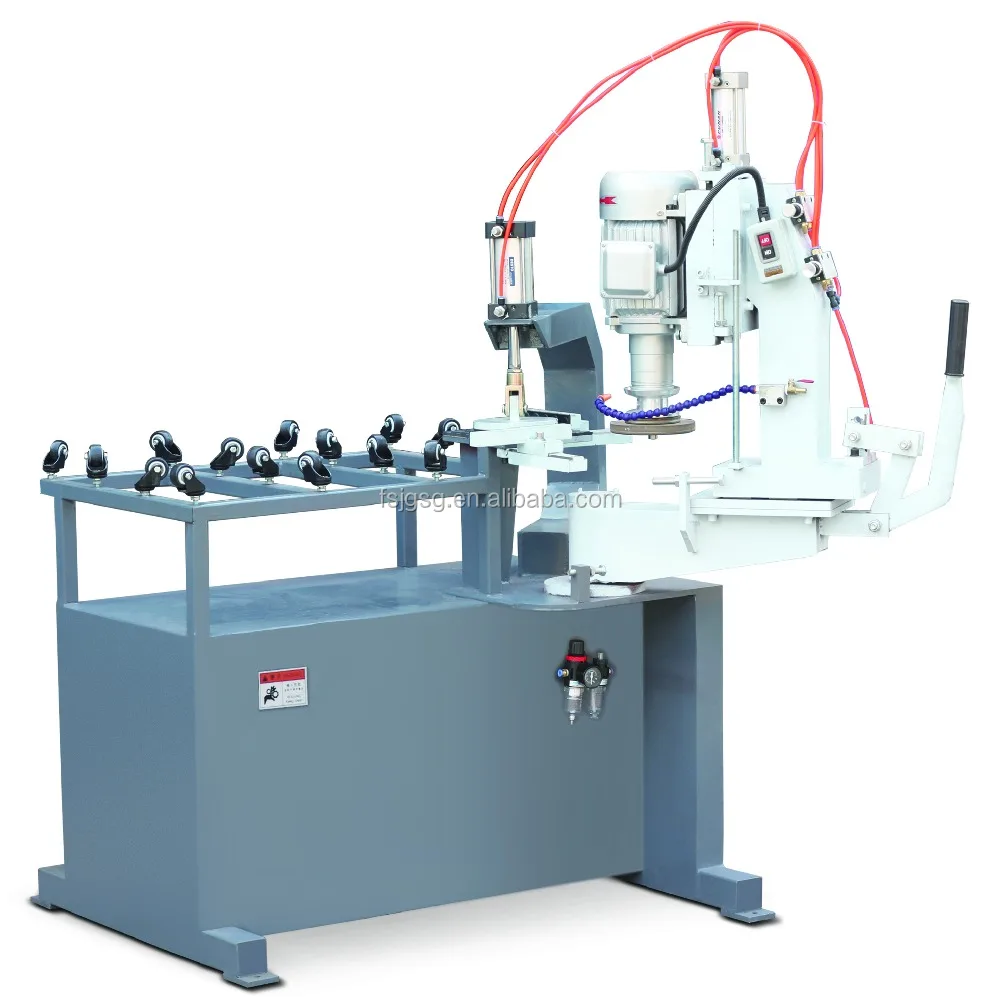

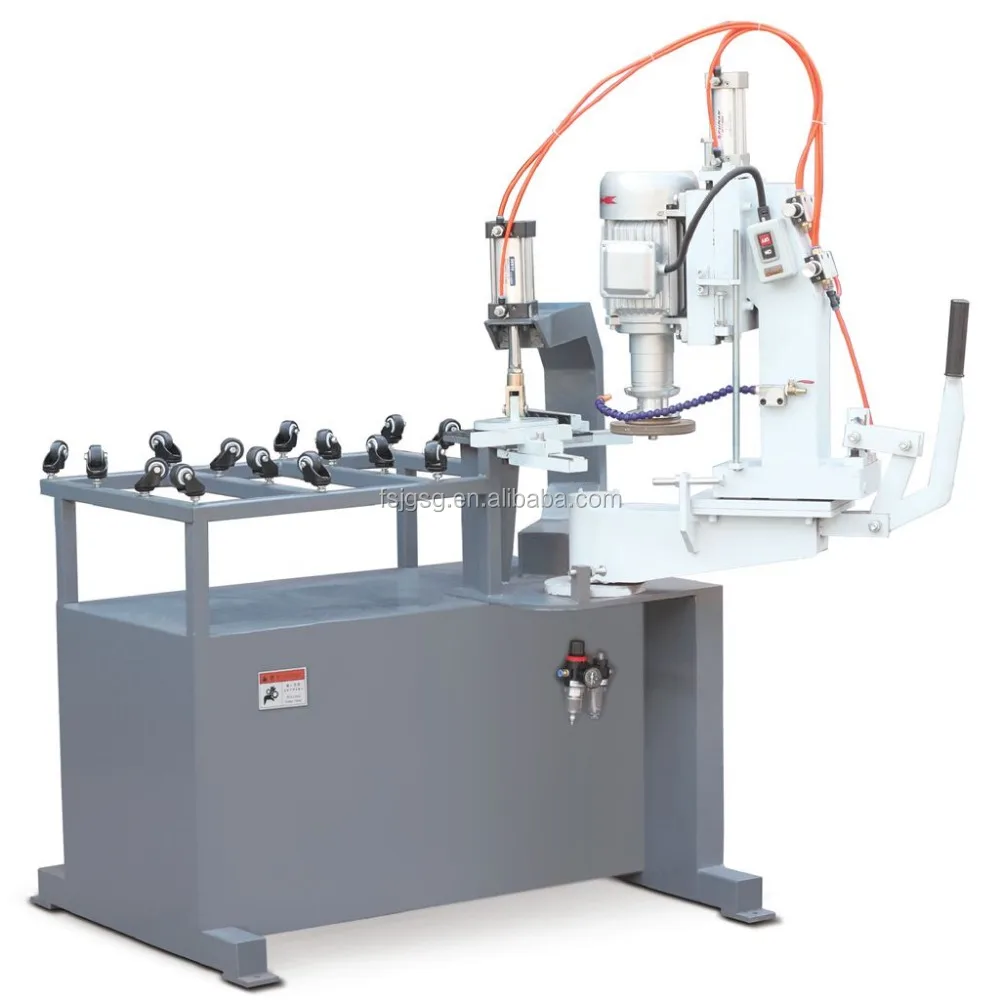

FoShan Glass Corner Grinding Machine /glass chamfer machine/glass machine

Product Overview

Description

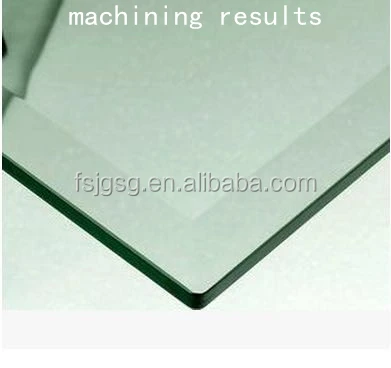

Products:This machine can clamp flat glass by pneumatic  pressure or suction plate and can change right angle of glass into shapes of round edge,square edge and duckbilled edge.Grinding heads can be lifted by pneumatic drive,and two grinding wheels can be simultaneously equipped to perform coarse grinding,fine grinding and polishing.

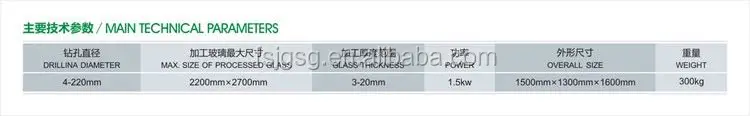

MAIN TECHNICAL PARAMETERS

model:                                      glass machine JGSH1350

Drillina diameter:                    4-220mm

Max.size of processed glass:   2200mm*2700mm

Glass thickness:                      3-20mm

Power:                                     1.5kw

Overall size:                             1500*1300*1600mm

Weight:                                     300kg
