Autotex Replacement PET Film Rolls Polyester Film V150
- Category: >>>
- Supplier: Mianyang Prochema Commercial Co. Ltd.
Share on (60717156014):
Product Overview
Description
Product Description
Autotex Replacement PET Film Rolls Polyeter Film V150
150 micron thickness 2H hard coated

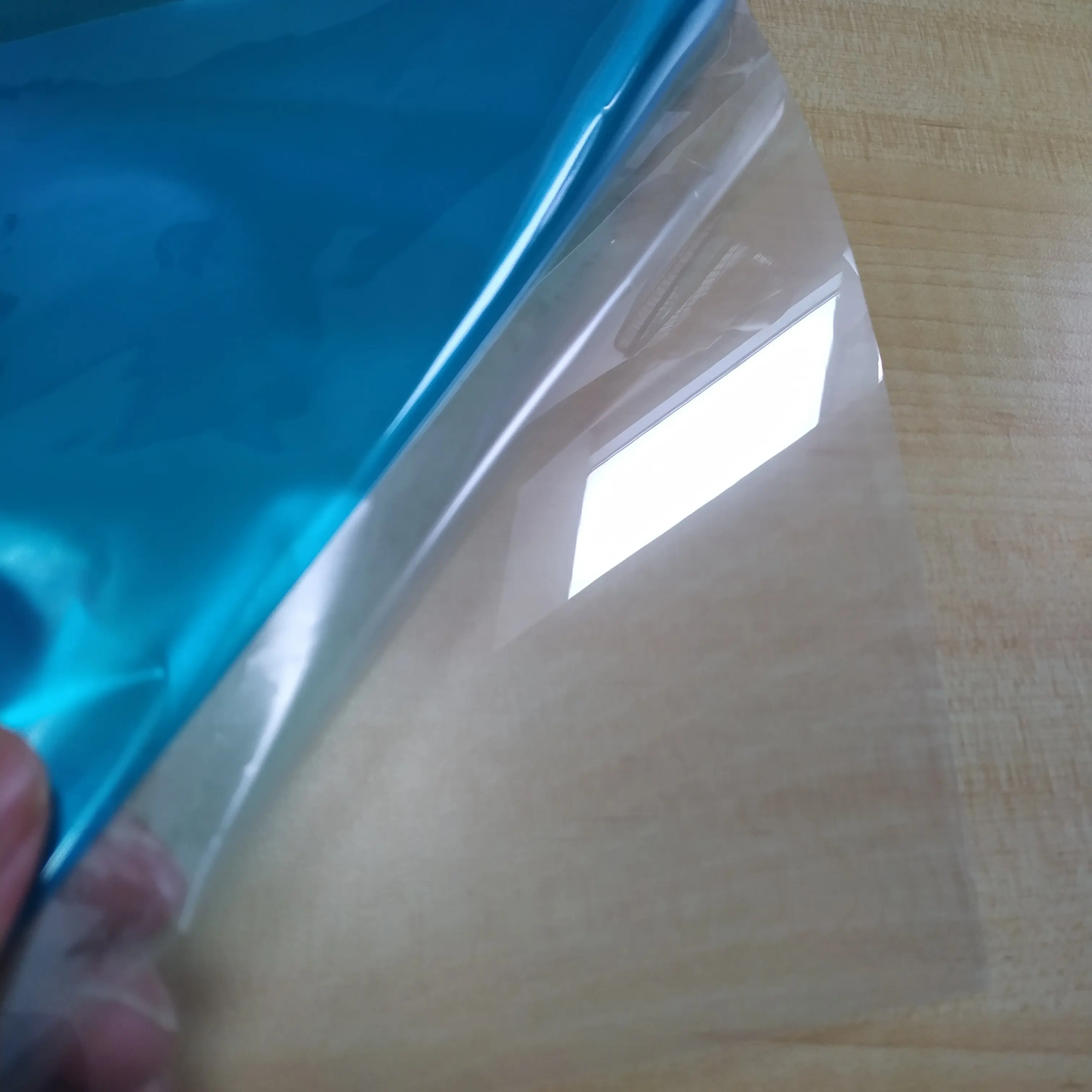

One side fine velvet, one side (printing side) glossy. Printing side covered with blue protective film.
Excellent rub resistance, scratch resistance and chemical testing resistance.
Long life-span and buckling resistance on the membrane switch overlays, membrane panel, and household applications panel, with good heat stability, easy convex and easy printing on the transparent window.
When printing several kinds color, it can solve topping problem.
When printing several kinds color, it can solve topping problem.
The Material printing surface has been dealt with special chemical treatment, suitable for solvent ink and UV ink.
Detailed Images
Parameter
Type | Property | Test Method | Typical Value/ Units |
Optical | Haze (Gardner) | ASTM -1003 | Gloss: 50 % |
60° Gloss (Gloss film) | ASTM D-2457 | 95 % | |
Yellowness Index | ASTM E 313 | < 2.0 | |
Transmission(Tp):Gloss | ASTM D1003 | 90~91% | |
Chemical | Immersion Test | MEK, 24hrs | Satisfactory |
Spot Test | ASTM 1308 | Satisfactory | |
Wetting Index- Hard side | ASTM D-2578 | 40 dynes/cm | |
Wetting Index- Clear side | ASTM D-2578 | 45 dynes/cm | |
Mechanical1 | Pencil Hardness | See note (2) | 2H~3H @ 750g |
Taber Abrader | See note (3) | <4 % | |
Cross Hatch Adhesion | ASTM D-3359 | 5B | |
Switch Life | See note (4) | >2 millions | |
Thermal | Suggested Usage Temp. | Min | -40 °C |
Suggested Usage Temp. | Max (see note 5) | 105 °C | |
Dimensional Stability- MD | 30 min @ 120°C | 0.34 % | |
Dimensional Stability- TD | 30 min @ 120°C | 0.24 % | |
Electrical | Volume Resistivity | ASTM D257 | 1015 ohm/m |
Surface Resistivity | ASTM D257 | 1013 ohm/sq | |
Dielectric Strength | ASTMD149 | 125 kV/mm |
Remark:
1) MD is Machine direction, TD is Transverse direction.
2) All the performance value can't be understand as guarantee value, and just suitable for film, not for the relevant Mid-product or End-product.
3) We will update the data if there is new technology and knowledge.
Main advantages:
1) Excellent performances of friction resistance, scratch resistance and chemical resistance.
2) Long lifespan and bending resistance
3) Good thermostability, easy to print onto the transparent glass, free of overdying while processed with multicolors.
4) With special chemical treatment of printing surface, it owns strong adhesion.
5) Roast in 150℃ for 20 minutes.
Applications

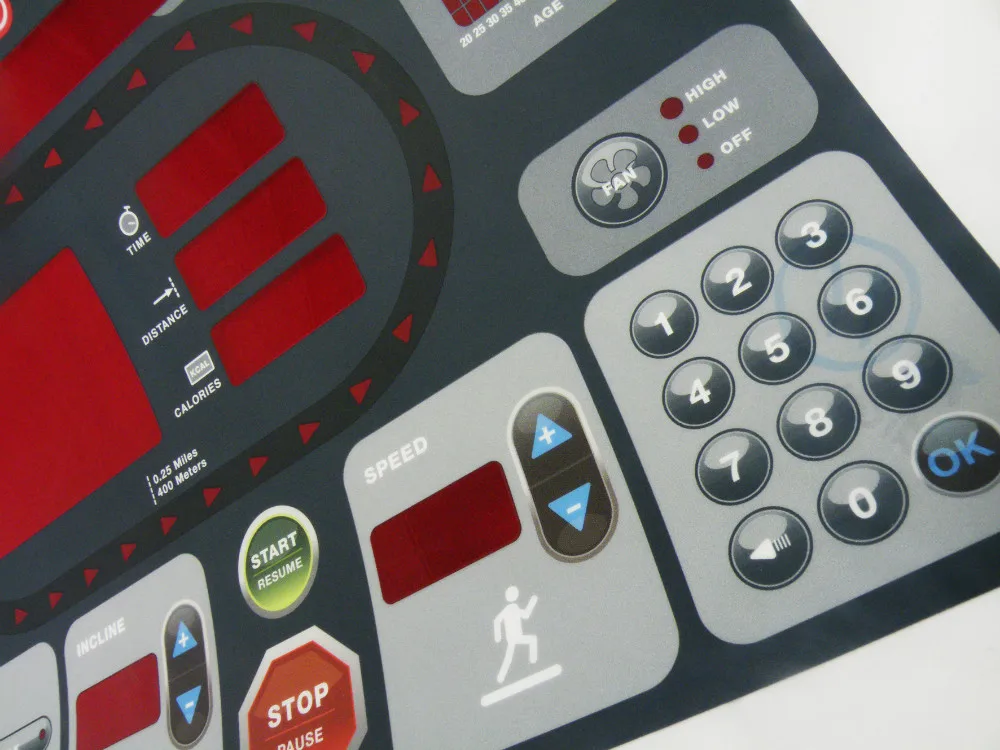

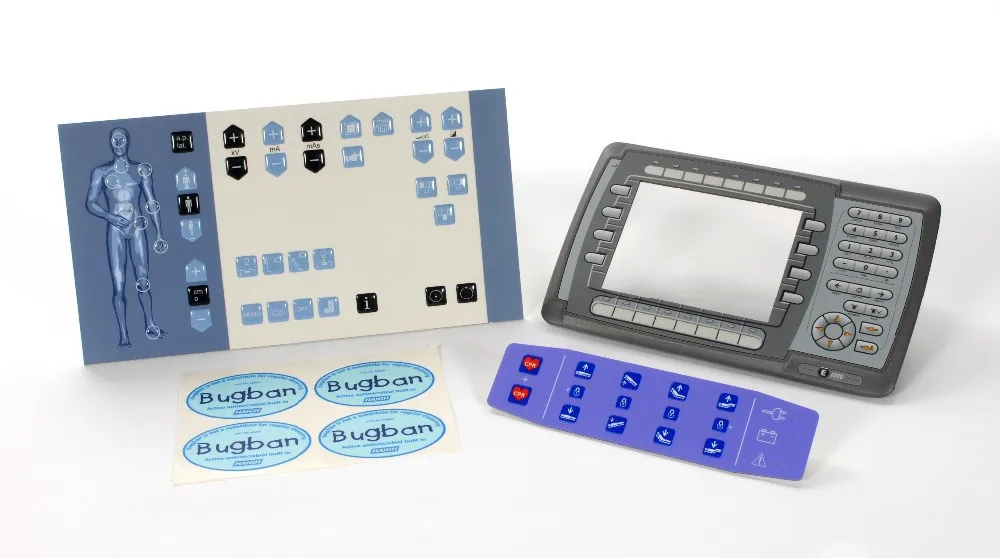

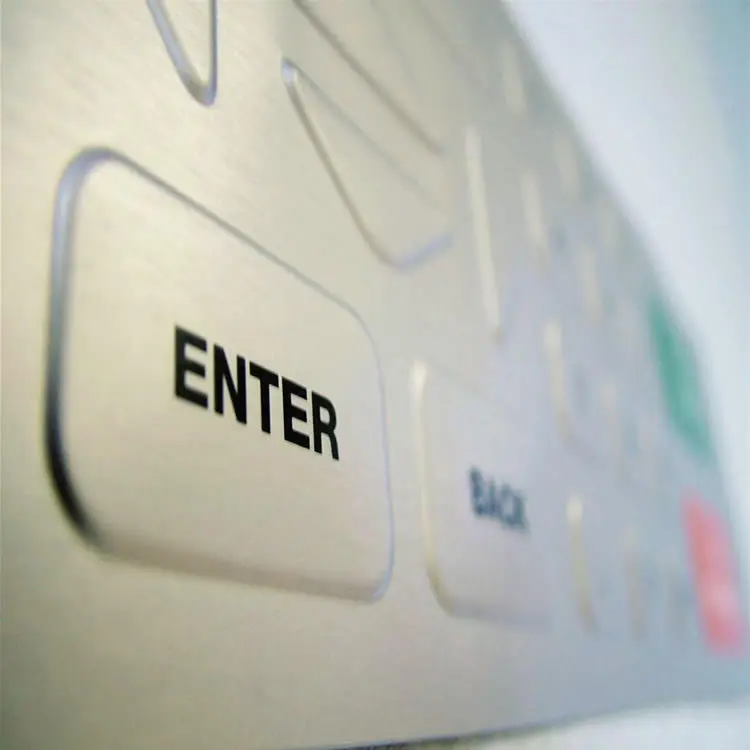

Membrane Switches
This film has advantage for both IMD and IML.
Excellent adhesion to printing inks.
Frosted surface with 2H hard coated.
Packing & Delivery

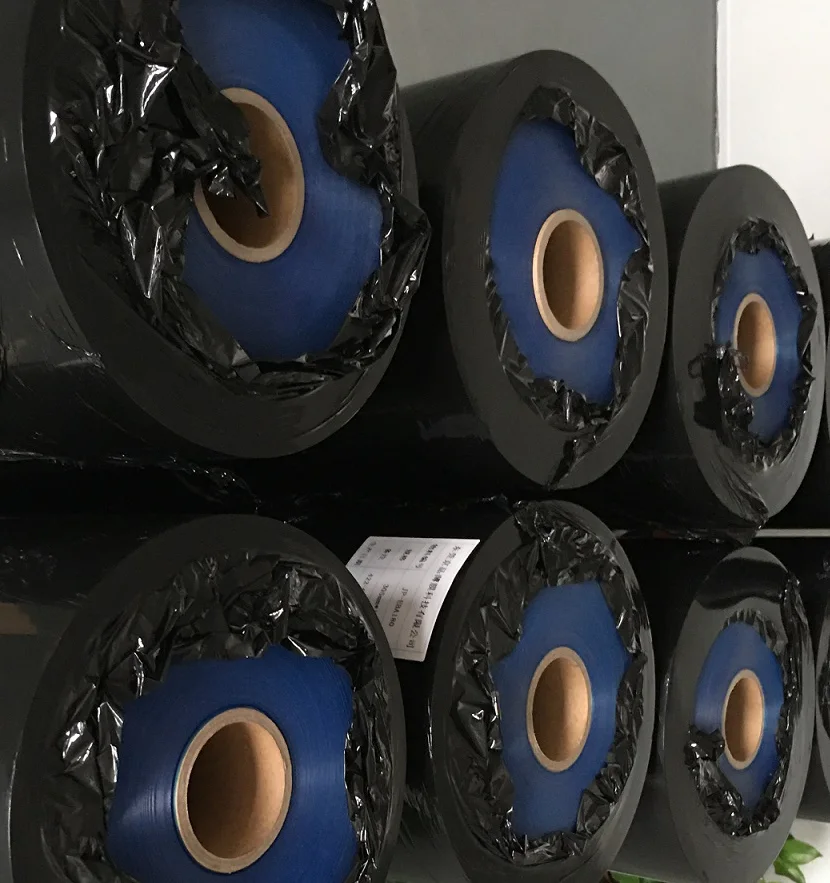

Packing details:
Roll size 610/1220mm×100m /200m,
Thickness | Roll size | Net weight |
150 micron | 610/1220mm* 200m | 0.21kg/sqm |
200 micron | 610/1220mm * 200m | 0.28kg/sqm |
Fixation with packing belt.
Roll in strong paper carton.
Shipping details:
We would send our products within 7 days after receiving FULL PAYMENT.
Our Company
PROCHEMA Competitive Advantages:
1) More than 10 years experiences on FILM manufacturing and exporting.
2) Top quality FILM with ISO, SGS certificate, exporting to more 30 countries in the world.
3) Full range of FILM supply, offering one-stop purchase, offering personalized and dedicated services.
FAQ
What is the advantage for your frosted PET Film?
--- Perfect replacement of Autotex PET Film .
Do you have any certificates?
--- We are TUV Audit Manufacturer and 9 years Alibaba Golden Supplier.
Alibaba Trade Assurance Supplier.
SGS (RoHS) certificated.
How can we get the samples?
--- We A4 size free sample, 5 sheets. Courier freight collect.
What the detail trade term please?
--- The quotation is based on FOB Shenzhen
Payment : T/T in advance, Western Union, Money Gram, Paypal, L/C at sight, Alibaba Escrow, etc.
Thanks for your interest in our material and service.
To get quick quotation and response, please kindly mention:
1) Your application
2) Specification
3) Quantity
4) Your company information
Looking forward to hearing from you
Thank you in advance!
