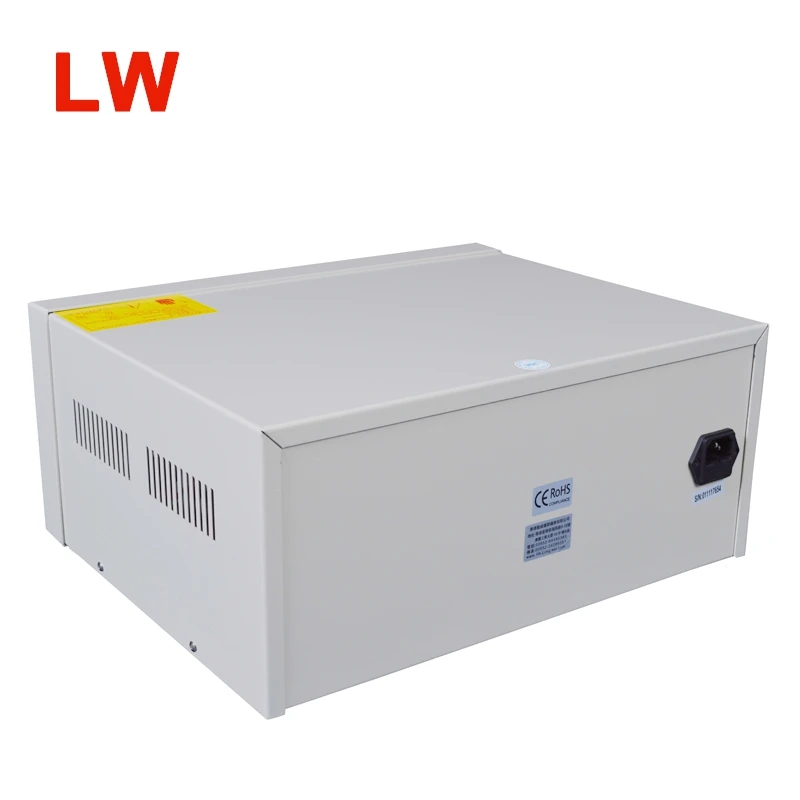

AC Hipot tester 5KV/100mA/AC DC withstand voltage tester

Product Overview

Description

LW2672C  AC /DC withstand voltage tester 5KV/100mA

Features:

High voltage, large current, high accuracy.

Leakage current, testing time, continuous arbitrarily, well-adapted.

Synchronized display measuring value( time, voltage and current).

Can choose manual or remote control test

High voltage breakdown protection, sound and light alarm, safe and reliable

Easy operation, suitable for use in production line

DC output can test small capacitance, high-voltage silicon stack, reverse voltage of transistors

Specifications

Parameter	Name	AC/DC withstand voltage tester
	Model	LW2672C
Test voltage		AC/DC:0~5(KV)
Voltage accuracy		≤±5%
Leakage current range		AC:0~2mA / 0~20(mA) / 0~100mA DC:0~2mA / 0~20(mA)
leakage current error		≤±5%
Output waveform		50Hz sine wave
Time control		1s~99s / Continuous setting and manual
Transformer capacity		750VA
Display mode		Digital display
Test discrimination		Pass/failed, failed visual alarm
Work Environmental		Relative humidity≤ 90% RH  ambient temperature:0 ~ 40 ℃
Power		Static power<30VA
Weight		About 20kg
Dimension W×H×D)		375mm×190mm×280mm
