Paint color mixing machine auto gyro Double barrel barrel mixer

Product Overview

Description





Product features

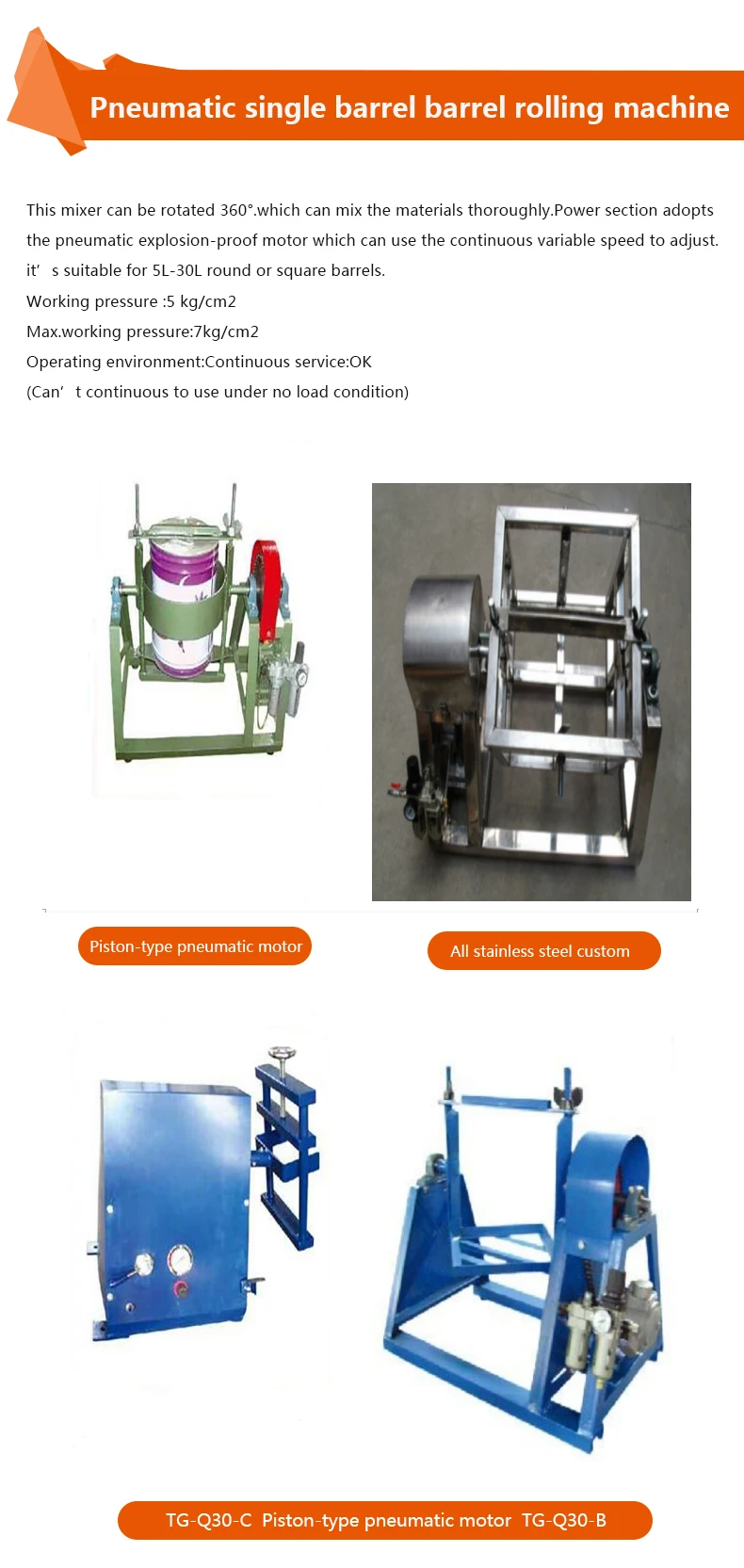

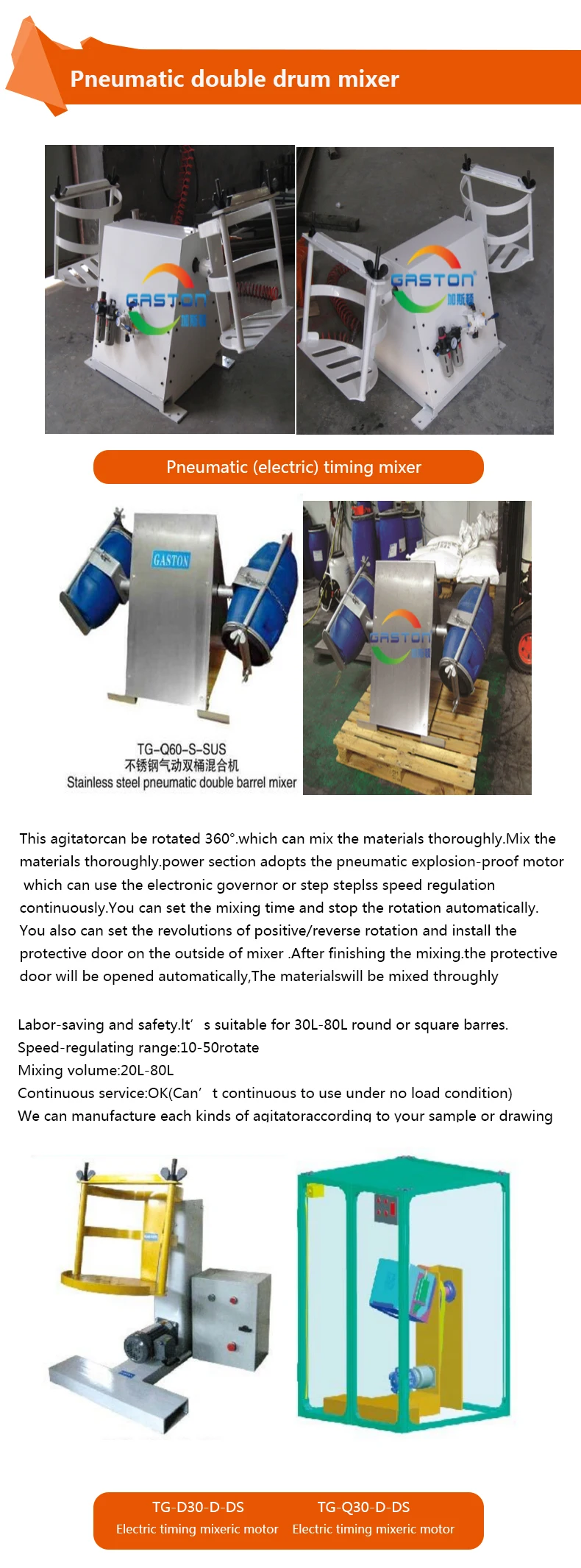

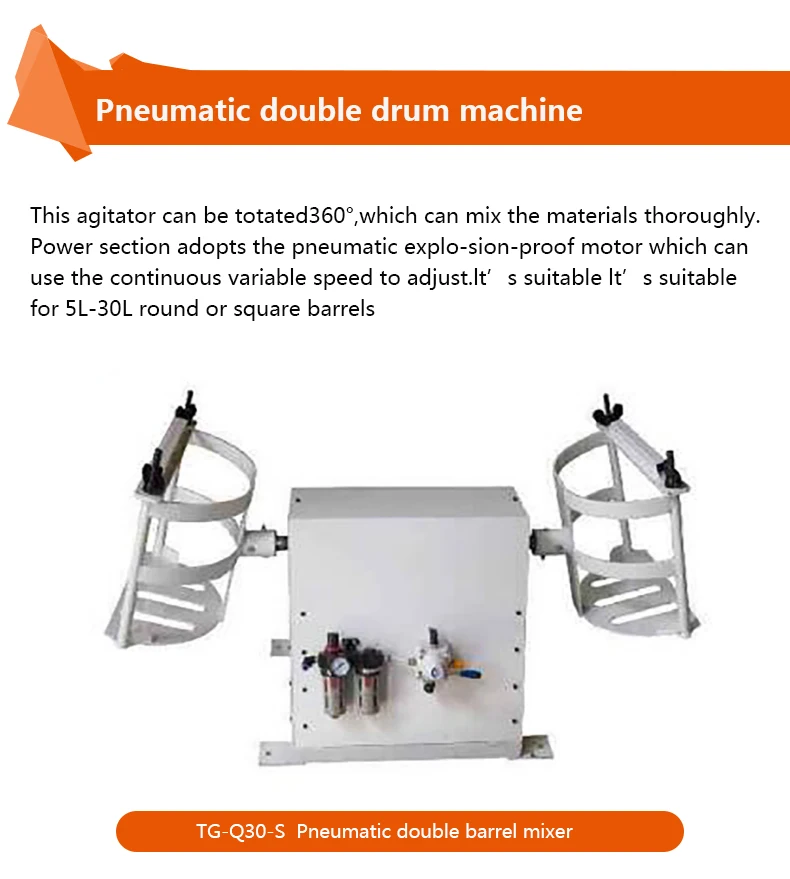

Single barrel mixer and double barrel mixing and multi barrel mixed with pneumatic motor drive supporting reducer rotated by 360 DEG, speed 10-70RPM stepless speed adjustment, simple operation, more humanized design

The use of pneumatic motor safety explosion-proof, long time operation will never produce Electric spark, can meet the requirements of the safety regulations

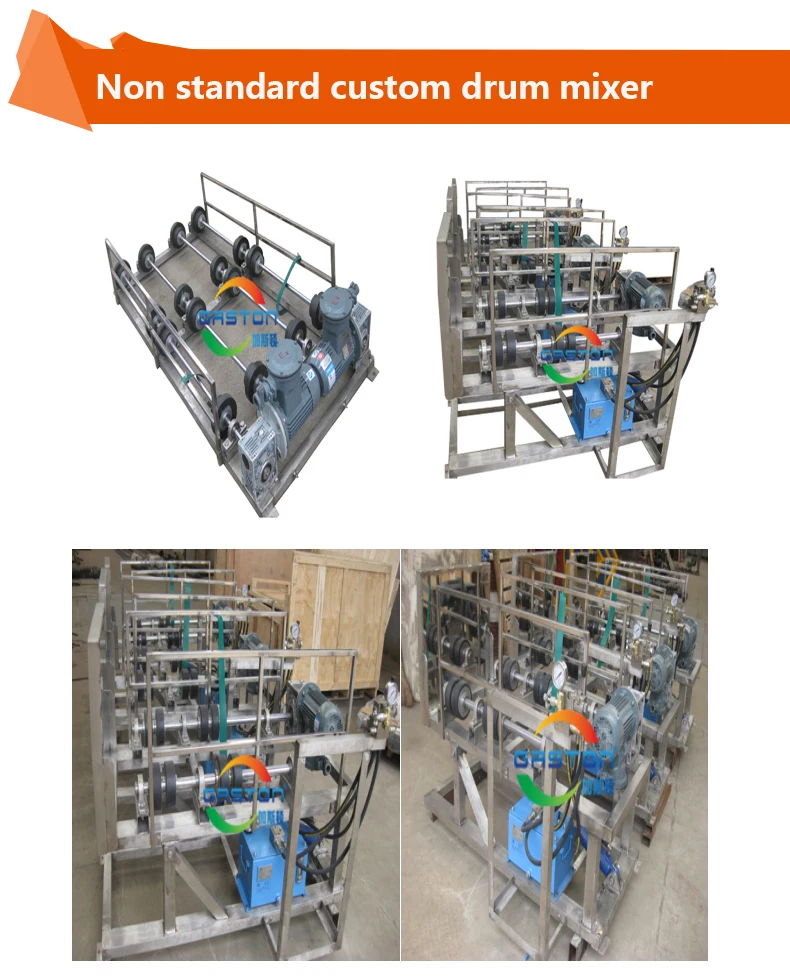

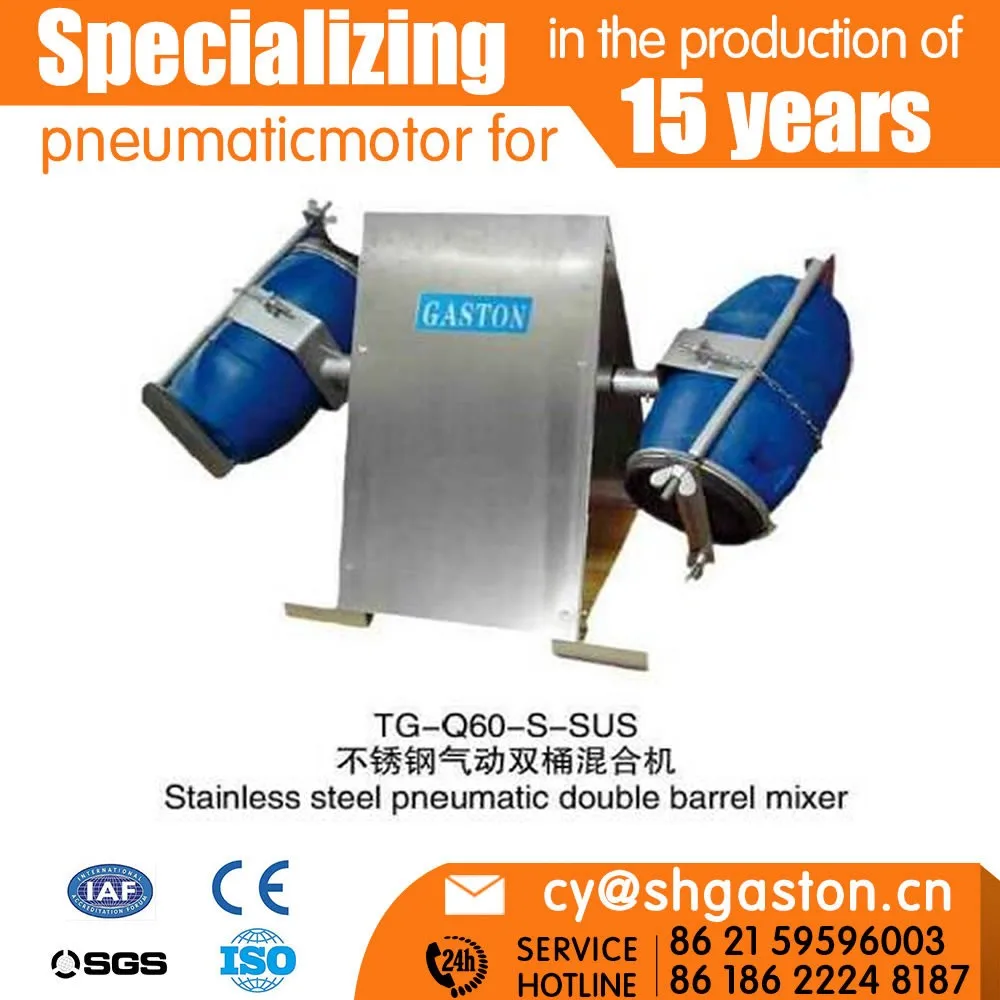

all stainless steel body custom, durable and beautiful, can instantly change the steering and speed, special design and manufacture (can be used to protect the network), etc.

Installation and commissioning

    1.place: mixing drum machine should be placed on the ground level, to ensure           the stable operation of the machine

    2.installation: please identify the air entrance pipe diameter, screw type, and to            the connecting pipe and the locking of the pipeline, the shorter the better, such        as the configuration of steel pipe, please install a hose or a movable joint, in              order to facilitate  the operation.

  3.peed regulation: speed adjustment slowly, not too fast speed, so as to avoid             accidents.

  4.peration: first check whether there is oil leak confirmation, the lock ring is ti               ghtened, the first micro open air switch, and then slowly open the pressure s             witch, but also do not exceed not too small to affect the operation.

Matters needing attention

1.air inlet pipe must be installed with three points, in order to adjust the pressure and water filtration in the AIR pipeline.

2.air inlet must be equipped with a lubricating device (the oil must be in accordance with the SAE10 standard or homogeneous lubricant).

3.to remove oil drums, please connect the air pipe closed, in order to avoid accidents.

4.operation, the operator to maintain a certain distance, so as not to shake, causing bumps.

5.abnormal sound and abnormal vibration, such as the need to stop the machine to confirm whether the screw loose.

6.this machine is a special equipment, please specify the operation.
