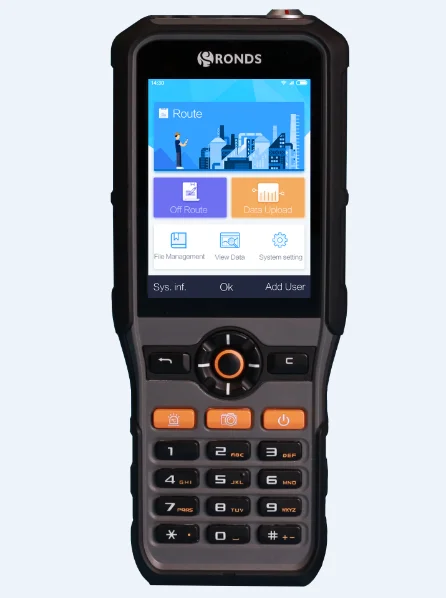

Handheld Vibration Meter with temperature instrument
- Category: >>>
- Supplier: Anhui Ronds Science & Technology Incorporated Company
Share on (60717297731):
Product Overview
Description
Main Features:
Integrated 25:1 infrared temperature detector, vibration and speed measurement, and other function, meet the requirement of professional inspection
Capable of time waveform and spectrum analysis
Compact size, light weight, suitable for single hand operation
UHF RFID radio frequency identification navigation function,maximal sensing distance over 20cm
Multiple communication methods: Wifi, USB
With function of camera and, flashlight
With GPS function (optional)
Technical Specification
Items | Remarks |
Channel | CH1:Vibration(ICP sensor),Voltage(±5V AC) |
Collection Parameter | Analysis Frequency: 100Hz,200Hz,500Hz,1KHz,2KHz,5KHz,10KHz Sampling Rate:Maximal25.6KHz Signal Type: acceleration, velocity, displacement and voltage A/D conversion:24bit Harmonic Distortion:<-70dB Precision:±2% Sampling Configuration: sampling rate, low pass filter, high pass filter and sampling length Waveform Length:1024,2048,4096,8192 Spectrum Lines: 400,800,1600 Averaging:linearity, peak hold Window Type:Rectangle, Hanning |
Internal infrared temperature detector | Temperature range:-30~420(℃), Precision:±1% or ±1.5℃ Maximal Emission rate:0~1 adjustable, Distance coefficient:25:1 |
Dimension | Length×Width×Height: 195×80 ×37(mm) Grip size(W×H):68×31(mm) |
LCD | 3.5inch,640×480pixels,IPS TFT, capacitive touch screen |
Weight | 500g |

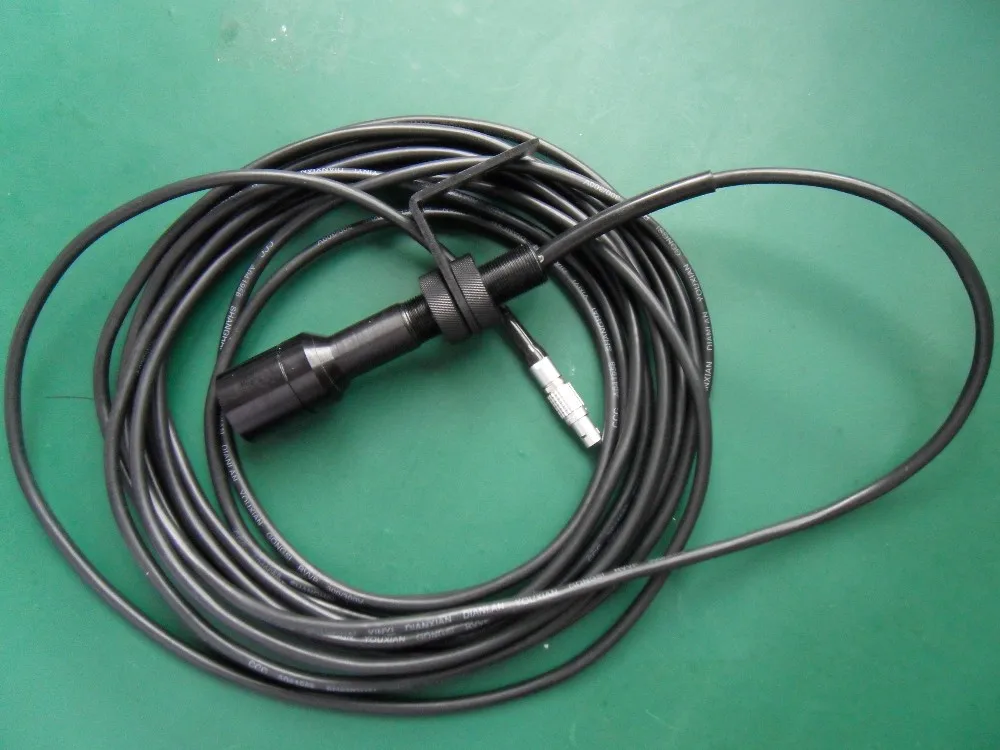

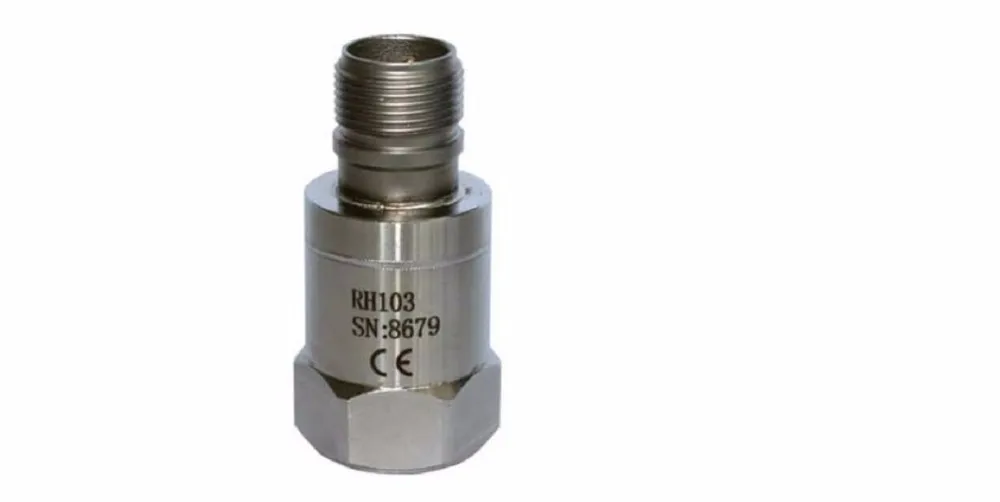

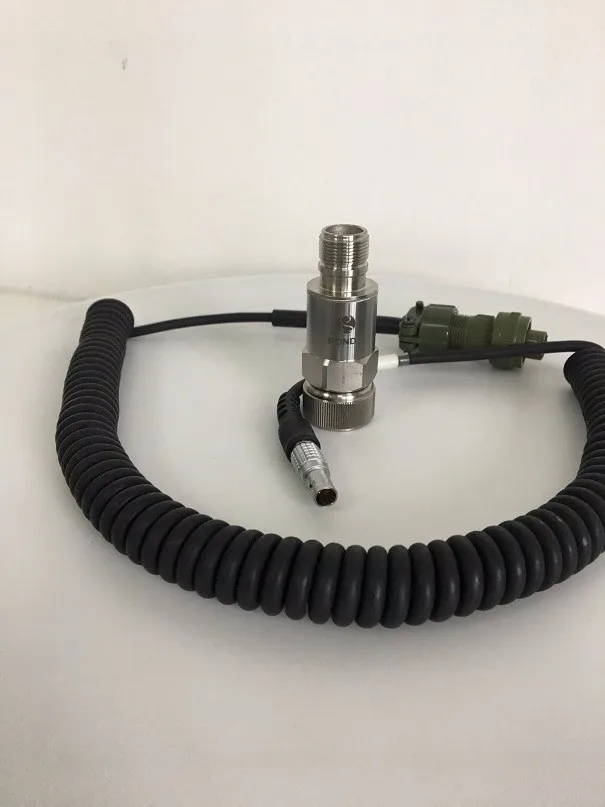

Vibration sensor | 2 types:external IEPE accelerometer; wireless vibration sensor (optional) |
Speed sensor | External tachometer or balancing (optional) |
Keyboard | 21keys 2million times lifespan, with backlight |
Working Environment | Temperature:-20~55℃ Humidity:< 95% (without condensate) Protection Grade: IP65,dust proof, water proof, 2m anti-dropping |
Communication Method | USB2.0 (High speed) WiFi (IEEE 802.11 b/g/n 2.4GHz 50m line of sight ) |
Storage | Flash memory 1GByte,Optional 8Gbyte |
Storage Extension | micro SD card extension, maximal support 32Gbyte |
RFID | UHF 865M RFID Detection distance: 20CM |
Camera | 5million pixels camera, automatic focusing |
Flashlight | Flashlight function suitable for dark place |
Inspector positioning | GPS (optional) |
Battery | Option 1: Rechargeable 3600mAh explosion proof battery, 3.7V, support with shipping certificate; Option 2: Rechargeable 5000mAh, standard battery, 3.7V |
Charging Time | Standard battery 4.5hours; explosion proof battery 2.5hours |
Working Time | Standard battery >10 hours,explosion proof battery >8 hours |
Ex version | ExibIICT4 Gb |
Certificates | CE |
Electromagnetic Capability | GB 9254-2008,GB/T 17626.2-2006 |

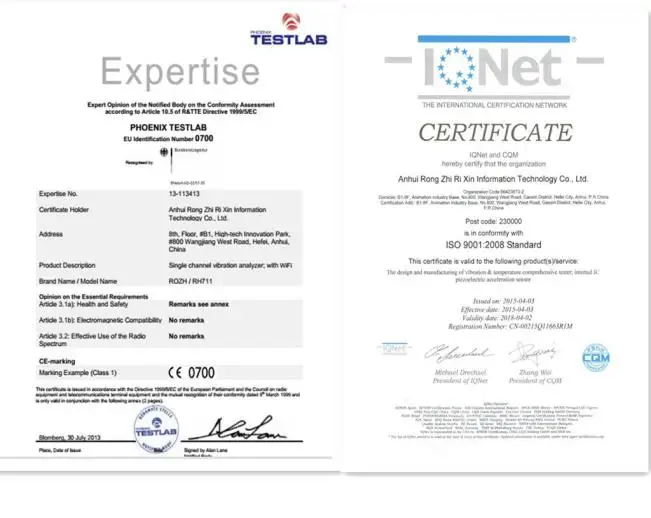

Certificate

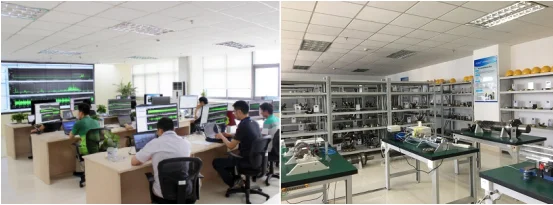

Remote Diagnosis Center and Laboratory
Exhibition and Customers
Global Development
Ronds' Team
30 professional vibration analysts
Diagnosis experts with more than 20 years experience
CAT III vibration analysts
CAT II vibration analysts
Intelligent Algorithm--big data team
Algorithm team with 11members, led by famous doctoral tutor
Big data team with 13 members
