Z4 series China electric dc brush motors are widely used for prime mover in various fields, such as mill auxiliary in metallurgical industry, metal cutting machine-tool, paper making, print, textile, printing and dyeing, cement-making, plastic extruding machine, etc. .
SPECIFICATIONS FOR Z4 ELECTRIC DC MOTOR

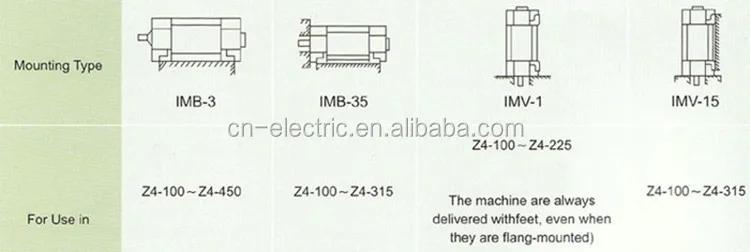

Horizontal foot mounted
Horizontal flanged foot mounted
Vertical flanged mounted
Vertical flanged and foot mounted
IP21S.IP23 and IP44 can be negotiated
Methods of Cooling:
IC06, IC17, IC37 and ICW37A86, Other types of protection and cooling required by customers can be negotiated.
Altitude above sea level maximal 1,000m;
Cooling air temperature maximal 40 oC;
* All the ventilating fan motors are of three phase, two pole, 380V.
Motors with the following five methods of cooling can also be ordered, but prior consultations are needed.
a. Frame size 100 up to 250 may be made into the totally enclosed, frame cooled motor (IC410).
b. Frame size 160 up to 250 may be made into the separately ventilated motor with blower mounted on its non-drive side (IC05).
c. Frame size 100 up to 200 may be made into the self cooled open motor with its own fan mounted on the shaft (IC01).
d. Frame size 160 up to 355 may be made into totally enclosed motor with internal cooling air circulation by independent air-air heat exchanger mounted on it (IC666).
e. Frame size 160 up to 450 may be made into totally enclosed motor with independent air-water heat exchanger mounted on it (IC86W).
3. Standard terminal box mounting is the right hand side seen form the drive end of the motor. As an alternative, mounting at the top or on the left-hand side is possible on request.
4. Motors if needed can be fitted with tachogenerator or other accessories at the non-drive end.
5. Motors, when directly coupled, must use elastic or flexible couplings. The drive and driven units must be aligned with the utmost care. Radial forces acting on the shaft-extensions (belt or pinion drive) must not exceed the values given in the diagrams in the following pages (see Appendix2). Motors are of compact structure, elegant appearance, spacious terminal box, easy wiring, servicing and maintenance.
* Inquiry and consulting support.
* Sample testing support.

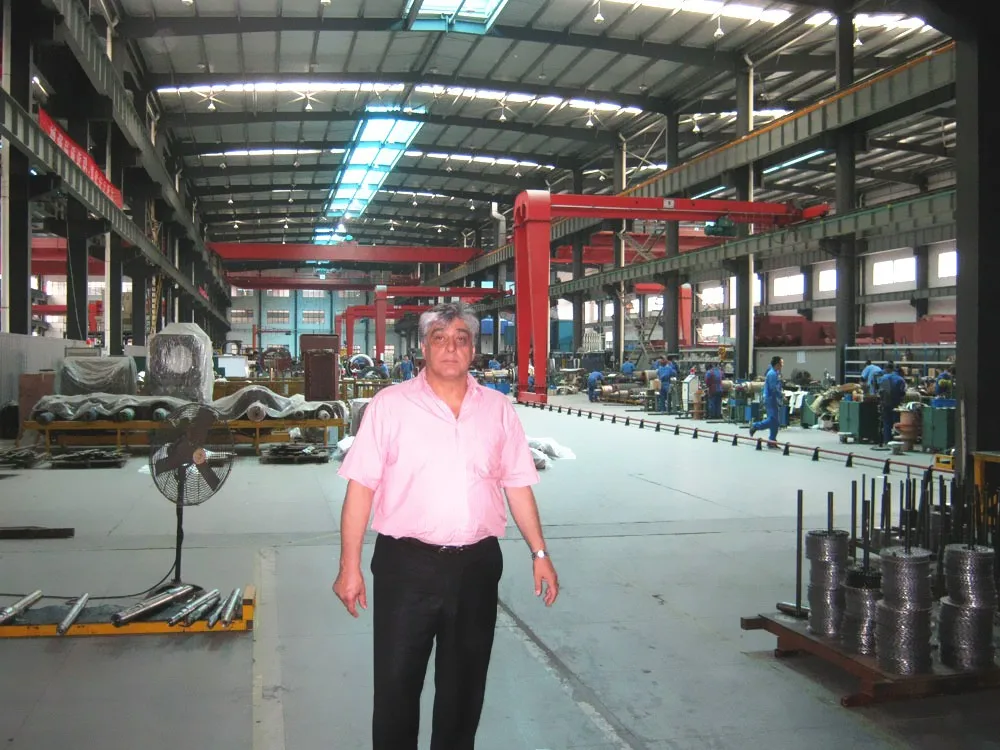

* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

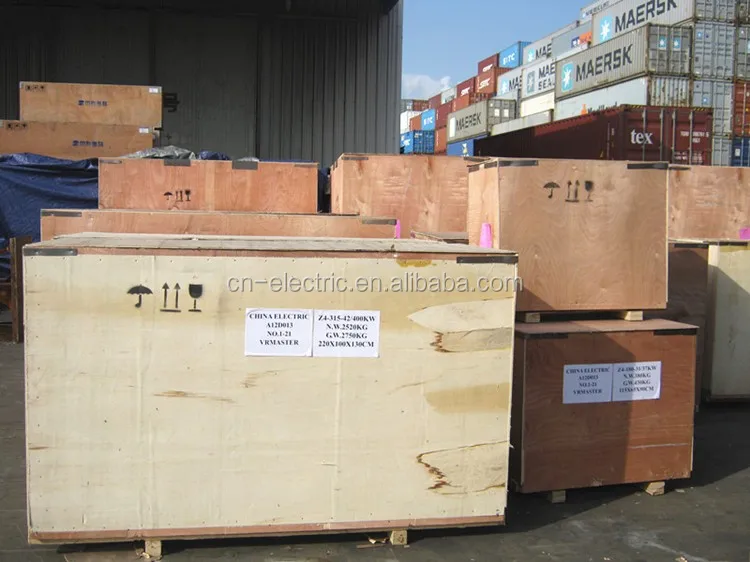

Inner packing: 3-4 layers moisture sealer or per clients request.

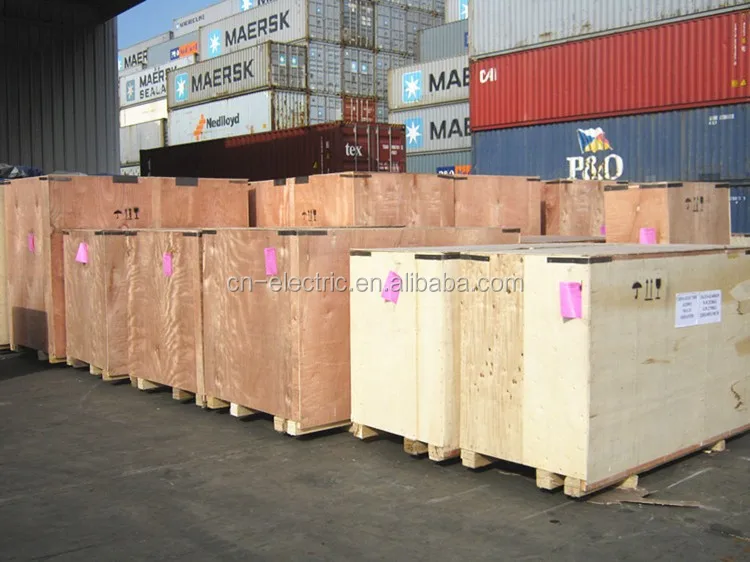

Outer packing: plywood case China factory top quality Z4 Series DC Motor Electric Brush Motor DC motor Z4
