Mesh belt a complete line austempering heat treatment muffle furnace manufacturer in use

COOLDO Mesh Belt Conveyor furnace are specifically designed to service for a wide range of heat treatment process, such as Hardening, Carburising , Carbonitriding, Nitriding, bright Annealing, Tempering, Isothermal Annealing and Stress Relieving. The production line equipped with the loading machine, pre-washing machine, carburizing quenching furnace, after cleaning machine, tempering furnace, etc.

Please link our website:
//www.cdoinduction.com/mesh-belt-furnace/

to get more useful information
Skype : mandymeina
Cell phone : 0086 15168765707
Please do not hesitate to contact us !!!
Detailed Images

Advantage

1). Driving system of mesh belt: Driving the stailess steel roller with high temperature resistant through the chain wheel to circulatory drag mesh belt move into the chamber, which can expanding the service life of mesh belt and Reducing furnace heat loss, meanwhile improving more high thermal efficiency.

2). Equipped the fan inside of furnace to ensure temperature uniform and protect (carburizing) atmosphere evenly dispersed, which can improve the carburizing speed and workpiece quality.

3). On the rear of furnace equipped with an exhaust fan for timely discharge waste gas and improve gloss of workpiece surface.

4). On the bottom of the furnace body is equipped with slag removal mouth, which can convenient and clean up the slag.

5). New sealing design of furnace door can save 55-65% atmospher consumption, and also deep permeation, 30-40% higer efficiency than before under the pressure at ≥10-100Pa.

Parameter
Item
Power
(KW)
Phase
Voltage
(V)
Temperature
(℃)
Zone size
(mm)
Maximum output
(KG)
RC-20-9 Furnace
20
3
380
900
1500*150*50
40
RC-45-9 Furnace
45
3
380
900
2500*250*50
150
RCM-60-9 Furnace
60
3
380
900
2500*300*50
200
RCM-70-9 Furnace
70
3
380
900
3500*300*50
250
RCM-90-9 Furnace
90
3
380
900
5000*400*80
350
RCM-120-9 Furnace
120
3
380
900
5000*400*100
400
RCM-150-9 Furnace
150
3
380
900
5000*600*100
450

According to the specific needs of customers, customized non-standard equipment

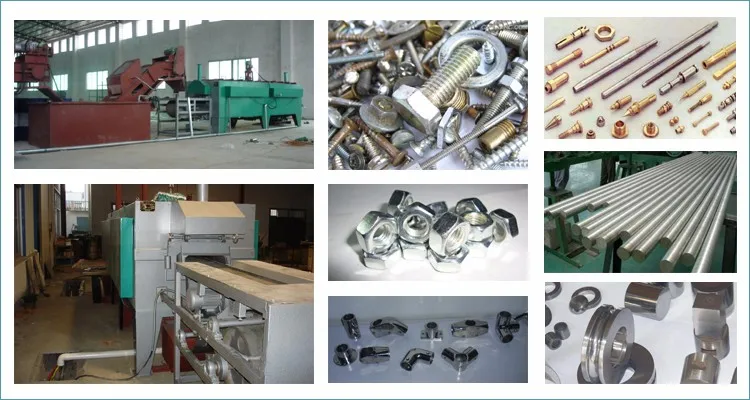

Application

1). Standard parts industry self tapping screw, drilling screw, wall screws, wood screws and other carbon heat treatment. High tensile screws, inner hexagon screw, screw, nut, etc quenching and tempering heat treatment;

2). Adjustable wrench,open end wrench, box spanner, hexagon wrench, screwdriver, sleeve, pliers, jack, such as hand tools quenching and tempering heat treatment;

3). Auto screw, shaft, hub, connecting rod, car lock ring, piston pin, locomotive screw, top and bottom plug, size bowl, drive shaft, the five group, front fork group, as group, fast valve group and so on automobile, motorcycle, bicycle partsof carburizing heat treatment;

4). Folder, blade, file, the nail in the four corners, lighters, shoes core, hair clips, pen holder, etc quenching and tempering heat treatment;;
5). Steel nails, nail clippers, hook, chain, hook locks and other hardware parts carburizing heat treatment;
6). Textile machinery parts, bearing parts of carburizing and quenching and tempering heat treatment;

Customers
FAQ

1. What is your advantage to compared to others?

 First, we provided turnkey solution ,Cost-effective,highly efficient, durable and easy-to operate machine is what we deliver.

Second, we have Strict Quality Control System,Before Being dispatched from our factory all of our equipment will undergo a series of strict test,including the appearance quality test, voltage electrical test, aging test also the package strength checking


2. If our machine meets fault, how could you help us to solve it?

For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video how the machine is broken,we will find out which part of the machine is broken and then we will send you the broken part By Dhl.


3. what is your warranty?

Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.

All products sold by COOLDO In warranty period,we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system.When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
