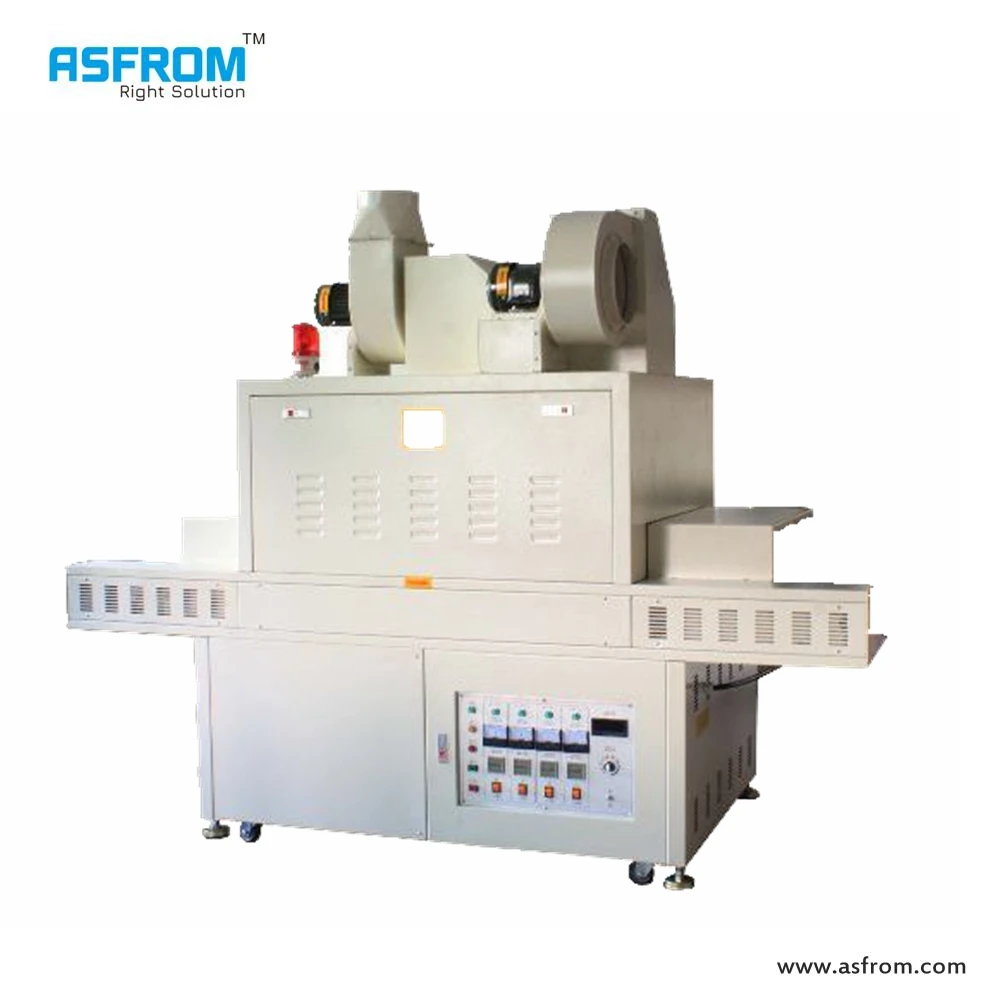

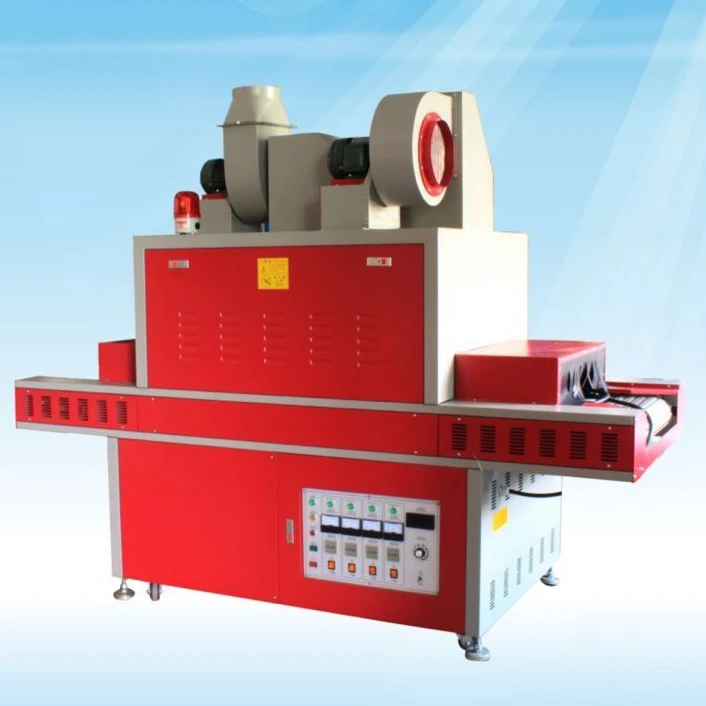

Single Side UV Ultraviolet Irradiation Lighting Machine For Outsole

Product Overview

Description

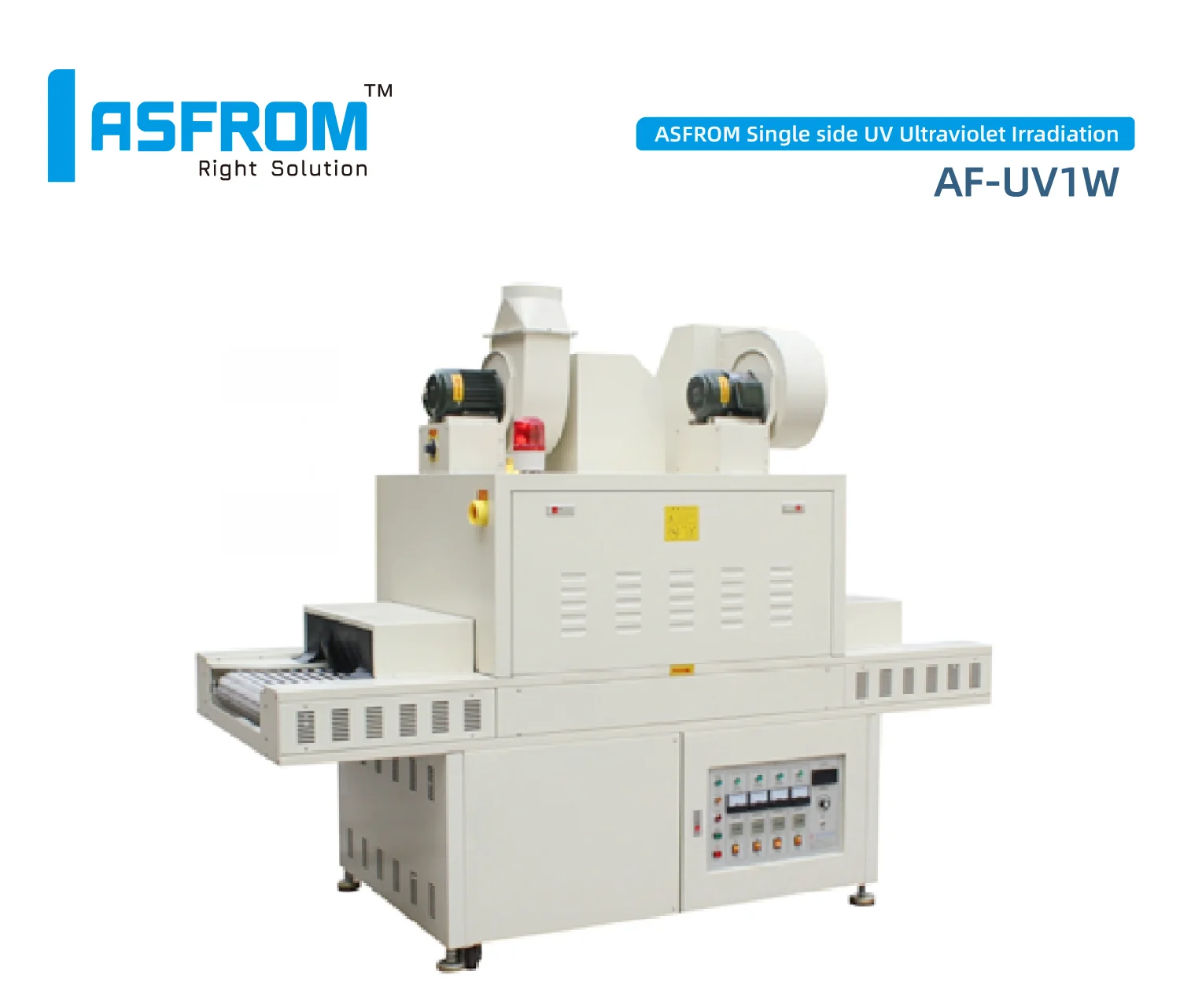

Single Side UV Ultraviolet Irradiation Lighting Machine For Outsole





Model No.:	AF-UV1W
Working Width Size	620mm
Overall length	2440mm
Reducer	5GU-30KB
Maximum speed	MAX 12m/min
Power Supply	380V/50HZ/3P 12KVA
Air Draft Motor	1HP
Blower Motor	1HP
Conveyor Motor	1/2 HP 4P
Exhause Pipe Diameter	∅8‘’
Machine Weight	650kg
Machine Size	240*102*208cm
Lamp Lifetime	Within 1000 hours
Conveyor belt	Stainless SUS
Lamp	USA brand CS-101 2KW,4PCS
Application	EVA Outsole /Mould Outsole
Packing	Starndard Export Wooden Box
Payment Terms	T/T , LC





Applications

The machine applies to EVA/MODE outsole assembling,with the UV primer on the outsole then let it dry, exposure to ultraviolet UV irradiation machine, UV light treatment division produces free radicals and polymerization reactoions, to make the outsole easy to adhesive.



Properties

1:Don't need wait to warm, can opperate in seconds.

2:High output,can make above 800-1000 pairs per hour.

3:Control the temperature well to avoid deformation of outsole.



New Special Features

1:When the lamp does not light correctly, immediately to the alarm and show the lamp position

2:The warning light will flash and the conveyor belt stop when the machine out of order.
