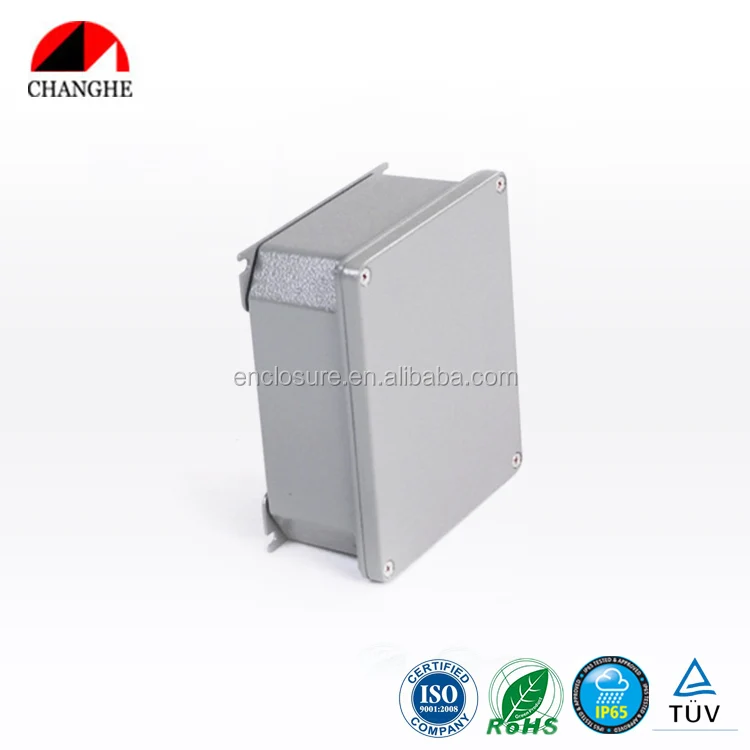

CHANGHE IP65 Wall Mount Aluminum Waterproof Control Enclosure Distribution Box 165x140x63mm
- Category: >>>
- Supplier: Ningbo Dayang Enclosures Co. Ltd. [Zhejiang China]Ningbo
Share on (60717387412):
Product Overview
Description
Product Description
CHANGHE Aluminium Control Enclosures
CHANGHE Enclosures provides users with over 300 choices for packaging electrical and electronics equipment operating in hostile environments. With tempered glass windows and external hinges, CHANGHE aluminium control enclosures are designed to to be used as control boxes for measuring instruments, electric and electronic equipment. Dimensions range from 101*104*58 mm to 39*280*200 mm. Our enclosures have achieved ingress ratings of IP65. Some of their most noteworthy advantages are high mechanical strength, as well as high corrosion and impact resistance.
Custom & Modified Enclosures
When a standard enclosure isn’t exactly what you need, CHANGHE can modify our designs for the ideal enclosure solution. Some common modifications we can do for you:
- Mold & Design
- Special Paint Colors
- Silk Screening
- Punched Holes
- Cutouts
- Mounting plate design
- Salt Mist Resistance
- Non-inflammable sealing ring
Product Specs
IP65 Aluminium Control Enclosure 165x140x63mm (11C-3)
The dimensions specified below are Length x Width x Height.
Technical Features:
| Model No. | External Dimensions(mm) | Internal Dimensions(mm) | Wall mounting size(mm) |
| 11C-1 | 101x104x58 | 91x91x52 | 90x87 |
| 11C-2 | 138x113x61 | 128x103x54 | 100x117 |
| 11C-3 | 165x140x63 | 150x130x56 | 125x145 |
| 11C-4 | 189x167x80 | 179x157x72 | 150x168 |
| 11C-5 | 252x215x91 | 240x203x83 | 195x220 |
| 11C-6 | 307x257x120 | 295x245x112 | 235x280 |
| 11C-7 | 406x312x151 | 397x298x135 | 365x265 |
Technical Features:
· Excellent EMC performance
· IP 65 Watertight and dust-proof (IEC60529 : 2001)
· Additional molded-in mounting feet
· Can be used at a wide range of operating temperatures:-40℃～120℃(IEC60068 : 1997)
· High impact resistance (IK grade: IK08)
· High corrosive resistance due to high-quality powder coating
· The interior contains mounting pillars to accommodate mounting plates, supporting rails or circuit boards.
· There is no holes in standard enclosures. Customization is available for all CHANGHE enclosures based on provided drawings indicating relevant modifications.
Product Dispaly
CustomizationCustom & Modified Enclosures
Custom & Modified Enclosures
When a standard enclosure isn’t exactly what you need, CHANGHE can modify our designs for the ideal enclosure solution. Some common modifications we can do for you:
- Mold & Design
- Special Paint Colors
- Silk Screening
- Punched Holes
- Cutouts
- Mounting plate design
- Salt Mist Resistance
- Non-inflammable sealing ring
Dimension Chart
