Agriculture corn seed coating machine for polishing seed
- Category: >>>
- Supplier: Taizhou Quanta Machinery Equipment Co. Ltd.
Share on (60717411764):
Product Overview
Description
1.This machine is mainly used for making pellet, film coating on tablets. It can also be used for making ball shape products or granules, mixing, and polishing, etc.Such as:chocolate polishing, peanut coating, sugar coating,seasoning, producing tapioca pearls, and pelletizing the desiccant & aluminium hydroxide, porcelain ball making, etc.

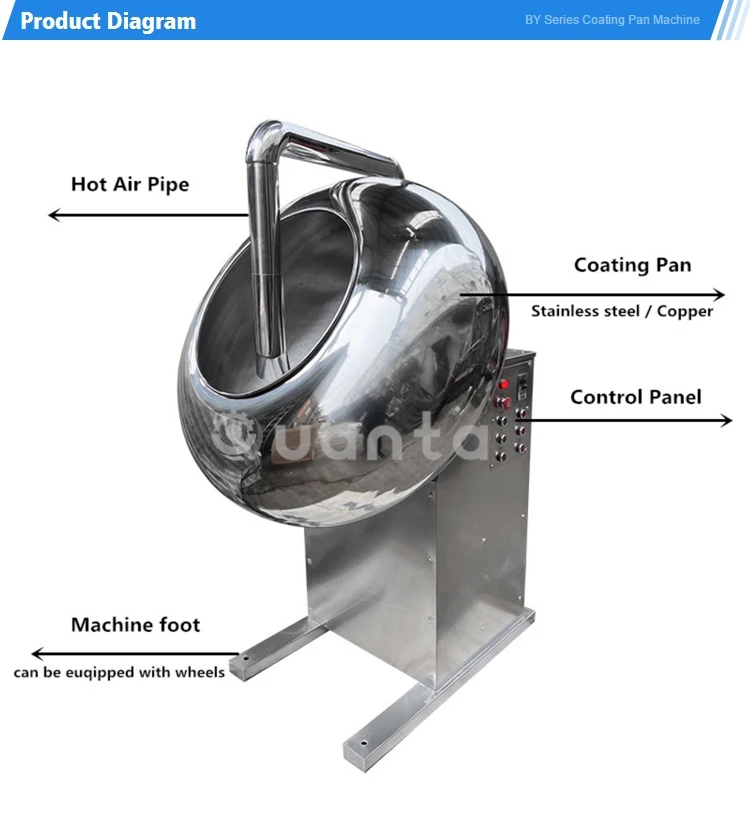

2.This machine consist of main body, worm wheel box, coating pan, heating device,hot air&common blower,electrical equipment, etc. The transmission process that the motor drive the worm wheel and worm via triangle belt to make the coating pan rotate.Then the material revolve up and down in the coating pan, so that even mixing, pelletizing and polishing can be completed well.
| Model | BY200 | BY300 | BY400 | BY600 | BY800 | BY1000 | BY1250 | BY1500 |
| Diameter of coating drum (mm) | 200 | 300 | 400 | 600 | 800 | 1000 | 1250 | 1500 |
| Capacity (kg/time) | 1 | 2 | 5 | 15 | 30-50 | 50-70 | 80-150 | 300-400 |
| Rotation Speed (r/min) | 46 | 46 | 46 | 36 | 36 | 32 | 28 | 26 |
| Power of motor (KW) | 0.37 | 0.37 | 0.37 | 0.75 | 1.5 | 1.5 | 3 | 5.5 |
| Power of fan (KW) | 0.06 | 0.06 | 0.06 | 0.06 | 0.15 | 0.15 | 0.2 | 0.37 |
| Power of heating (KW) | 1.2 | 1.2 | 1.2 | 2 | 2.2 | 3 | 4 | 6 |
| Overall size (mm) | 500*350 *700 | 500*350 *700 | 550*400 *800 | 800*600 *900 | 1000*800 *1430 | 1100*1000 *1560 | 1250*1200 *1820 | 1500*1500*1980 |
| Weight (kg) | 36 | 37 | 38 | 85 | 205 | 220 | 350 | 600 |

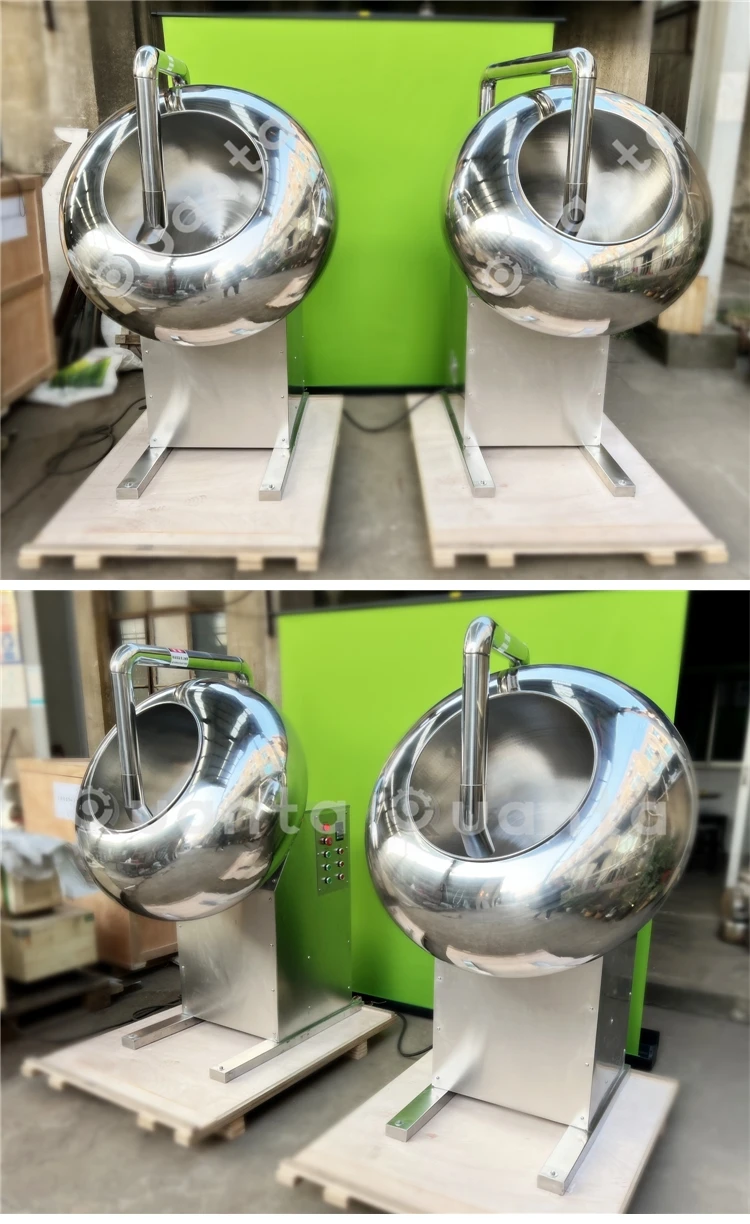

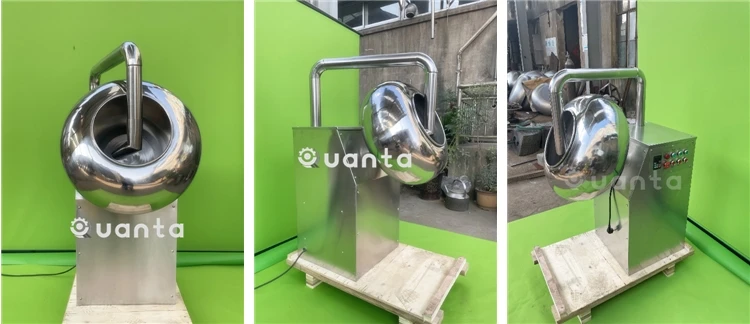

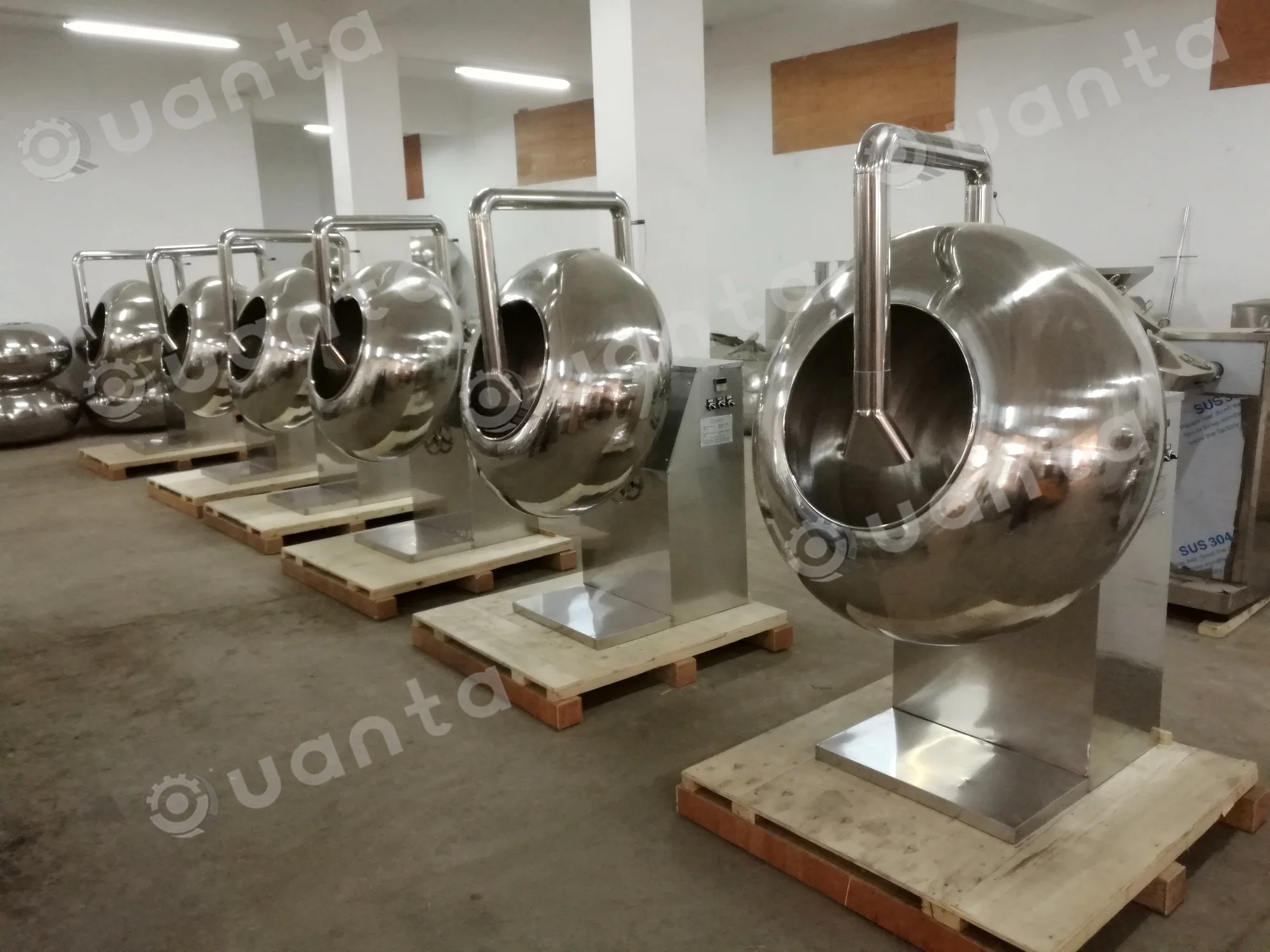

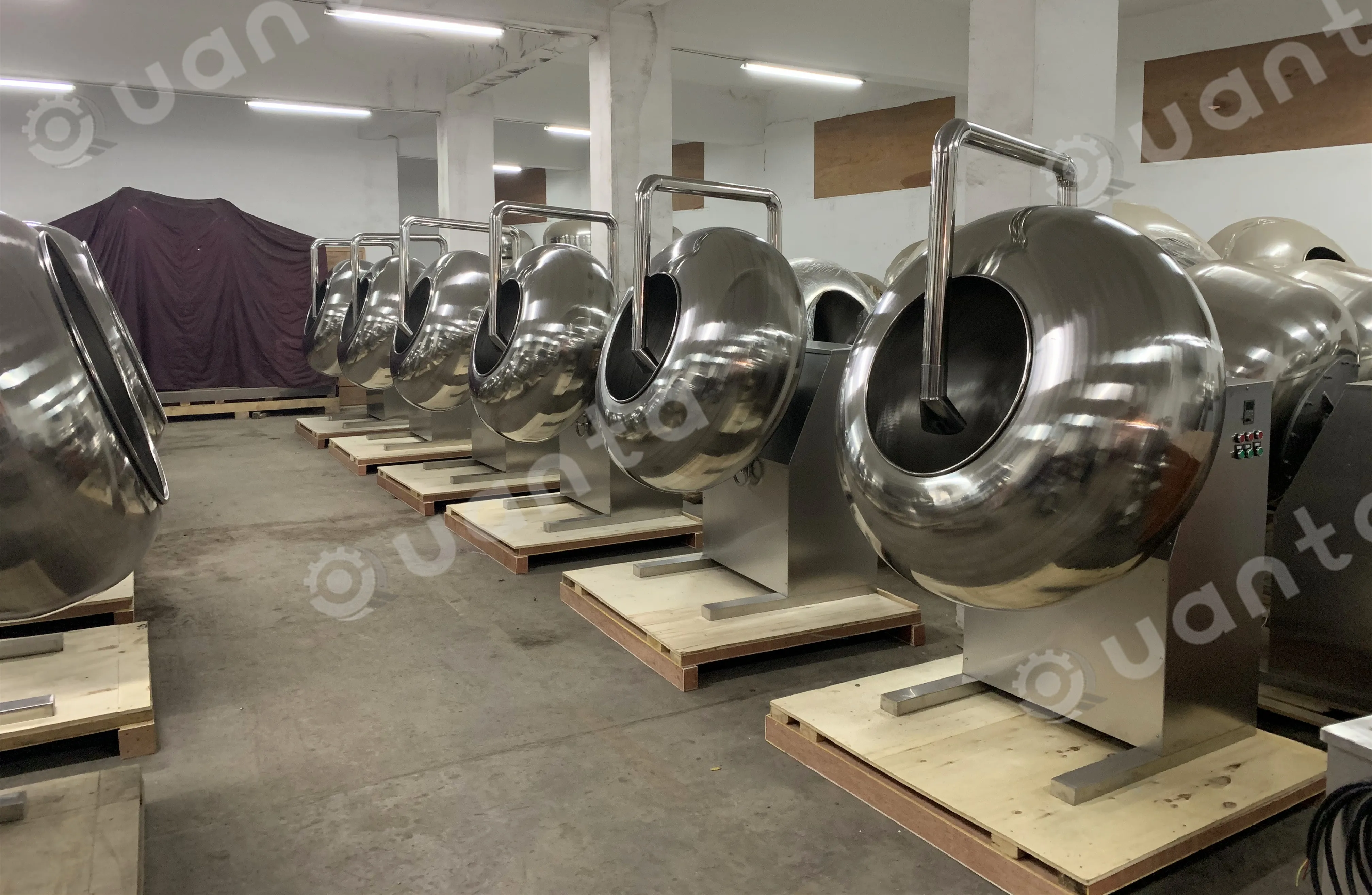

Standard model of BY coating pan machine with hot air pipe , speed control of the pan rotation :

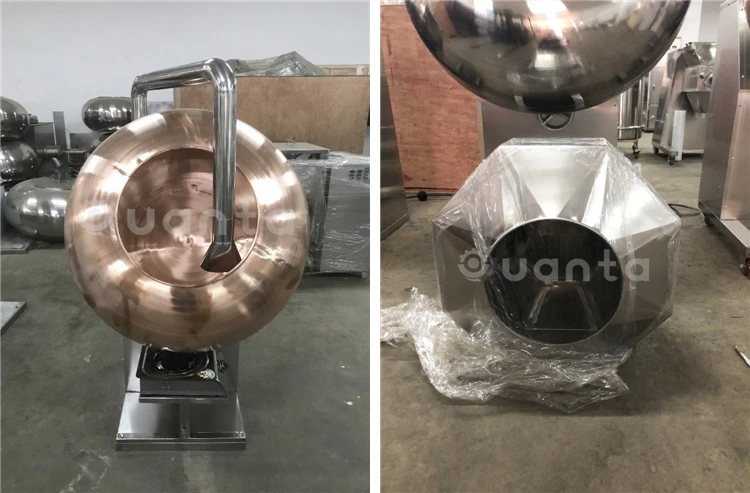

4. Copper Pan & Octagonal Pan :

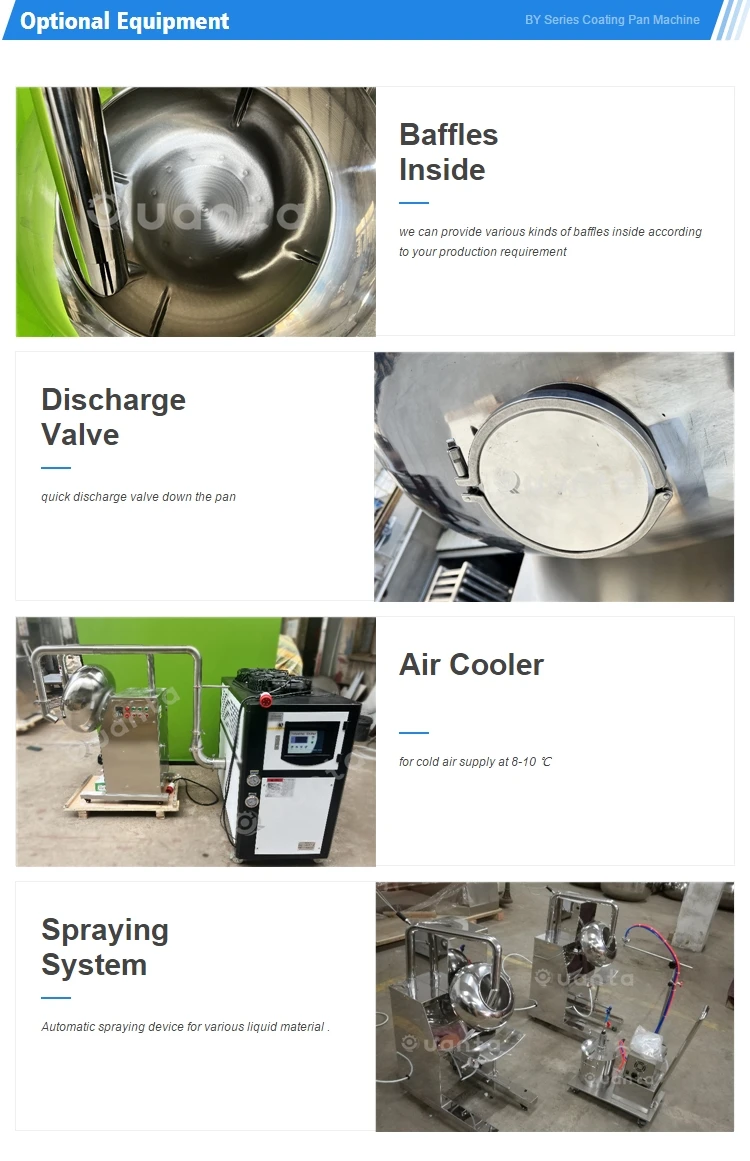

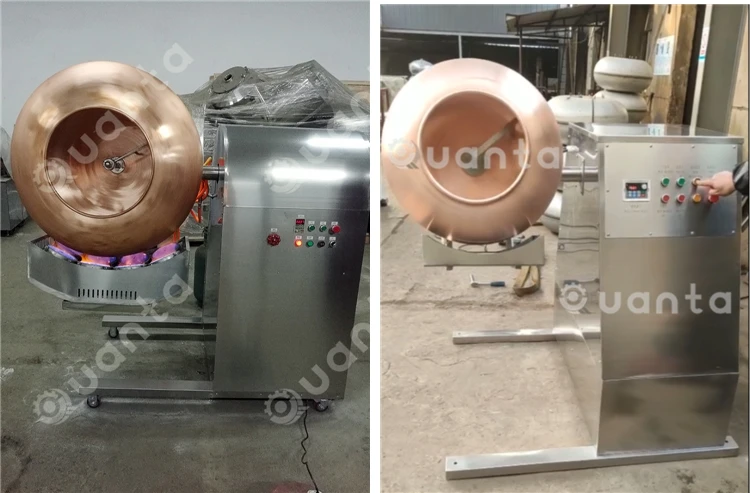

5. Machine with automatically rotate to empty the material and gas/electric heater down the pan :

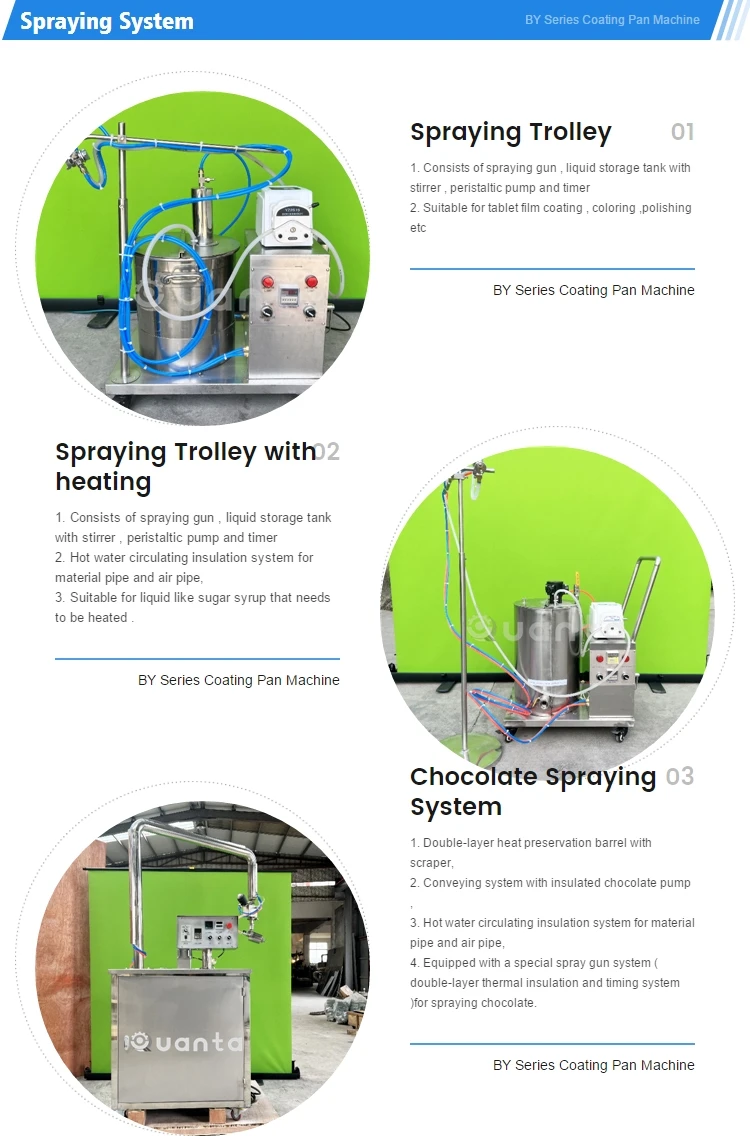

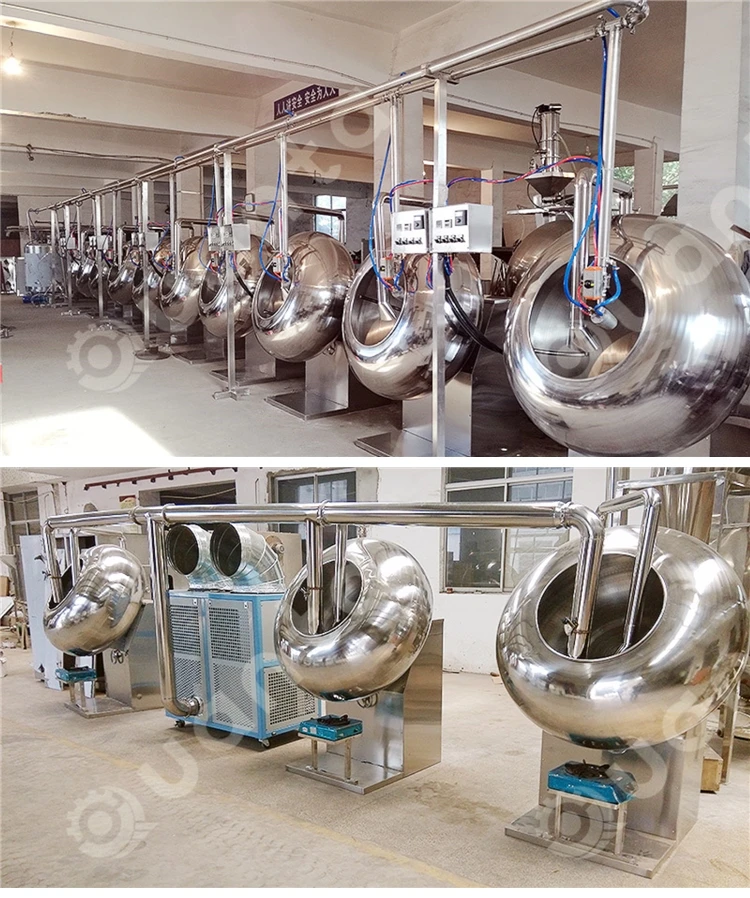

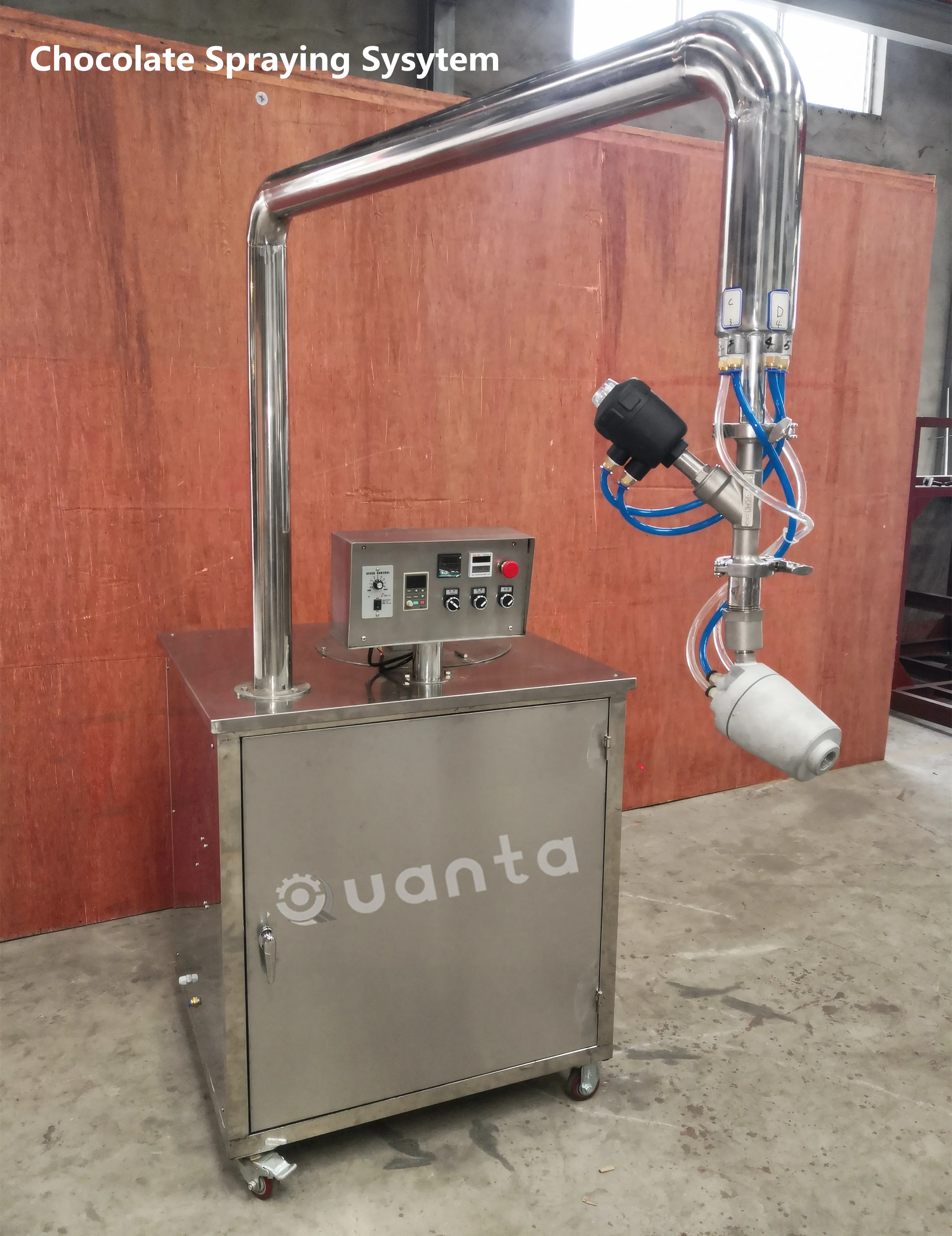

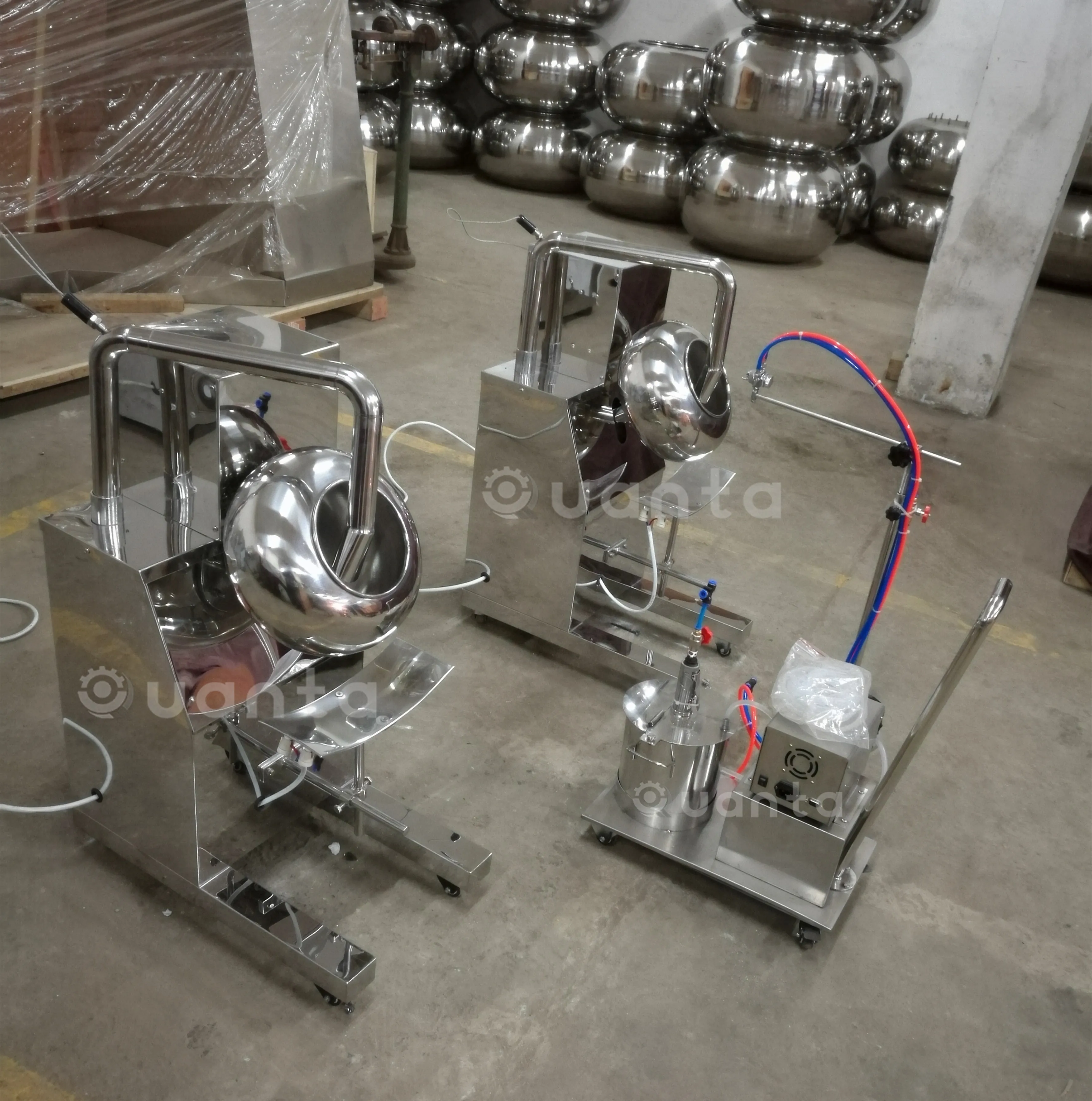

6. Coating Pan Machines with automatic spraying system and air cooling system :
