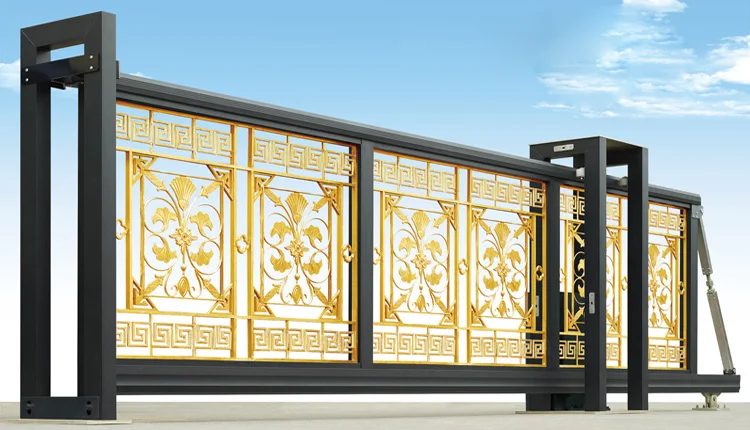

Electric Sliding Door House Gate Designs

Main Features

• The house gate designs adopts Aluminum 6063-T5 material with elegant appearance and compact structure.


• The house gate is suspension sliding without any rails, it’s very easy and simple for installation and maintenance.


• Anti-Bumping Function: In process of gate closing, if infrared detector sensed people or obstacles, the sliding gate will immediately stop to assure of security.


• Anti-Climb-Over Alarming: If infrared detector sensed anybody to climb over gate, alarm in control cabinet will auto turn on, and the alarm can be turned off by stop-button or open-button of controller.


• If any emergency happened, you can press Emergent ON/OFF button to cut off power and make the working gate stop immediately to assure of safety.


• Once the gate motor temperature exceeds 120 degree or the gate is working for a limited time, then the motor will auto stop working for protection.


• The gate is with desktop-controller and handheld-controller for remote control, and during the time of maintenance or power failure, gate clutch can be released and then the gate can be controlled manually.


• The gate is with leakage protection to protect over voltage or current in control system to connect ground.


• The gate works smoothly, stable and quiet with high security, low noise, low failure rate and long service time.


• The house gate designs are used to circumstances of -30°c to +70°c of high or low temperature, wind, rain, ice, snow, slope, over railway or track and even some other tough conditions.

Materials Specification

Gate Automation System

The house gate designs are with an advanced automation system which includes power motor built in gate box and two pieces of carriage wheel group built in the base beam (sliding track), gear rack, intelligent infrared sensors, master control box and remote controllers. It's with outstanding features of anti-bumping, anti-climbing-over, working stable, low noise, thermal protection, leakage protection and so on.

Motor Power: 400W
Voltage: AC220V±10% 50Hz (AC110V by customized)

Revolution Speed: 1350r/Min
Sliding Speed: 18-20 meters per minute
Electric Capacity: 18uF/450VAC
Working Noise: Less than 65db
The Best Environment Temperature: -30°c to 70°c
Thermal Protection Temperature: 120°c

Production Procedure

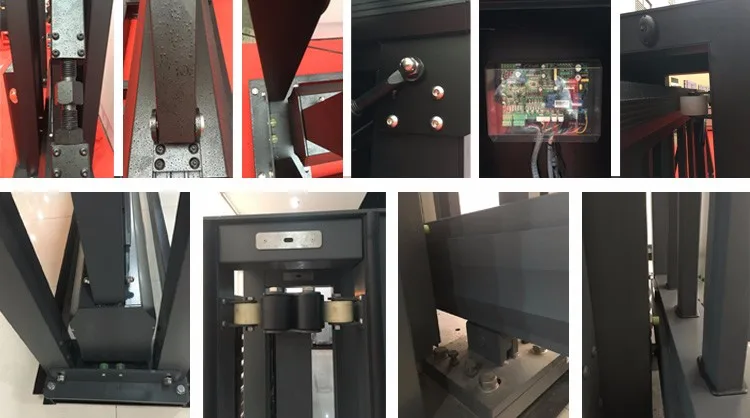

Standard Gate Components
1, Gate Body (with sliding beam, guide wheels)
2, Gate Post (2pcs, a four-pillars post and a two-pillars post)
3, Carriage Wheel Group (2pcs)
4, Sliding Gate Motor
5, Gear Rack
6, Gate Control Box
7, Remote Controller (2pcs)
8, Infrared Anti-bumping Detector
9, Infrared Anti-climbing-over Alarming
10, Emgency Button
11, Opening / Closing Limit Sensor

12, Clutch Spanner

13, Pull Explosion Screws and Bolts

Packing Materials: PE bubble film, cardboard carton and wooden crate if required

As the gate package is huge,  we recommend shipping by FCL

We will pack each gate in parts of gate body, gate posts, electric motor, installation accessories

We will contact container here in our factory for loading once goods is ready
We will send all required documents for destination customs by DHL on time

We will keep tracking in the whole shipping process and inform you details

    Established in 1997, Foshan City Chancheng Dis C.X.H.A Co., Ltd is one of the earliest and biggest factories of electric gates. We are granted as the TOP10 Famous Brand, the TOP10 Largest Enterprise, the China Famous Brand, many patents for new technology and appearance in the industry of electric gate.
    We are with 30000 square meters modern factory and 8000 square meters office building, and have 480 staff members and 20 R&D people (including 5 senior engineers), and 15 full automatic production lines which are all equipped from international famous brand

• In 1997, Established for Production of Manual and Electric Shutter Gate


• In 1998, Develop and Produce Stainless Steel Electric Folding Gate


• In 2001, Develop and Produce Aluminum Electric Folding Gate


• In 2004, Passed ISO9001:2000 Quality System Certification


• In 2006, Develop Smart Motor for Trackless Automatic Gate


• In 2008, Develop Villa Electric Folding Gate


• In 2009, New Factory Base Applied for Production


• In 2011, Cantilever Sliding Gate Developed for Large Scale Production


• In 2013, Villa Cantilever Sliding Gate Developed for Large Scale Production


• In 2014, Intelligent Car Parking System Developed for Large Scale Production


• In 2015, Cantilever Folding Gate Developed and Passed ISO9001:2008 Certification


• In 2016, Linear Sliding Gate and Turning Sliding Gate Developed Successfully


• In 2017, Developing Safe and Green DC Motor for Electric Retractable Gate



We have 10 series and more than 200 models of all kinds of gates and barriers.

• Electric Retractable Gates


• Cantilever Sliding Gates


• Courtyard Entrance Gates


• Linear Sliding Gates


• Turning Sliding Gates


• Cantilever Folding Gates


• Pedestrian Walkway Gates


• Manual Road Barriers


• Intelligent Car Garages
