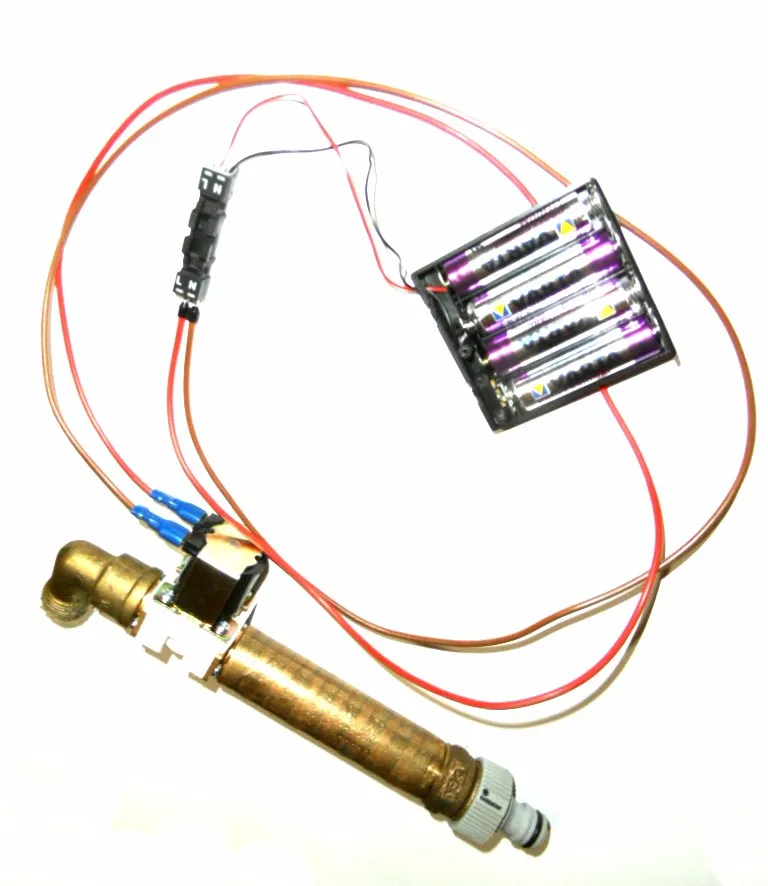

Solar Solenoid Valve Battery

Title goes here.

Product Description:

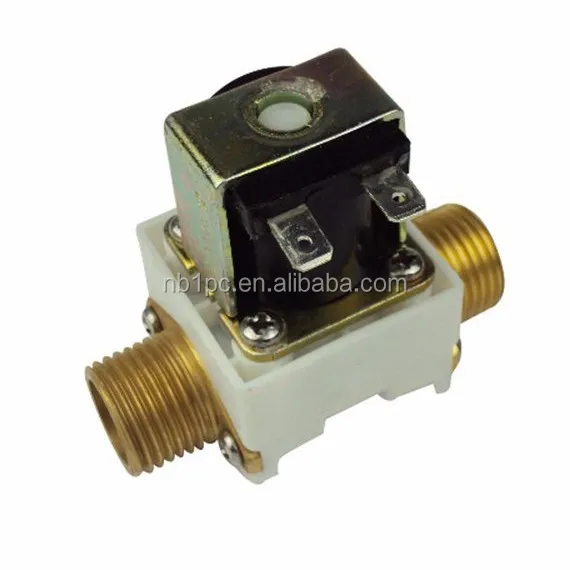

Model LPSV-15G
Action way\tPilot type
Type\tNC self-holding (at impulse voltage) pulse type
Working pressure\t0.02MPa-0.8MPa

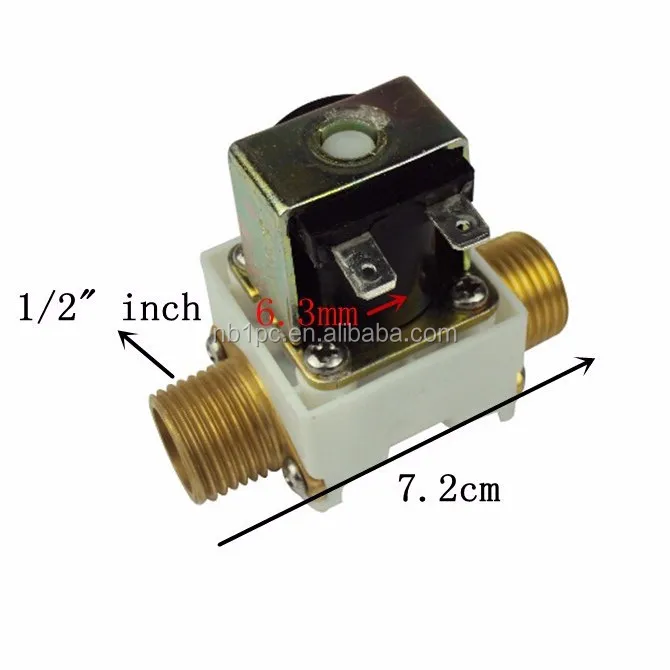

Connection way\tΦ15 male thread inlet & outlet
Applicable medium\tWater

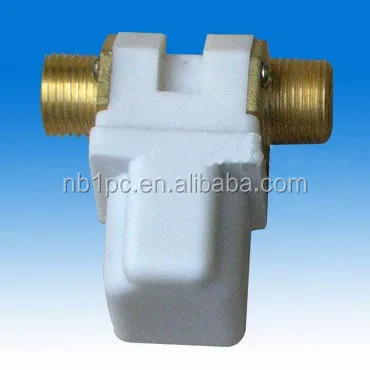

Valve body material\tPlastic valve body, copper joint
Medium temperature\t0-50oC
Environment temperature\t0-40oC
Rated voltage\t
Pls Contact us First About the Voltage Whether We could Prodce
Variable voltage of supply voltage\t-10%~10%
Insulation resitsance\tTested by DC500V megohmmete for 1 min, the insulation resistance should ≥100M
Watertight performance\t
Hydrostatic pressure 0.02Mpa, leakage ratio<0.1mL/min
Hydrostatic pressure 0.03~0.8Mpa, leakage ratio 0mL/min
Hydraulic pressure withstand\tWithstand hydrostatic pressure of 1.2MPa for 5min, no unbroken, deformation or outside leakage
Reliability\t0.01~0.02MPa,make and break for 10s respectively, lasting 1h, the check valve should be unblocked.
Flow characteristics\t
Pressure 0.02Mpa Flux >3L/min; Pressure 0.1Mpa Flux>8L/min;
Pressure 0.3Mpa Flux >13L/min; Pressure 0.8Mpa Flux >25L/min
Across layers insulation\tWithstand high voltage pulse for 2s, it should be normal.
Continuously energized\tEnergize for 12h, but not connect through the water, the valve should be no deformation, and the coil should not be burned;
Withstand voltage\tThe acceptable high-voltage power between electric conduction and outer without electrified metal Withstand AC1500V,s50Hz for 1min, no flashover or breakdown; Withstand 1800V,50Hz for 1s, no flashover or breakdown;
Non-return function\tYes
Filtering function\tBuilt-in filter screen
Adjustment function\tNo
Angle between coil and valve body\t360, 270, 180, 90
Power supply connection way\tInserting type,adopting 6.3 plug spring
