lower Pressure Solar Energy Submersible Water Pump Deep Well
- Category: >>>
- Supplier: Jetmaker (Xiamen)Technology Co. Ltd.
Share on (60717515633):
Product Overview
Description
High Pressure Centrifugal 1.5 Hp Solar Energy Deep Well Submersible Water Pump
Product Description

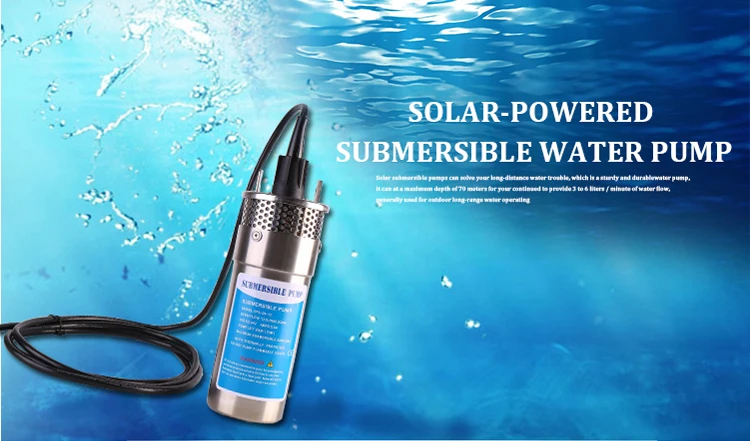

Solar submersible pumps can solve your long-distance water trouble, which is a sturdy and durablewater pump, it can at a maximum depth of 70 meters for your continued to provide 3 to 6 liters / minute of water flow, generally used for outdoor long-range water operating.
* Solar-powered submersible pump suitable for wells with a 4 inch diameter or larger
*Designed to be strong and yet lightweight
*Wide-range of parts and kits for ease of rebuilding and repair
Features&Benefits
Pump:
*Strong Construction, yet lightweight
*Dry Running capability without pump damage
*Internal Bypass Feature for pump protection
*Long-life,24VDC Operation
*Easily repaired in the field
*State of the art solid diaphragm
Power Connector:
*Unique water-tight gland connector
* Stops water wicking and prevents potential condensation
*Quick Discounnect-No splicing necessary
*Accepts a variety of jacketable cables
Technical data
Pump Design | Positive Displacement 3 Chamber Diaphragm Pump
| ||||||
Motor | Permanent Magnet, Thermally Protected
| ||||||
Voltage | 24V / 12V DC Nominal | ||||||
Amps | 4.0 Max./8.0 Max | ||||||
Internal Bypass | 105-110PSI Max.(7.2-7.5 BARS) | ||||||
Maximum Lift | 230 Feet Maximum (70m) | ||||||
Maximum Submerion | 100 Feet Maximum (30m) | ||||||

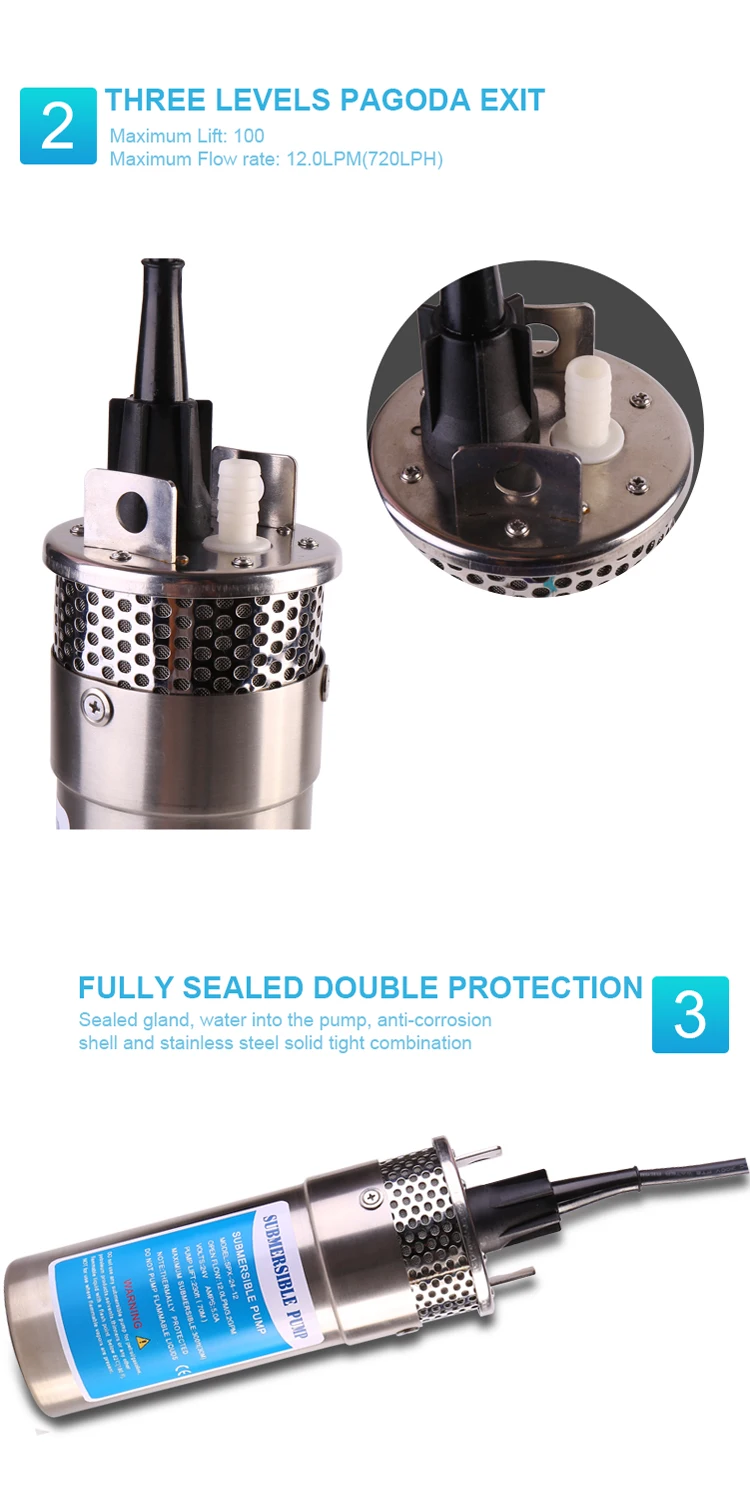

Outlet Port | 1/2''(12.7mm) Barbed Fitting for 1/2'' (12.7mm) I.D.Tubing | ||||||

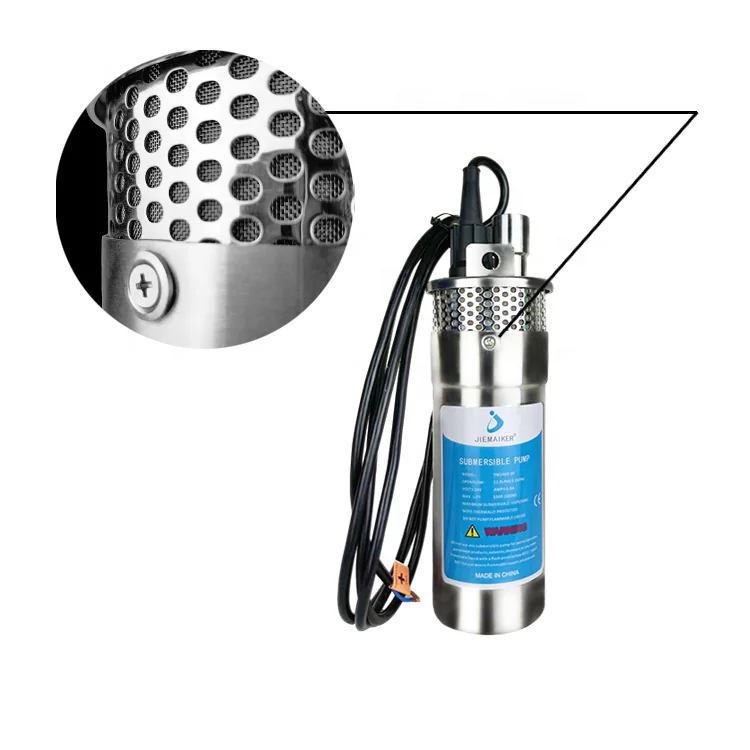

Inlet | 50 Mesh Stainless Steel screen | ||||||
Material | High Strength Engineered Plastics, Stainless Steel Fasteners | ||||||
Model | Volt | Flow rate | lift(m)
| Amps | Body cover
| Remark | |
YM2440-30 | 24V | 6.0LPM(360LPH) | 70 | 4.0A | Plastic body |
| |
YM1240-30 | 12V | 6.0LPM(360LPH) | 70 | 8.0A | Plastic body |
| |

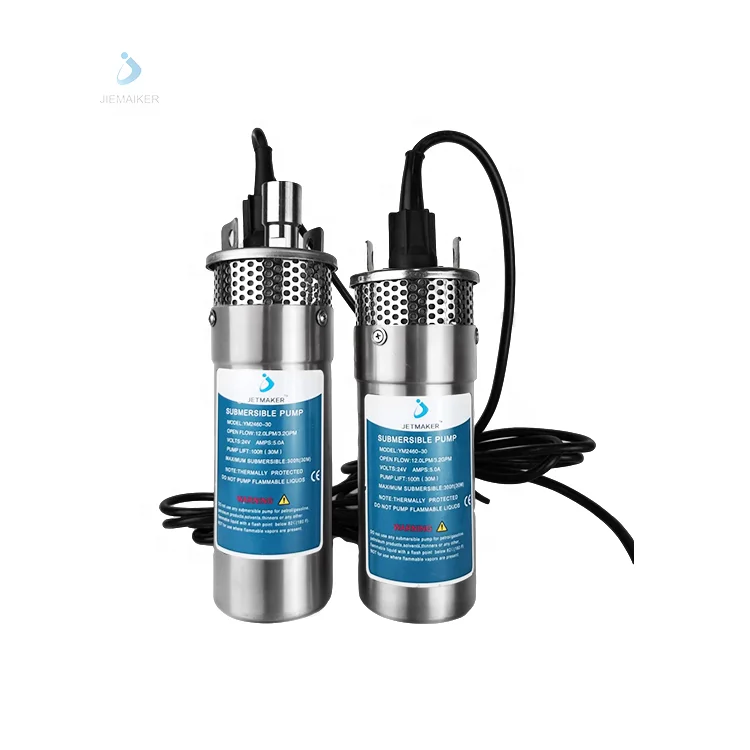

YM2460-30 | 24V | 12.0LPM(720LPH) | 100 | 5.0A | Stainless steel body | New arrived | |
YM1260-30 | 12V | 12.0LPM(720LPH) | 100 | 10.0A | Stainless steel body | New arrived | |
product show
| A | Life Plate |
| B | Cable Plug Kit |
| C | Valve Kit |
| D | Lower Housing Assembly Kit |
| E | Motor Kit |
| F | Canister Kit |
| G | Filter Screen Kit |
| H | O-ring Kit |
Application
*Drinking water supply
*Solar micro irrigation(small family's garden,Small rural areas or green roof system)
*Water supply for remote domestic usage
*Water supply for solar thermal installation
*Irrigation of fields and greenhouses
*Water supply for animals
*Pond management
*Game parks and game farms
*Livestock drinking water
*Irrigation
*pond water change
*remote home and small log cabin water supply
our company
Jetmaker (Xiamen) Liquid Equipment CO.LTD is established in 2017,which specializes in the development,production and selling of pump.The mainly product focuses on micro-precision pumps and valves,diaphragm pumps,solar pumps,bottled water dispenser etc.
Pumps widely have been used in home household appliances, food and beverage, medical equipment, industrial & agriculture, , solar water energy,environmental protection,measured analysis,printing and ink-jet ect.
The products accesses ISO 9001, CE,ROHS certification and are sold smoothly overseas market such as North America, Europe and Australia and so on.
Jetmaker own-brand on selling crossing the whole world, also offers high quality goods with the core of clients' demand and efficient service for OEM & ODM.
It has the premise of professional services,focused scientific research and improving enterprise culture to become a world class leading micro-pumps and valves businesses. It continuously devotes to more green and convenient products to work hard for human beings better life. LOOK MORE
Q1:Can I have a sample order for it?
A: Warmly welcome of sample order to test and check quality. Mixed samples are acceptable.
Q2:What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks, if bulk qty need about 20-25workdays.
Q3:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4:How to proceed an order?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements /our recommend model with suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: What's your payment terms?
A: T/T & L/C, small amount accept paypal. Big amount ok for 30% down payment & balance
against copy bill of loading.For more need, please just contact us and we will reply within 24hours on working days.
