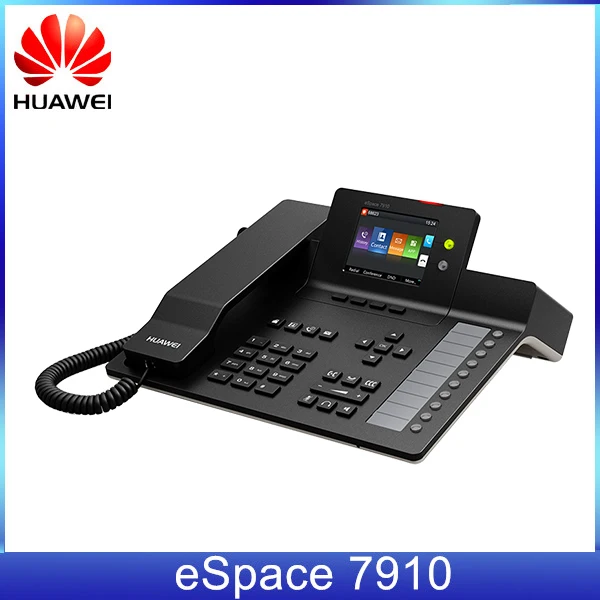

Huawei Wifi eSpace 7910 Series Wireless IP SIP Phone
- Category: >>>
- Supplier: Shanghai Kaifei International Trade Co. Ltd.
Share on (60717546411):
Product Overview
Description
Huawei Wifi eSpace 7910 Series Wireless IP SIP Phone
Product Description
Huawei IP Phone 7900 series are a new-generation of IP phones with superb performance. The innovative design is intuitive and easy-to-use, enabling users to benefit from highly efficient communications.
Incredibly thin design
Compared to traditional, clumsy IP phones, IP Phone 7900 series offer a neat and trendy experience with a sleek, state-of-the-art design.
Crystal-clear, full-band High-Definition (HD) audio performance
Based on deep insights into the science of acoustics, Huawei has created revolutionary audio technology to deliver exceptional voice quality.
Ergonomic design
Based on an in-depth analysis of user habits, Huawei has created an elegant, ergonomic design for the phone handset and adjustable phone base, giving users a comfortable feel and optimal view.
Gigabit Ethernet (GE) ports and color screen
Color-screen IP Phone 7900 series phones are equipped with GE ports and support the Opus full-band voice codec. These features support bandwidth-hungry services and make the IP Phone 7900 series the best choice for cost-effective IP phones for enterprises.
Consistent experience across terminals
IP Phone 7900 series phones use the same User Interface (UI) style as other Huawei Unified Communications (UC) terminals for a consistent, easy user experience
Features

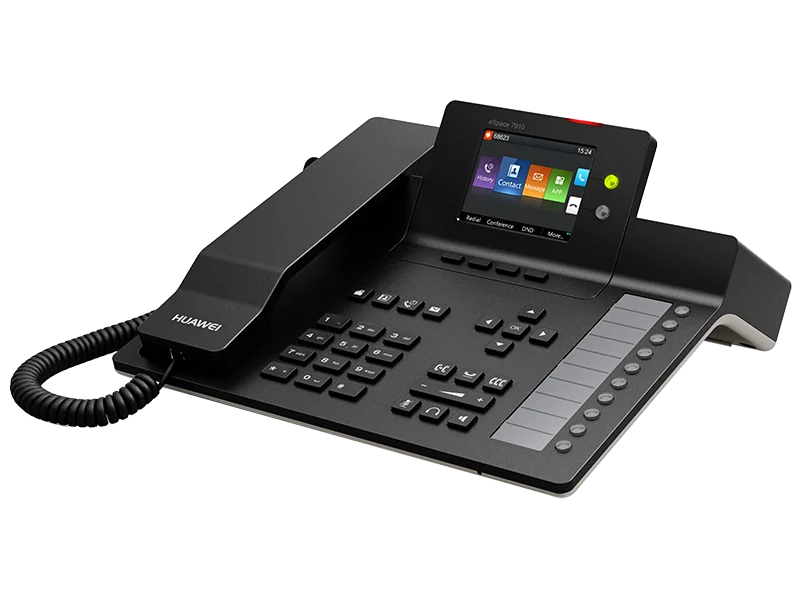

IP Phone 7910
The eSpace 7910 has a 2.83-inch color screen and supports three SIP accounts. Its Graphical User Interface (GUI) delivers a rich operating experience. It also provides a user-friendly Man-Machine Interface (MMI) and function-rich programmable buttons to deliver high-quality call services.
- Screen
- Color 2.83-inch screen with 320 x 240 pixels and 260k colors
- Buttons
- Two line buttons, with red and green, dual-color LEDs, support a maximum of 12 concurrent calls
- Ten programmable buttons with red and green, dual-color LEDs
- Four fixed function buttons with red LEDs, including speaker, headset, mute, and call history
- Seven fixed function buttons without LEDs, including home, message, volume, contacts, hold, conference, and transfer
- Four easy-to-operate soft keys activate options on the screen
- Five navigation buttons, including up, down, left, right, and OK
- Ports
- Two GE ports that support Power over Ethernet (PoE)
- One RJ-9 headset port
Voice and security
- Opus full-band voice codec with a sampling frequency as high as 48 kHz
- High-fidelity speaker, handset, and headset
- Comprehensive signaling and media stream encryption
Preferences
Ringtone
- 10 system ringtones
- Flexible ringtone selection
- Ringtone import
Wallpaper
- 12 system wallpapers
- Large wallpaper selection
- Wallpaper import
Management
Local configuration
LCD screen GUI for local phone management
Built-in Web server
Web configuration page for easy phone management
Huawei eSight
eSight is a unified Network Management System (NMS), providing a variety of IP phone management functions, including batch phone restart, centralized phone configuration, unified deployment, unified upgrade, log export, and centralized update of wallpapers and ringtones
Applications
- GUI
- Consistent user experience
- Man-machine interaction on the man-machine interface, with the assistance of soft keys
- Diversified functions and easy operations
- Local six-party conference
- Easy to hold and manage a local multi-party conference with up to six participants
- Powerful conference status display makes it easy to identify participants
- Convenient conference control
- Contacts
- Up to 1,000 contacts
- Contact group
- Contact information (including profile pictures) setting
- Lightweight Directory Access Protocol (LDAP) directory
- Efficient keyword-based search for enterprise contact information using the IP phone’s LCD screen
- Fuzzy search with multiple keywords
- Click-to-dial for searched contacts
- Synchronization with a corporate directory through LDAP
- Call history
- Up to 100 records for each dialed, received, and missed call
- LED indication for missed calls
- Detailed call information, such as the profile picture and call duration
- Direct dial from the call history
- Add numbers from the call history to the contacts list easily
- XML application
- Support for XML browsers
- Allows the use of third-party XML applications
Wide use in UC/CC/IMS solution
IP Phone 7900 series IP phones can be used in the Huawei UC solution to provide diversified functions, including corporate directory, linkage, and one-key switch. They also support multi-registration and server redundancy to help ensure high reliability.
In the Huawei Contact Center (CC) solution, IP Phone 7900 series works with the agent desktop to provide audio call services. IP Phone 7900 series can also be applied to the Huawei IP Multimedia Subsystem (IMS) solution to provide basic IP Telephony (IPT) services.
Expansion module

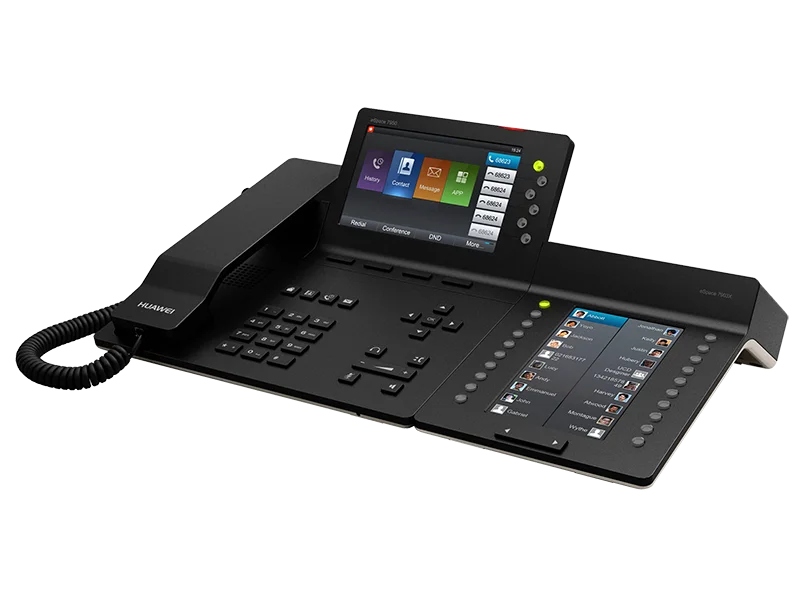

The 7903X expansion module (shown installed on an IP Phone 7950) works with IP Phone 7950 for capability expansion.

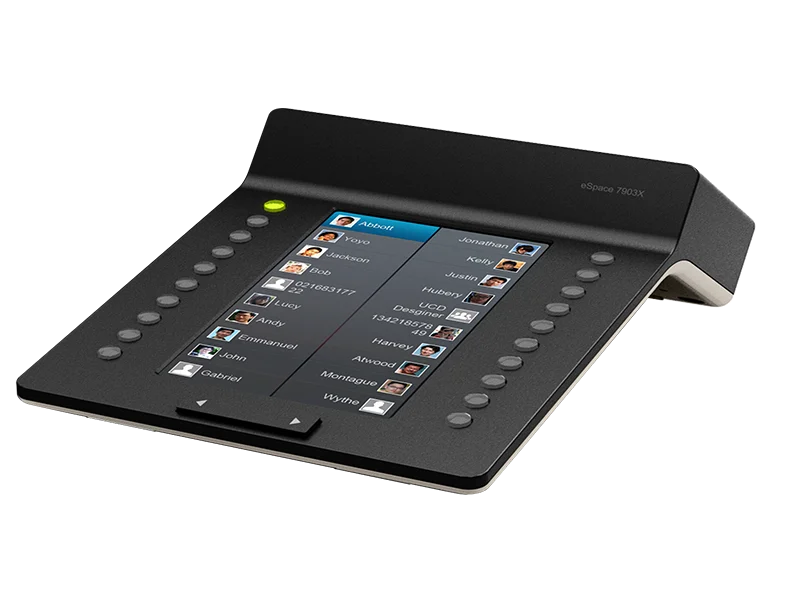

eSpace 7903X
- The Expansion Module 7903X is a multi-functional IP phone expansion module. A single Expansion Module 7903X-expanded IP Phone 7950 can provide additional 40 programmable buttons and optimize viewing through a 5-inch color LCD screen.
- True-color 5-inch screen with 480 x 800 pixels (high resolution), 16 million colors
- Twenty programmable buttons with dual-color red and green LEDs, signal different line states and provide several functions, including speed dial, Busy Lamp Field (BLF), contact group, XML application, phone lock, phone sleep, call forward, pickup, group pickup, call park, and Do-Not-Disturb (DND)
- Two page buttons with monochrome LEDs provide access to an additional 20 programmable buttons (for a total of 40 buttons)
- Several function icons display, including phone lock, phone sleep, XML application, and contact group
- Profile picture display for contacts
Product details
| Categories | Parameters | 7910 | 7950 |
|---|---|---|---|
| Protocols | Network protocols |
| |
| Phone Features | Multiple lines | 6 | 12 |
| Multiple accounts | 3 | 6 | |
| Audio codecs |
| ||
| Audio features | • Dual-tone Multiple Frequency (DTMF): Inband/RFC2833 • Anti-clipping (ACLP) • Acoustic Echo Cancelation (AEC) • Automatic Gain Control (AGC) • Adaptive Jitter Buffer (AJB) • Automatic Noise Restraint (ANR) • Comfort Noise Generation (CNG) • Hearing Aid Compatibility (HAC) • Packet Loss Concealment (PLC) • Voice Activity Detection (VAD) • Side Tone Cancelation • Voice Quality Monitor (VQM) • Buzz Cancelation | ||
| Call history | • Up to 100 records for each dialed, received, and missed call • Missed call notification | ||
| Contacts | • Up to 1,000 contacts • Contact query, import, and export | ||
| Languages | Display:
Input:
| ||
| Ringtone | • 10 system ringtones • Ringtone import | ||
| Wallpaper | • 12 system wallpapers • Wallpaper import capability | ||
| Local conference | • 6-party audio conference • Participant status display • Operations including adding, muting, and removing participants | ||
| Service Applications | Basic voice services |
| |
| Corporate directory | Contact query, direct dial, and adding contacts to the local address book | ||
| Name and department display | Peer party’s name, department, and phone number displays for incoming and outgoing calls | ||
| Profile picture display | Peer party’s profile picture displays for incoming and outgoing calls | ||
| Linkage | • Call control using Desktop Client • Status synchronization between Desktop Client and IP Phone 7910/7950 | ||
| Call recording | • Recording during audio calls • Recorded information saved on the server • Recording control (start or stop) on IP Phone 7910/7950 | ||
| Instant conference | Instant audio conference with the conference button | ||
| Group conference | Audio conference with participants in a contact group | ||
Specification
| Parameters | 7910 | 7950 |
|---|---|---|
| Screen | 2.83-inch, 320 x 240 pixels, 260,000 colors, color screen | 5-inch, 800 x 480 pixels, 16 million colors, color screen |
| LEDs | Line, Message Waiting Indicator (MWI), Mute, Speaker, Call History, Headset, and programmable button LEDs | |
| Angle Adjustment | 2 adjustable angles | |
| Buttons | • 2 line buttons • 5 navigation buttons (up, down, left, right, OK) • 10 programmable buttons • 4 soft keys • 4 fixed function buttons with LEDs (speaker, headset, mute, and call history) • 7 fixed function buttons without LEDs (home, message, volume, contacts, hold, conference, and transfer | • 6 line buttons • 5 navigation buttons (up, down, left, right, OK) • 4 soft keys • 4 fixed function buttons with LEDs (speaker, headset, mute, and call history) • 5 fixed function buttons without LEDs (home, message, volume, contacts, and forward |
| Ethernet Ports | 2 GE ports: 10/100/1,000 Mbit/s adaptive, support for VLAN configuration | |
| Handset Port | RJ-9 | |
| Headset Port | RJ-9 | RJ-9/USB |
| PoE | Class 1 | Class 2 |
| Power Adapter | Input: 100V to 240V AC Output: 5V DC, 2A | |
| Dimensions | 9 in. x 8.1 in. x 4 in (231 mm x 208 mm x 103 mm) | 8.5 in. x 8.1 in. x 4.8 in. (217 mm x 208 mm x 124 mm) |
| Power Consumption | About 3.84W | About 6.49W |
| Weight | About 1.8 lb. (0.85 kg) | About 1.9 lb. (0.9 kg) |
