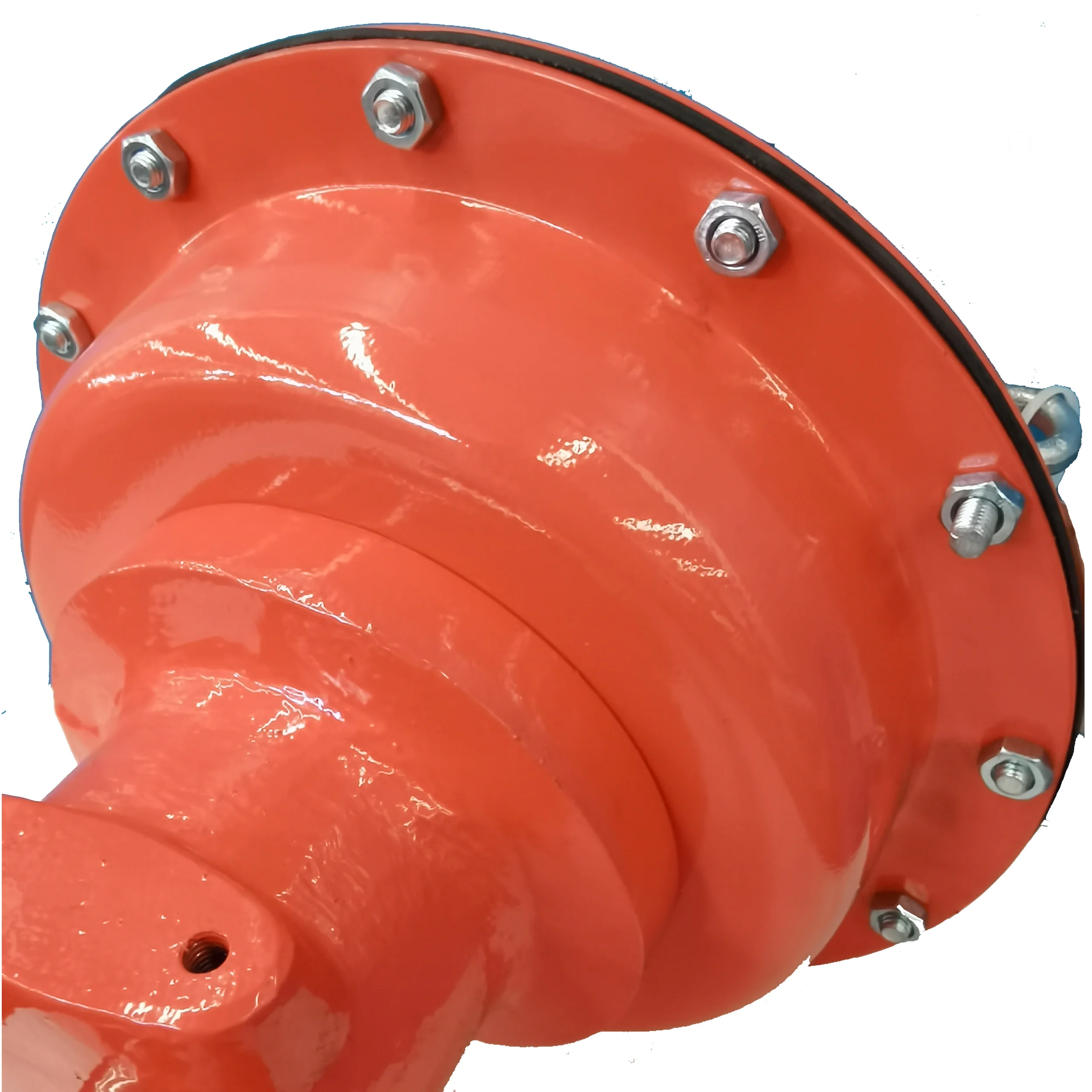

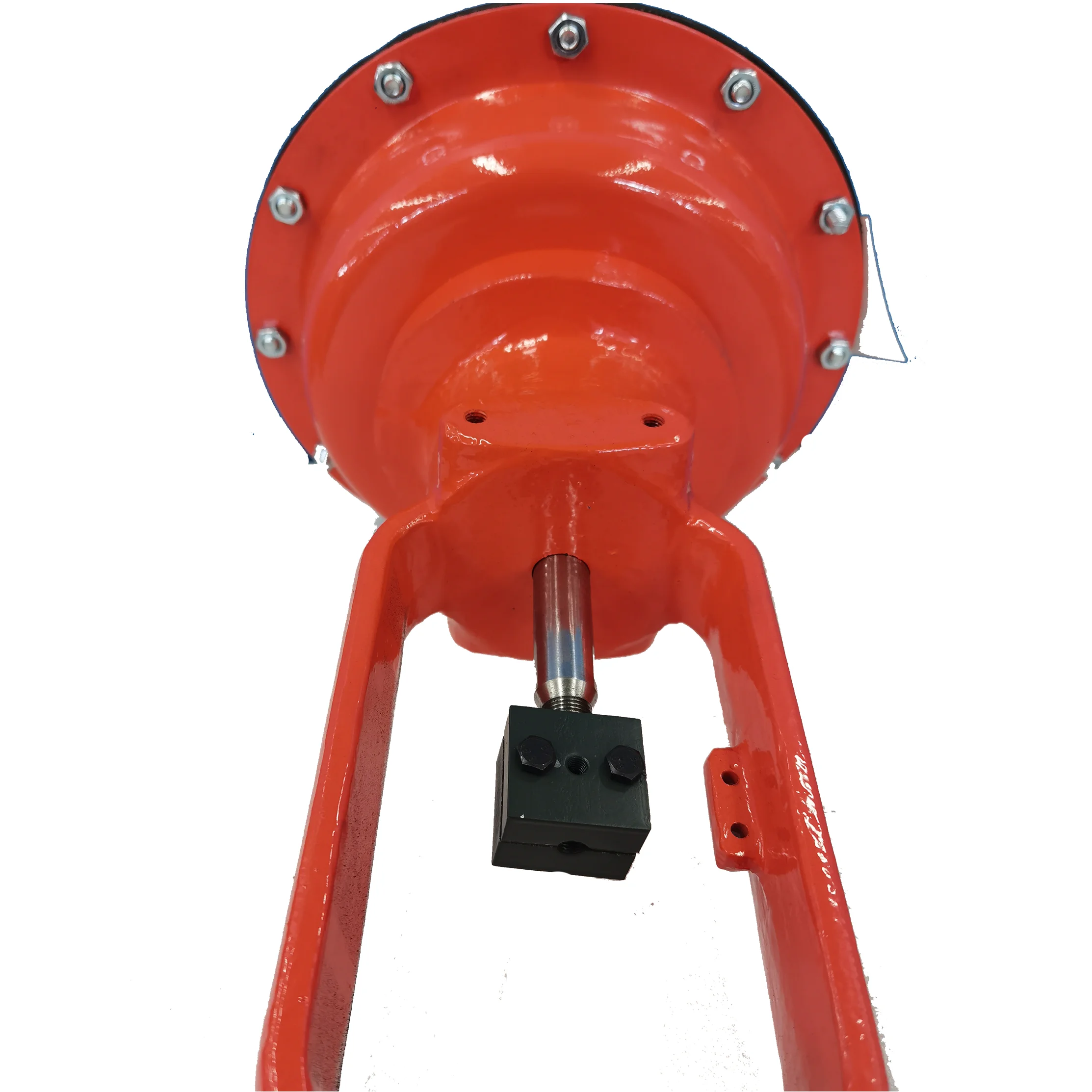

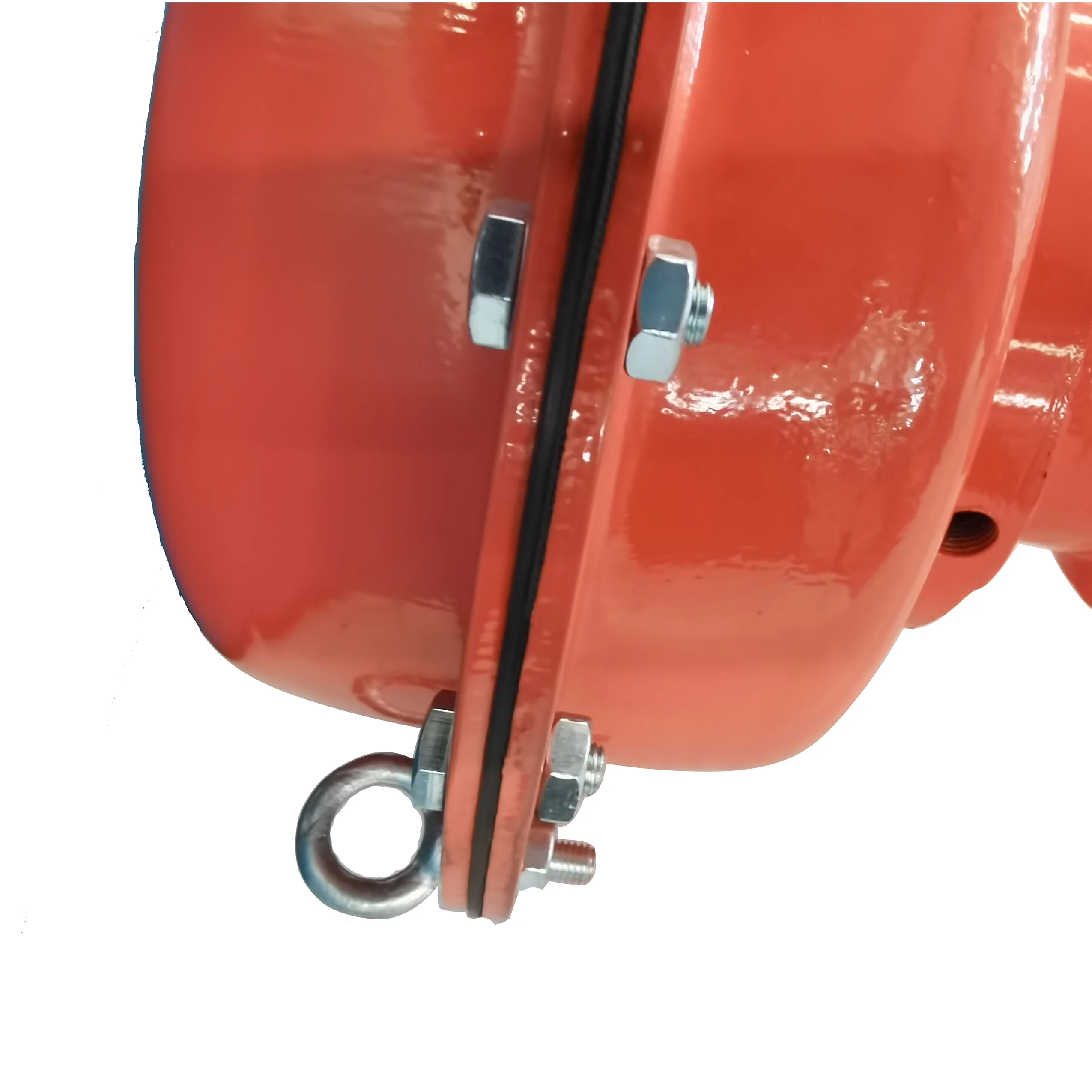

967/957 series single action double action Diaphragm pneumatic actuator
- Category: Valves >>>
- Supplier: Suzhou Delan Energy Science & Technology Co. Ltd.
Share on (60717566020):
Product Overview
Description
Application Desc.
This series is a kind of pneumatic diaphragm actuator of using multiple spring structure with light weight, small volume, big output power, and high performance of straight travel. The working principles are as follows. The pressure which is transformed from the signal of electricity or gas, adjusting the instrument, by locator is inputted to the film. The pressurere acts on mebrane and produces thrust, which makes output shaft move. At the same time, compress the spring until it balances with reacting force, which makes output shaft reaches the designated spot. Besides, location control can also be realized by gas signal acting directly on the mebrane.
This series of pneumatic film actuator is divided into two types, positive effects type and reaction type. The design of this actuator can make control valve switched and adjusted reliably.
Product Description
Series | 957,967 | |
Form | multi-spring structure | |
Models | 20,30,34,40,45,50,70 | |
Action | 1.positive action 2.reverse action | |
Maximum Thrust Output | see table 1 | |
Route | see table 2 | |
Supply Gas Pressure | 320Kpa | |
Spring Range | positive action:20~100Kpa,40~200Kpa reverse action:80~200Kpa,120~240Kpa | |
Environment Temperature | standard form:-40℃~82℃ special form(choose):-18℃~149℃,-54℃~149℃ | |
Major Parts Materials | Standard Form | membrane housings: steel film: chemigum film substrate: steel O-type ring: chemigum route sign: stainless steel pointer: stainless steel spring of actuator: steel guide rod of actuator: galvanized steel clamp block: galvanized steel holder: cast iron hand wheel: nodular cast iron |
Special Form | film: fluororubber (-18℃~149℃) silicone synthetic rubber (-54℃~149℃) O-type ring: silicone synthetic rubber guide rod of actuator: galvanized steel connecting bolt:galvanized steel | |
Coating color | orange | |
Attachment | locator, air filter depressurizer, limit switch, solenoid valve, lock up valve, amplifier, etc | |
Equipment Selection | manual operation mechanism, Special air piping and special air fittings, using with high temperature environment , using with low temperature environment, Salt corrosion prevention, designated coating color, etc. | |
Sheet 1 Maximum Output Thrust
Actuator Series | Compression Force Kpa | Spring range Kpa | Bleed Pressure Kpa | Maximum Output Thrust Kgf | ||||||
Actuator Specification | ||||||||||
20 | 30 | 34 | 40 | 45 | 50 | 70 | ||||
957 | 20 | 20~100 | 320 | 440 | 770 | 1232 | 1232 | 1980 | 1980 | 3080 |
40 | 40~200 | 240 | 420 | 672 | 672 | 1080 | 1080 | 1680 | ||
967 | 80 | 80~200 | 160 | 280 | 448 | 448 | 720 | 720 | 1120 | |
120 | 120~240 | 240 | 420 | 672 | 672 | 1080 | 1080 | - | ||
Sheet 2 The Active Area and Stroke of Diaphragm
Actuator Specification | 20 | 30 | 34 | 40 | 45 | 50 | 70 |
Shell Diameter(mm) | 240 | 280 | 340 | 340 | 470 | 470 | 560 |
Holder | 20 | 30 | 30 | 40 | 40 | 50 | 70 |
Active Area of Diaphragm (cm2 ) | 200 | 350 | 560 | 560 | 900 | 900 | 1400 |
Standard Stroke (mm) | 19 | 19 | 29 | 38 | 51 | 51 | 76 |
Lengthened Stroke(mm) | - | 29 | 38 | 51 | 76 | 76 | 102 |

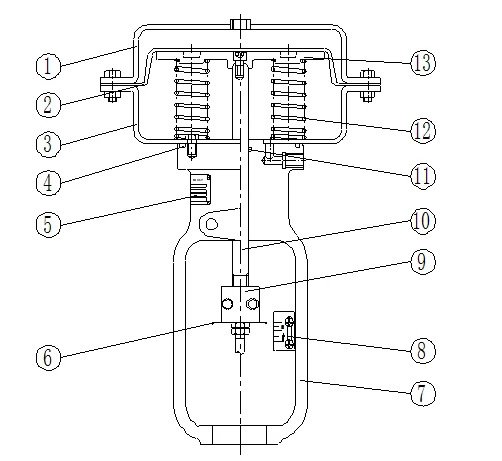

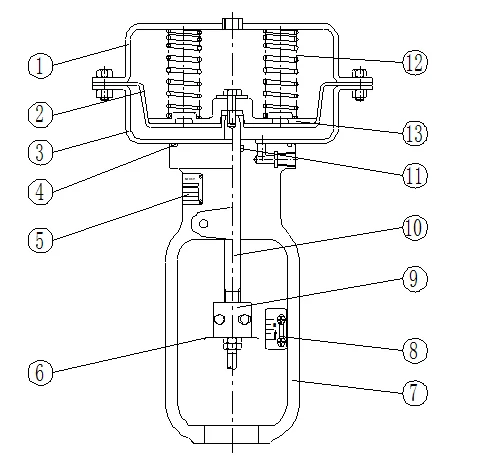

1 DIRECT ACTION (FAIL UP)
02 reverse action (Fail down)

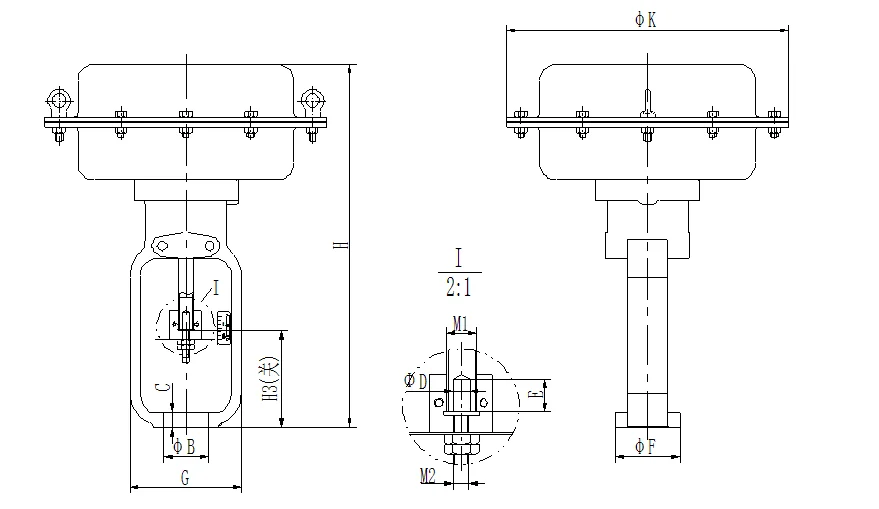

03 no handwheel

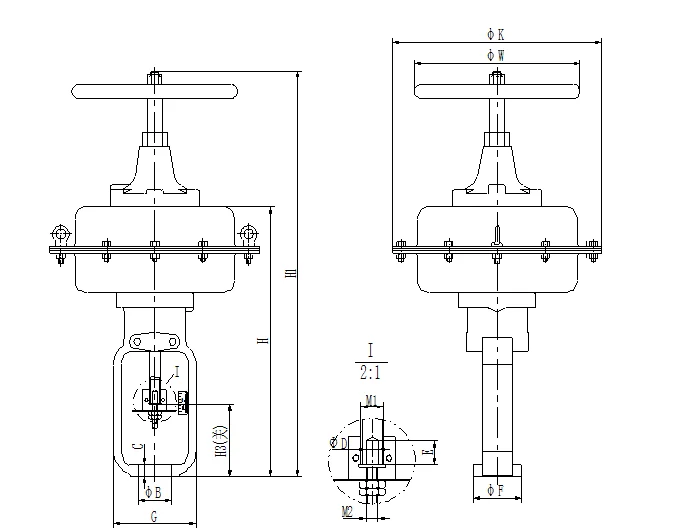

04 top handwheel

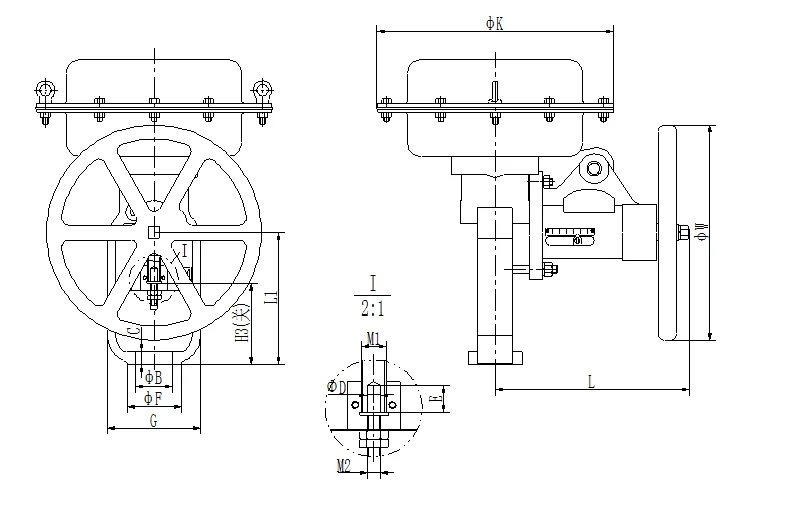

05 side handwheel
