Product Overview
Description
Product-GCL
Customized all size of Geosynthetics
Welcome to YINGFAN
Professional Geosynthetics manufacture

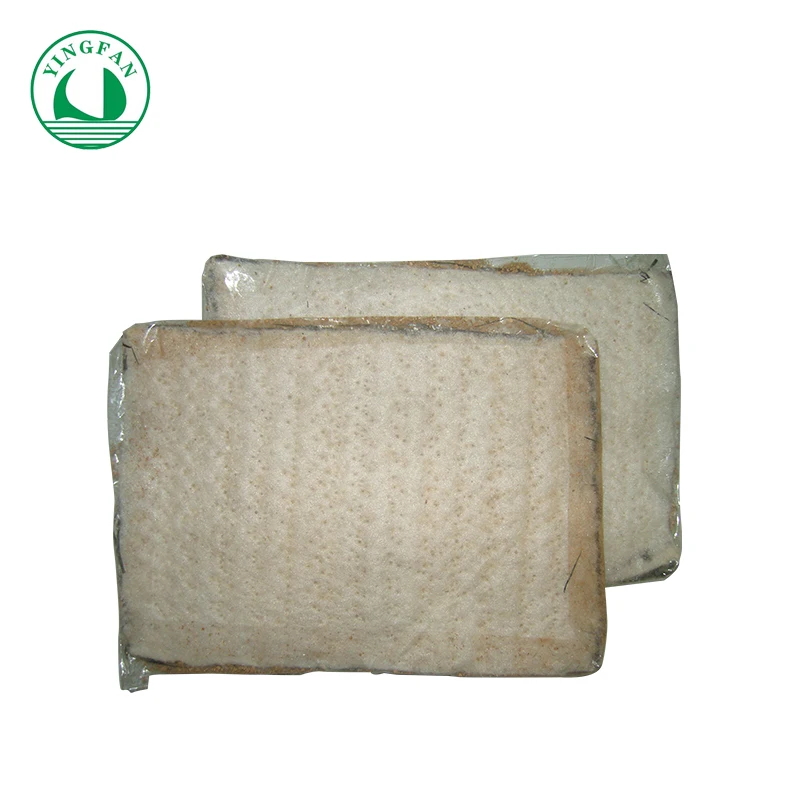

Description of Bentonite GCL
1 Bentonite GCL is self-attaching and self -sealing to concrete or other construction structures.

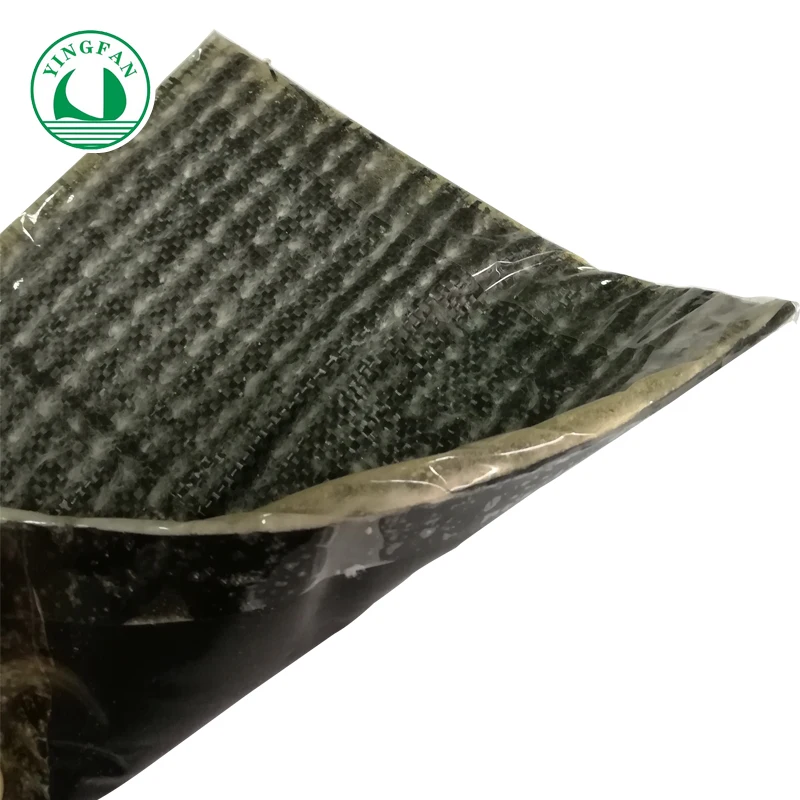

2 It is made of a non-woven geotextile, a natural sodic bentonite layer, with or without a pe geomembrane layer, and a polypropylene sheet.
3 These layers are connected with a dense felter that makes the bentonite a self-confinement with controlled expansion. With this system it is possible to avoid slippage and the accumulation of bentonite as a consequence of cuts, tears, vertical applications and movements.
What is the type of GCL-OF: The upper layer is woven geotextile, the bottom layer is membrane, the middle layers are the natural sodium bentonite clay and nonwoven geotextile.
Manufacturers wide varieties products gcl geosynthetic clay liner
Benifits of GCL:
Good Self Water-Retention Property:
Form high density diaphragm under hydraulic pressure, the water permeable capability
equals to 100 times density degree of 30cm clay when the thickness of GCL is 3mm. It
has very good self water-retention property.
Permanent Water Proofing Capability:
GCL is nature inorganic material, it won't aging or corrode even after long
time or surrounding changed, so it has permanent water proofing capability.
Environment-friendly:
GCL is nature inorganic material, which is non-poisonous and harmless to human body, as a result, it is eco-products.
Technical Specification:
| Property | Unit | Values |
| SPECIFICATION | GCL4800 | |
| Geotextile layers | ||
| Geotextile of cover layer (non-woven geotextile) | g/m2 | 200 |
| Geotextile of carrier layer (woven geotextile,PP) | g/m2 | 110 |
| HDPE layer | ||
| HDPE geomembrane | mm | 0.2 |
| Bentonite layer | ||
| Type | - | Sodium bentonite |
| Mass per unit area | g/m2 | ≥4500 |
| Swell index | ml/2g | ≥24 |
| Fluid Loss | ml | ≤18 |
| Geosynthetic Clay Liner | ||
| Mass per unit area | g/m2 | ≥4800 |
| Tensile strength | N/100mm | ≥700 |
| Elongation at break | % | ≥10 |
| Peel strength (nowoven geotextile-woven geotextile) | N/100mm | ≥40 |
| Peel strength (nowoven geotextile-PE film) | N/100mm | ≥30 |
| Permeability | m/s | ≤5.0×10-11 |
Forms/Sizes Available:
Unit weight: 4500g/m2, 4800g/m2, 5000g/m2, 5500g/m2, 6000g/m2 or customerized
Width: 3m-6m or customerized
Length: 10m, 20m, 30m, 40m, or customerized

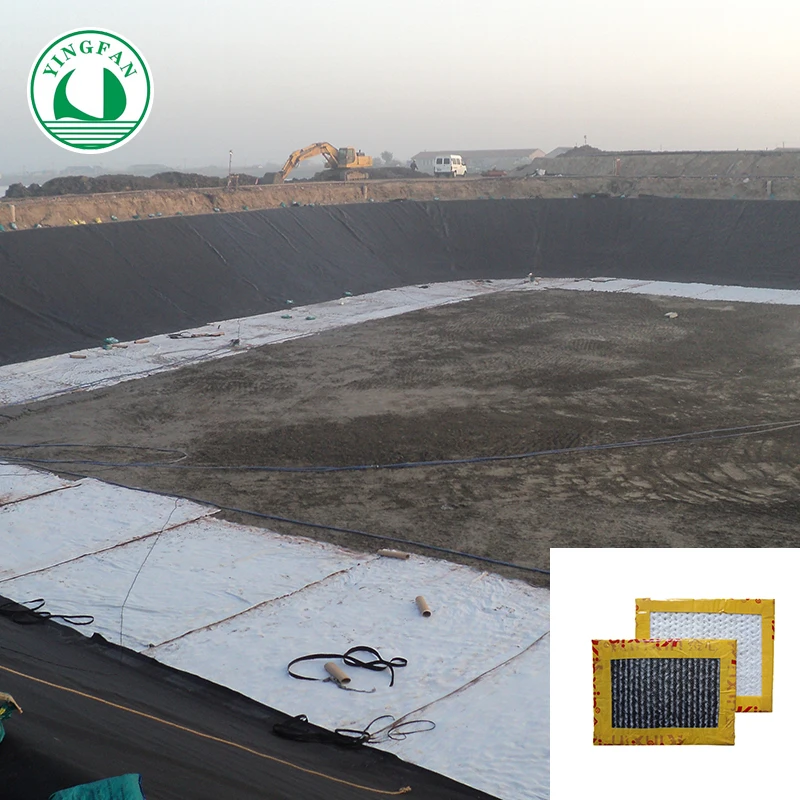

Bentonite Geosynthetic Clay Liner GCL Applications:
1 Water storage, miniature reservoir, dam, irrigation channel, pond, etc.
2 Construction floor, roof garden, basement, etc.
3 Light industry, oil and metallurgy, etc.
4 Landfill
5 Artificial lake, landscape pool, etc.
6 Subway, railway, expressway, tunnel, airport, road, bridge, etc.
Bentonite Geosynthetic Clay Liner GCL Manufacture

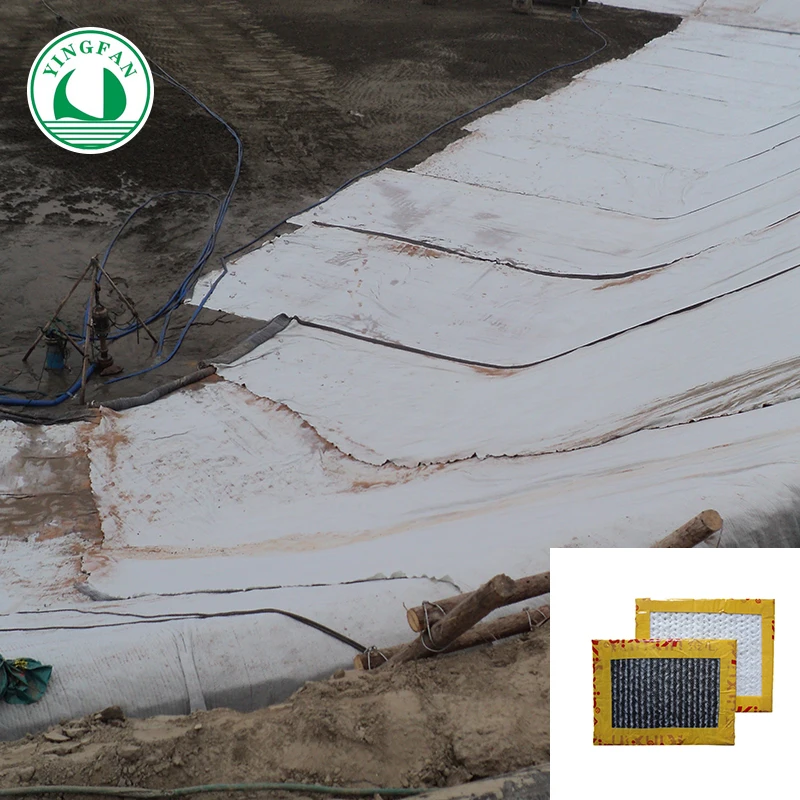

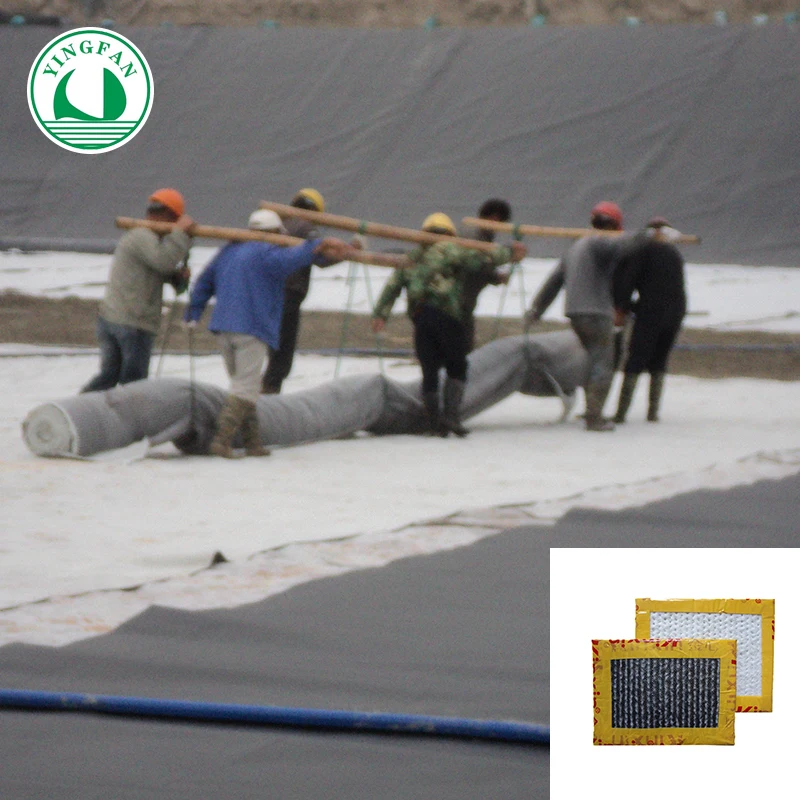

Installation Process Flow of Bentonite Geosynthetic Clay Liner GCL
