Измельчитель сахарного тростника/Измельчитель сахарного тростника

Product Overview

Description

Sugar factory equipment Sugar cane shredder / sugarcane grinding machine

Introduction of sugarcane juicer machine

This sugarcane juicer machine is based on the numerous times of researches and well designed new technology. Main parts of the sugar cane juicer machine are made of stainless steel. The sugarcane juice machine have the advantages of good appearance, easy operation, low cost, high output.Our machines are suit to market and beverage manufacturers to use. It is easy to operate and you never need invest much. The profit is worthy to do this business. Can be used to extract sugarcane, ginger, apple, corn stalk and so on
Sugarcane dregs and corn stalk can be recycled to make sugarcane board which is sound and heat proof. This sugarcane board is light and economical and is the excellent construction material as well as being paper-making material.
Operation And Maintenance of sugarcane juicer machine
1. Timely cleaning, maintain clean sanitation
2. Machine should be placed smoothly
3. Add the lubricating oil on bearing and gear.
4. If the machine stops suddenly when using, firstly cut down the power, then check the machine and its circuits to see whether something is wrong.
If there is not something wrong with the machine,Please check whether the overload protection device trip.If it is tripping please overload protection device reset

Parameters of sugacane juicer machine

Model NO.	Capacity	Voltage	Power	Dimension	Weight
QT-1T	1 ton/h	380V/50HZ	4-5.5 kw	760*600*550 mm	350 kg
QT-2T	2 ton/h	380V/50HZ	5.5-7.5 kw	1360*450*1340 mm	600 kg
QT-3T	3 ton/h	380V/50HZ	7.5-11 kw	1660*550*1840 mm	760 kg
QT-5T	5 ton/h	380V/50HZ	11-15 kw	1760*650*1940 mm	1100 kg

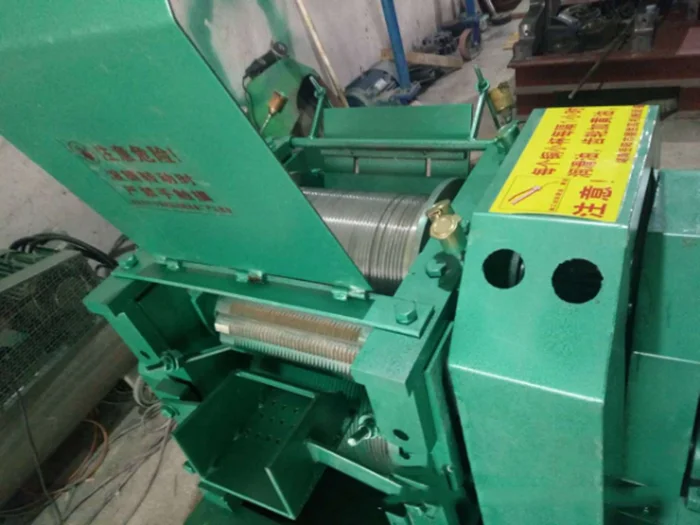

Pictures of sugacane juicer machine

sugarcane juicer machine

sugarcane juicer machine

commercial sugarcane juice machine

large capacity sugarcane juicer

sugar cane crusher
