Ø Adopt advanced digital signal processing control replaced
traditional analog signal control, better stability.
Ø Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
Ø Detecting Zones: 6 .12.18 detecting zones.
Ø Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt.
Ø Sound Alarm: 1-25s alarm time, 255 different sound volume for choose
Ø LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
Ø 2 set of Password protection
Ø Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
Ø Automatically count passengers and alarm times
Ø Microprocessor control on top unit, anti-interference and self-diagnose transmission channel to avoid internal and external interference.
Ø Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction.
Ø For option : Battery backup, 2-8 hours for option
Ø For option : Network support
Ø For option:Turnstile control function
Ø Tunnel width can be up to 75-80cm ( For option )
Ø Passenger count for Forward, Reverse, subtract (For option)
Application
Subway,Railway,Bus Station,Electronic Factory,Post Office,Government Buildings,exhibition hall ,Embassy,Police office,Court,Prisons and jails,High-end occasion,Military Bases,Hospitals,Banks,Financial Institutions,Colleges and Schools,Hotels and Casinos,Power plants,Research Sites,Sports Stadiums,Public Transportation,Warehouses,Broadcast Studios,Museums,Night Clubs,secret Meetings and VIP member Security,Gymnasium,Commercial buildings,Ships,Security checkpoints,athletic meeting,office building,TV Station
Specification
Model Number
XYT2101S
Door External Size
2230mm(H)X835mm(W)X580mm
Door Internal Size
1990mm(H)X700mm(W)X500mm
Packing type
Carton box
Net weight
65KG
Gross weight
70KG
Detection zones
6 / 12 / 18 zones
Working voltage
AC90V~264V50/60Hz
Power consumption
15 W
Each zone sensitivity
0-255 Level
Security level
0-255 Level
Working frequency range
4 K- 8K
Relative Humidity
0 – 95 %
Working environment temperature
-20ºC~65ºC

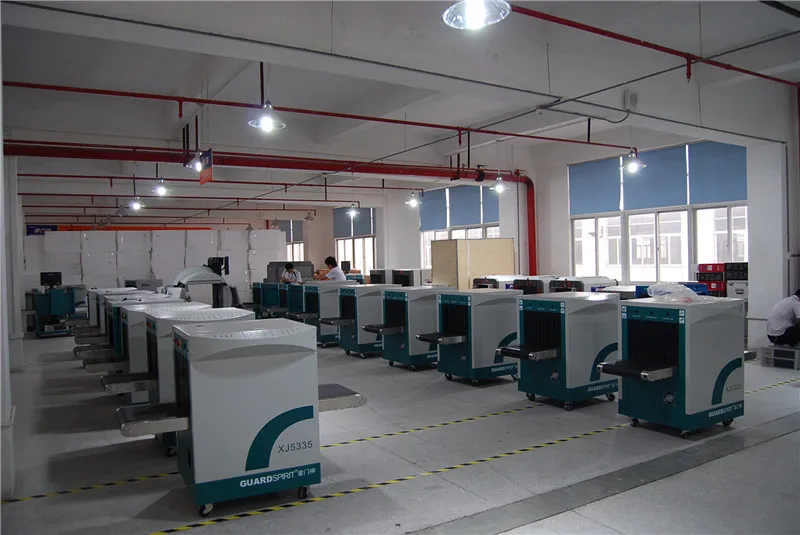

Company Show
Company Information
Shenzhen Xinyuantong Electronics Co., Ltd., was established in 2000 (16 years experience ) and lies in Bantian of Shenzhen, with the register capital of RMB31, 500, 000, have the factory of 3320 square meter. In 2013 our brand GUARD SPIRIT become China Well-known Trade mark based on our good quality product. We get 28 patent including the technology and the outlook.
Our products are included Walk through metal detector, Hand-held Metal Detector, Under Vehicle Inspection System, X-ray baggage inspection scanner, Ground searching detector, our company is the biggest and earliest in the line of metal detector, also we are the cooperation partener of the 2008 Olympic Tianjin Gymnasium, Canton Fair from 95th to 106th and the 2010 Shanghai World Expo, Shenzhen Metro 2/5 line, Africa Union in Ethiopia and other big events, so welcome to our website www.xinyuantong.com and know more about our company.
Every year, we also take part in many professional exhibitions all of the world, like:
We also have professional Research and Development center and sales and service team, So we assist on reliable China manufacturer, Professional Negotiation, Good quality Product and Super Service.
Your trust, our pursuit, let us creat a more safety world together!
