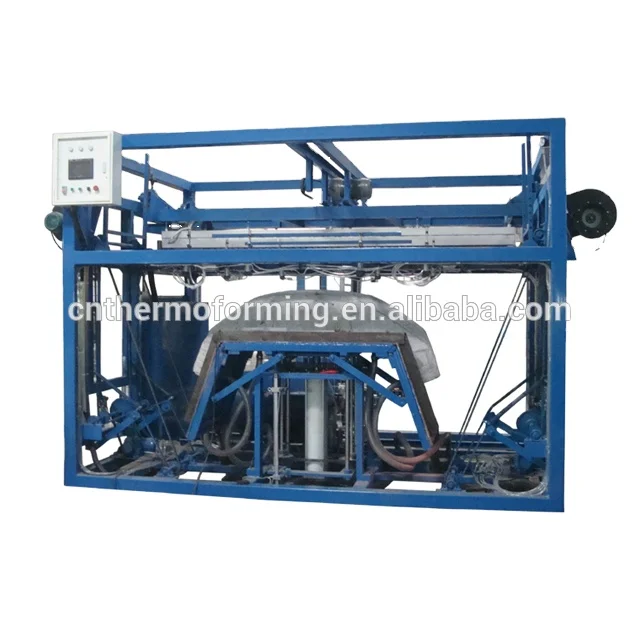

Вакуумная формовочная машина для толстых листов высокой мощности для автомобильных бамперов
- Category: >>>
- Supplier: Guangzhou Sme Plastic Corp.
Share on (60717673466):
Product Overview
Description

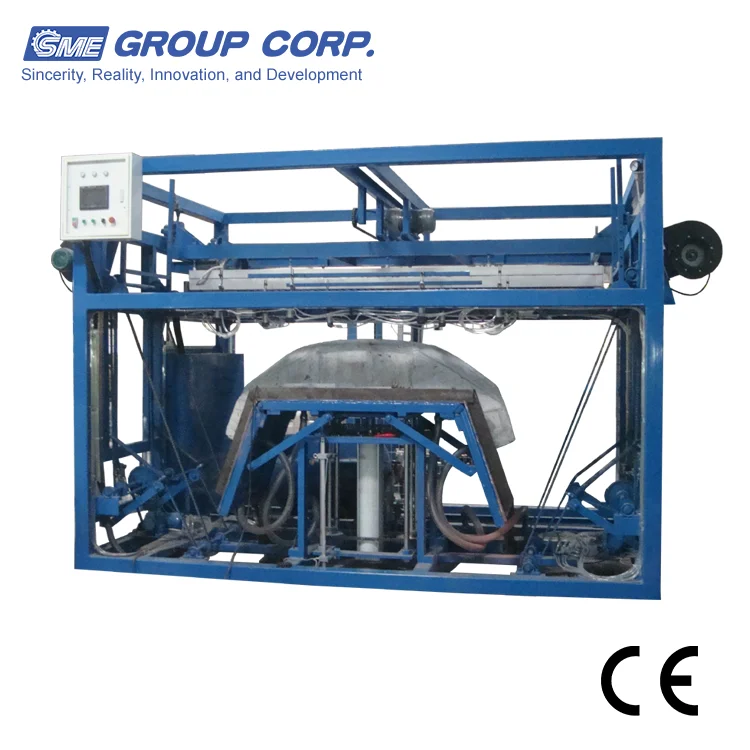

Thick sheet vacuum forming machine for car bumper
The machine is used in PS/PP/PET/ABS etc. vacuum forming
1)By relay under auto mode
2)High capacity
3)Environmentally friendly
Specification
1.Used vacuum forming instead of injection molding;
2.A new technology, the mould are made by FRP. Will be reduced the cost of moulds;
3.This is a special machine for car bumper forming;
4. The producing speed is fast than injection molding;
Technical Data TVF-2507CB
Model | TVF2507CB |
Forming length | 2500mm(Can be adjusted) |
Forming width | 650mm(Can be adjusted) |
Forming height | 800mm |
Forming Thickness | 2-8mm |
Color | As the client’s requirement |
Power supply | 380VAC/3phase/50HZ as the client’s requirement |
Power consumption | 30KW |
Heater consumption | 400W×72pcs |
Air pressure | 0.5-0.7Mpa |
Suggest air compressor | 15HP |
Vacuum pump | 100m3/H |
Machine size(L×W×H) | 3600*2400*2600mm(Fit into 40’ HQ) |
Machine weight | 3000KG |
PLC and touch screen: Taiwan
Infrared ceramic heater: "SME" China
Temperature control: "TCL" stepless fine-tuning China
AC contactor: "Schneider" France
Cold-water atomizer: "Prona" Taiwan
Cylinder: "Zhicheng" China or "Airtac" Taiwan
Solenoid pilot actuated valve: "Zhicheng" or "XMC" China
Air treatment component: "Zhicheng" or "XMC" China
Auxiliary equipment or component
Vacuum pump: “Becker” Germany
Industrial Chiller: "SME" China
Special Function
1. Twice vacuum function
2. Twice top die
3. Twice demould
4. Manual demould
5. Vacuum delay
6. Aerodynamic fine-tuning function
7. Sheet frame moving by the cylinder
8. Blow sheet in advance
9. Top die can be adjusted by the motor
10. Add the oleo damper reduce the sheet frame moving
Optional accessories list
1. Air compressor
2. air tank
QTY | 1(set) |
| ||
No. | Name | Unit | QTY | Remarks |
1 | Ceramic mosaic tile | Pcs | 10 |
|
2 | Solenoid for valve control | Pcs | 5 |
|
3 | Filter | Pcs | 1 |
|
4 | Anti-vibration mounting | Sets | 12 |
|
5 | Intermediate relay | Pcs | 3 |
|
6 | Temperature controller | Pcs | 5 |
|
7 | Ammeter | Pcs | 5 |
|
8 | Switch | Pcs | 3 |
|
9 | Coldwater Mould plate | Pcs | 2 | It is optional |
10 | Operation manual | Pcs | 1 |
|
11 | Operation CD | Pcs | 1 |
|
12 | Vacuum pump | Sets | 1 | "Rietschle" or"Busch" made in Germany |
Industrial Chiller | Sets | 1 | "SME" China |
Spare part list
Brand Name SME
Model Number TVF series
Application car parts
HS code:8477409000
Remarks: The price is non-including the mold cost.
