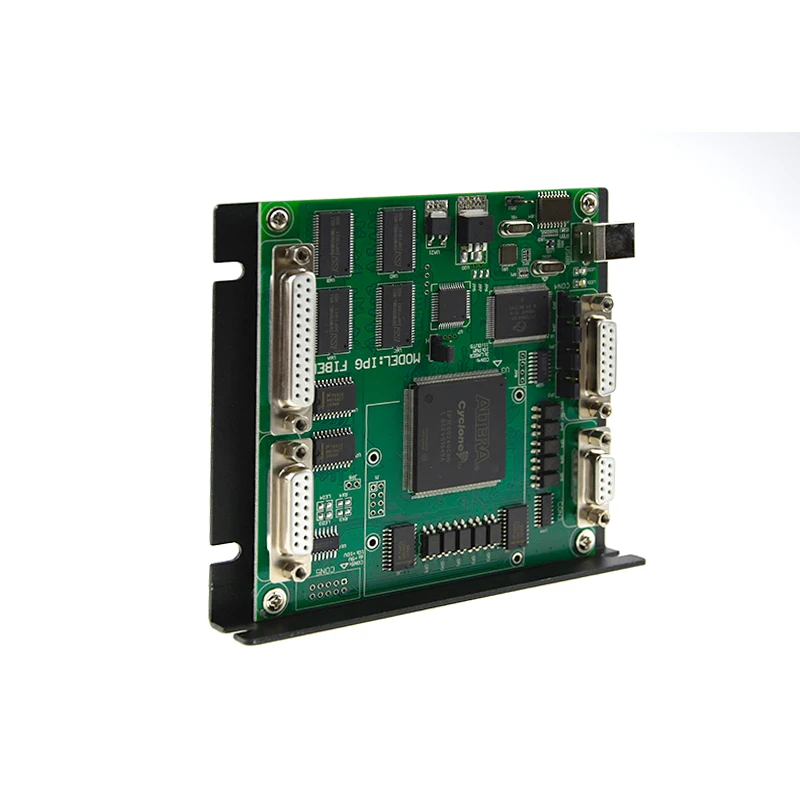

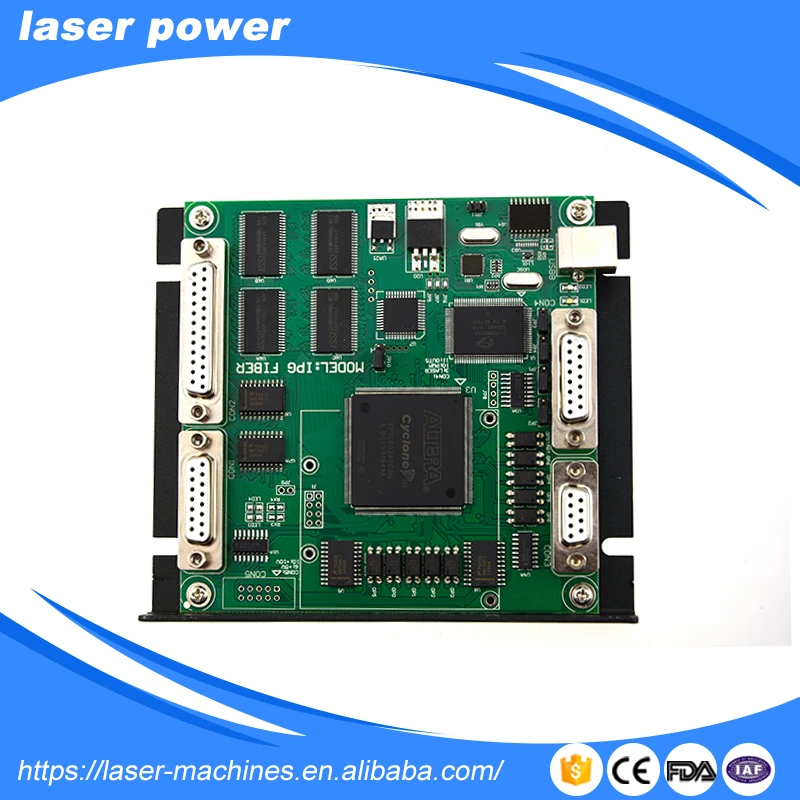

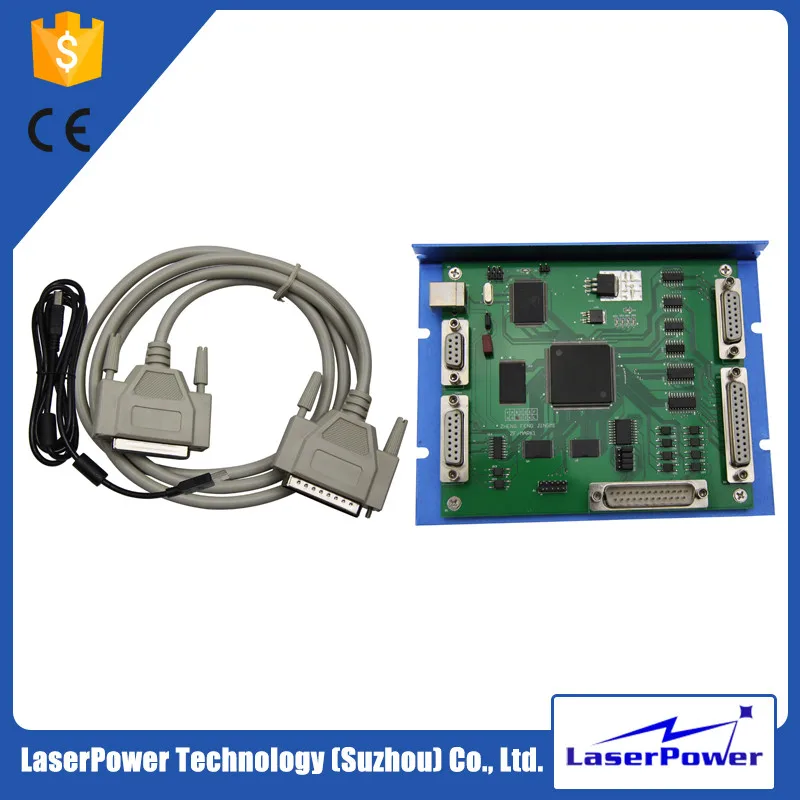

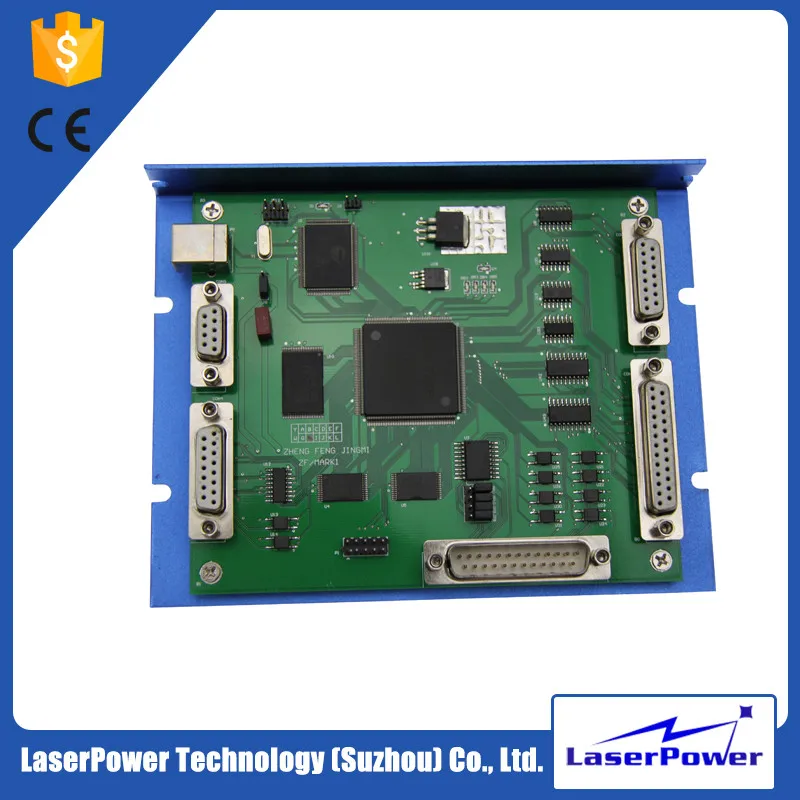

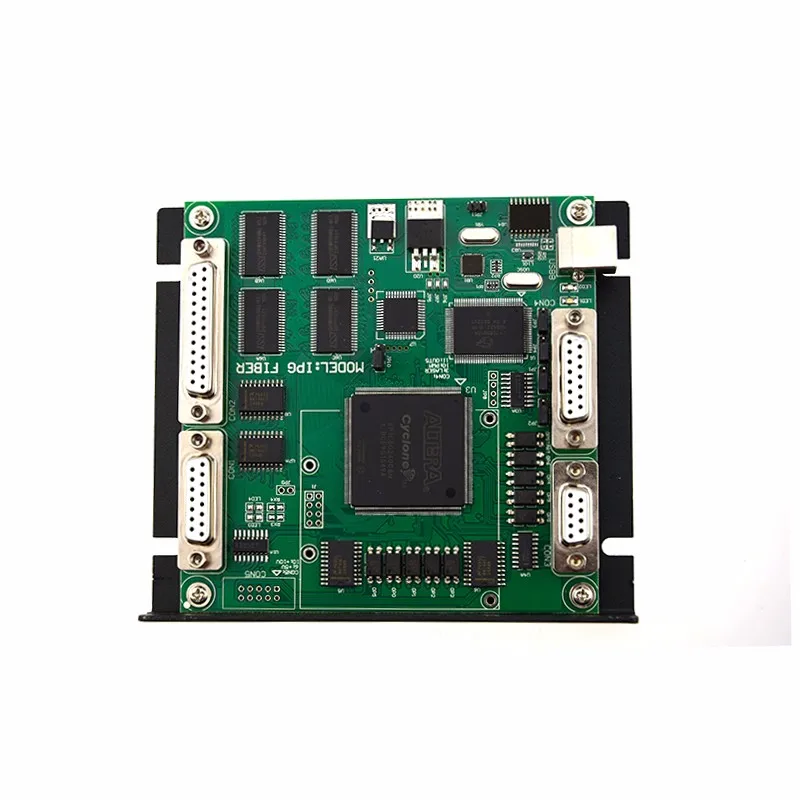

Laser Control Board EZCAD Control card for fiber and co2 laser marking

Product Application:

EzCad Card enables real-time control of scan system and lasers over a standard USB host interface. Customers can integrate complete machinery easily over the EzCad Card due to its compactness and I/O capabilities. Fast response times and short execution cycle times make the EzCad Card perfectly suitable for high performance applications. It can load marking file via a removable MMC memory card.

Specifications:

USB 2.0 micro controller on board:

128 Kbyte program and data memory

64 Kbyte SRAM for USB data buffering

Real-time calculation of laser and scanner signals

Online grid correction with 10 us cycle time

MMC memory card interface

Laser control:

Laser signals for YAG FIBER and CO2 laser types

opt coupler TTL Level /10 mA output current

2 x 8-bit analog channels with 2.5, 5, 10 V output range

1 x 8-bit TTL output port

Scanner control:

X, Y channel

XY2-100 digital interface



Response Times:

The card can response external trigger with in 12ms

External trigger delay can be adjusted


I/O Port:

6 Input Port

6 Output Port


Power:

+5V/1.5A or +12/0.6A
